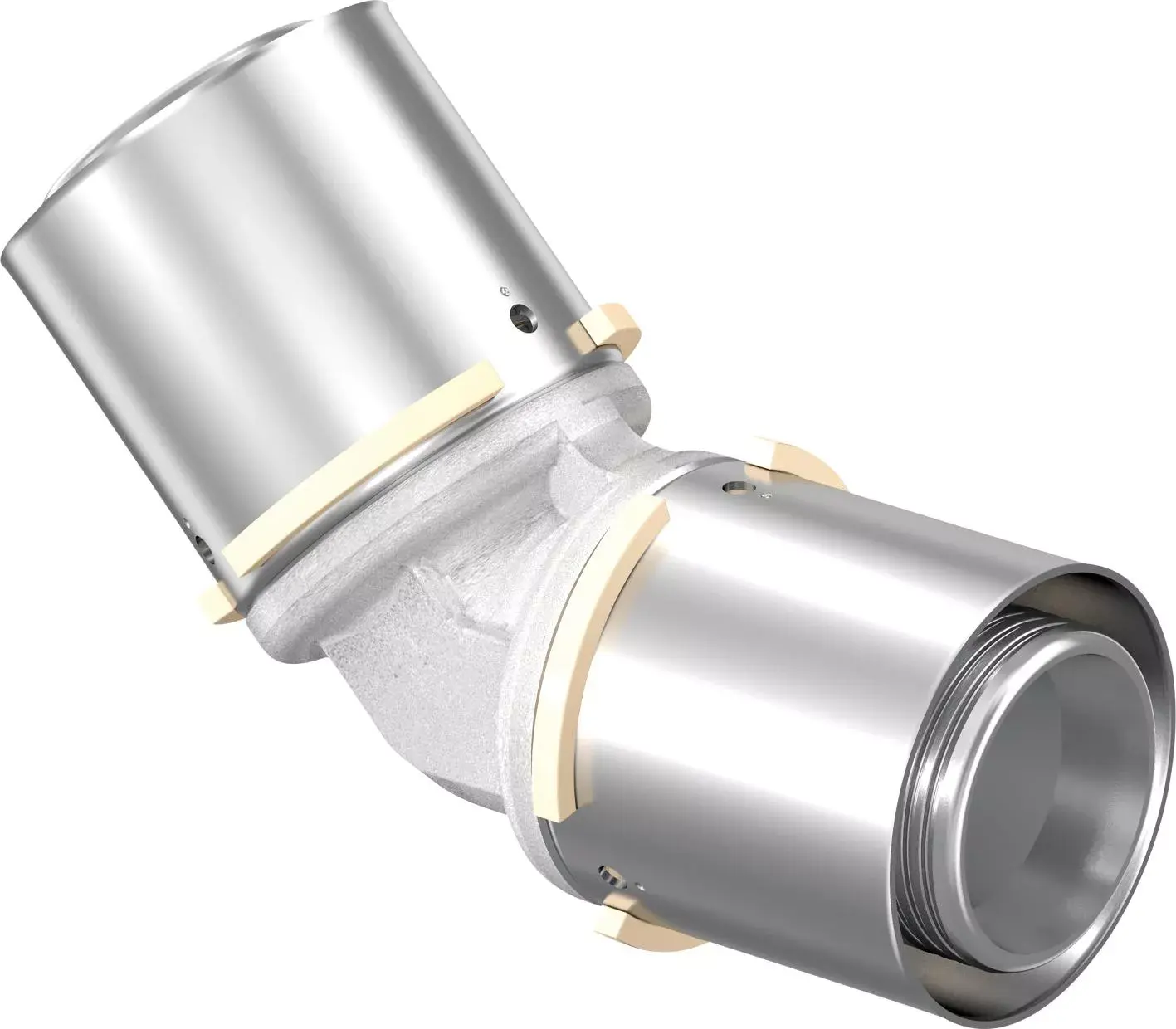

Uponor S-Press elbow 45°
- Made of tin-plated brass - Fast installation with easy bevel and without need for calibration - Inspection windows on press sleeve - Colour code
Item details
Documents
Technical manuals
Approval Certificate
Environmental Product Declaration (EPD)
Installation Report MLC leak test report TW water (1120119)
UPONOR CER S-PRESS SYS MECH WRAS 2101908 GB EN (1120771)
UPONOR CER MLC SYS MECH Lloyds Register 17-20013-2 GB EN (1089107)
About
Specification
- Tin-plated brass or PPSU - With fixed press sleeve - Stop ring - Colour code - Test safety - Male and female threads to BS EN 10226-1
Application
Tested/approved according to BS EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings for application class 1,2,4,5/10barDomestic water services: The permanent operating temperature from 20°C to 70°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 95°C for a period of 100 hours in the operating life time. Domestic cold water services : where the water temperature does not exceed 20°C at a maximum permanent operating pressure of 16bar.Heating: The permanent operating temperature ranges up to 80°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 100°C for a period of 100 hours in the operating life time.
Certification
UK Reg4 approval - WRAS or - KIWA To meet the requirements of the Water Supply (Water Fittings) Regulations 1999
