Uponor S-Press tap elbow
- Made of tin-plated brass - Contoured Aluminium-sleeve with inspection windows - Fast 3-step installation (press without bevel) - Colour coded breakway press indicator - For on wall installation or attachment with rotation protection to the Uponor Smart Aqua mounting angles and plates.
Item details
Documents
Technical manuals
Approval Certificate
Installation Report
116 B1120119
Installation Report MLC leak test report TW water (1120119)
Installation Report
127 B1120120
Installation Report MLC flushing protocol TW water (1120120)
Approval Certificate
277 B1119612
UPONOR CER MLC SYS MECH WRAS 2010907 GB EN (1119612)
Approval Certificate
409 B1013402
UPONOR SAMPLE MLC PIPE WHITE 32X3 LENGTH 30CM (1013402)
About
Specification
- Elbows for tap connection and - Q&E rings must be ordered separately unless detailed in the description
Application
- For tap water installations - Male and female threads acc.to BS EN 10226-1 (unless specified differently)
Product drawings

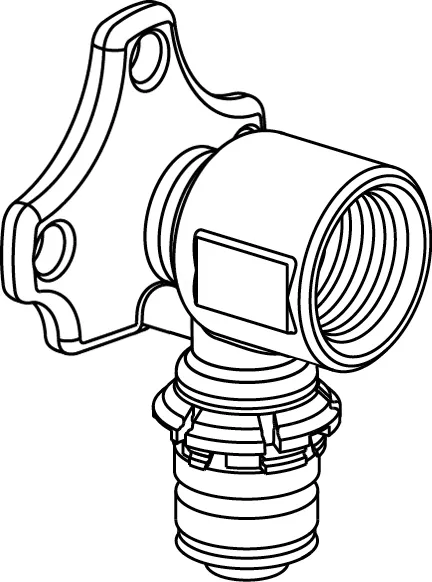

Label drawings

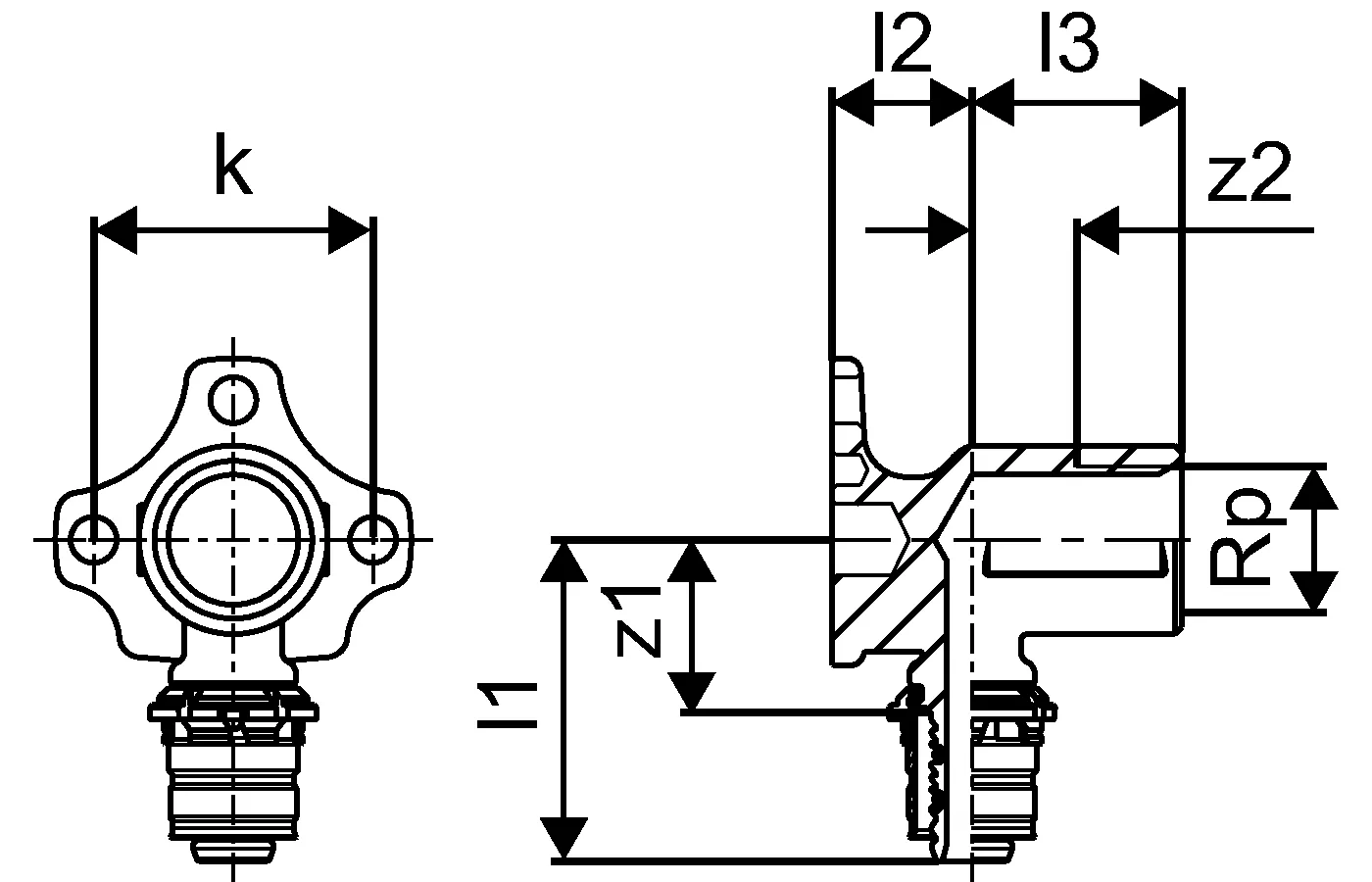

Z-drawing

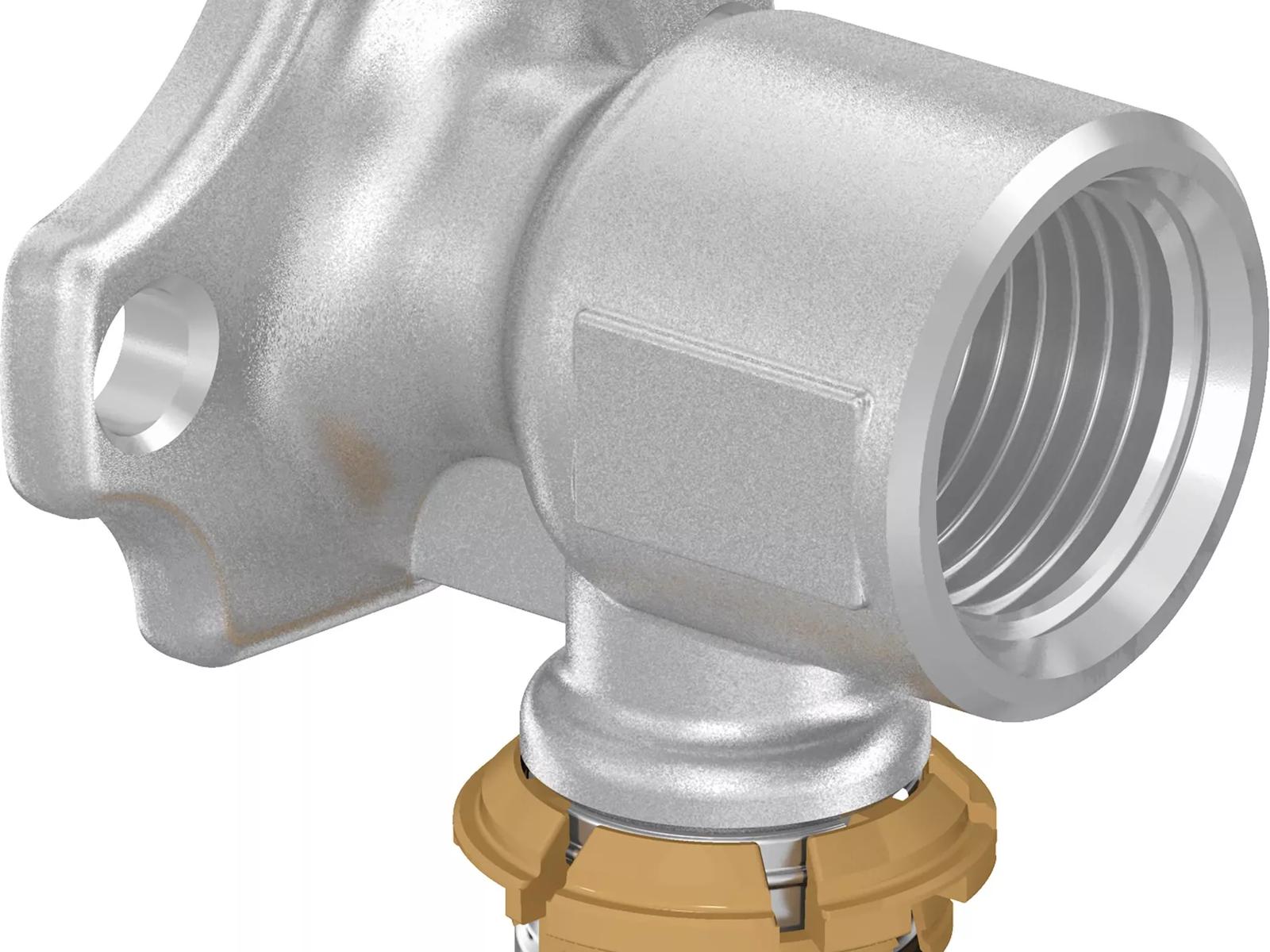

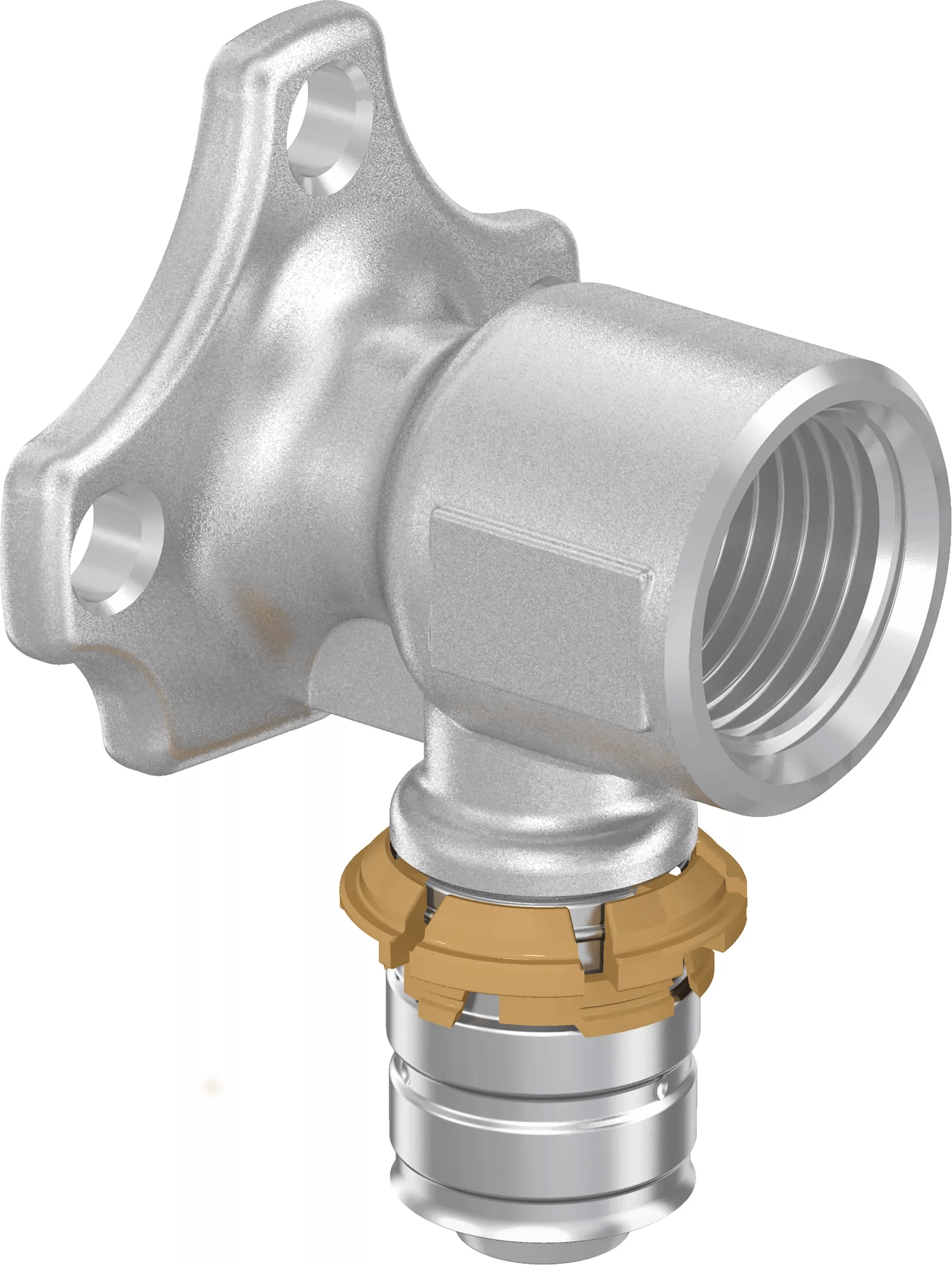

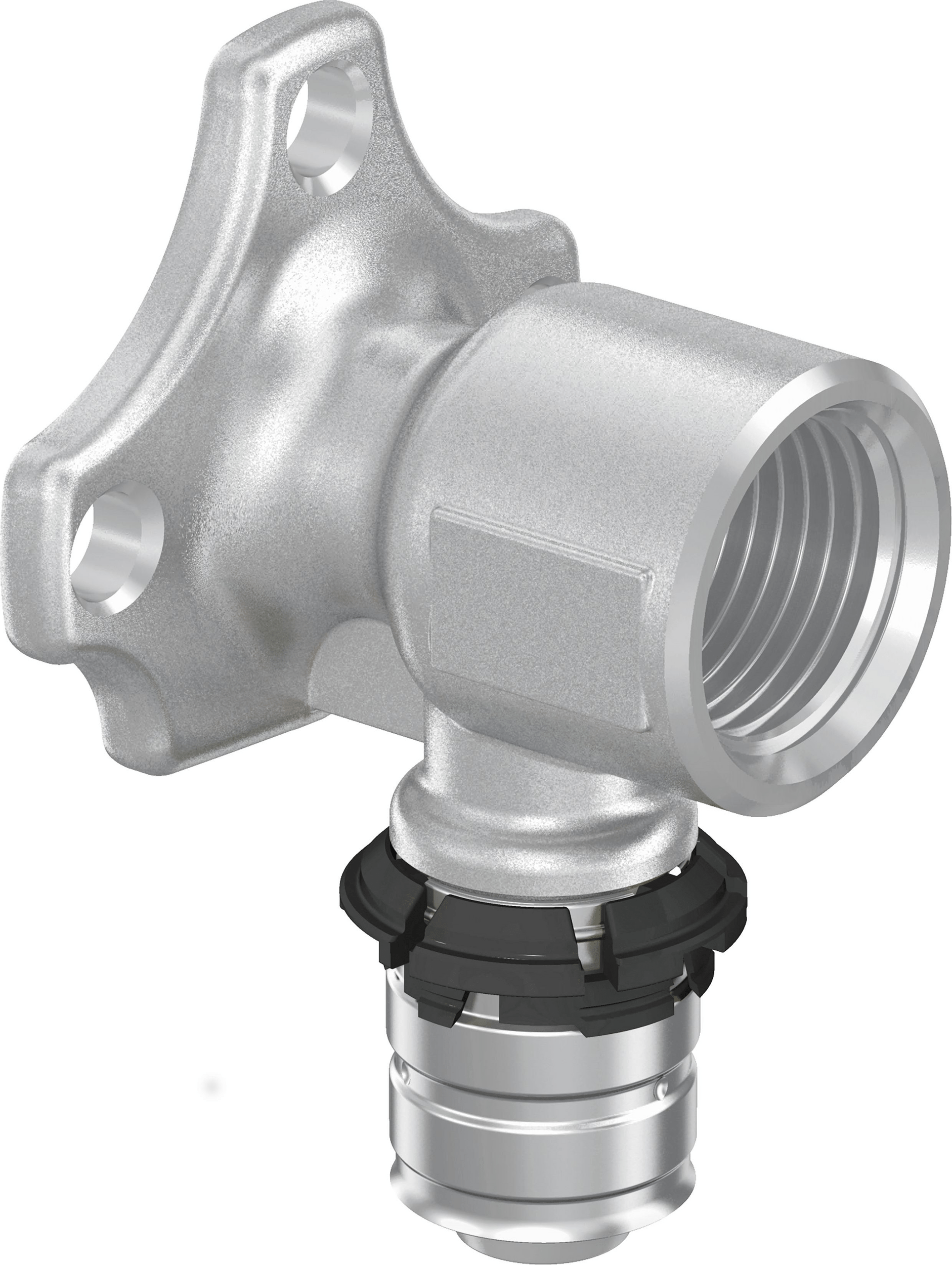

Rendered
