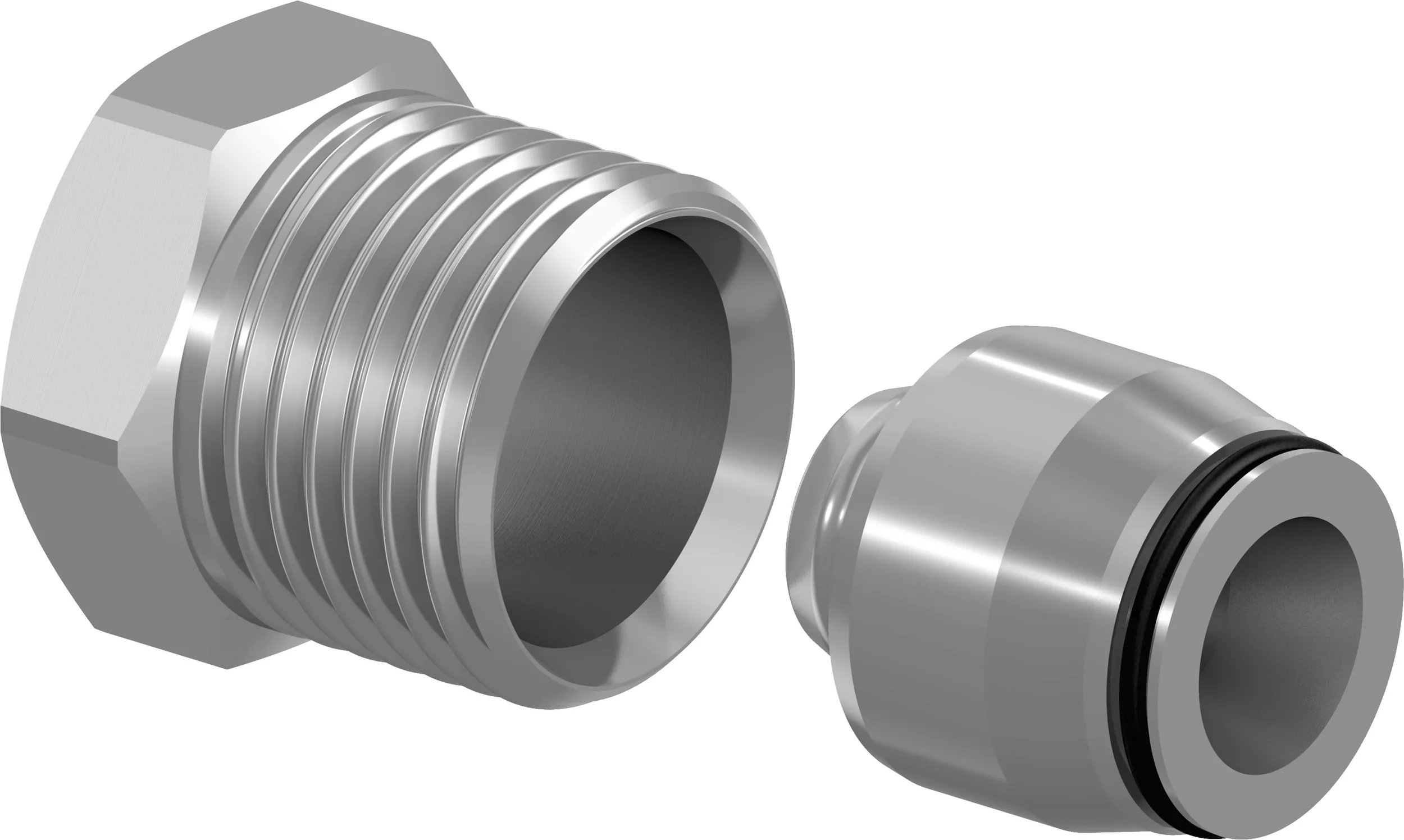

Uponor Smart Radi compr. connection set Oventrop

- Suitable for coated copper pipes (15 × 1 mm),
MLCP 16 × 2 mm, PE‑Xa and MLC connection lines
- Components made of tin‑plated brass, coated brass,
coated copper, polystyrene, and PP
- Compatible with S-Press, Q&E, clamp compression
adapters and Eurocone interfaces

If not different mentionned:
- Fire‑rated cover plates to BS EN 13501-1
(depending on model)
- Q&E rings must be ordered separately if not differently
mentioned

- Connecting radiators to Uponor MLCP or Uni Pipe PLUS
heating circuits
- Providing stable, aligned flow and return lines using
dedicated adapters and connection boxes
- Interfacing with radiator valves via system‑specific
compression sets (Danfoss, Heimeier, Oventrop)
- Protecting and guiding pipes at wall or floor penetrations
with cover plates and protective sleeves
