GF Malleable Fittings 241 - reducing bush, galvanized
- Reducing bush, ISO/EN N4- Forms I, II, III are available only as marked under column "Form", Form I can also be supplied - with continuous internal thread (=241D).- ST ... these types of fittings are made from steel (galvanised finish = electroplated) and not - suitable for drinking water installations.
Item details
1153823 / - / -
GF Malleable Fittings 241 - reducing bush, galvanized 2 - 1
1153830 / - / -
GF Malleable Fittings 241 - reducing bush, galvanized 3 - 1
1153833 / - / -
GF Malleable Fittings 241 - reducing bush, galvanized 3 - 2
1153835 / - / -
GF Malleable Fittings 241 - reducing bush, galvanized 4 - 2
1153837 / - / -
GF Malleable Fittings 241 - reducing bush, galvanized 4 - 3
About
Specification
- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5 to BS EN 1562, design symbol A - Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1 - Union or flat-nut thread types to BS EN 228-1 - Manufactured to BS EN 10242 (ISO 49) - Cast Iron is fire class A1 to BS EN 13501-1 (CWFT) acc. to Commission Decision 96/603/EC (as amended) - Natural Black or Galvanized (99.995 zinc) - Coated with medical-grade oil for corrosion protection - Suitable for systems covered by the Pressure Equipment Safety Regulation:2016 - Max. pressure 25 bar up to 120 degrees, between 120-300 degrees use interpolated values, Max. 20bar at 300 degrees - Sizes from ¼" to 4"
Application
- Heating - LTHW, MTHW and HTHW - Steam - Chilled water and cooling applications - Compressed air - Fuel gases - Fuel oils - Fire defence / sprinklers
Product drawings

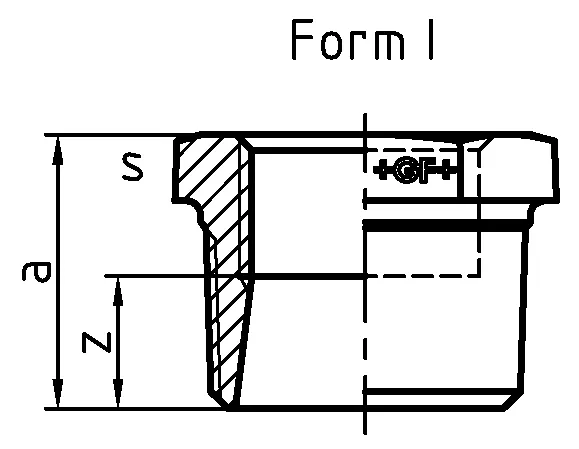

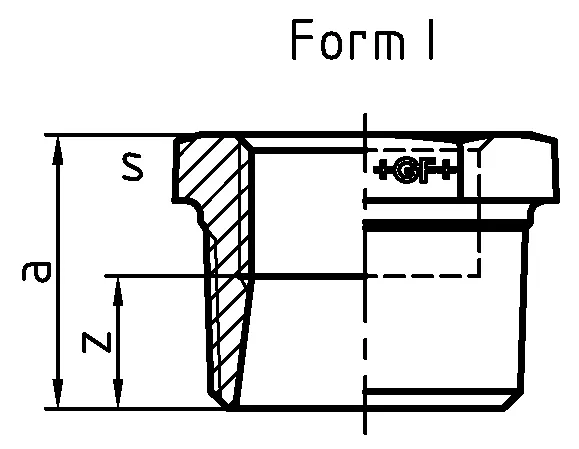

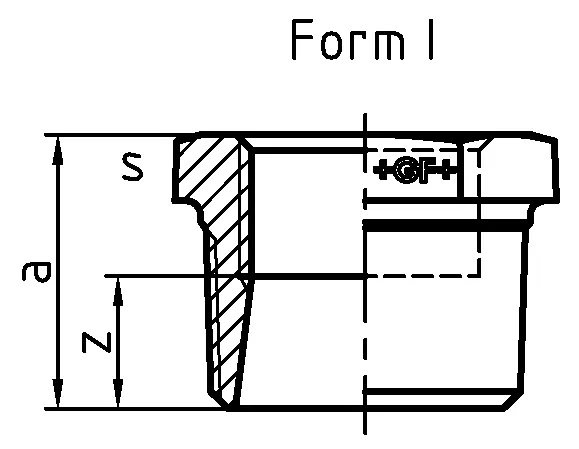

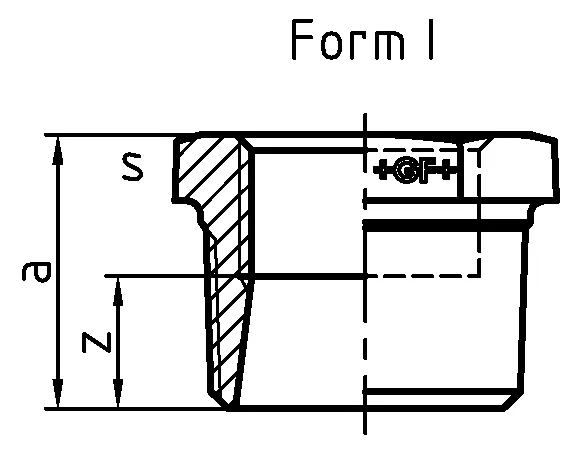

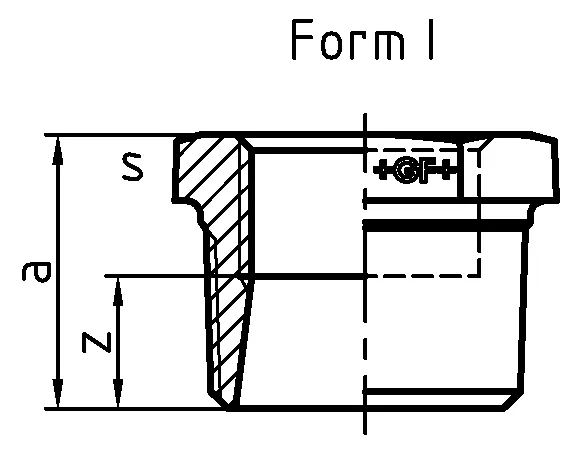

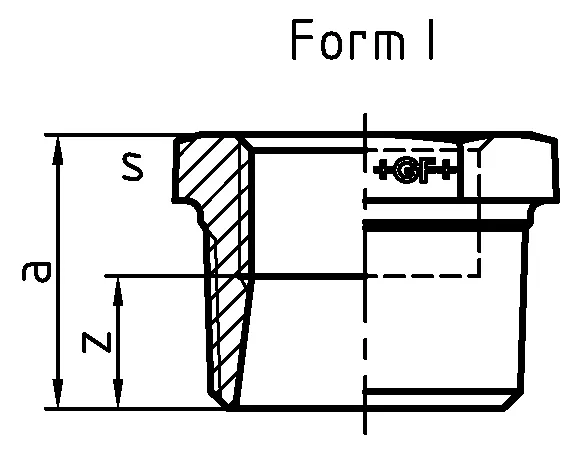

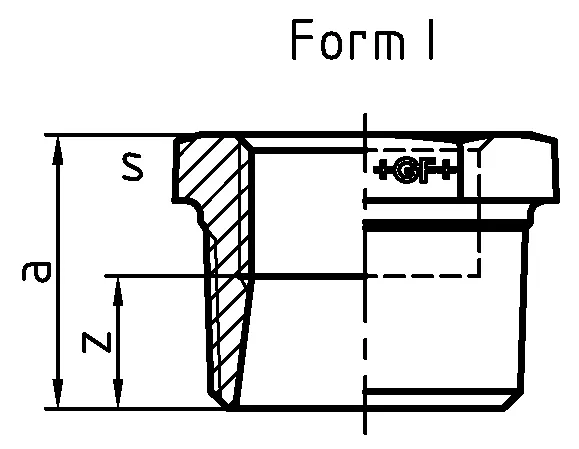

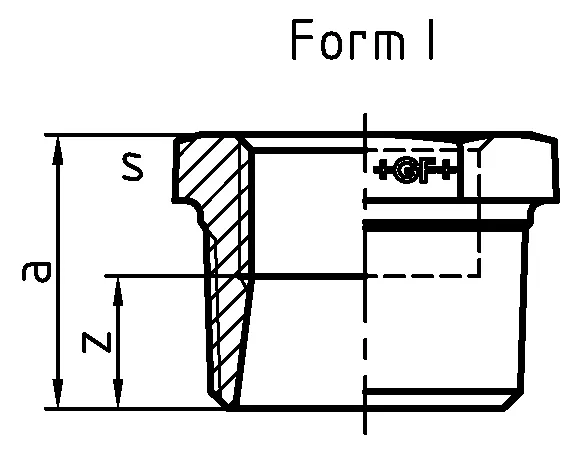

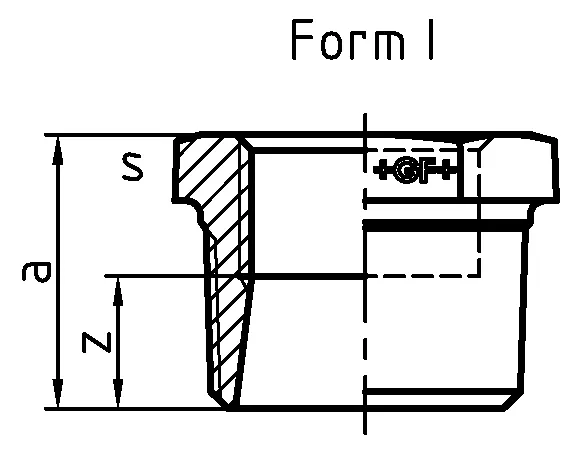

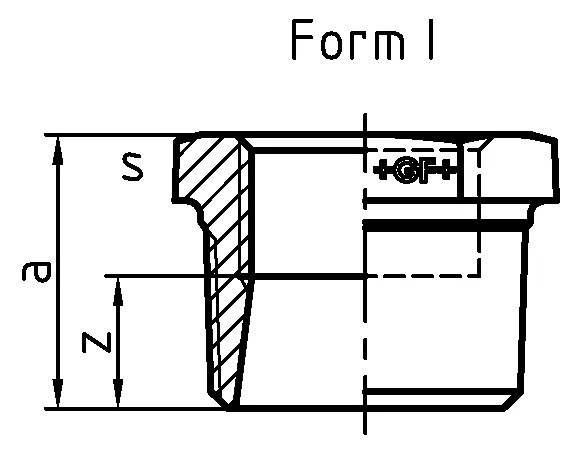

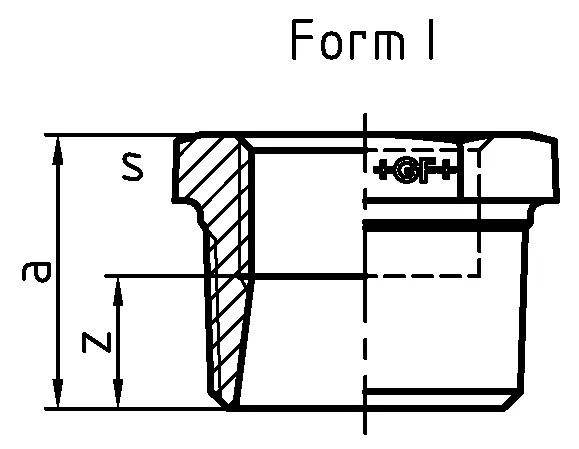

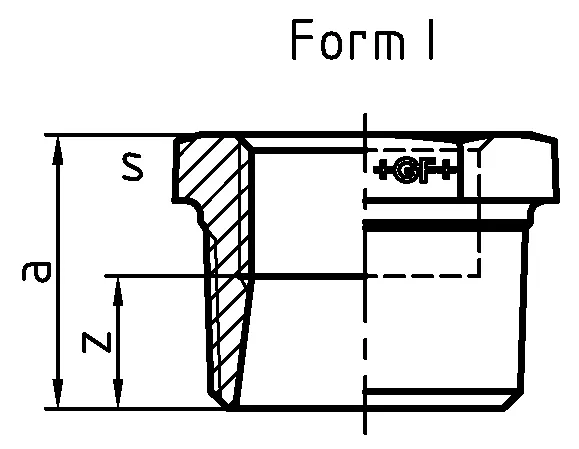

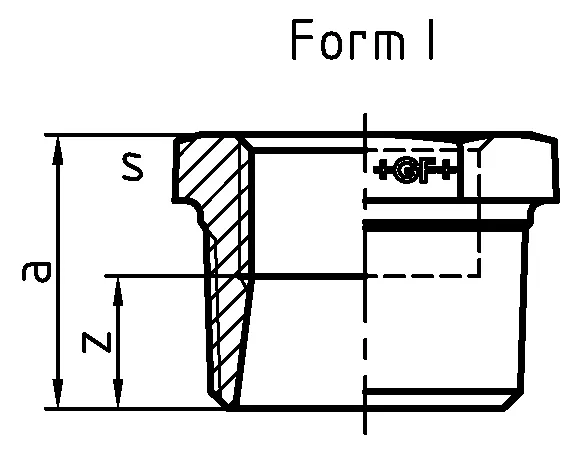

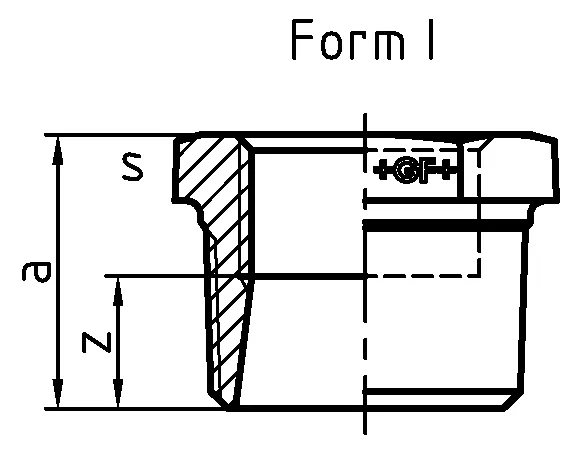

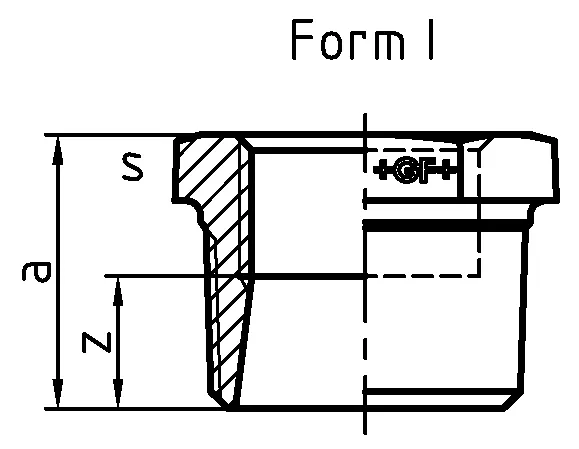

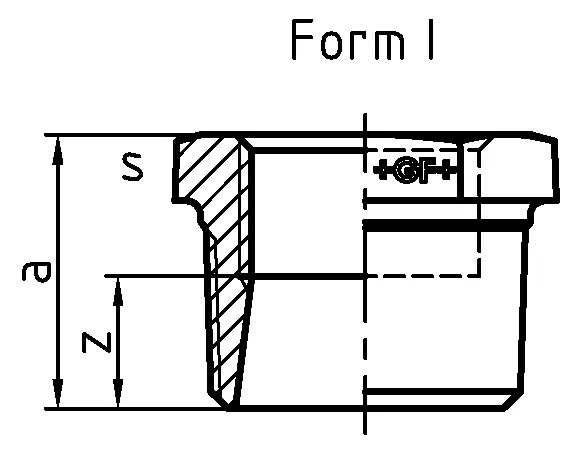

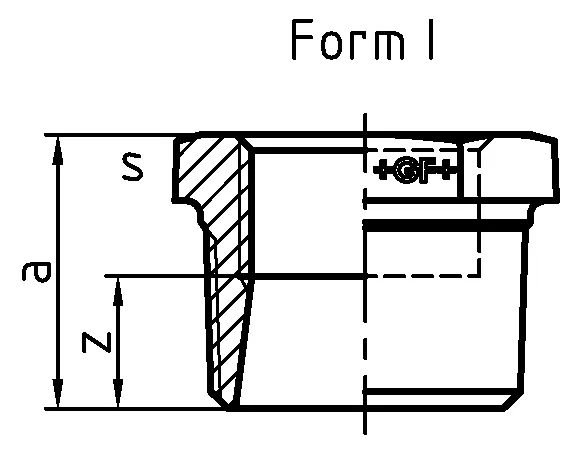

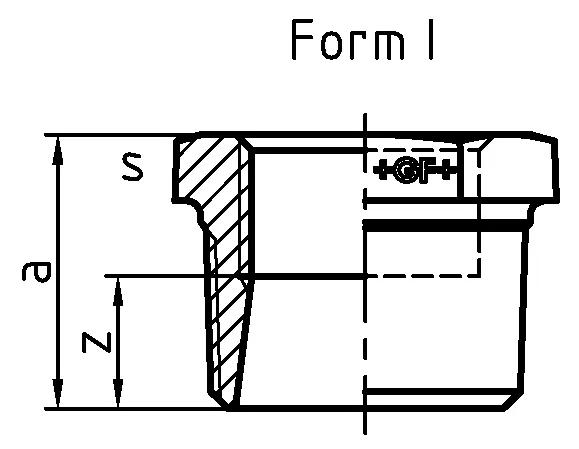

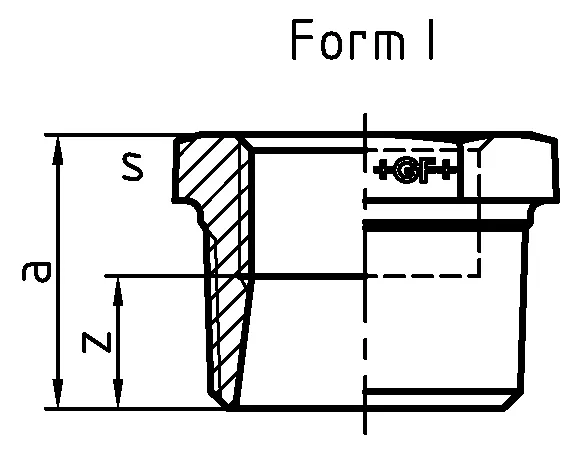

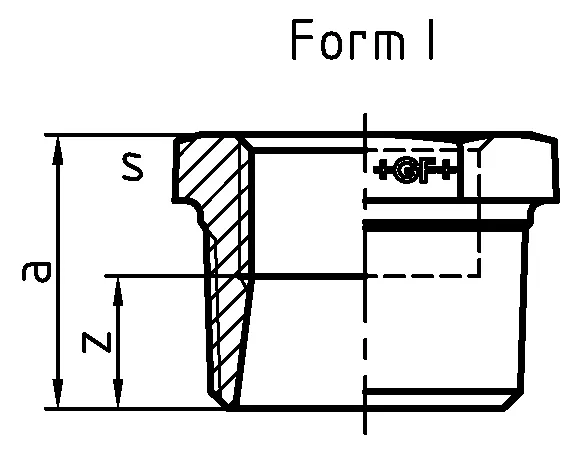

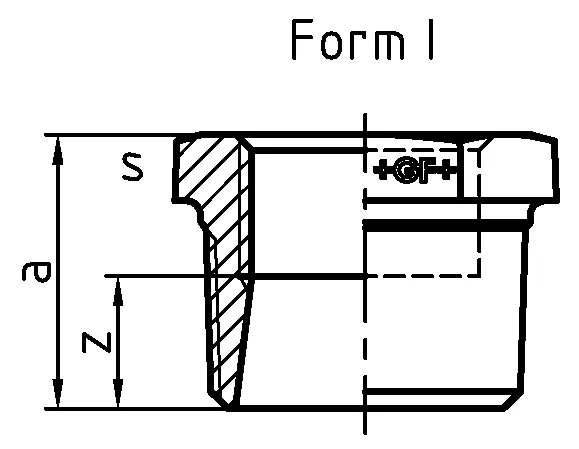

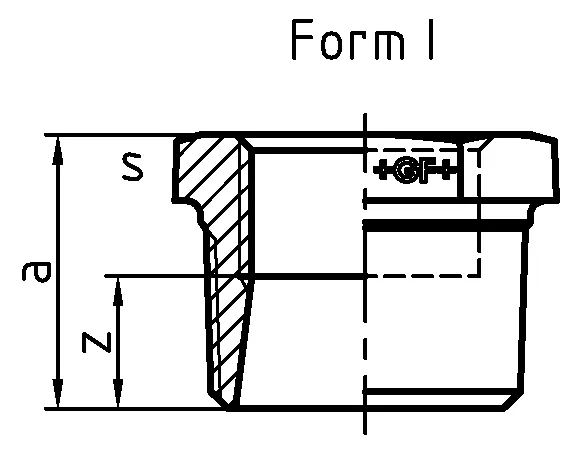

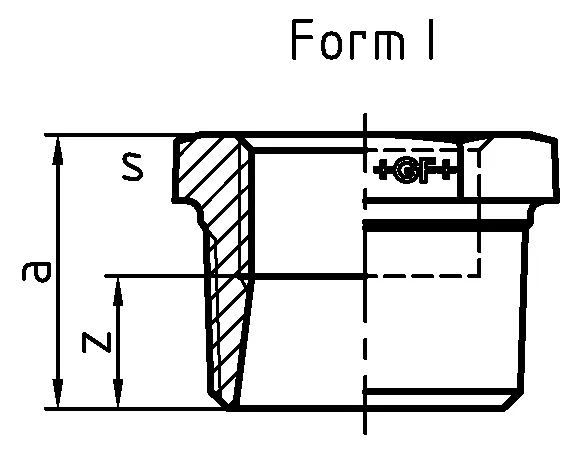

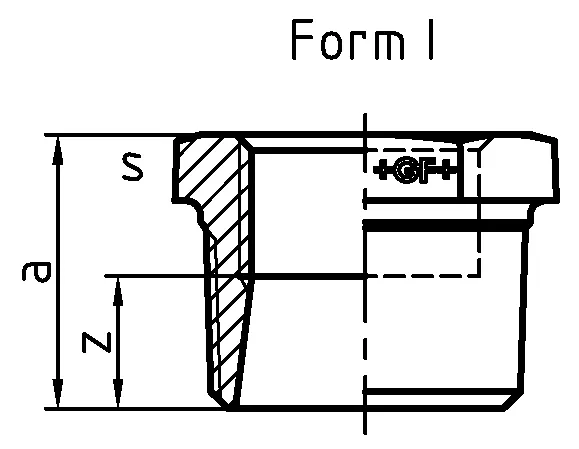

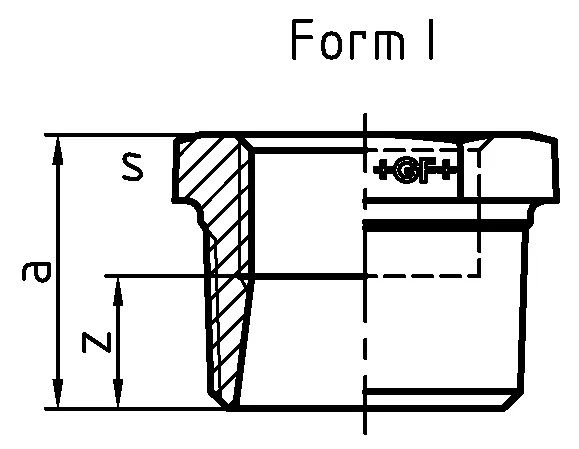

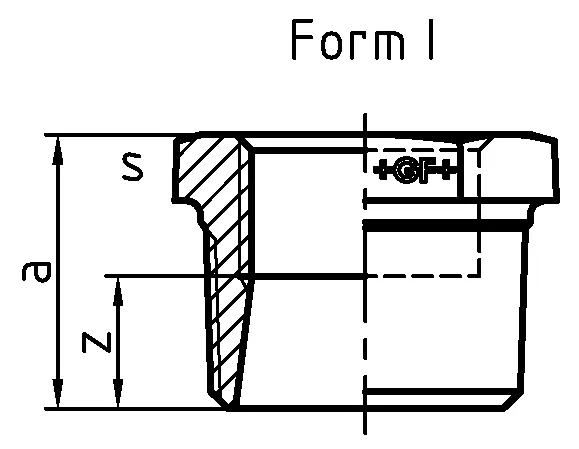

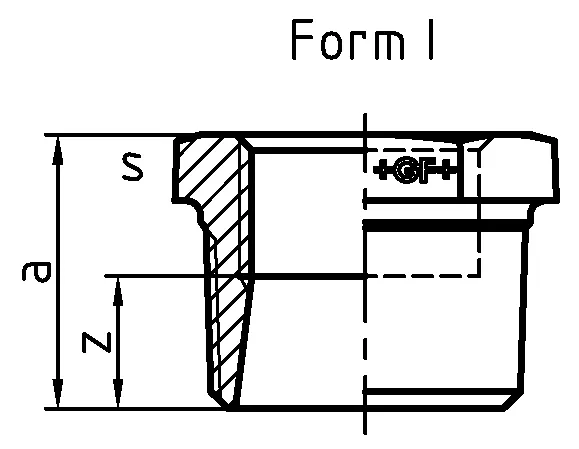

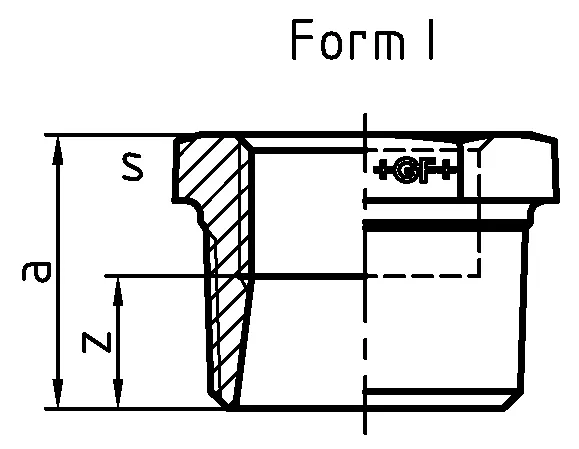

Z-drawing
