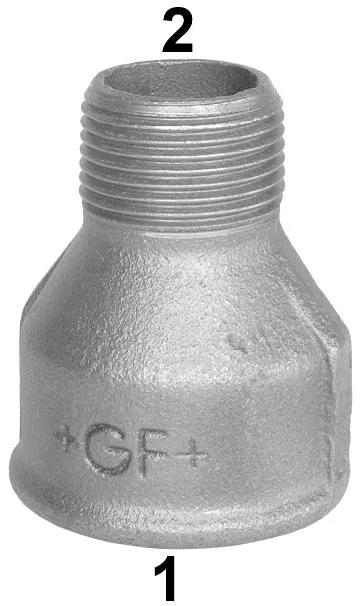

GF Malleable Fittings 246 - socket reduced, galvanized

- Socket, reducing, ISO/EN M4
- ST ... these types of fittings are made from steel (galvanised finish = electroplated) and not
- suitable for drinking water installations. Steel parts are hexagonal instead of
- beaded at the end no. 1.

Item details

1153945 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 3/8 - 1/4 STA

1153946 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1/2 - 1/4

1153947 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1/2 - 3/8

1153948 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 3/4 - 3/8

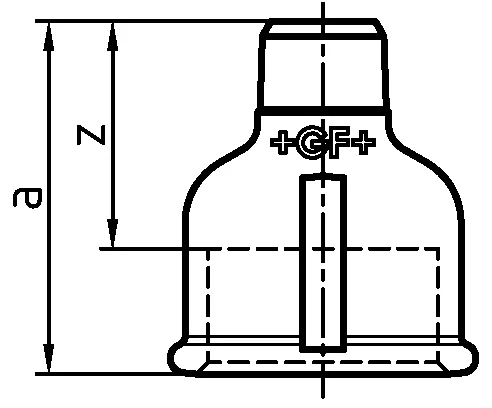

1153949 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 3/4 - 1/2

1153950 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 - 1/2

1153951 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 - 3/4

1153952 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 1/4 - 1/2

1153953 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 1/4 - 3/4

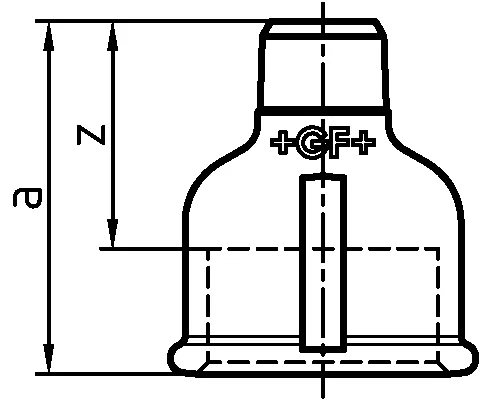

1153954 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 1/4 - 1

1153955 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 1/2 - 3/4

1153956 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 1/2 - 1

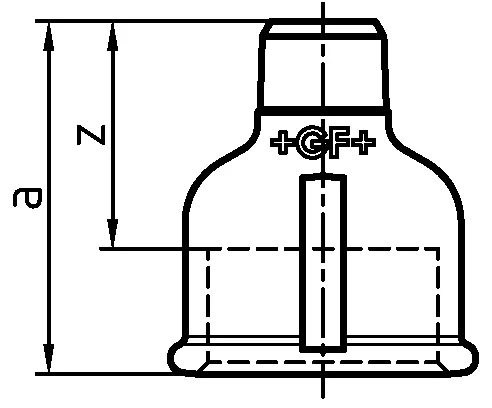

1153957 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 1 1/2 - 1 1/4

1153958 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 2 - 1

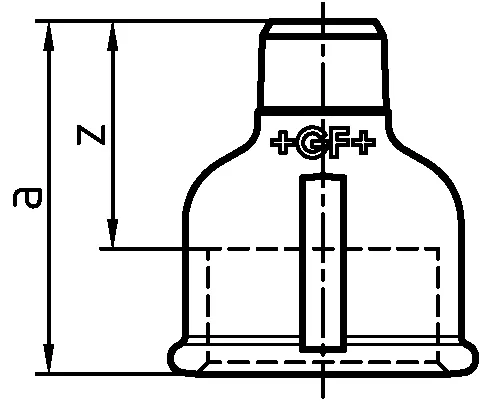

1153959 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 2 - 1 1/4

1153960 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 2 - 1 1/2

1153961 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 2 1/2 - 1 1/2

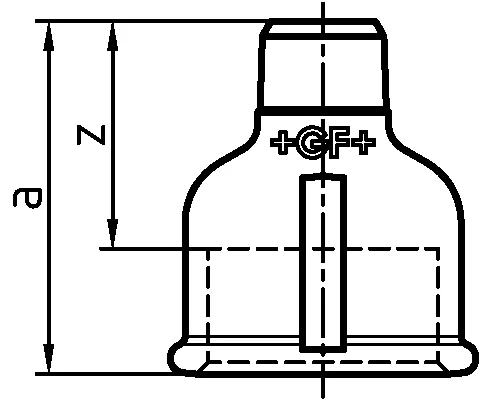

1153962 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 2 1/2 - 2

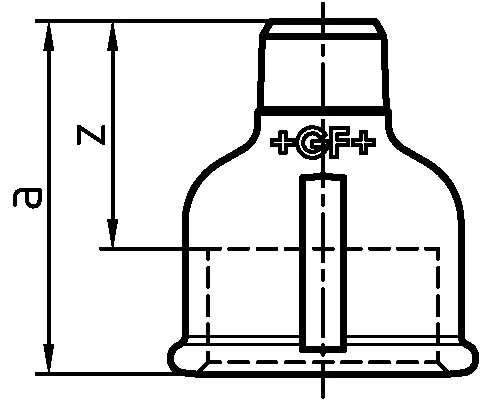

1153963 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 3 - 2

1153964 / - / -

GF Malleable Fittings 246 - socket reduced, galvanized 3 - 2 1/2

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
