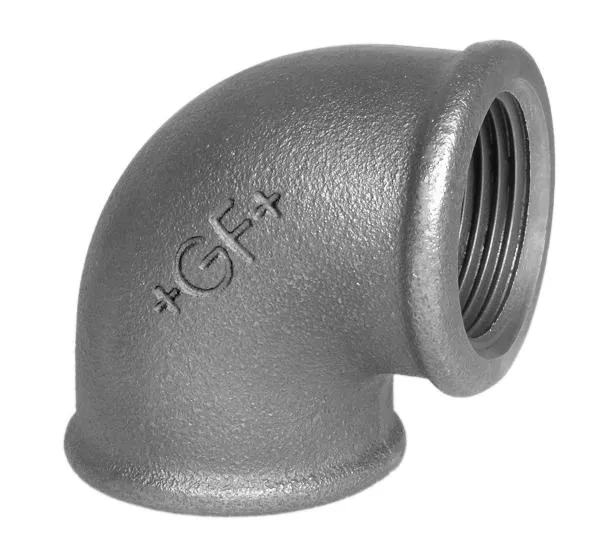

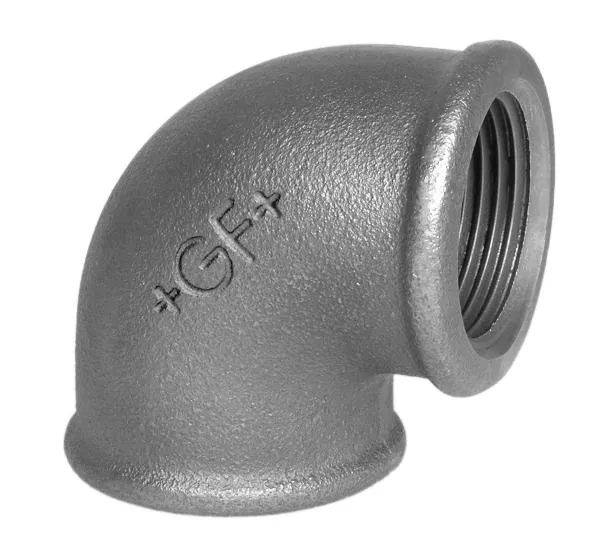

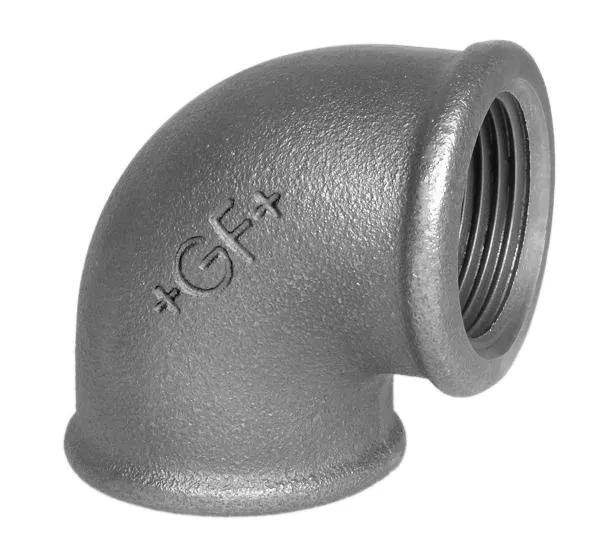

GF Malleable Fittings elbow 90 90deg

- Elbow 90°, equal, ISO/EN A1
- Female / female

Item details

1152946 / - / -

GF Malleable Fittings elbow 90 90deg 1/8 B

1152975 / - / -

GF Malleable Fittings elbow 90 90deg 1/8 G

1152947 / - / -

GF Malleable Fittings elbow 90 90deg 1/4 B

1152976 / - / -

GF Malleable Fittings elbow 90 90deg 1/4 G

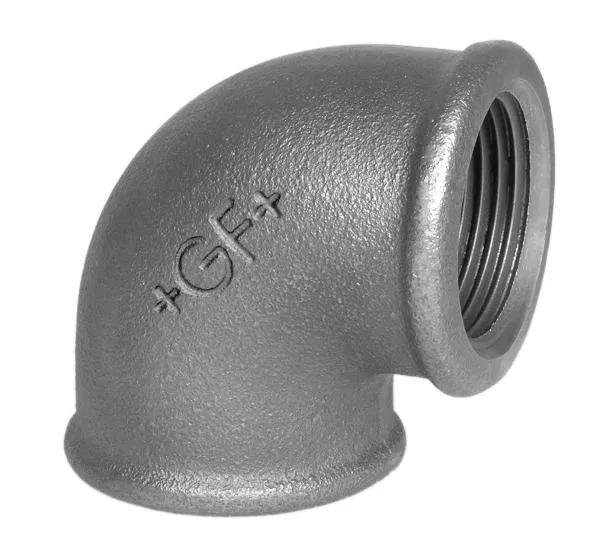

1152948 / - / -

GF Malleable Fittings elbow 90 90deg 3/8 B

1152977 / - / -

GF Malleable Fittings elbow 90 90deg 3/8 G

1152949 / - / -

GF Malleable Fittings elbow 90 90deg 1/2 B

1152978 / - / -

GF Malleable Fittings elbow 90 90deg 1/2 G

1152950 / - / -

GF Malleable Fittings elbow 90 90deg 3/4 B

1152979 / - / -

GF Malleable Fittings elbow 90 90deg 3/4 G

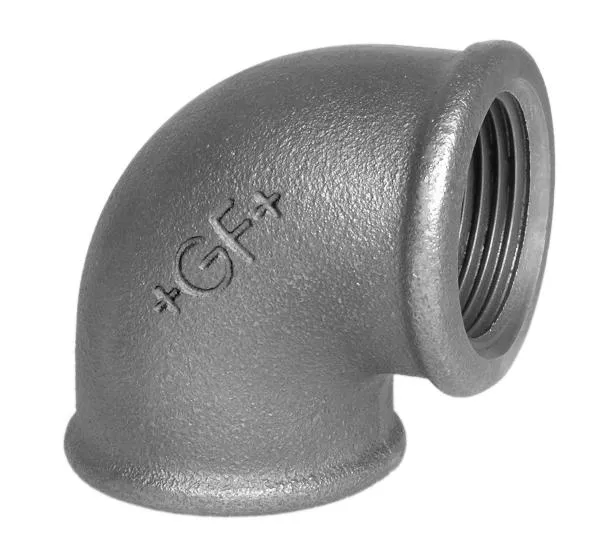

1152951 / - / -

GF Malleable Fittings elbow 90 90deg 1 B

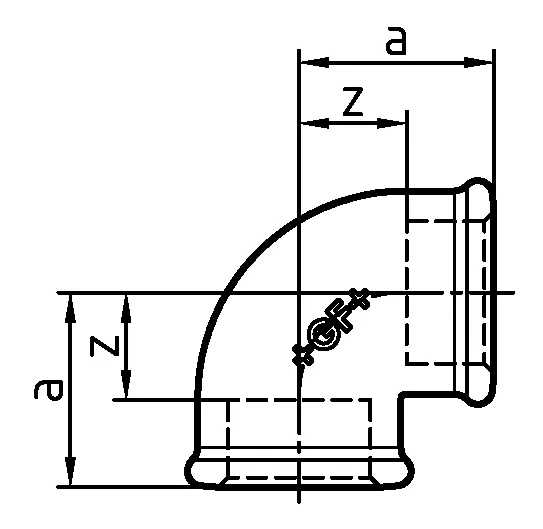

1152980 / - / -

GF Malleable Fittings elbow 90 90deg 1 G

1152952 / - / -

GF Malleable Fittings elbow 90 90deg 1 1/4 B

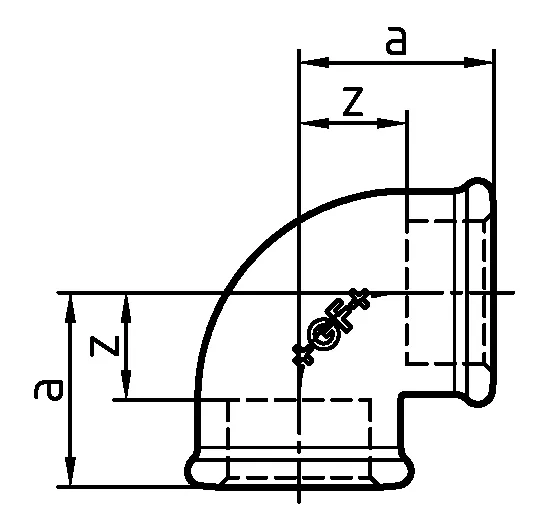

1152981 / - / -

GF Malleable Fittings elbow 90 90deg 1 1/4 G

1152953 / - / -

GF Malleable Fittings elbow 90 90deg 1 1/2 B

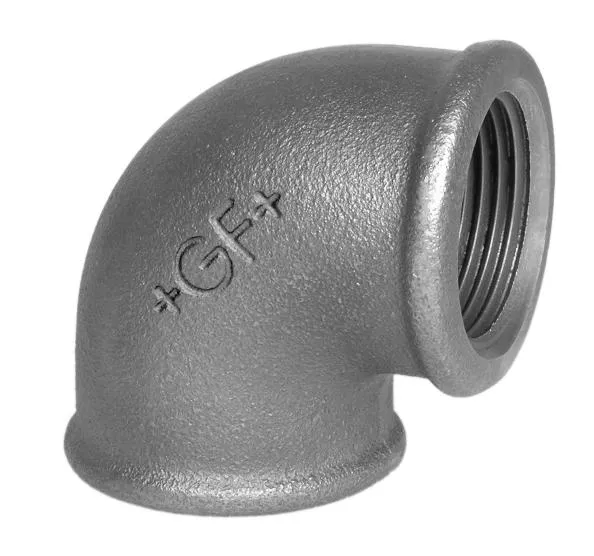

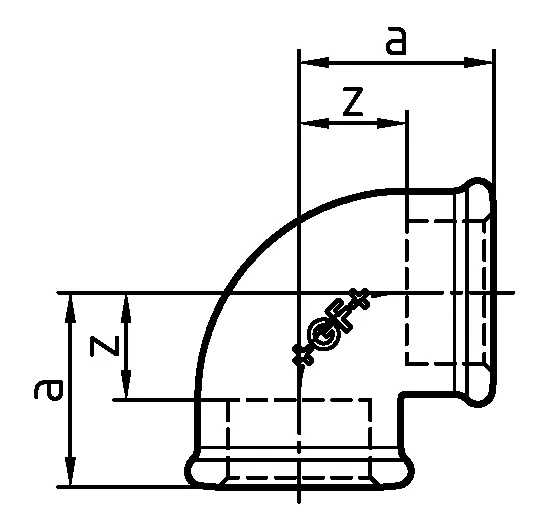

1152982 / - / -

GF Malleable Fittings elbow 90 90deg 1 1/2 G

1152954 / - / -

GF Malleable Fittings elbow 90 90deg 2 B

1152983 / - / -

GF Malleable Fittings elbow 90 90deg 2 G

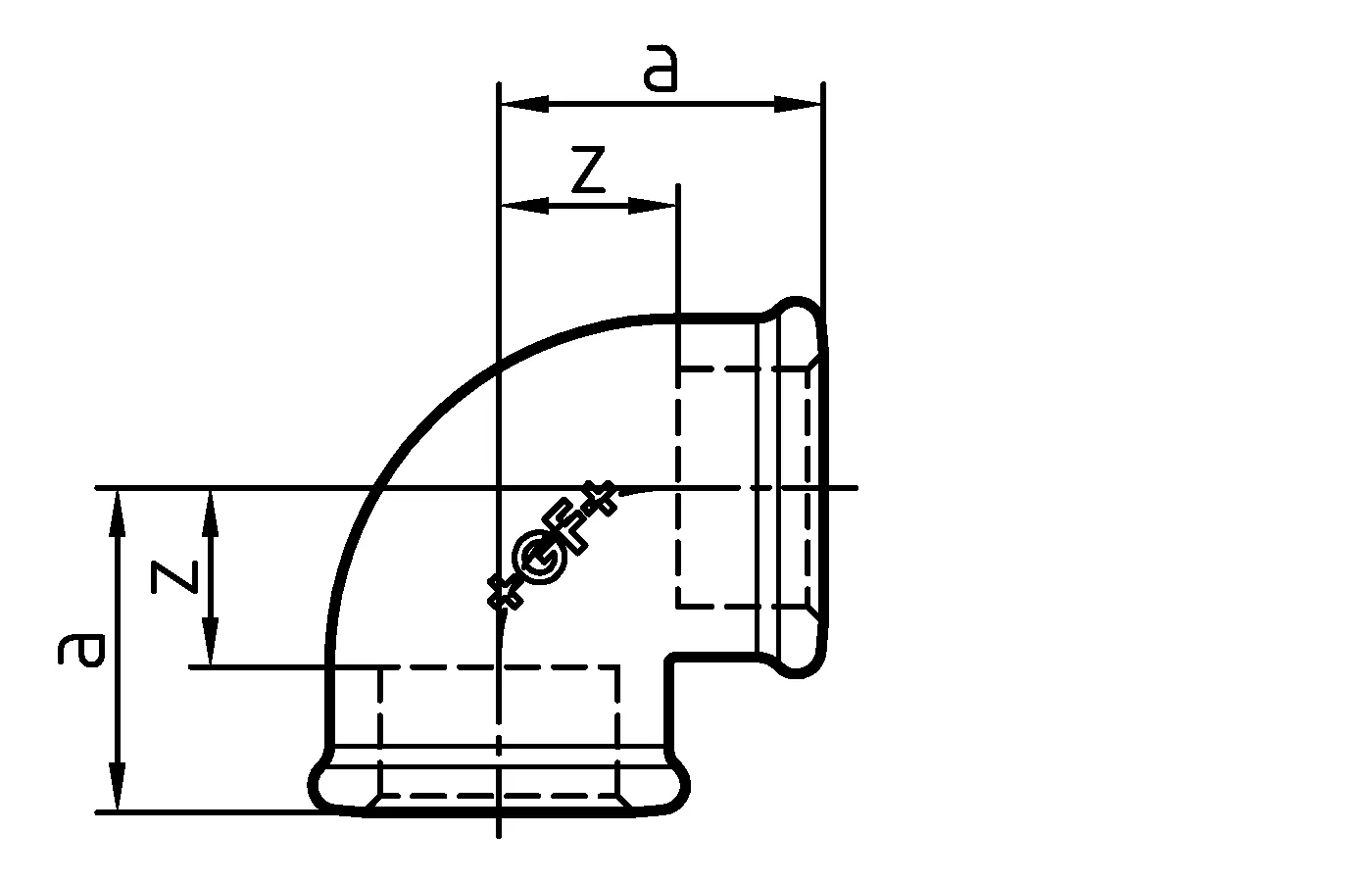

1152955 / - / -

GF Malleable Fittings elbow 90 90deg 2 1/2 B

1152984 / - / -

GF Malleable Fittings elbow 90 90deg 2 1/2 G

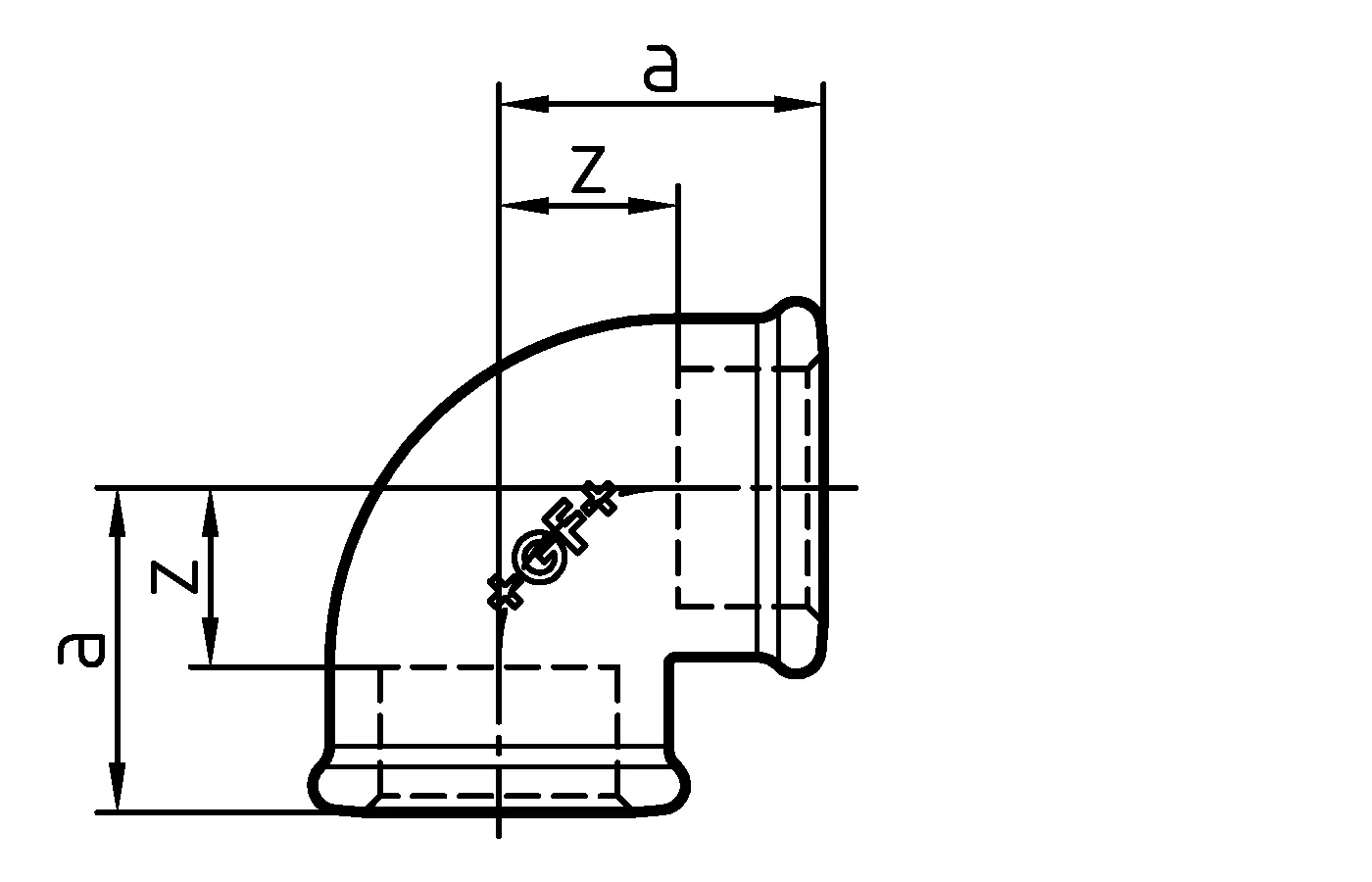

1152956 / - / -

GF Malleable Fittings elbow 90 90deg 3 B

1152985 / - / -

GF Malleable Fittings elbow 90 90deg 3 G

1152957 / - / -

GF Malleable Fittings elbow 90 90deg 4 B

1152986 / - / -

GF Malleable Fittings elbow 90 90deg 4 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
