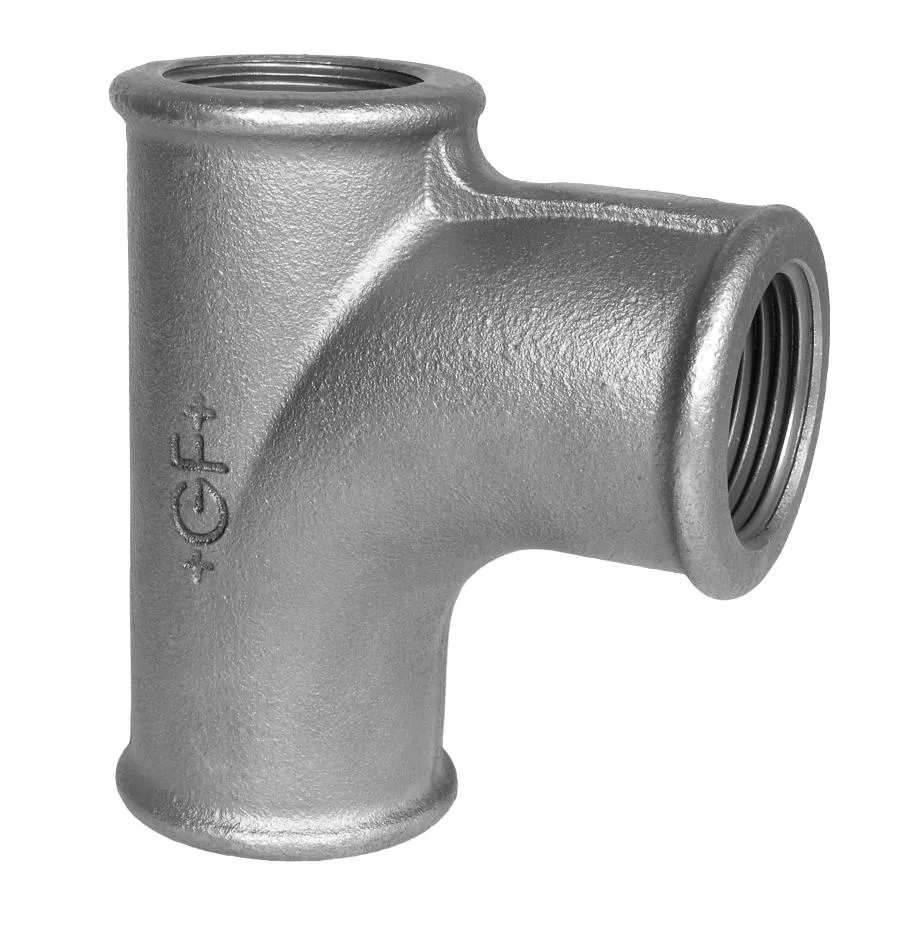

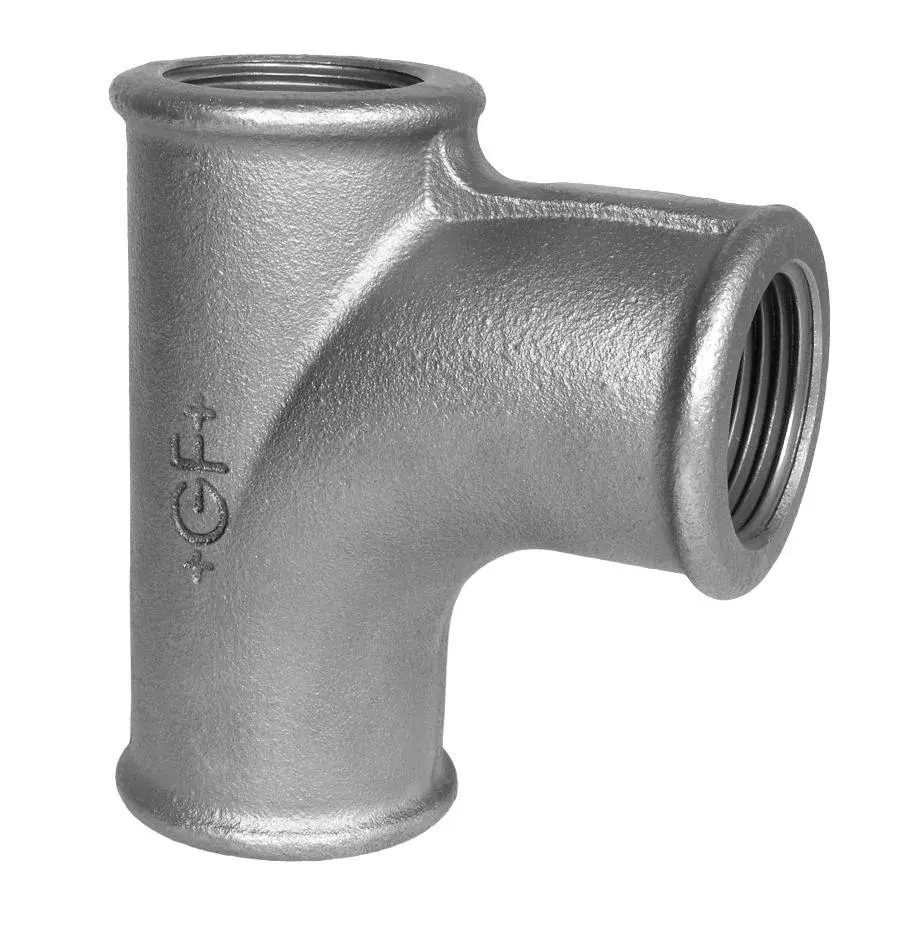

GF Malleable Fittings pitcher tee equal 131

- Pitcher tee, equal, ISO/EN E1
- Swept tee to improve flow, especially on return lines

Item details

1153499 / - / -

GF Malleable Fittings pitcher tee equal 131 1/2 B

1153528 / - / -

GF Malleable Fittings pitcher tee equal 131 1/2 G

1153500 / - / -

GF Malleable Fittings pitcher tee equal 131 3/4 B

1153529 / - / -

GF Malleable Fittings pitcher tee equal 131 3/4 G

1153501 / - / -

GF Malleable Fittings pitcher tee equal 131 1 B

1153530 / - / -

GF Malleable Fittings pitcher tee equal 131 1 G

1153502 / - / -

GF Malleable Fittings pitcher tee equal 131 1 1/4 B

1153531 / - / -

GF Malleable Fittings pitcher tee equal 131 1 1/4 G

1153503 / - / -

GF Malleable Fittings pitcher tee equal 131 1 1/2 B

1153532 / - / -

GF Malleable Fittings pitcher tee equal 131 1 1/2 G

1153504 / - / -

GF Malleable Fittings pitcher tee equal 131 2 B

1153533 / - / -

GF Malleable Fittings pitcher tee equal 131 2 G

1153505 / - / -

GF Malleable Fittings pitcher tee equal 131 2 1/2 B

1153534 / - / -

GF Malleable Fittings pitcher tee equal 131 2 1/2 G

1153506 / - / -

GF Malleable Fittings pitcher tee equal 131 3 B

1153535 / - / -

GF Malleable Fittings pitcher tee equal 131 3 G

1153507 / - / -

GF Malleable Fittings pitcher tee equal 131 4 B

1153536 / - / -

GF Malleable Fittings pitcher tee equal 131 4 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
