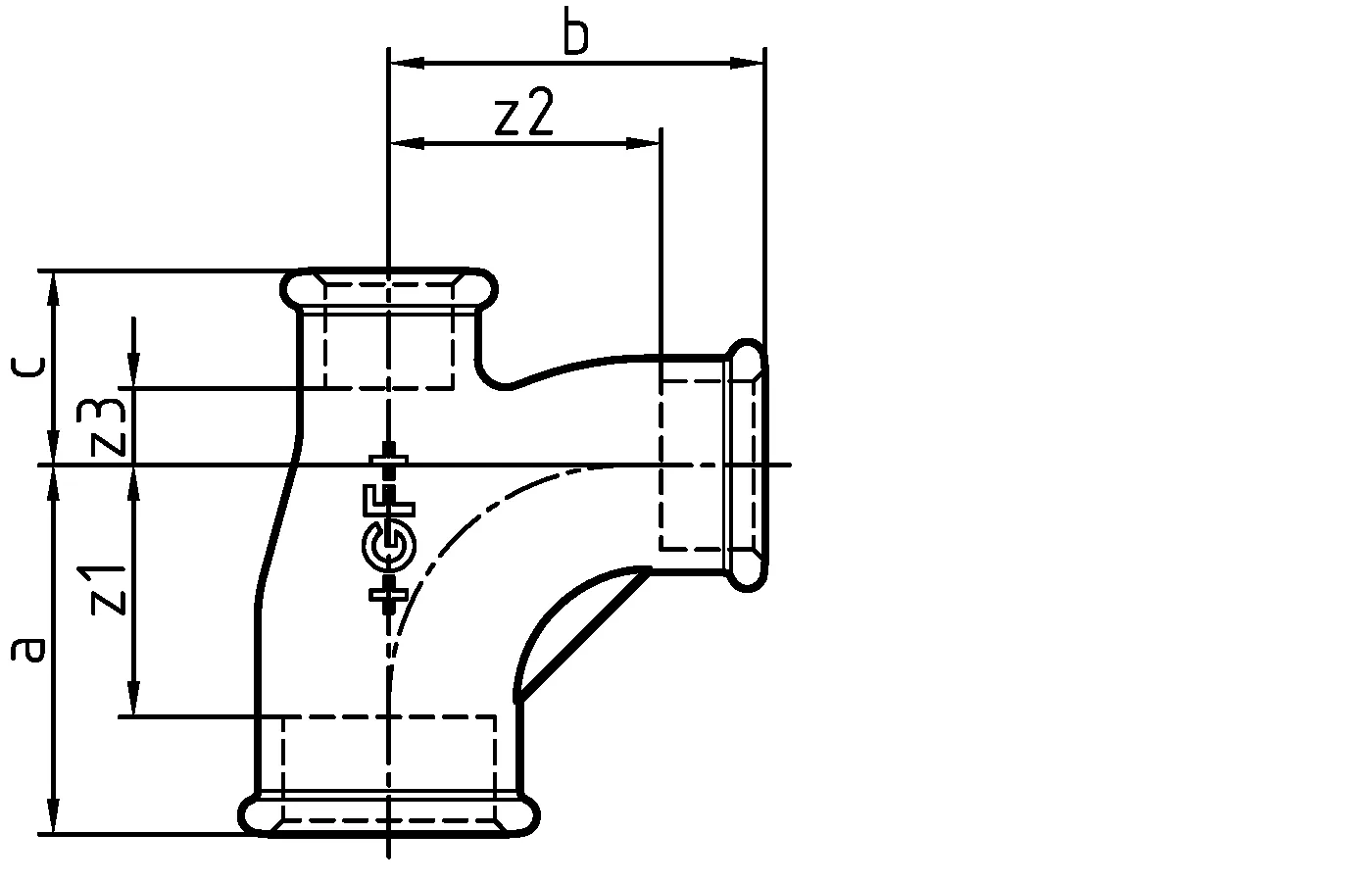

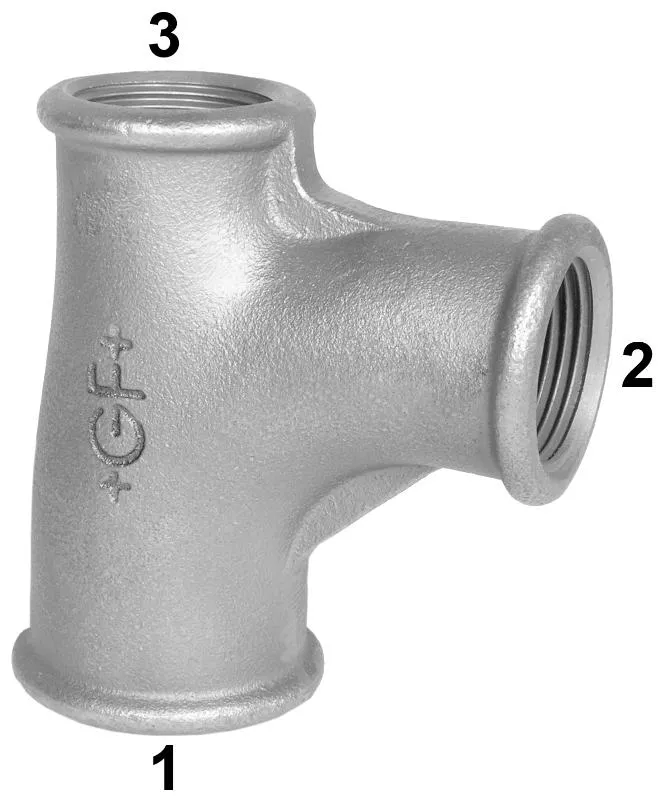

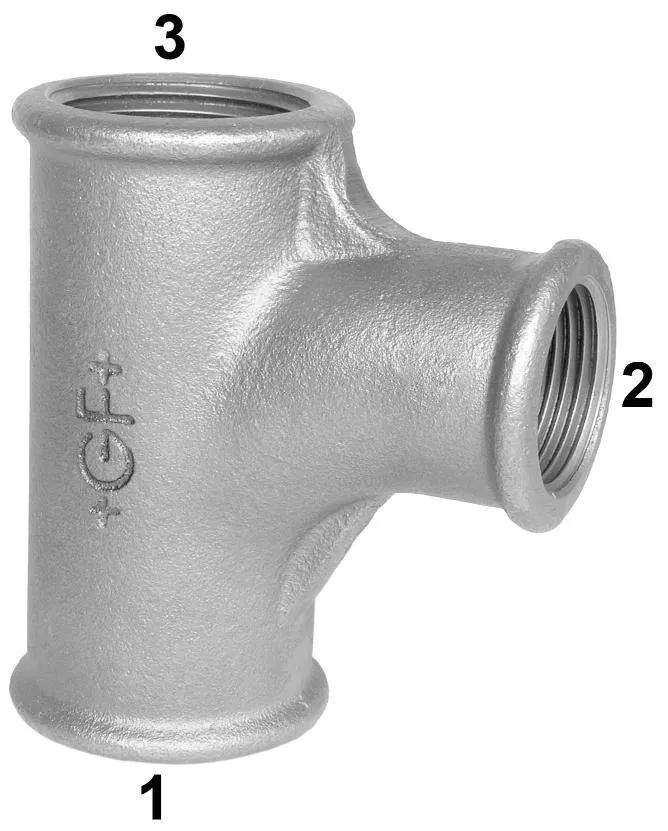

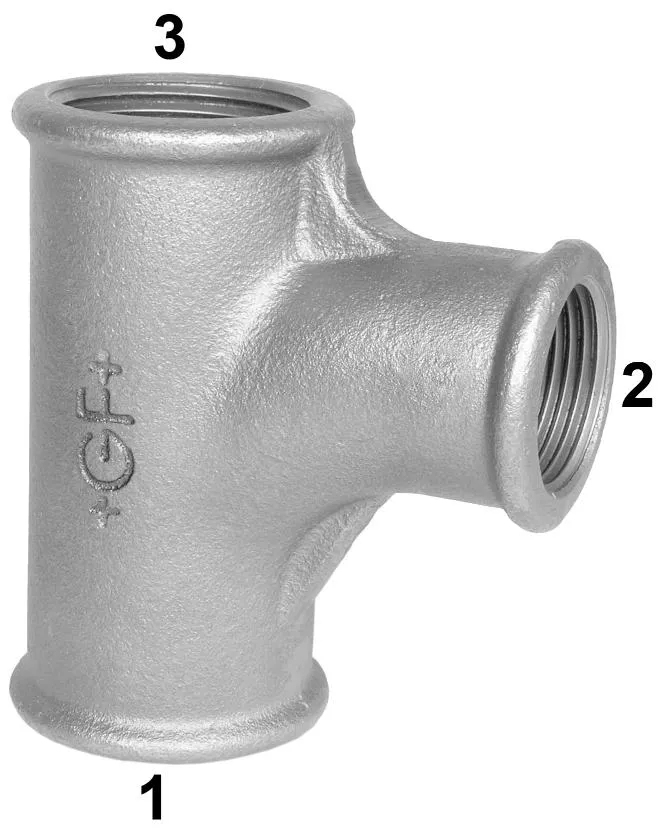

GF Malleable Fittings pitcher tee reduced 131

- Pitcher tee, reducing on the branch, ISO/EN E1
- Swept tee to improve flow, especially on return lines

Item details

1153509 / - / -

GF Malleable Fittings pitcher tee reduced 131 3/4 - 1/2 B

1153538 / - / -

GF Malleable Fittings pitcher tee reduced 131 3/4 - 1/2 G

1153508 / - / -

GF Malleable Fittings pitcher tee reduced 131 3/4 - 1/2 - 1/2 B

1153537 / - / -

GF Malleable Fittings pitcher tee reduced 131 3/4 - 1/2 - 1/2 G

1153510 / - / -

GF Malleable Fittings pitcher tee reduced 131 3/4 - 3/4 - 1/2 B

1153512 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 - 1/2 B

1153540 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 - 1/2 G

1153511 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 - 1/2 - 3/4 B

1153514 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 - 3/4 B

1153542 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 - 3/4 G

1153541 / - / -

GF Malleable Fittings pitcher tee reduced 131 1- 3/4 - 3/4 G

1153513 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 - 3/4 - 3/4 B

1153517 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 1/4 - 1 B

1153515 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 1/4 - 1/2 B

1153543 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 1/4 - 1/2 G

1153516 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 1/4 - 3/4 B

1153544 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 1/4 - 3/4 G

1153527 / - / -

GF Malleable Fittings pitcher tee reduced 131 1 1/2 - 1/2 B

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
