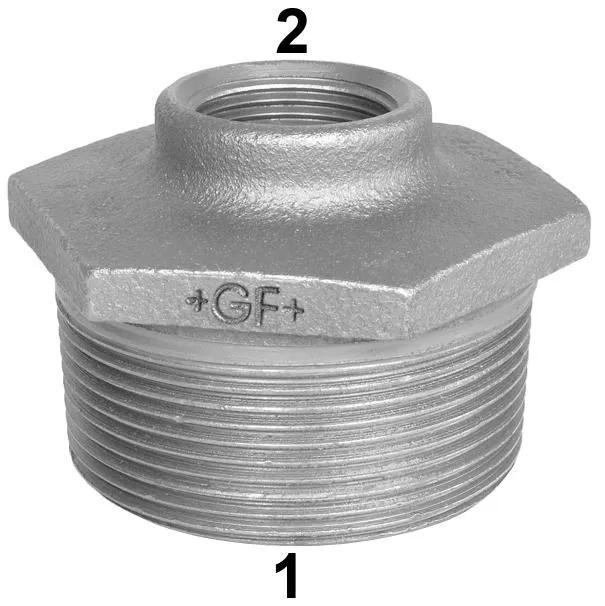

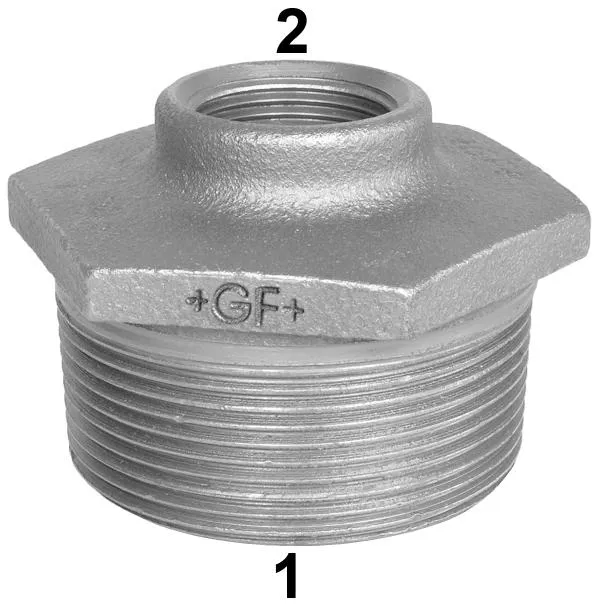

GF Malleable Fittings reducing bush 241 N4

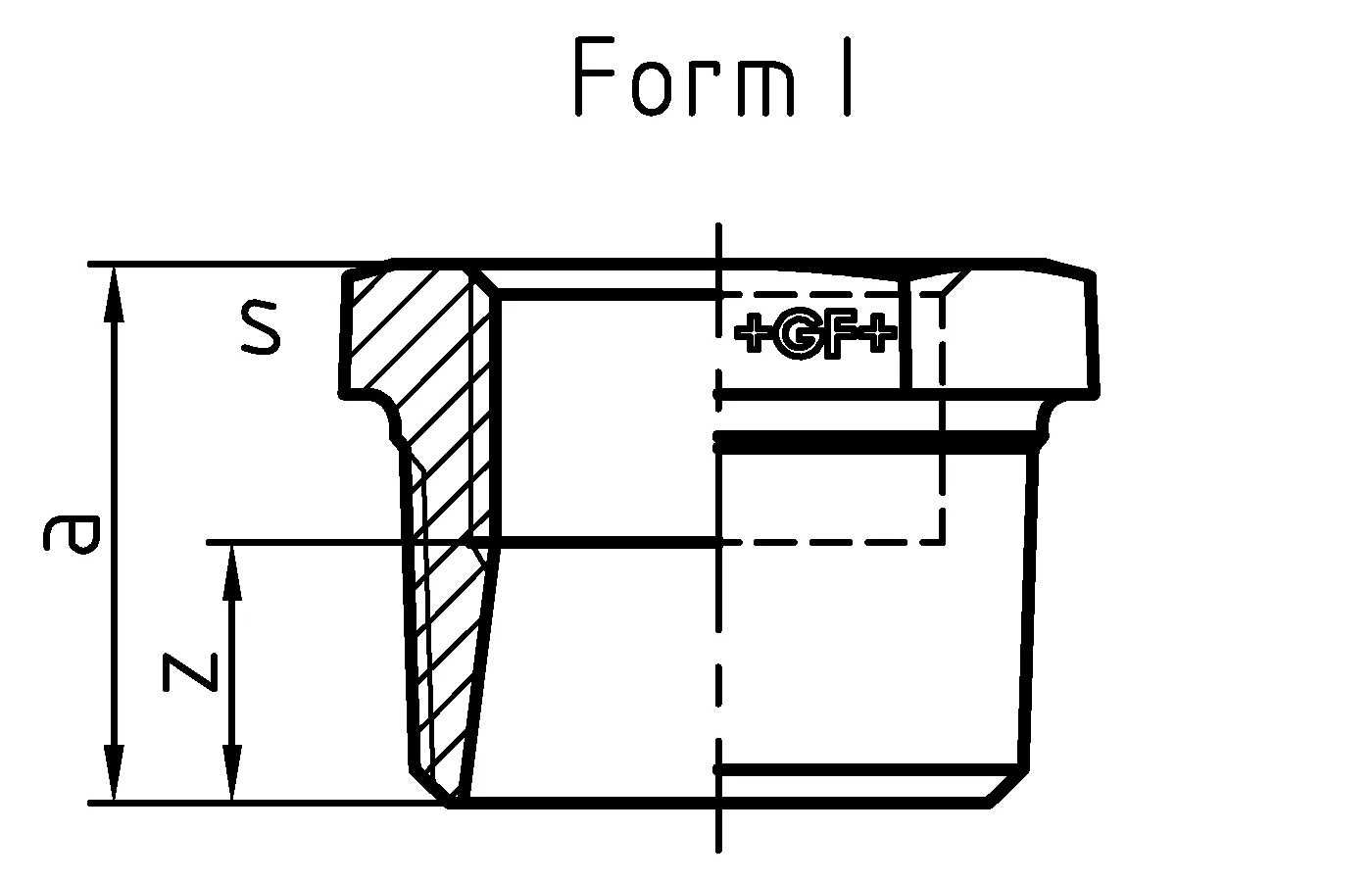

- Forms I, II, III are available only as marked under column "Form"
- Form I can also be supplied with continuous internal thread (=241D).
- 'ST' these types of fittings are made from steel (galvanised finish = electroplated)
- Not suitable for drinking water installations.

Item details

1153787 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2 - 1 B

1153826 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2 - 1 G

1153788 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2 - 1 1/4 B

1153827 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2 - 1 1/4 G

1153789 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2 - 1 1/2 B

1153828 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2 - 1 1/2 G

1153790 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2- 2 B

1153829 / - / -

GF Malleable Fittings reducing bush 241 N4 2 1/2 - 2 G

1153793 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 1 1/2 B

1153832 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 1 1/2 G

1153792 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 1 1/4 B

1153831 / - / -

GF Malleable Fittings reducing bush 241 N4 3- 1 1/4 G

1153791 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 1 B

1153830 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 1 G

1153795 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 2 1/2 B

1153834 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 2 1/2 G

1153794 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 2 B

1153833 / - / -

GF Malleable Fittings reducing bush 241 N4 3 - 2 G

1153796 / - / -

GF Malleable Fittings reducing bush 241 N4 4 - 2 B

1153835 / - / -

GF Malleable Fittings reducing bush 241 N4 4 - 2 G

1153797 / - / -

GF Malleable Fittings reducing bush 241 N4 4 - 2 1/2 B

1153836 / - / -

GF Malleable Fittings reducing bush 241 N4 4 - 2 1/2 G

1153798 / - / -

GF Malleable Fittings reducing bush 241 N4 4 - 3 B

1153837 / - / -

GF Malleable Fittings reducing bush 241 N4 4 - 3 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
