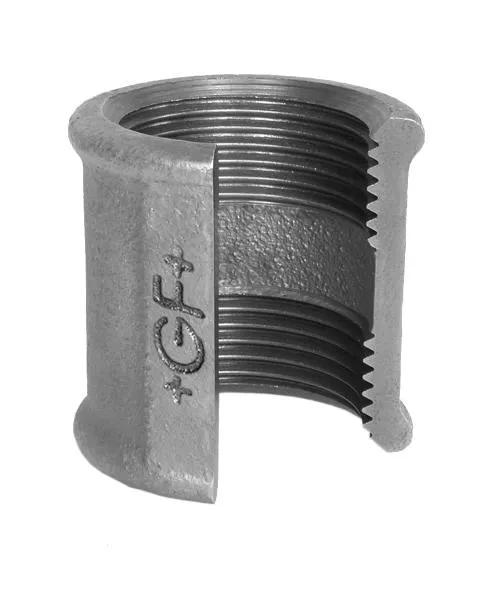

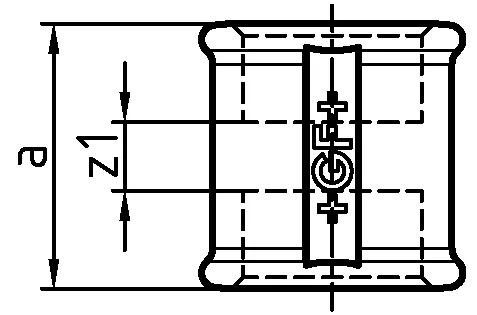

GF Malleable Fittings socket

- Socket, ISO/EN M2

- ST ... these types of fittings are made from steel (galvanised finish = electroplated) and not suitable for drinking water installations. Steel parts are hexagonal instead of beaded.

Item details

1154017 / - / -

GF Malleable Fittings socket 1/8 STA

1154018 / - / -

GF Malleable Fittings 270 - socket, galvanized 1/4 STA

1154019 / - / -

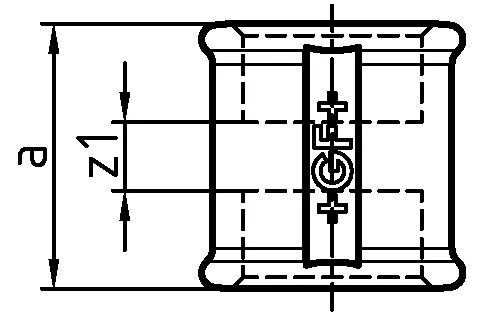

GF Malleable Fittings socket 3/8

1154020 / - / -

GF Malleable Fittings 270 - socket, galvanized 1/2

1154021 / - / -

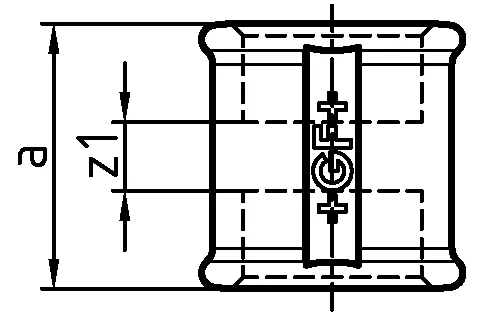

GF Malleable Fittings 270 - socket, galvanized 3/4

1154022 / - / -

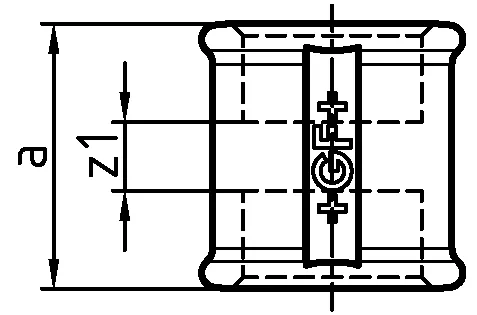

GF Malleable Fittings socket 1

1154023 / - / -

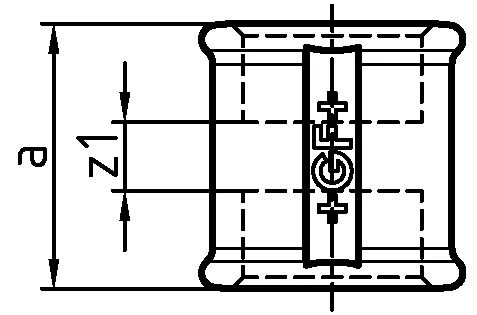

GF Malleable Fittings socket 1 1/4

1154024 / - / -

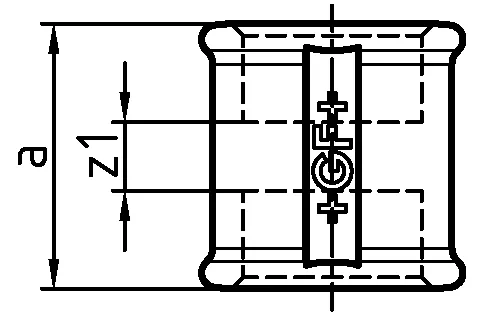

GF Malleable Fittings socket 1 1/2

1154025 / - / -

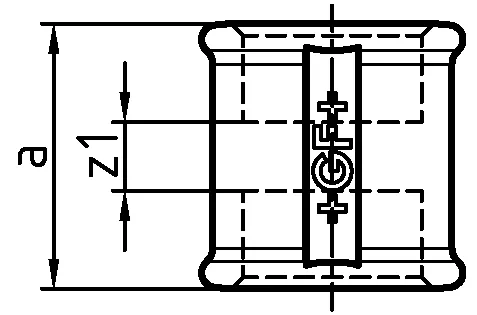

GF Malleable Fittings socket 2

1154026 / - / -

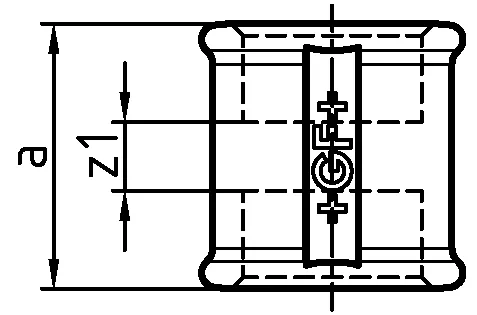

GF Malleable Fittings socket 2 1/2

1154027 / - / -

GF Malleable Fittings socket 3

1154028 / - / -

GF Malleable Fittings 270 - socket, galvanized 4

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
