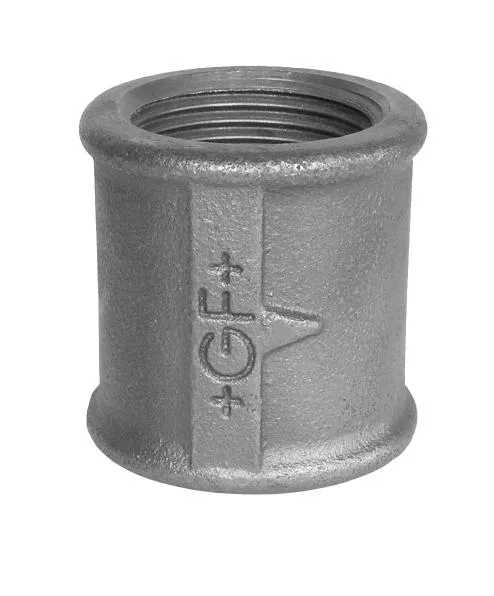

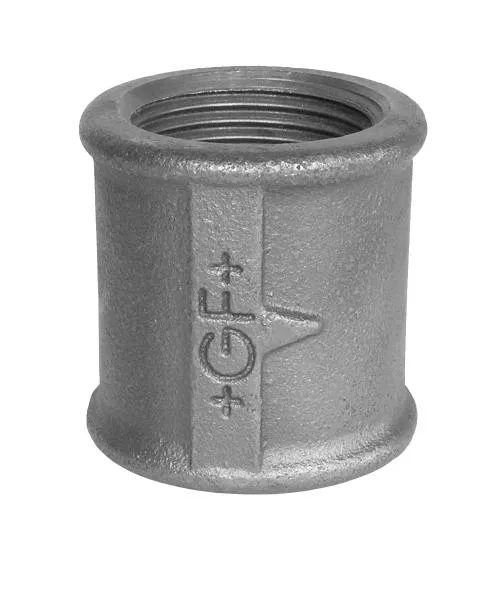

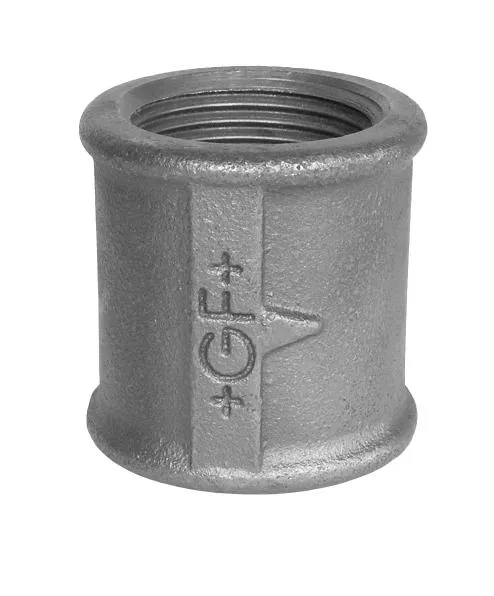

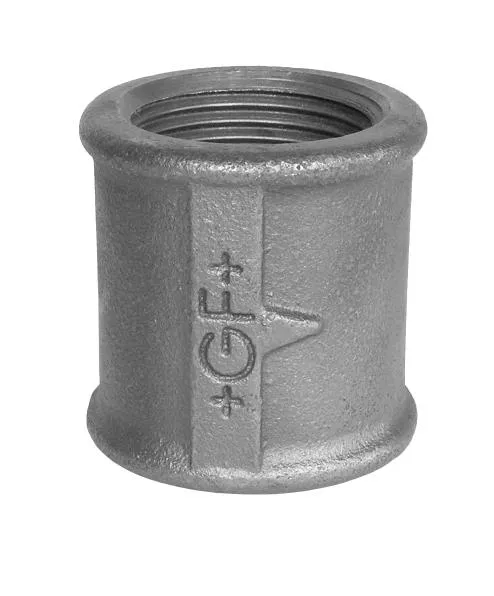

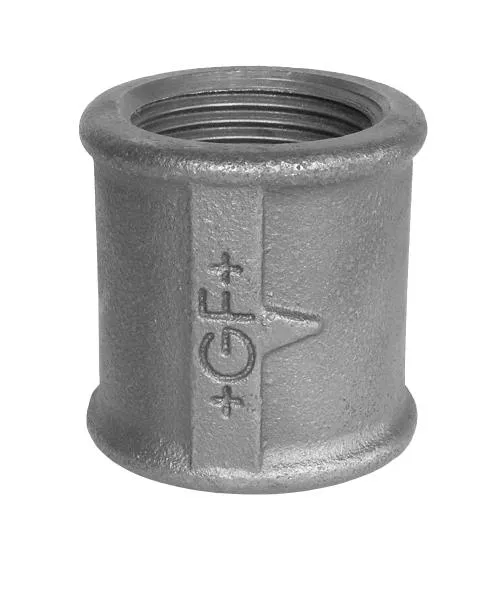

GF Malleable Fittings socket 271

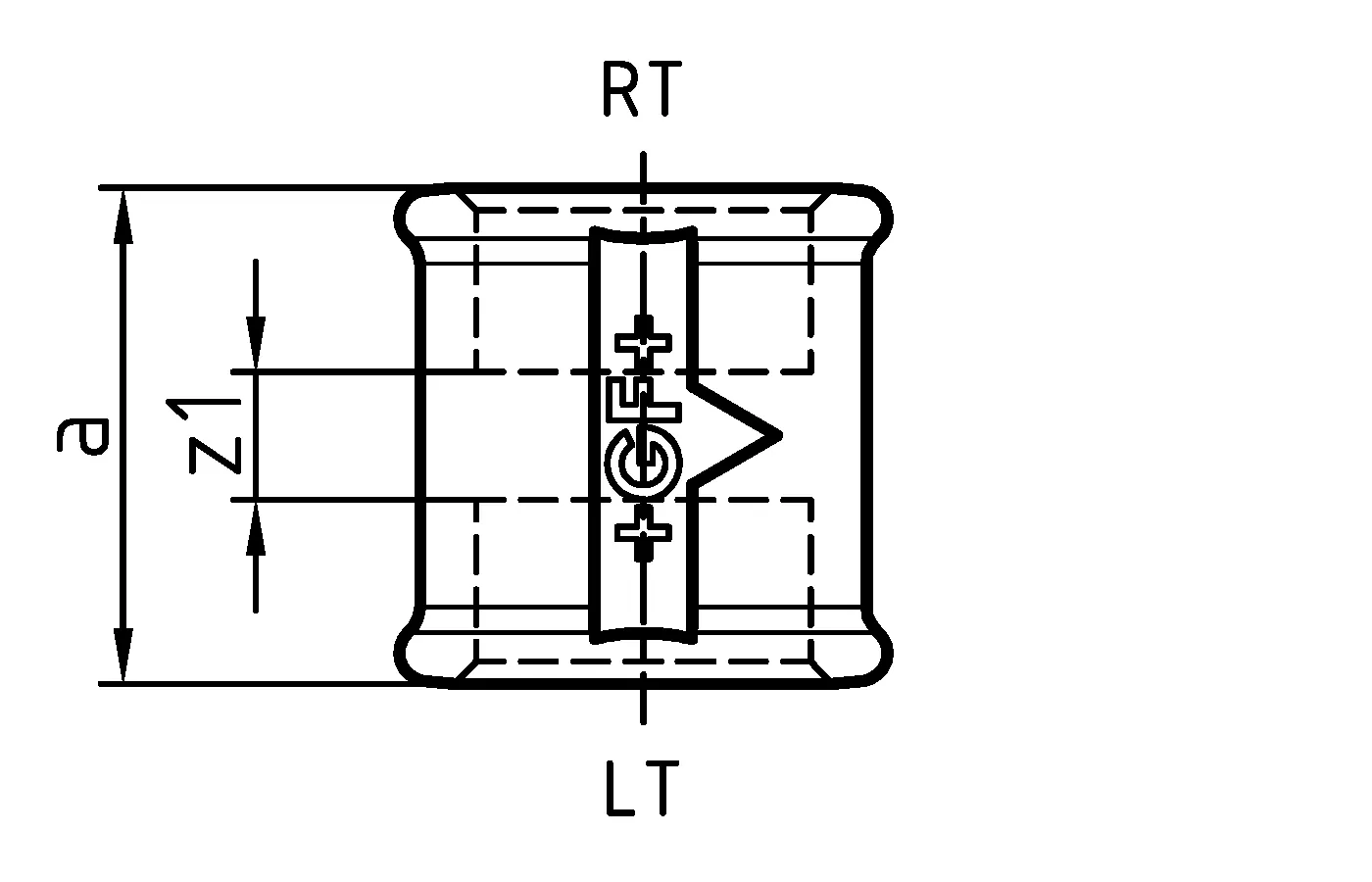

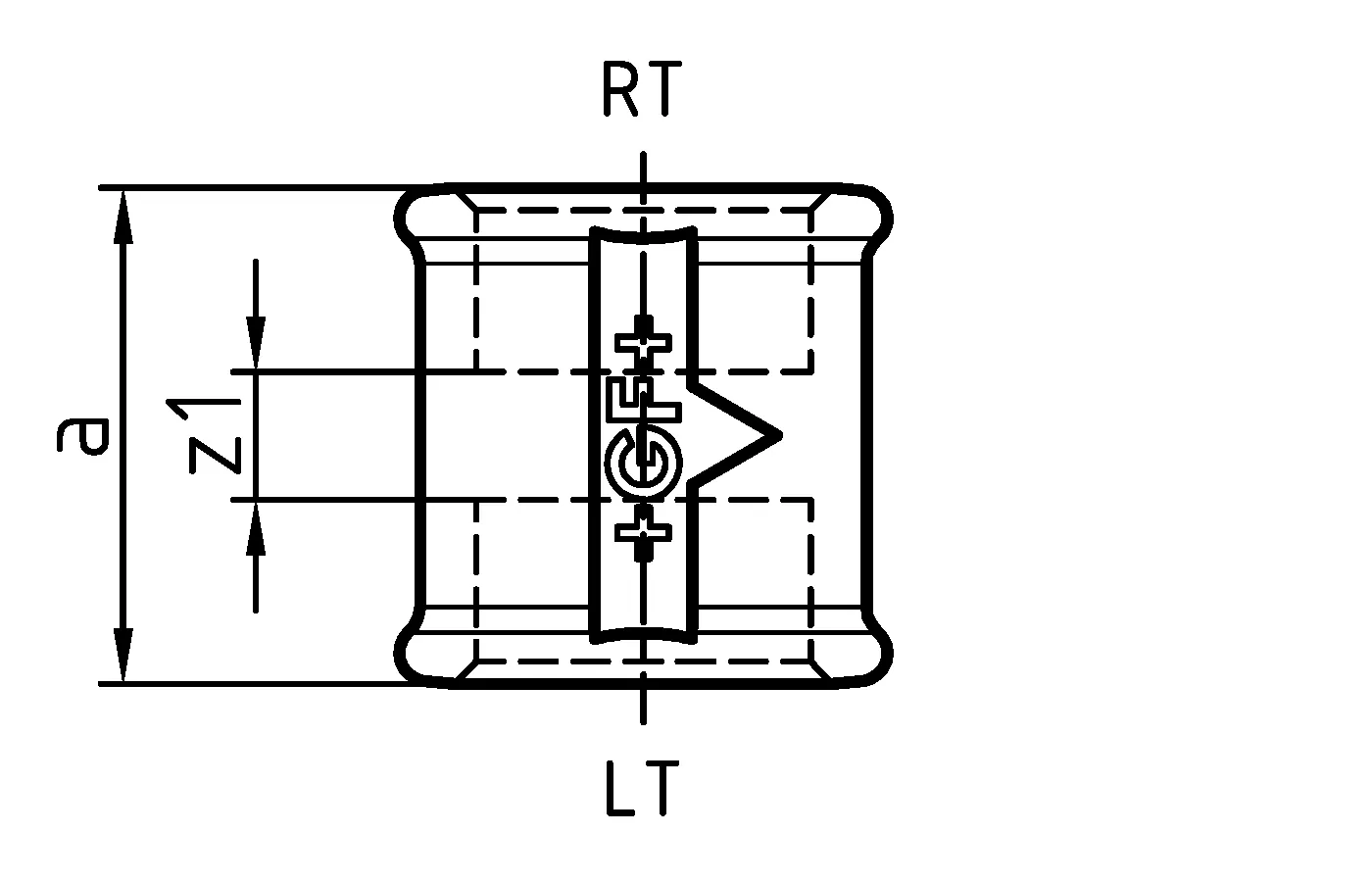

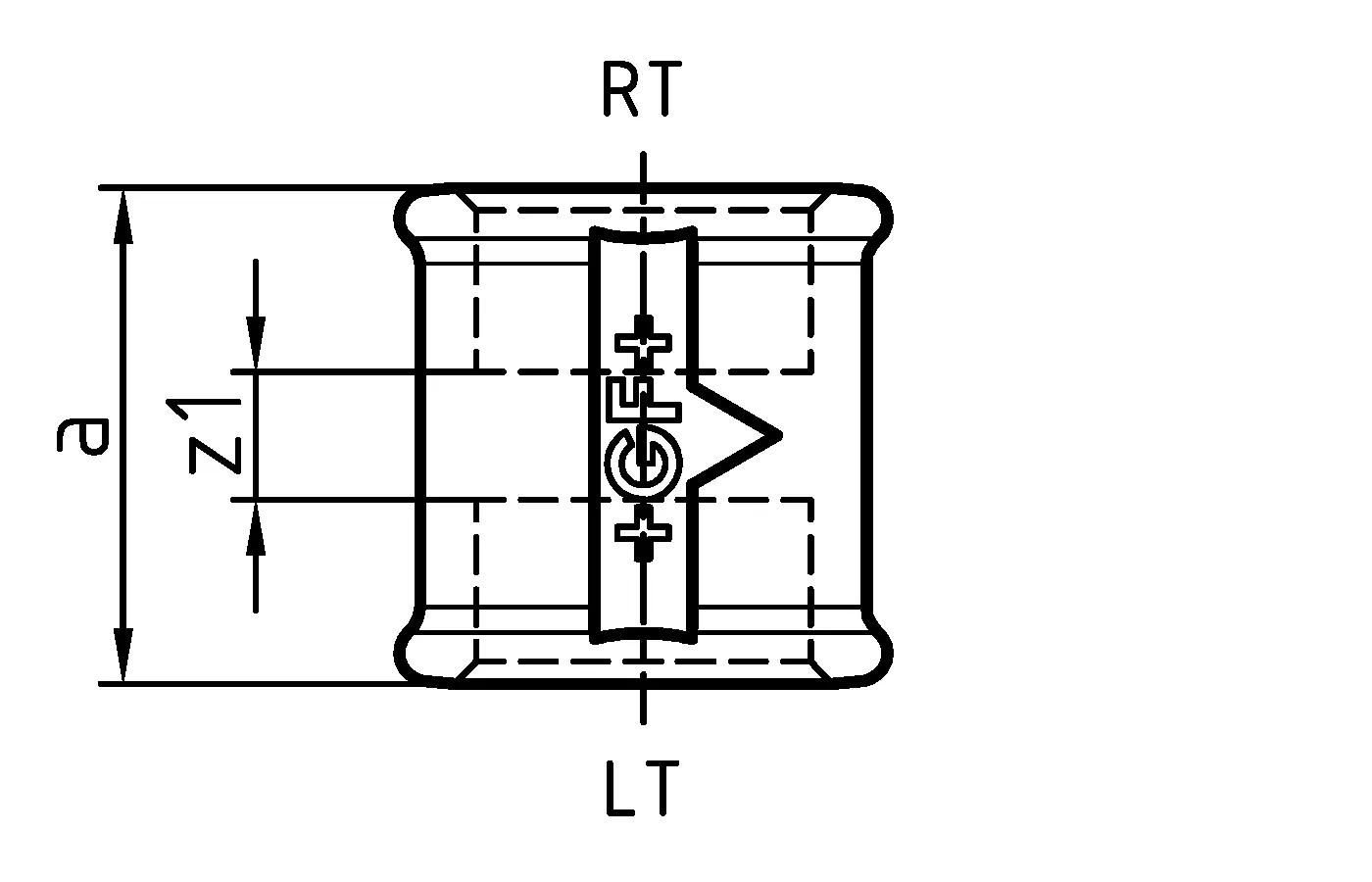

- Socket, right and left hand thread, ISO/EN M2 R-L
- 'RT' right hand thread, 'LT' left hand thread

Item details

1154040 / - / -

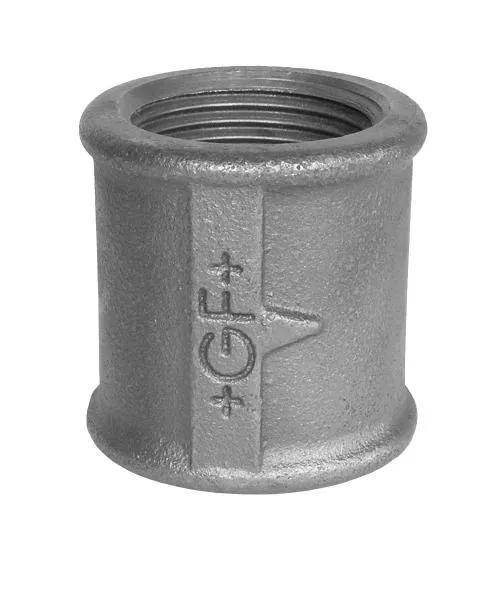

GF Malleable Fittings socket 271 3/8 B

1154047 / - / -

GF Malleable Fittings socket 271 3/8 G

1154041 / - / -

GF Malleable Fittings socket 271 1/2 B

1154048 / - / -

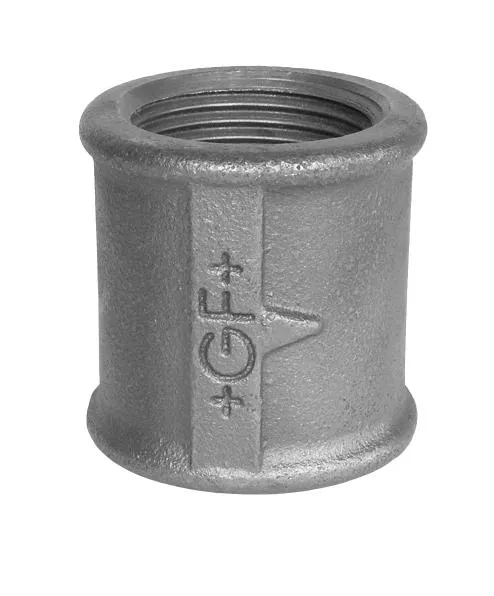

GF Malleable Fittings socket 271 1/2 G

1154042 / - / -

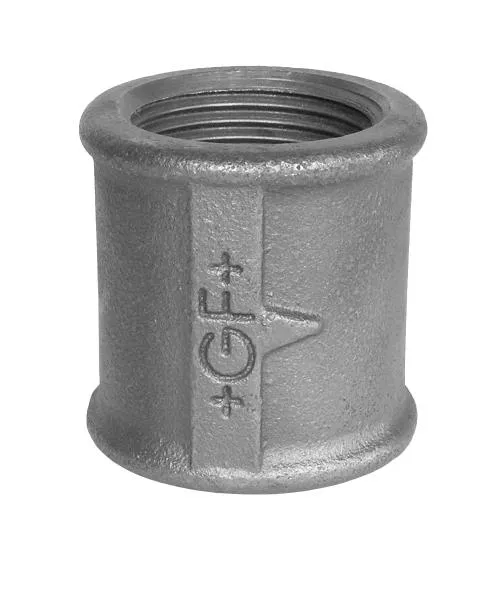

GF Malleable Fittings socket 271 3/4 B

1154049 / - / -

GF Malleable Fittings socket 271 3/4 G

1154043 / - / -

GF Malleable Fittings socket 271 1 B

1154050 / - / -

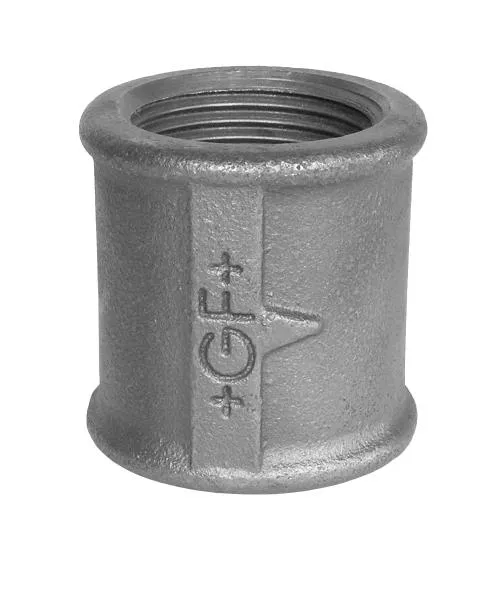

GF Malleable Fittings socket 271 1 G

1154044 / - / -

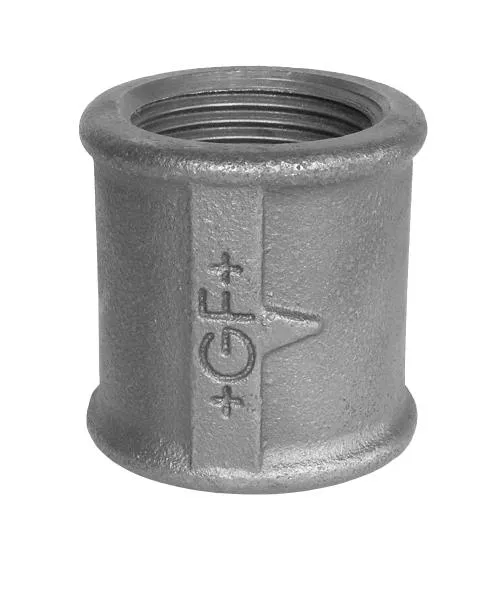

GF Malleable Fittings socket 271 1 1/4 B

1154051 / - / -

GF Malleable Fittings socket 271 1 1/4 G

1154045 / - / -

GF Malleable Fittings socket 271 1 1/2 B

1154052 / - / -

GF Malleable Fittings socket 271 1 1/2 G

1154046 / - / -

GF Malleable Fittings socket 271 2 B

1154053 / - / -

GF Malleable Fittings socket 271 2 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
