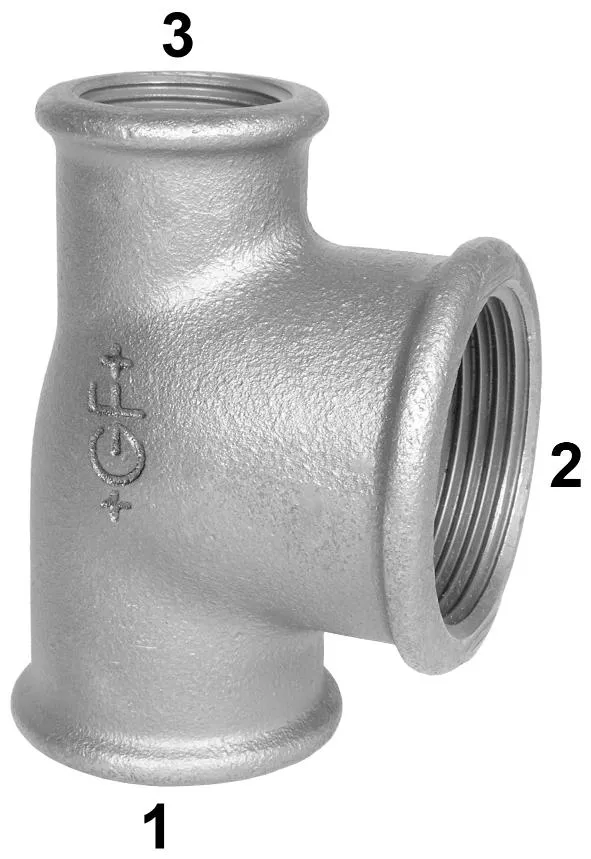

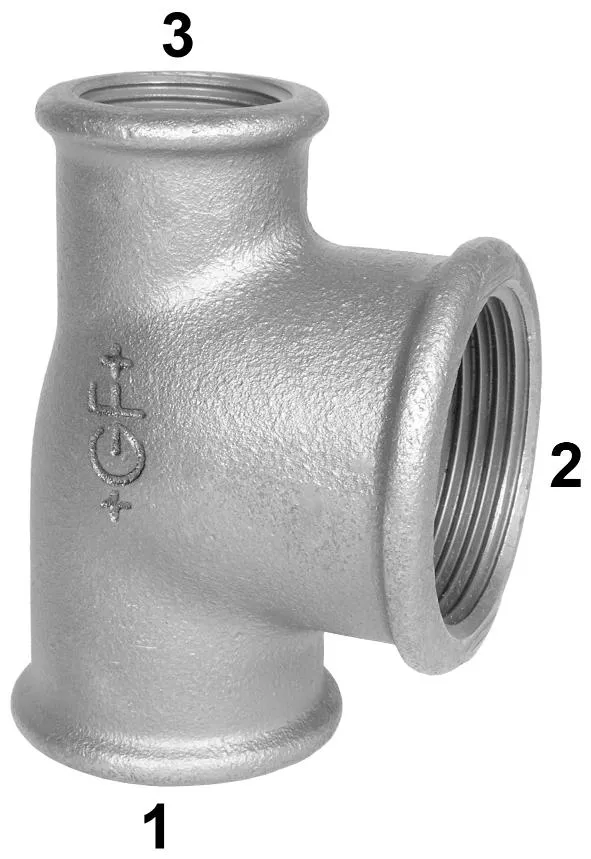

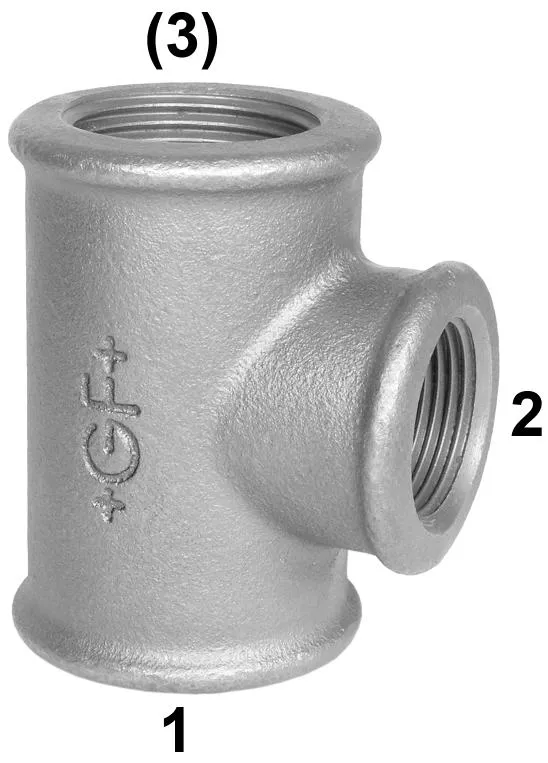

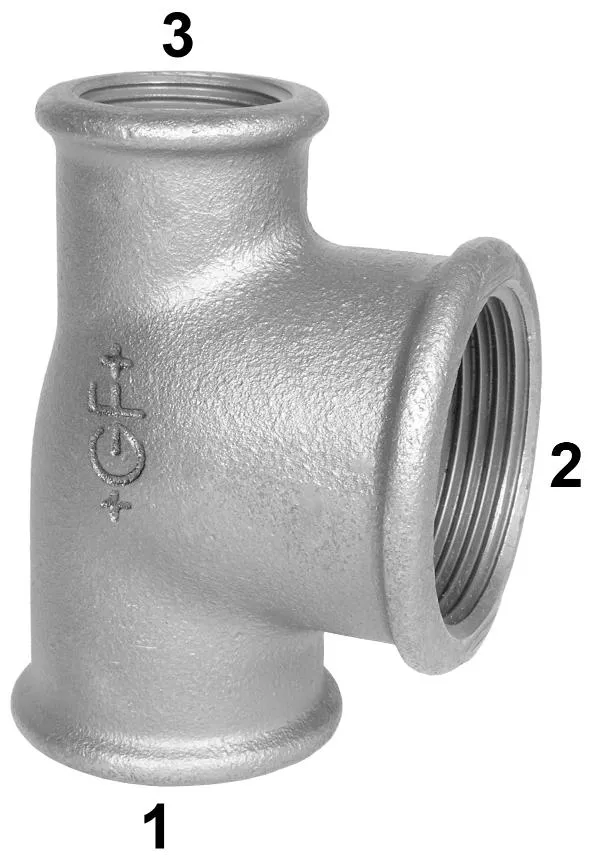

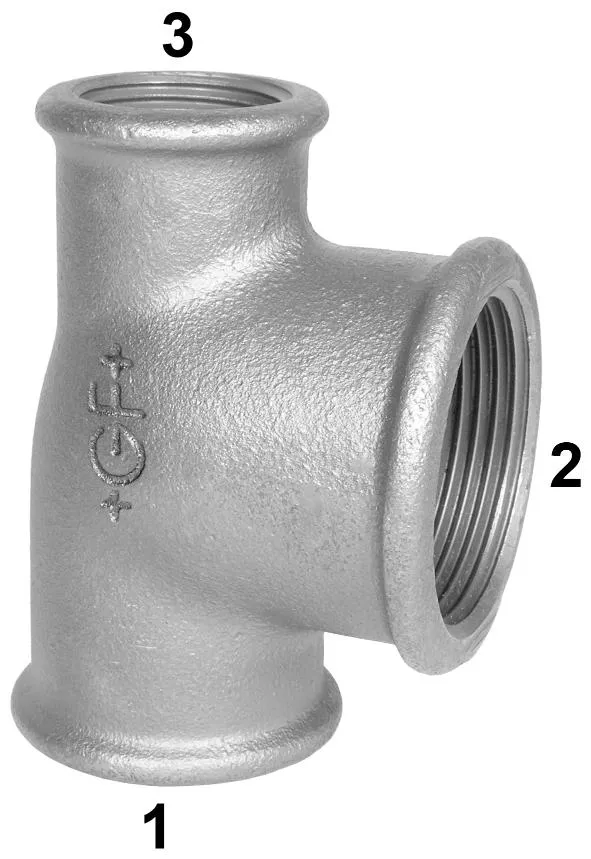

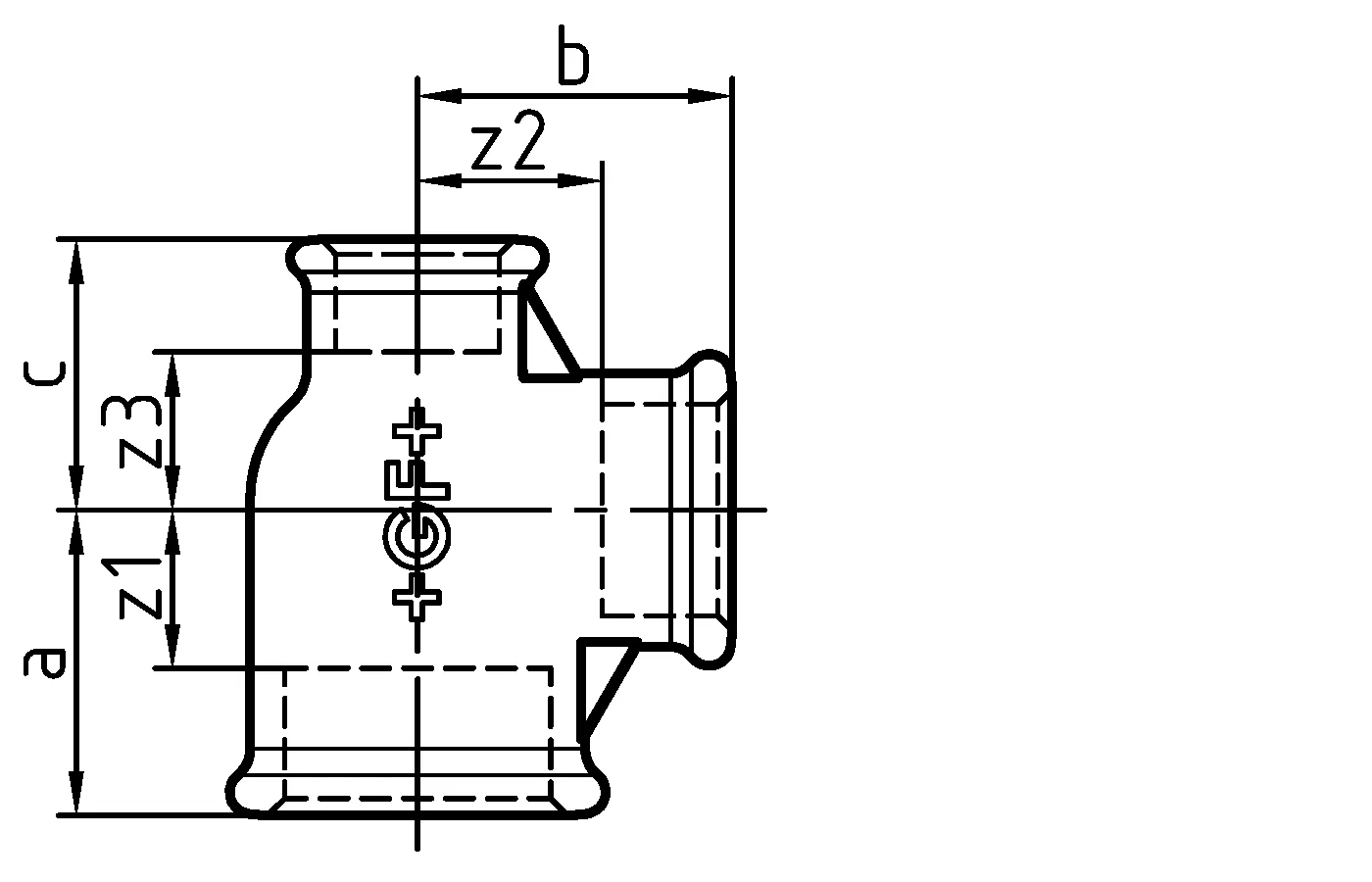

GF Malleable Fittings tee reduced 130

- Malleable cast iron

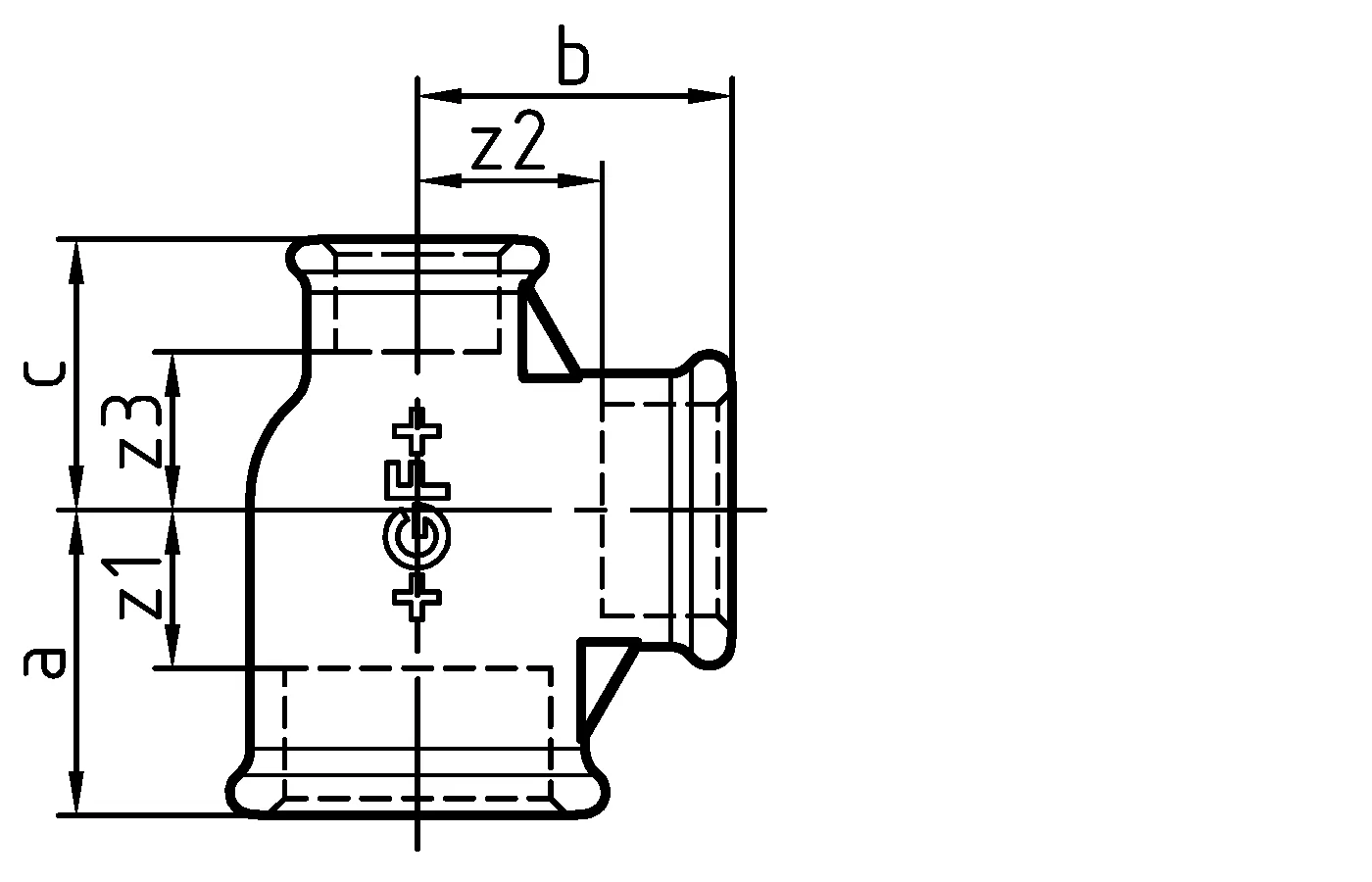

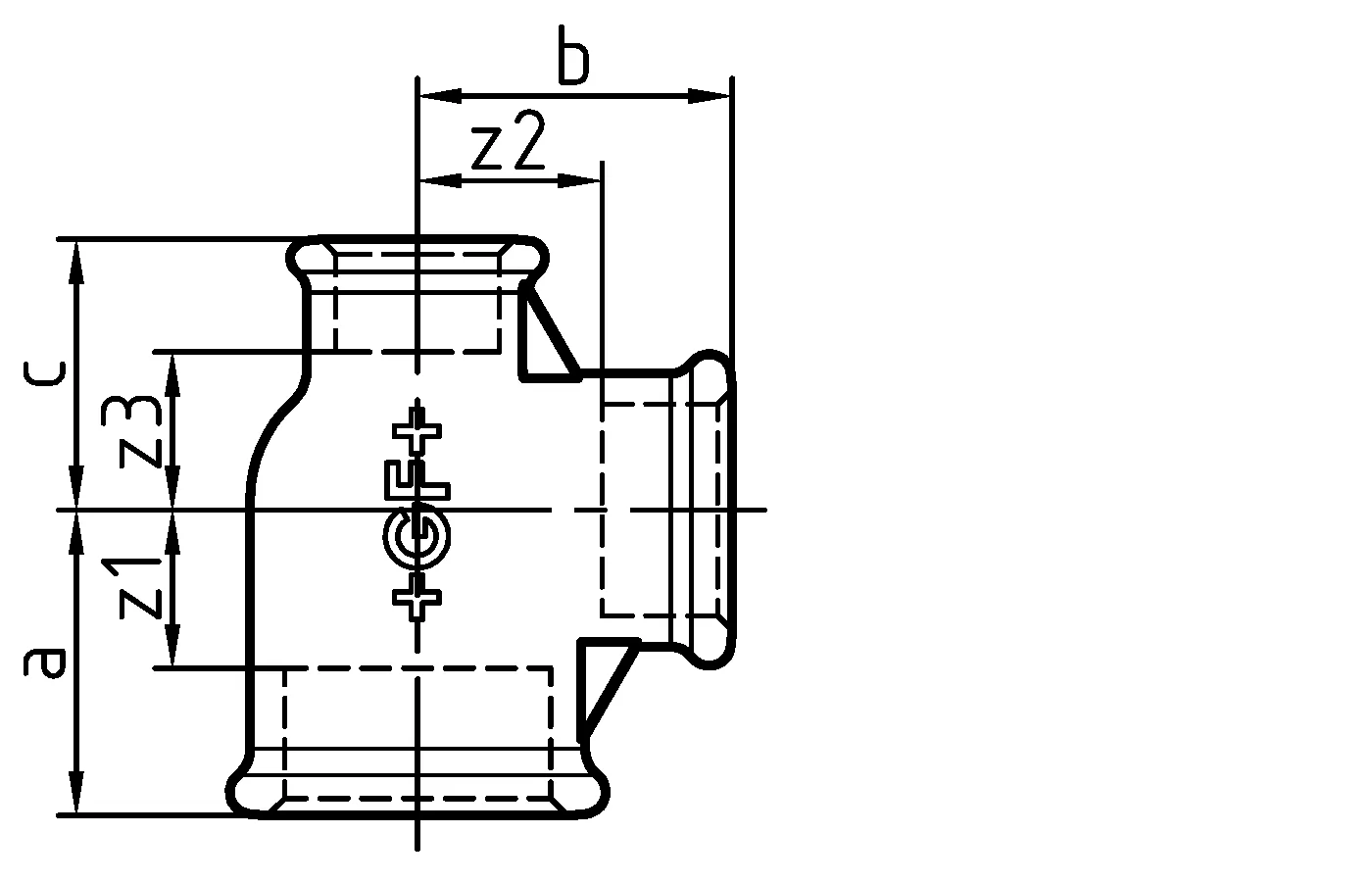

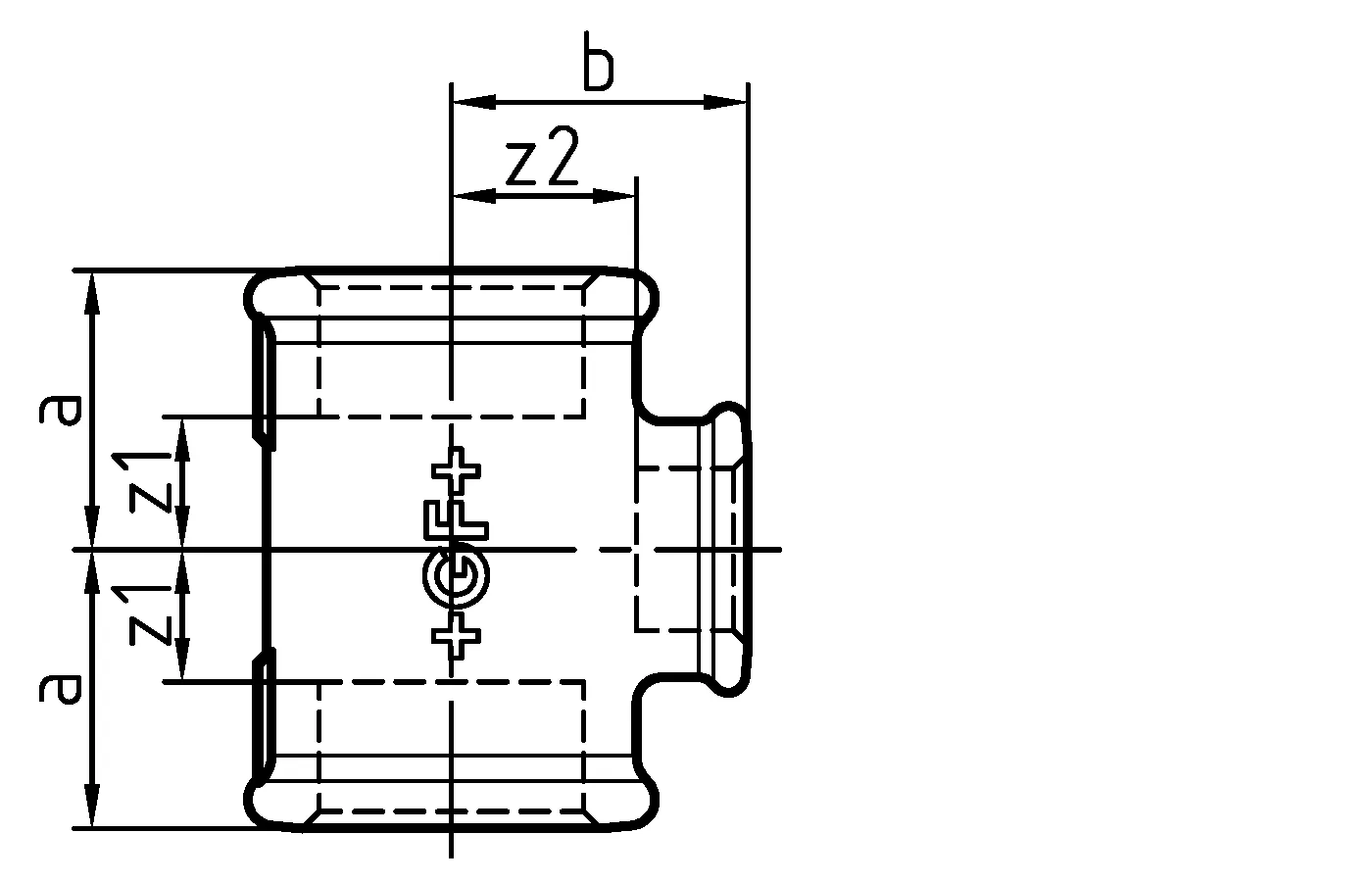

- Tee, reducing or increasing on the branch, reducing on the run
- ISO/EN B1

Item details

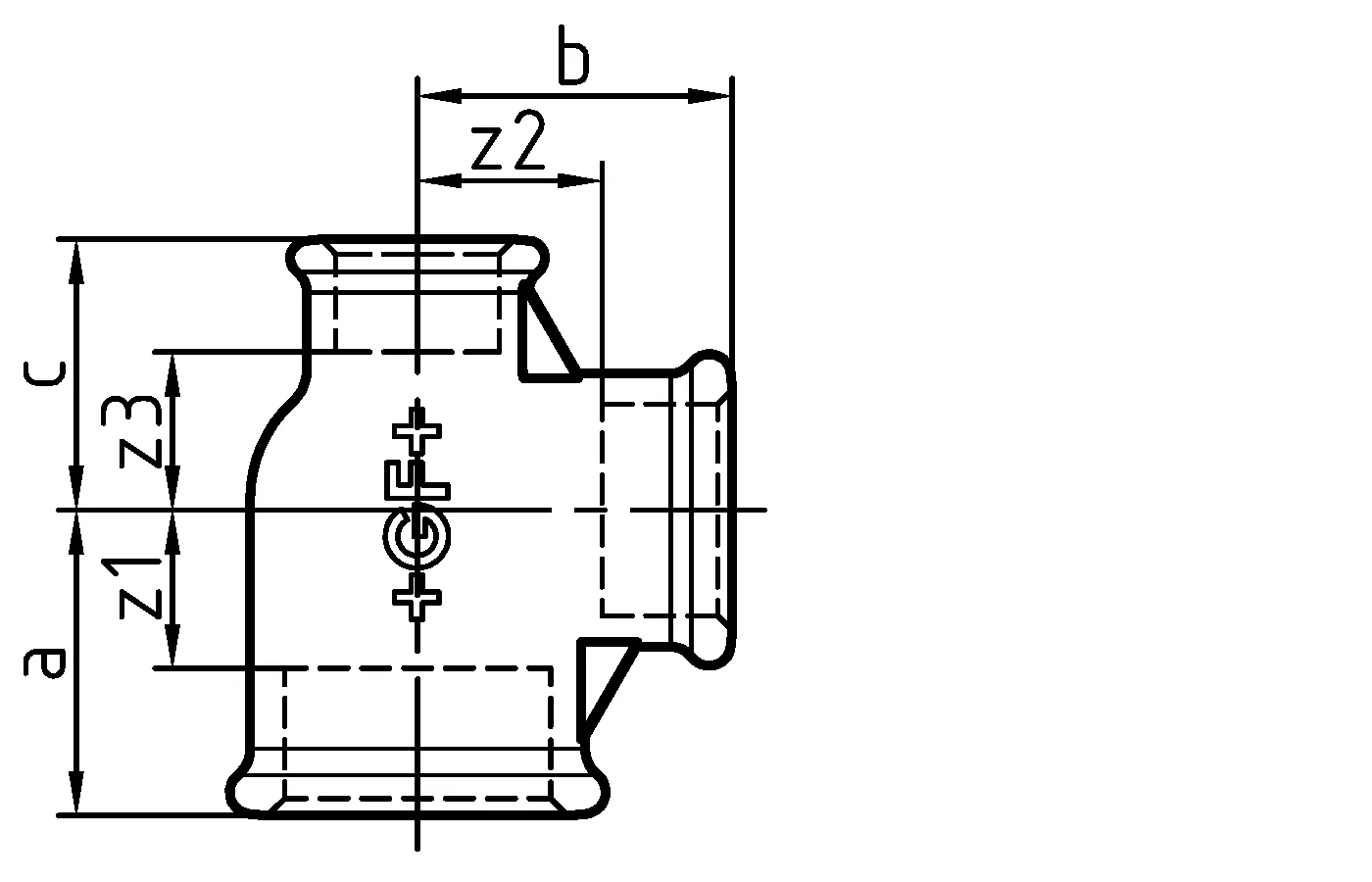

1153402 / - / -

GF Malleable Fittings tee reduced 130 1 - 3/4 - 1/2 G

1153309 / - / -

GF Malleable Fittings tee reduced 130 1 - 3/4 B

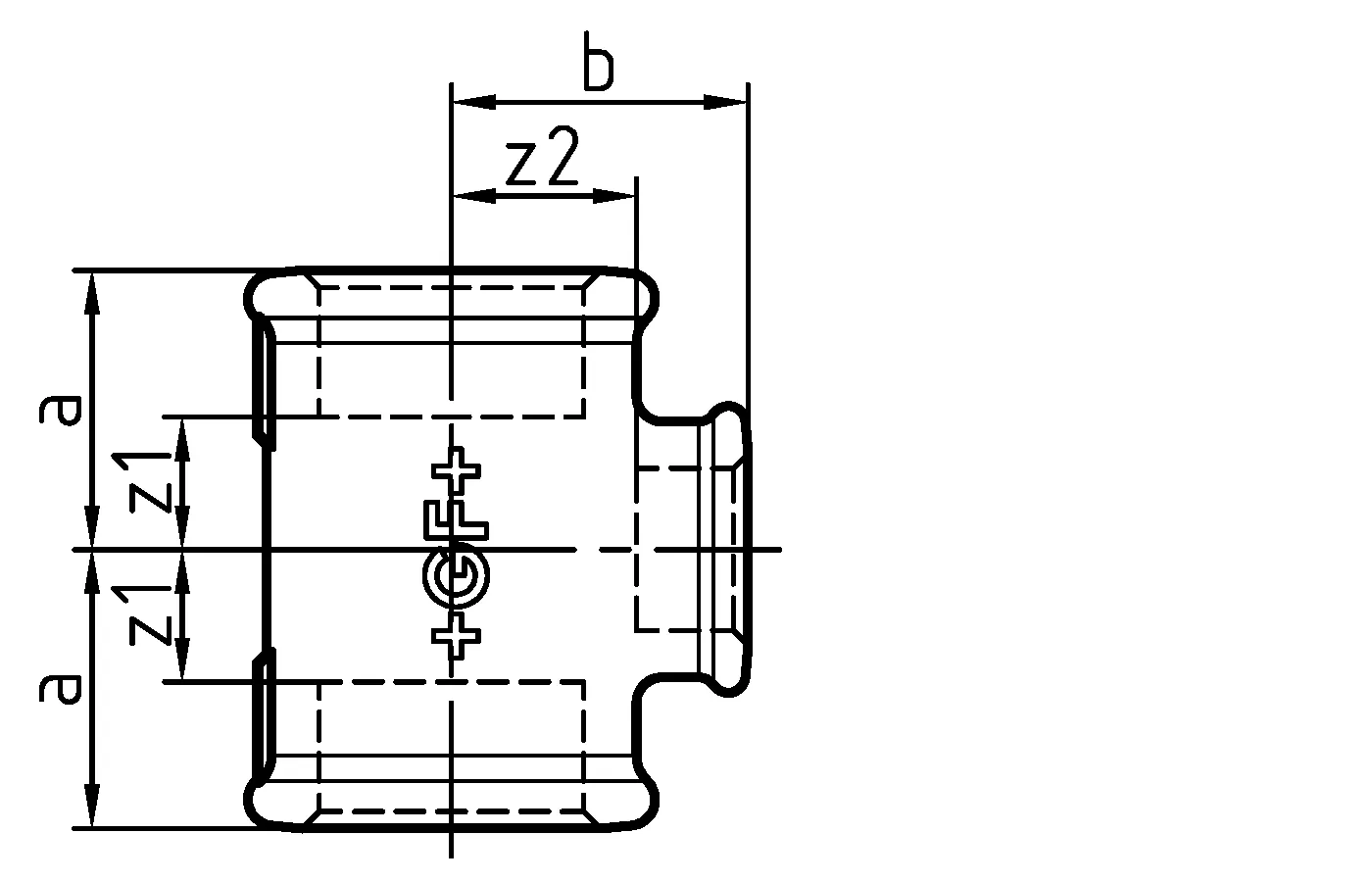

1153404 / - / -

GF Malleable Fittings tee reduced 130 1 - 3/4 G

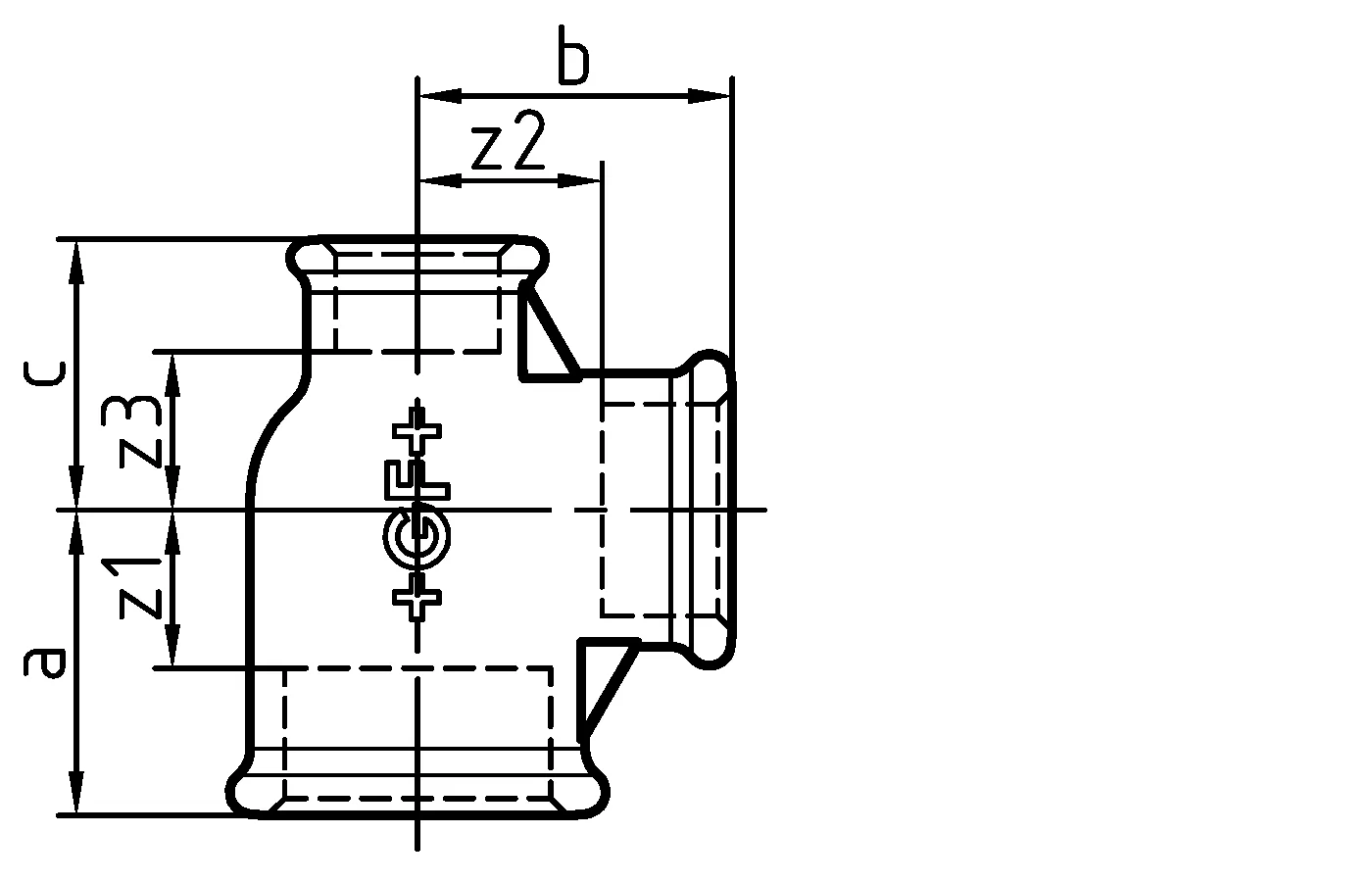

1153403 / - / -

GF Malleable Fittings tee reduced 130 1 - 3/4 - 3/4 G

1153427 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1/2 G

1153337 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 B

1153432 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 G

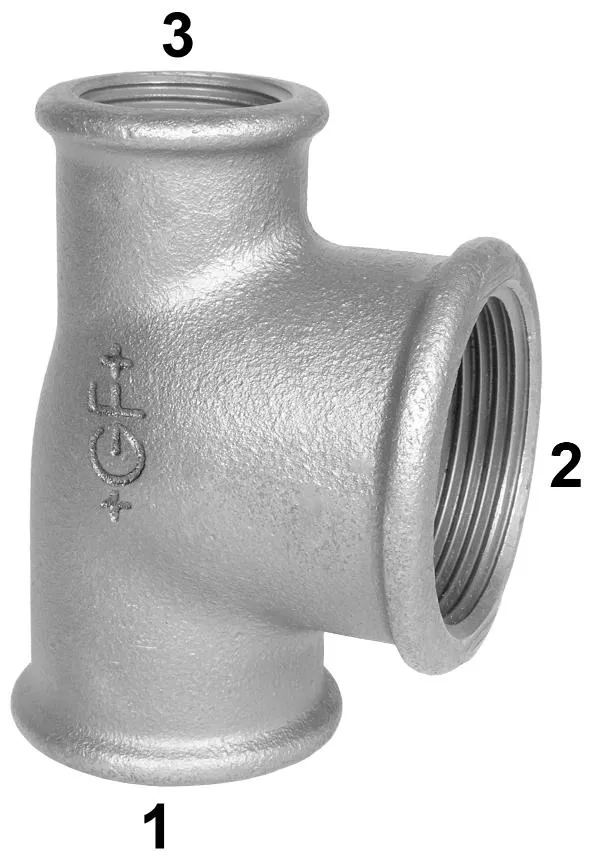

1153335 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 - 1 B

1153430 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 - 1 G

1153336 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 - 1 1/4 B

1153431 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 - 1 1/4 G

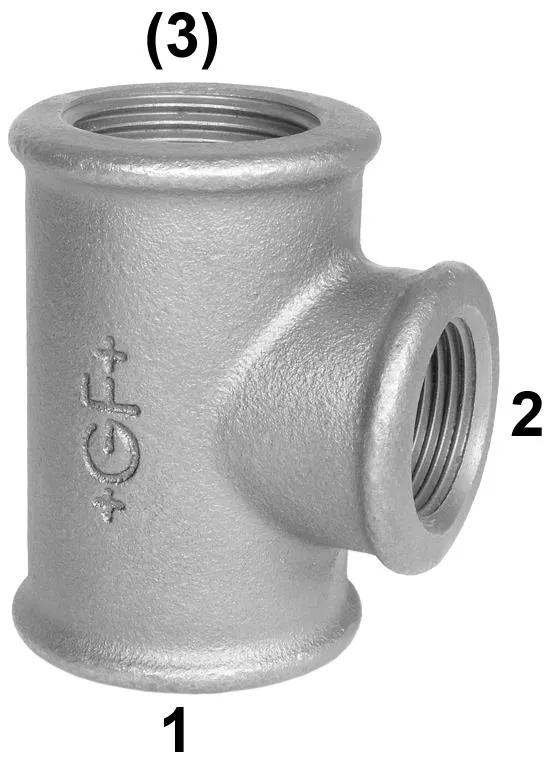

1153340 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/4 B

1153435 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/4 G

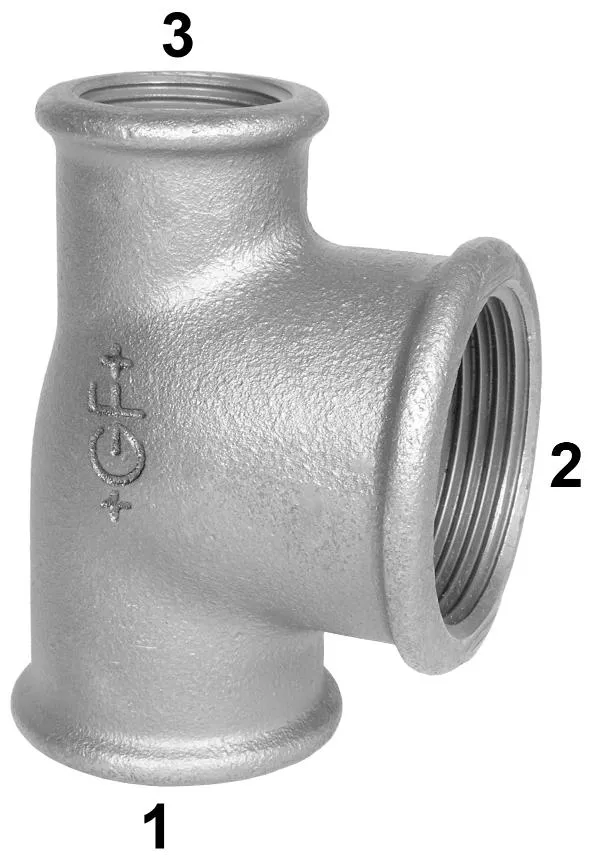

1153338 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/4 - 1 B

1153433 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/4 - 1 G

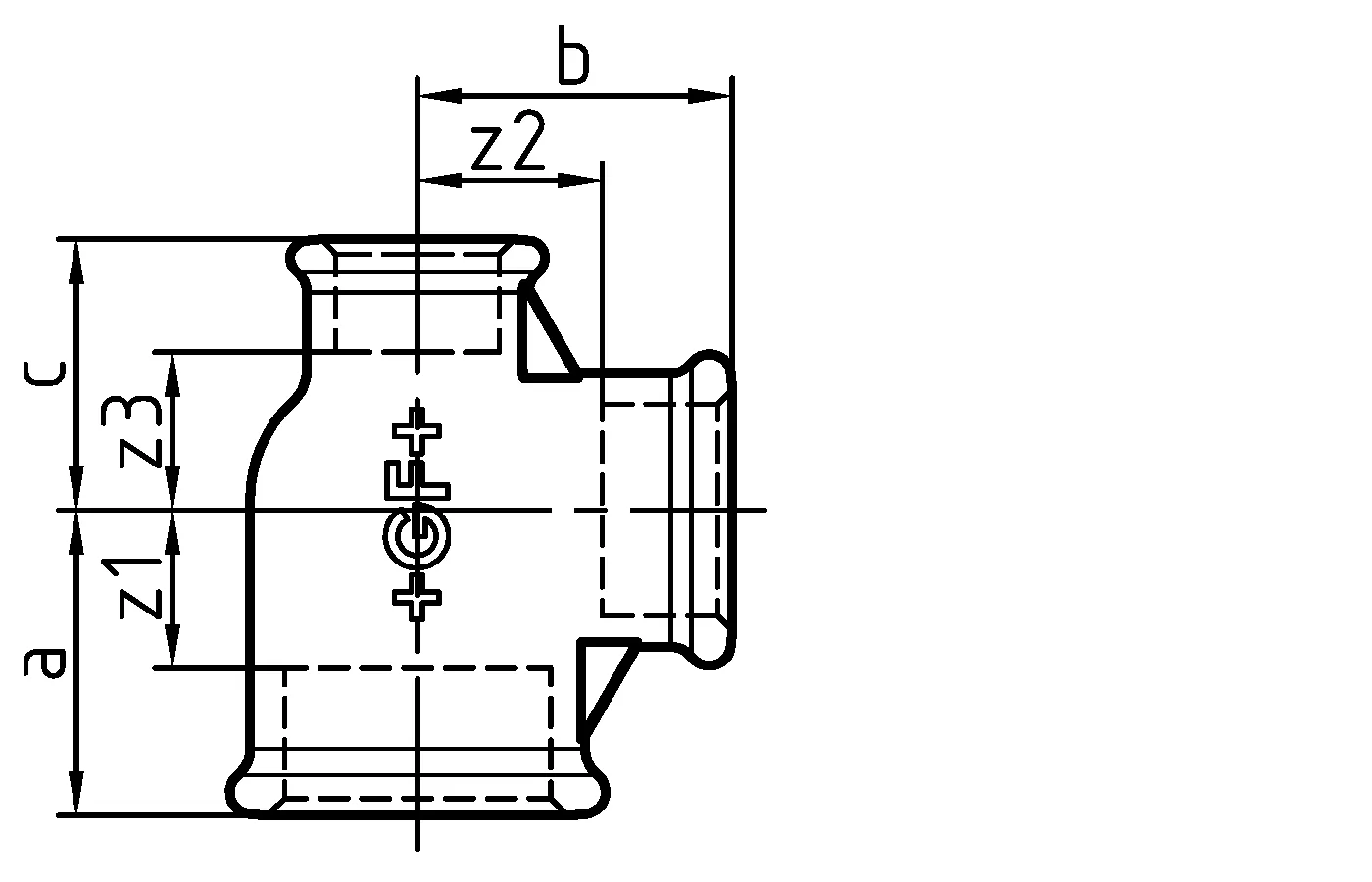

1153339 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/4 - 1 1/4 B

1153434 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/4 - 1 1/4 G

1153341 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/2 - 1/2 B

1153436 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/2 - 1/2 G

1153342 / - / -

GF Malleable Fittings tee reduced 130 1 1/2- 1 1/2 - 3/4 B

1153437 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/2 - 3/4 G

1153343 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/2 - 1 B

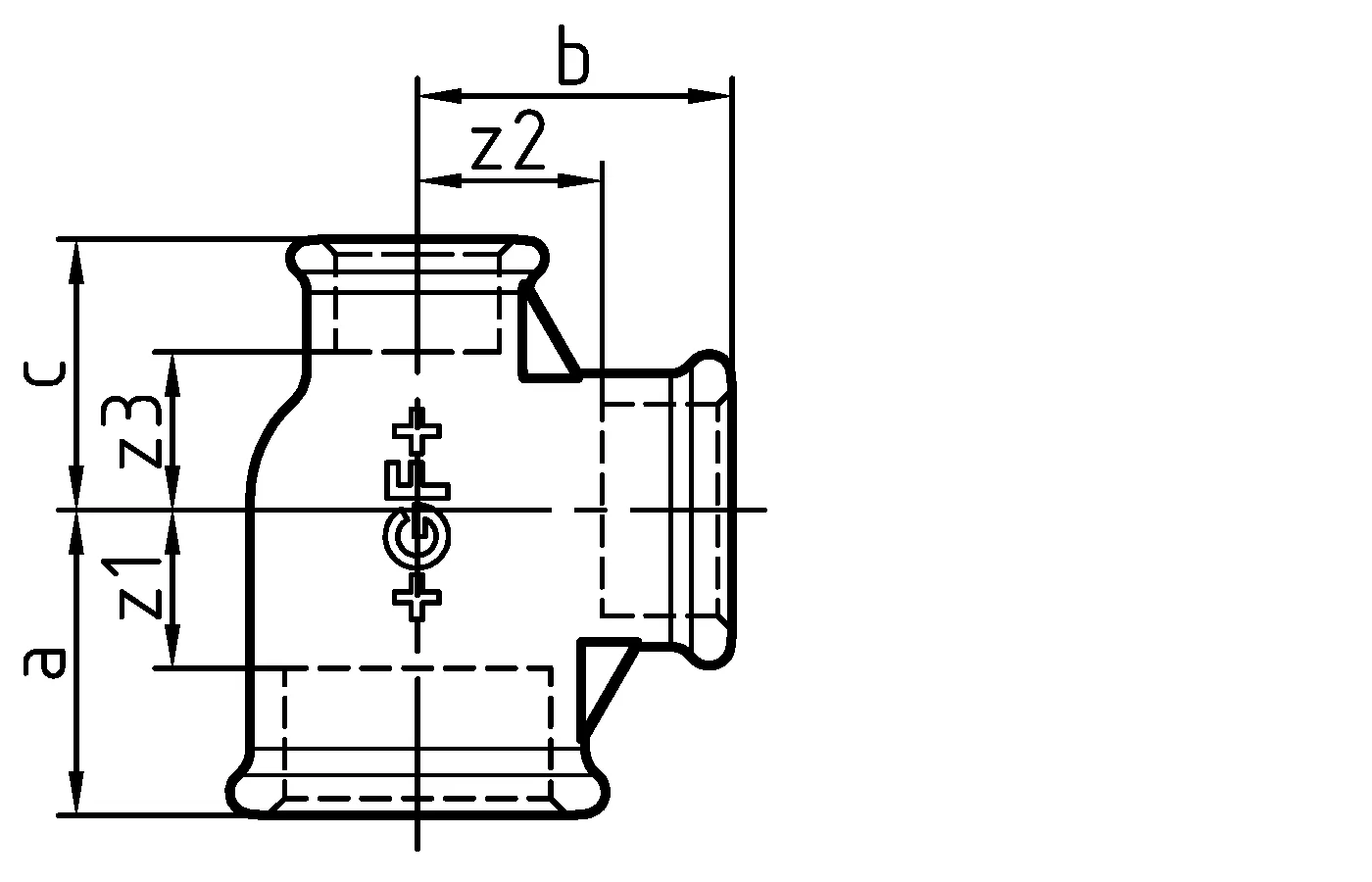

1153438 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/2 - 1 G

1153344 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/2 - 1 1/4 B

1153439 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 1 1/2 -1 1/4 G

1153346 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 2 - 1 1/4 B

1153441 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 2 - 1 1/4 G

1153347 / - / -

GF Malleable Fittings tee reduced 130 1 1/2 - 2 B

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
