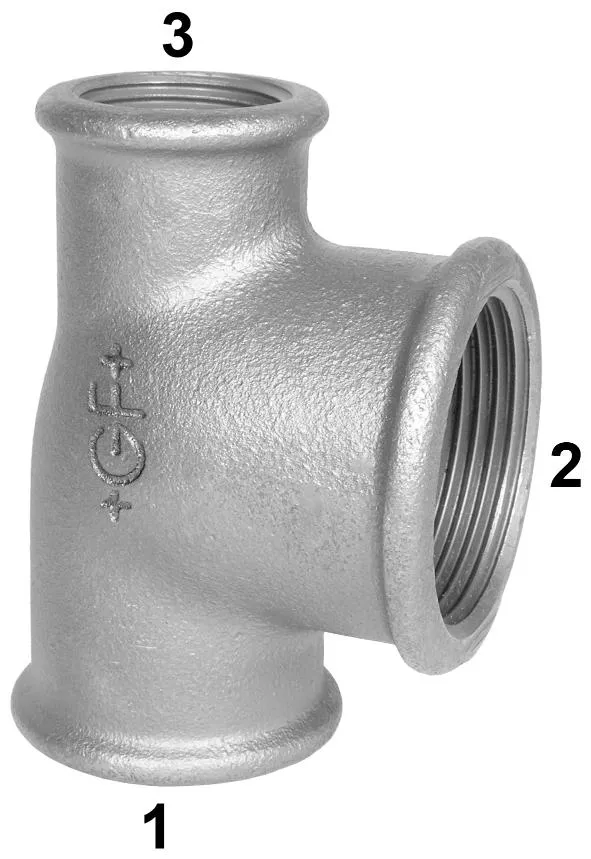

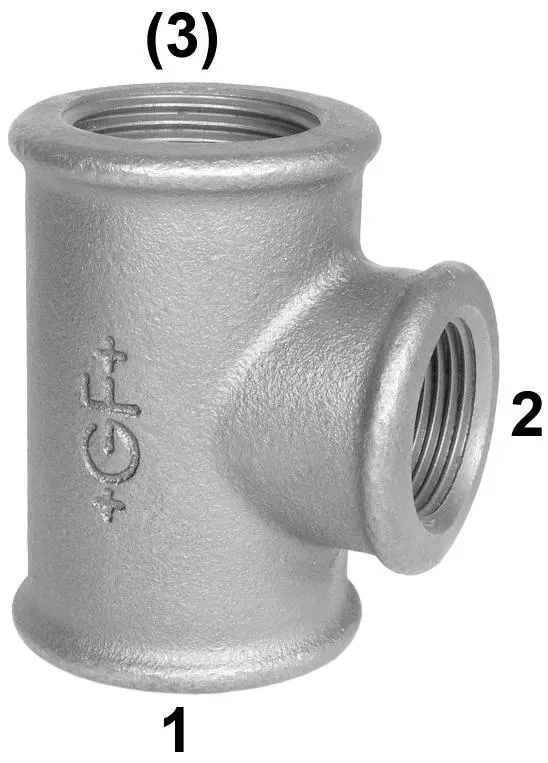

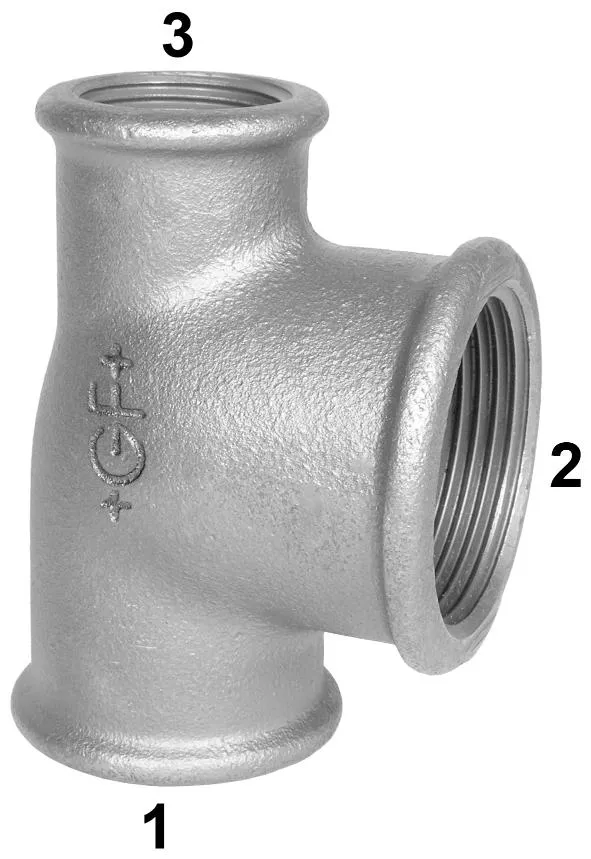

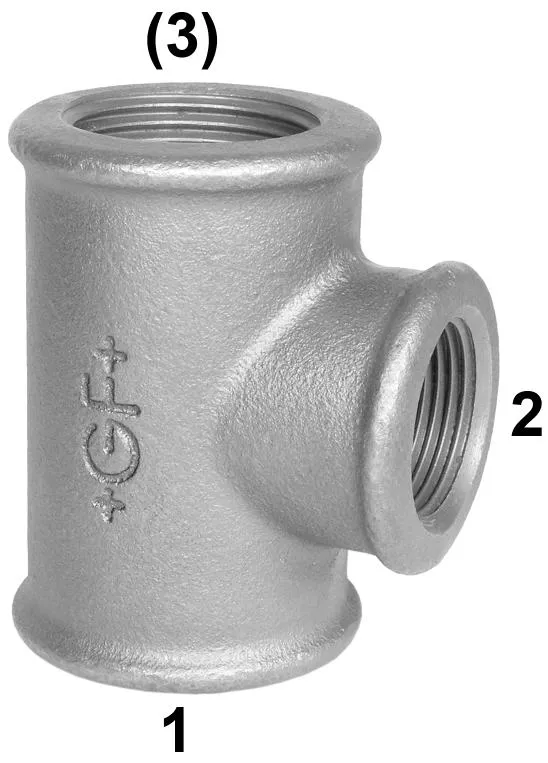

GF Malleable Fittings tee reduced 130

- Malleable cast iron

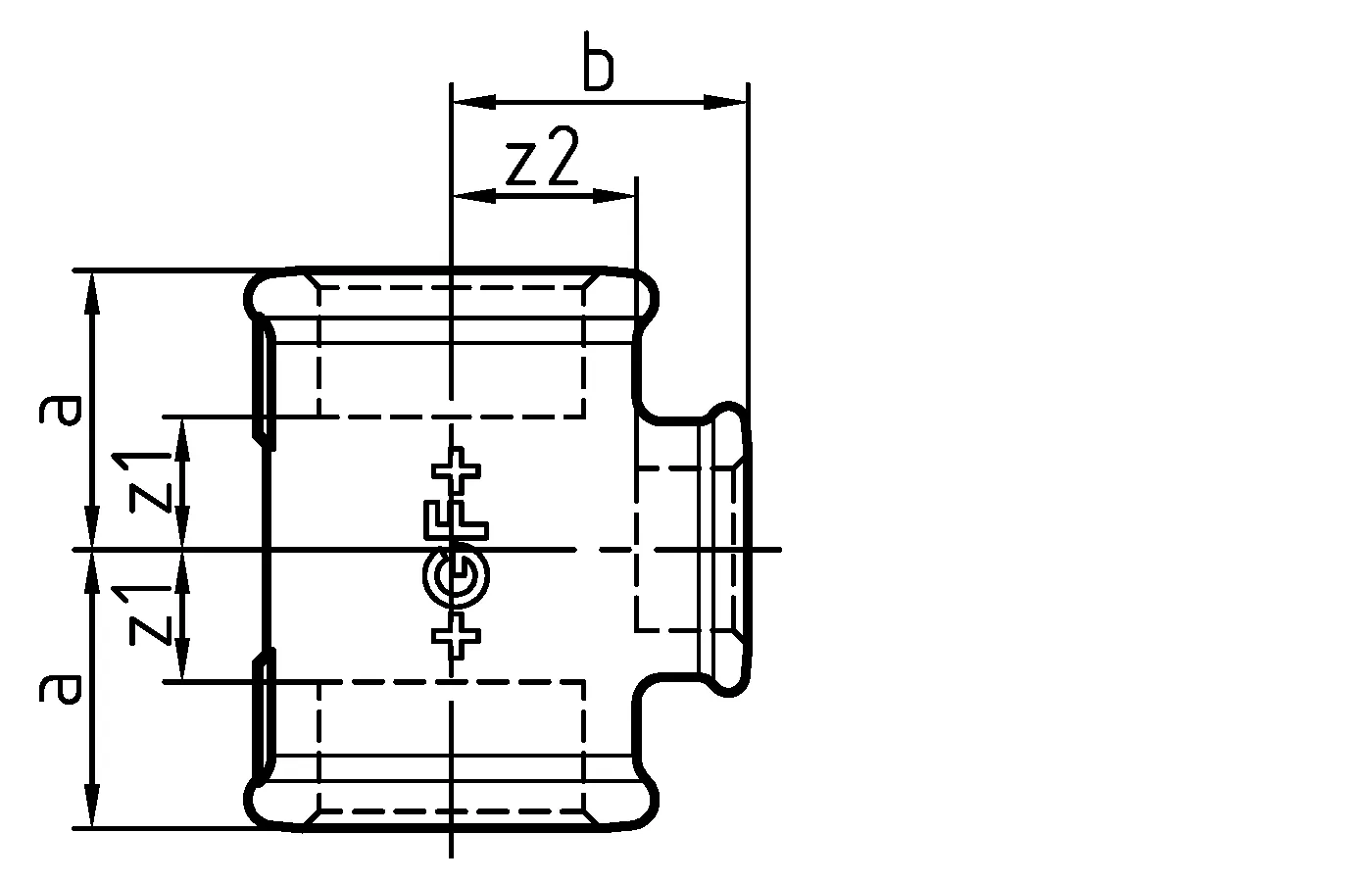

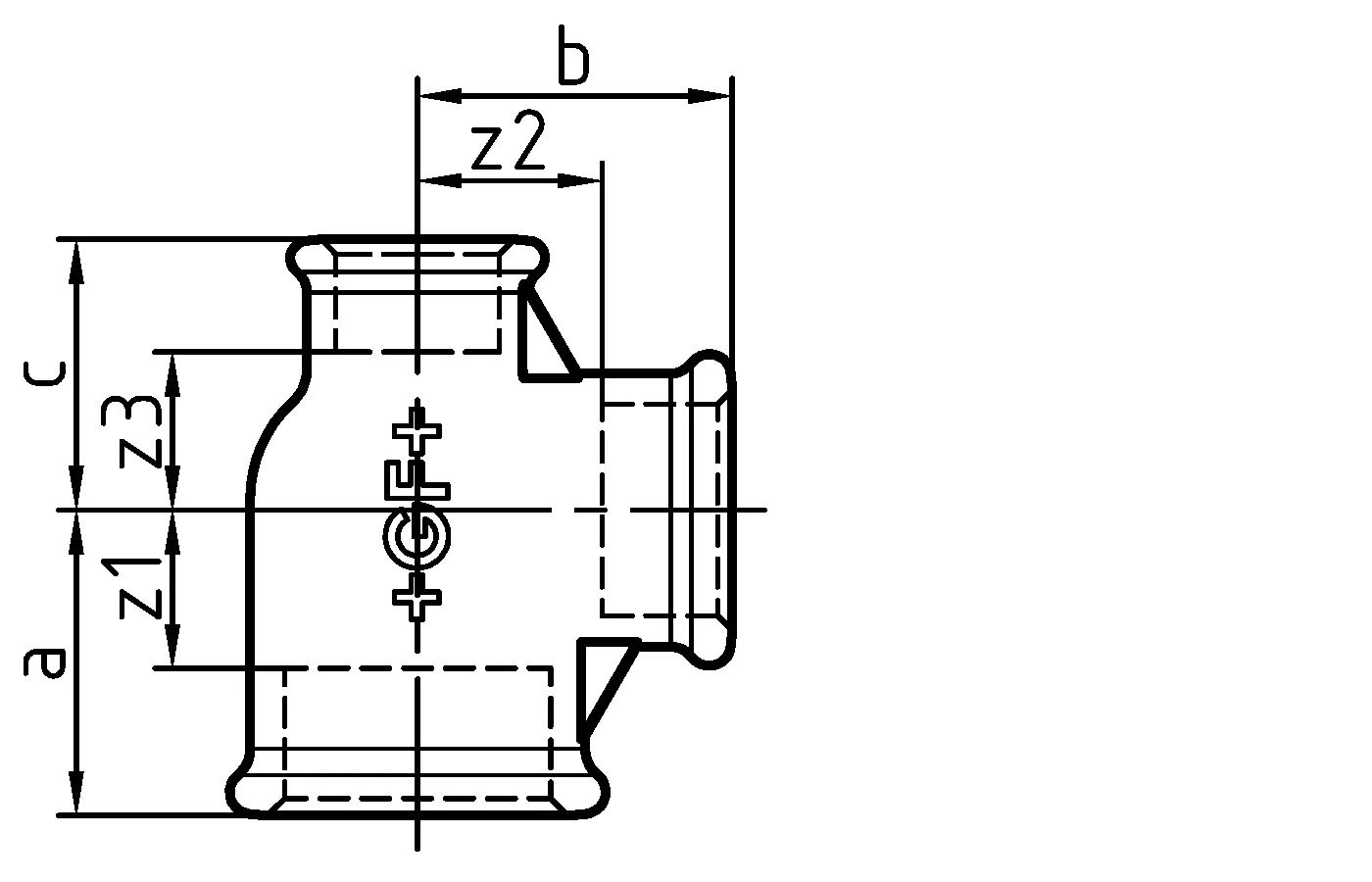

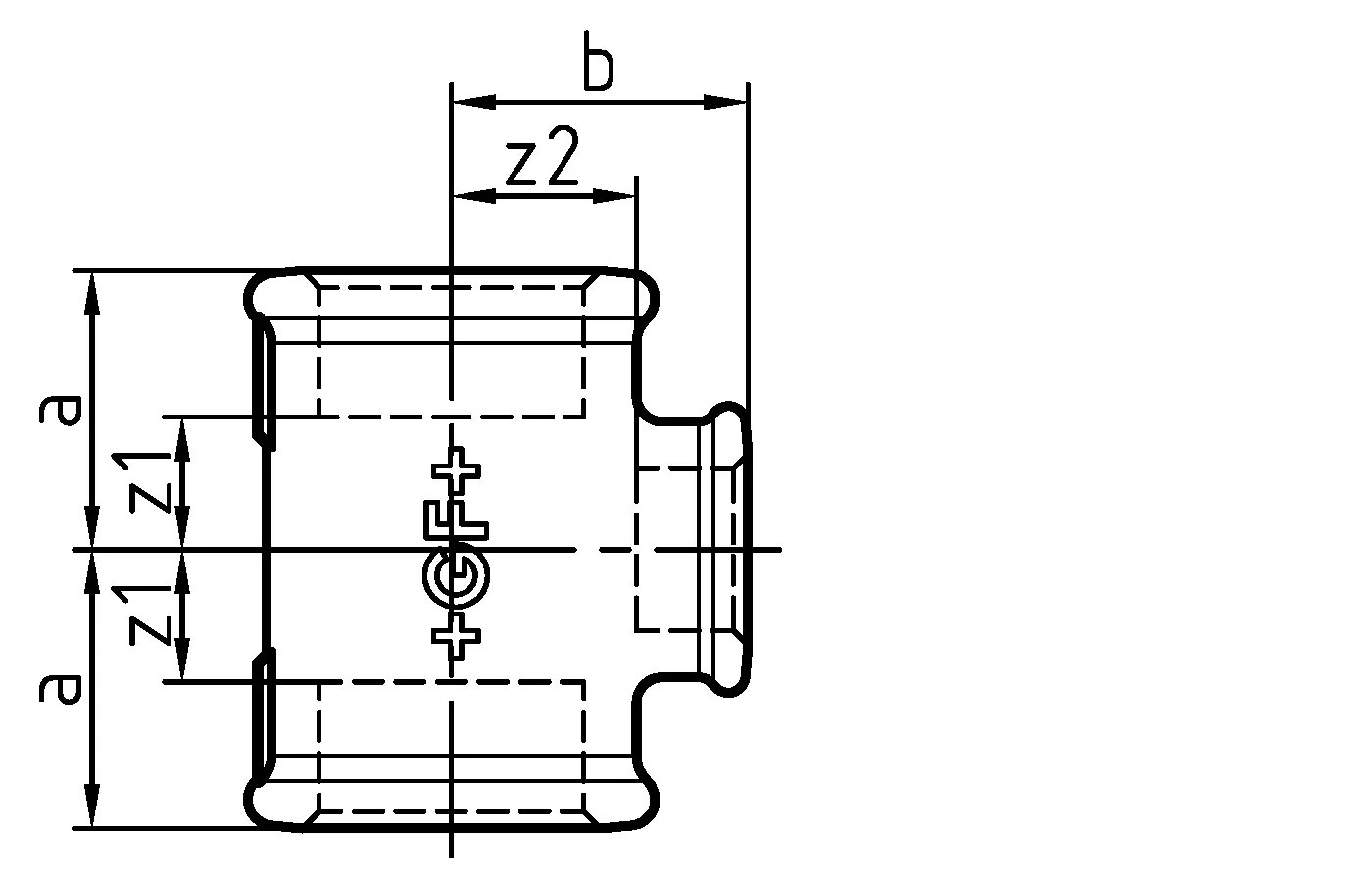

- Tee, reducing or increasing on the branch, reducing on the run
- ISO/EN B1

Item details

1153235 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 2 - 2 B

1153254 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 2 G

1153253 / - / -

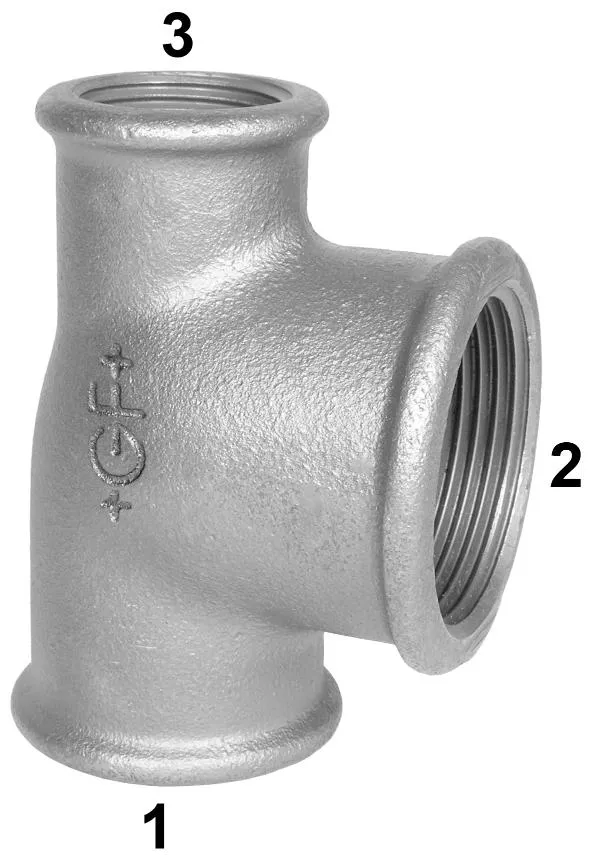

GF Malleable Fittings tee reduced 130 2 1/2 - 2 - 2 G

1153255 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 2 1/2 - 1 G

1153237 / - / -

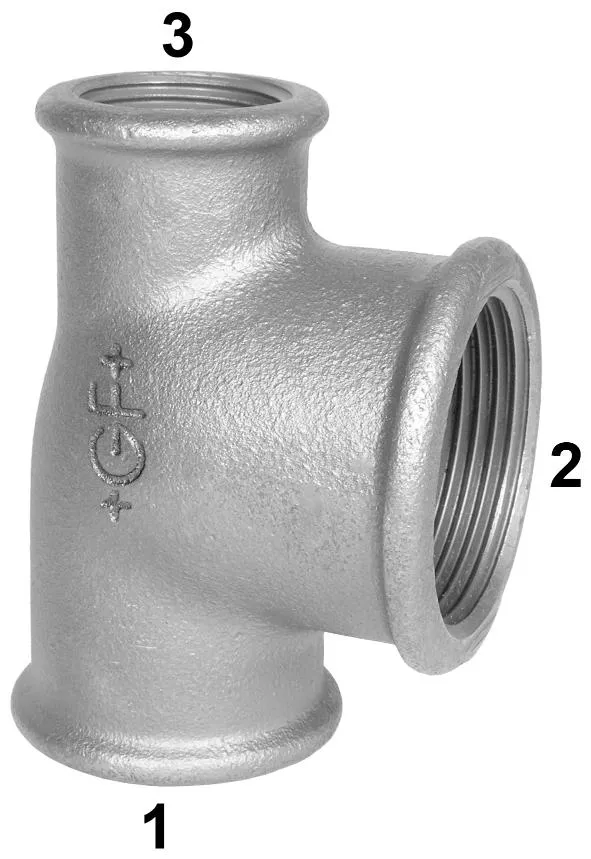

GF Malleable Fittings tee reduced 130 2 1/2 - 2 1/2 - 1 1/2 B

1153256 / - / -

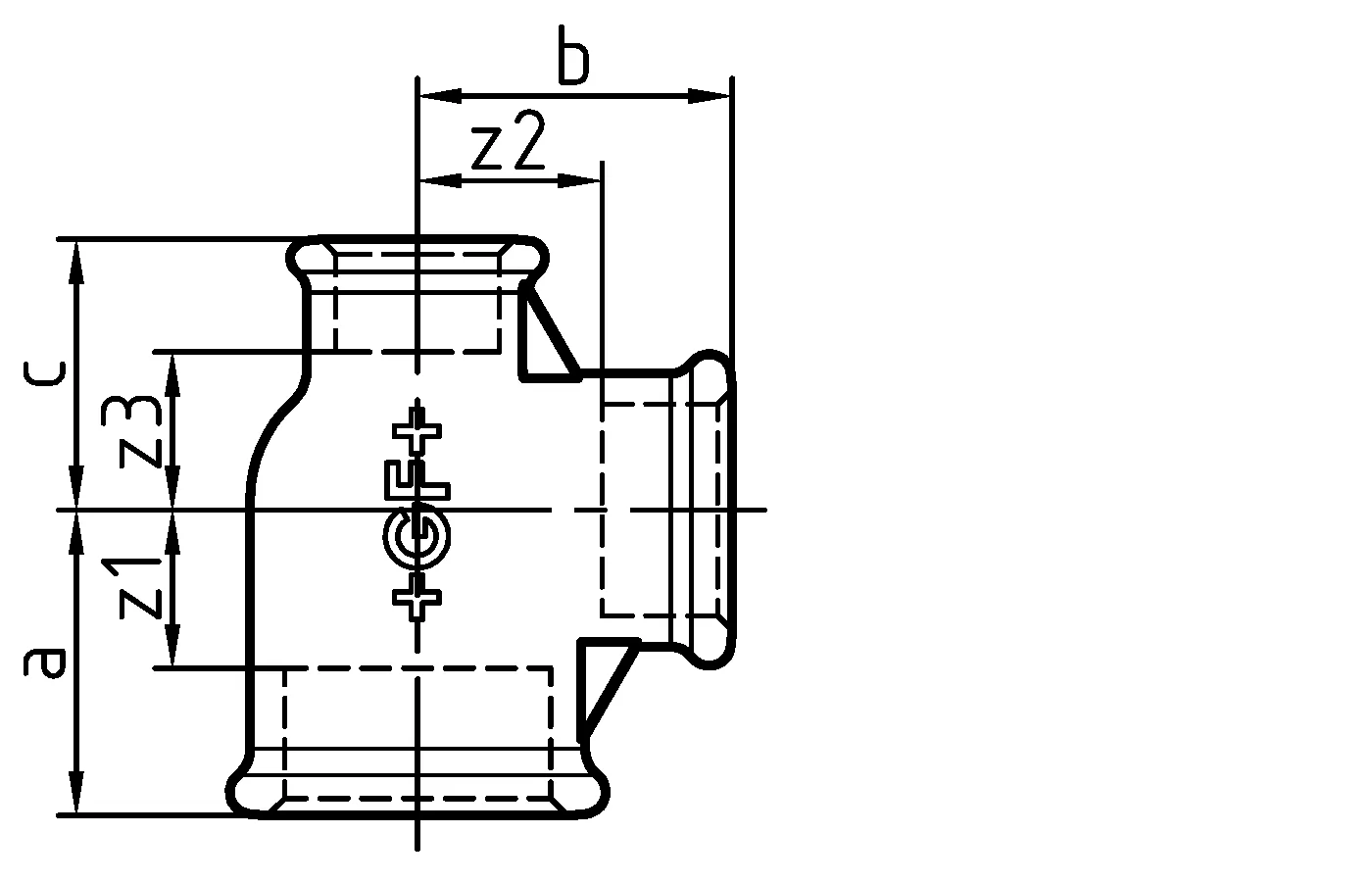

GF Malleable Fittings tee reduced 130 2 1/2 - 2 1/2 - 1 1/2 G

1153257 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 2 1/2 - 2 G

1153364 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 1/2 B

1153459 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 1/2 G

1153239 / - / -

GF Malleable Fittings tee reduced 130 3 - 1/2 B

1153258 / - / -

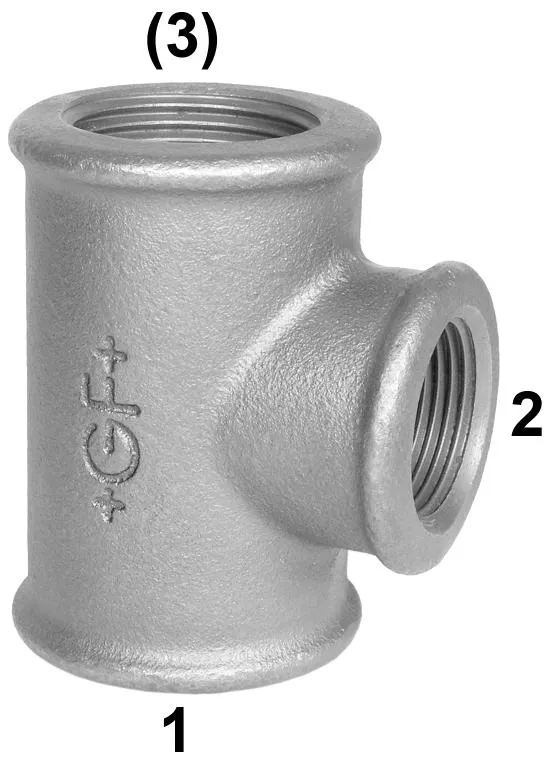

GF Malleable Fittings tee reduced 130 3 - 1/2 G

1153240 / - / -

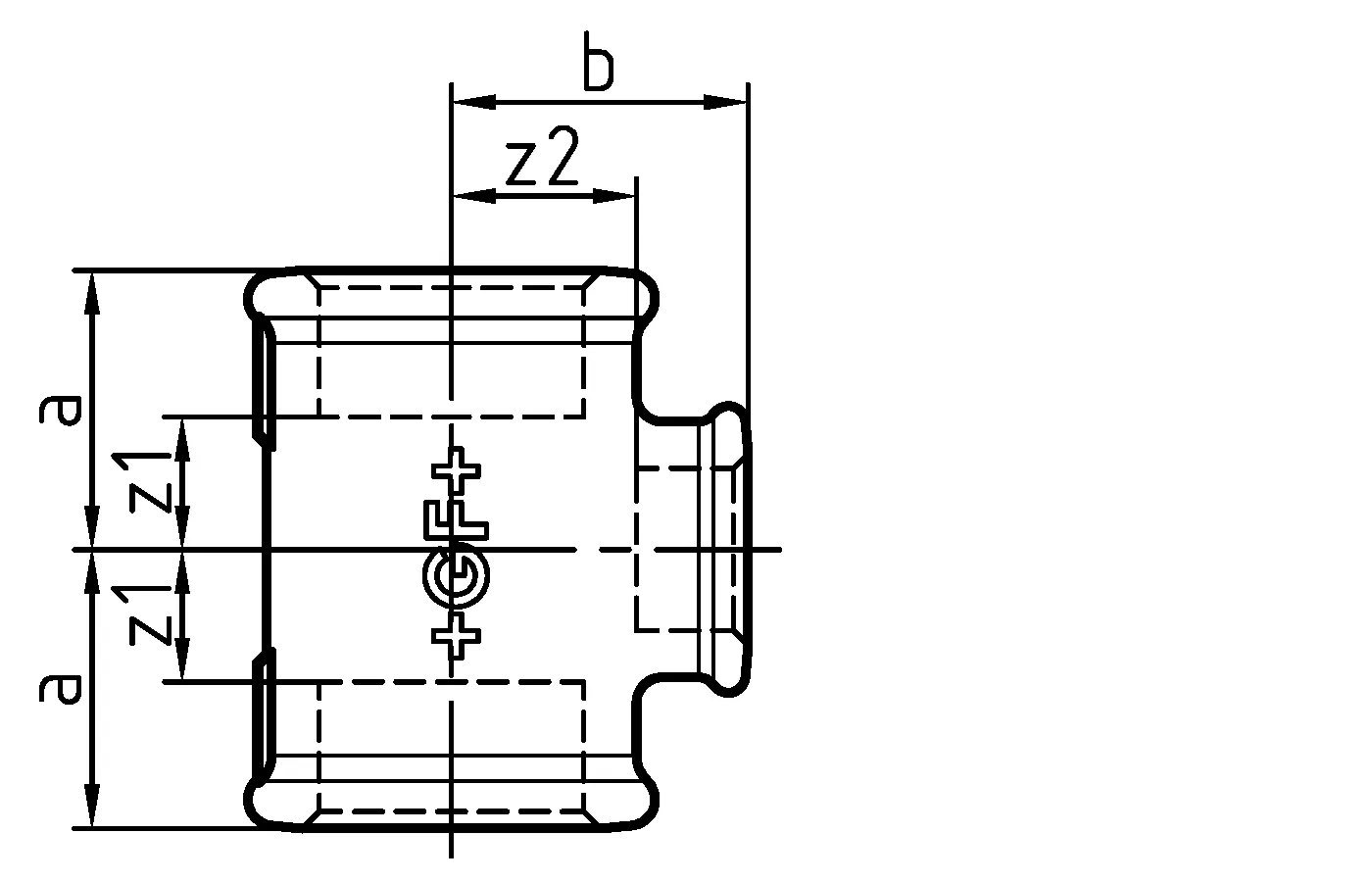

GF Malleable Fittings tee reduced 130 3 - 3/4 B

1153259 / - / -

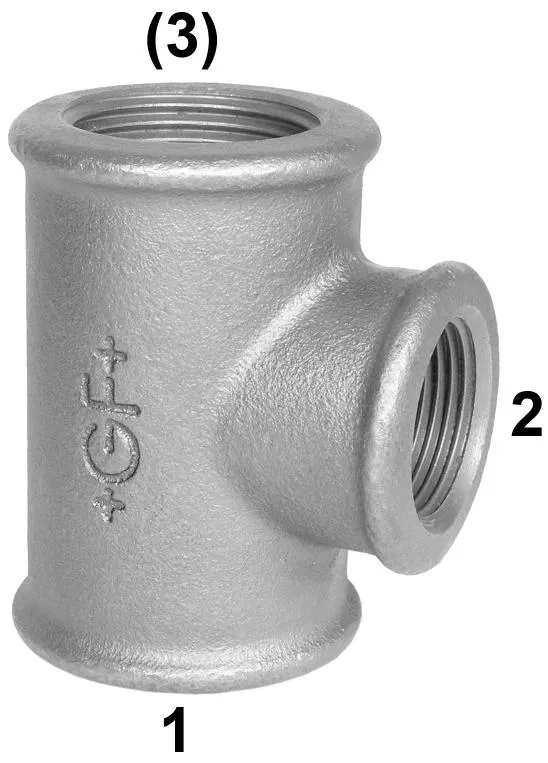

GF Malleable Fittings tee reduced 130 3 - 3/4 G

1153241 / - / -

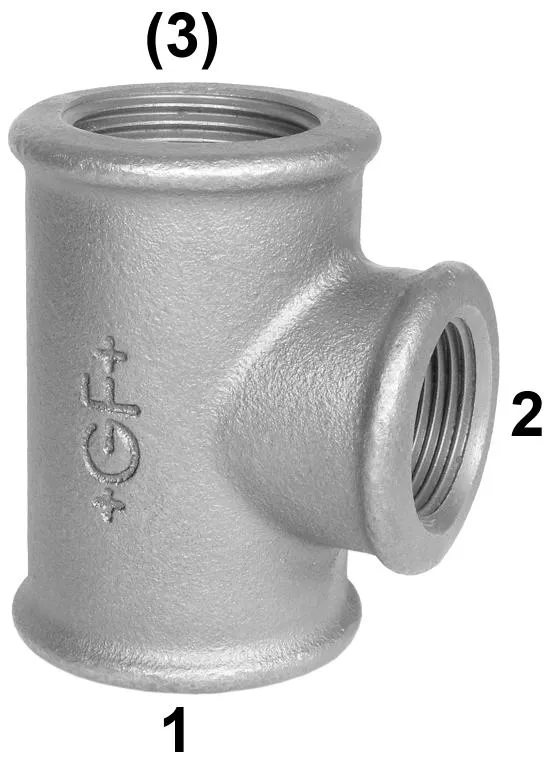

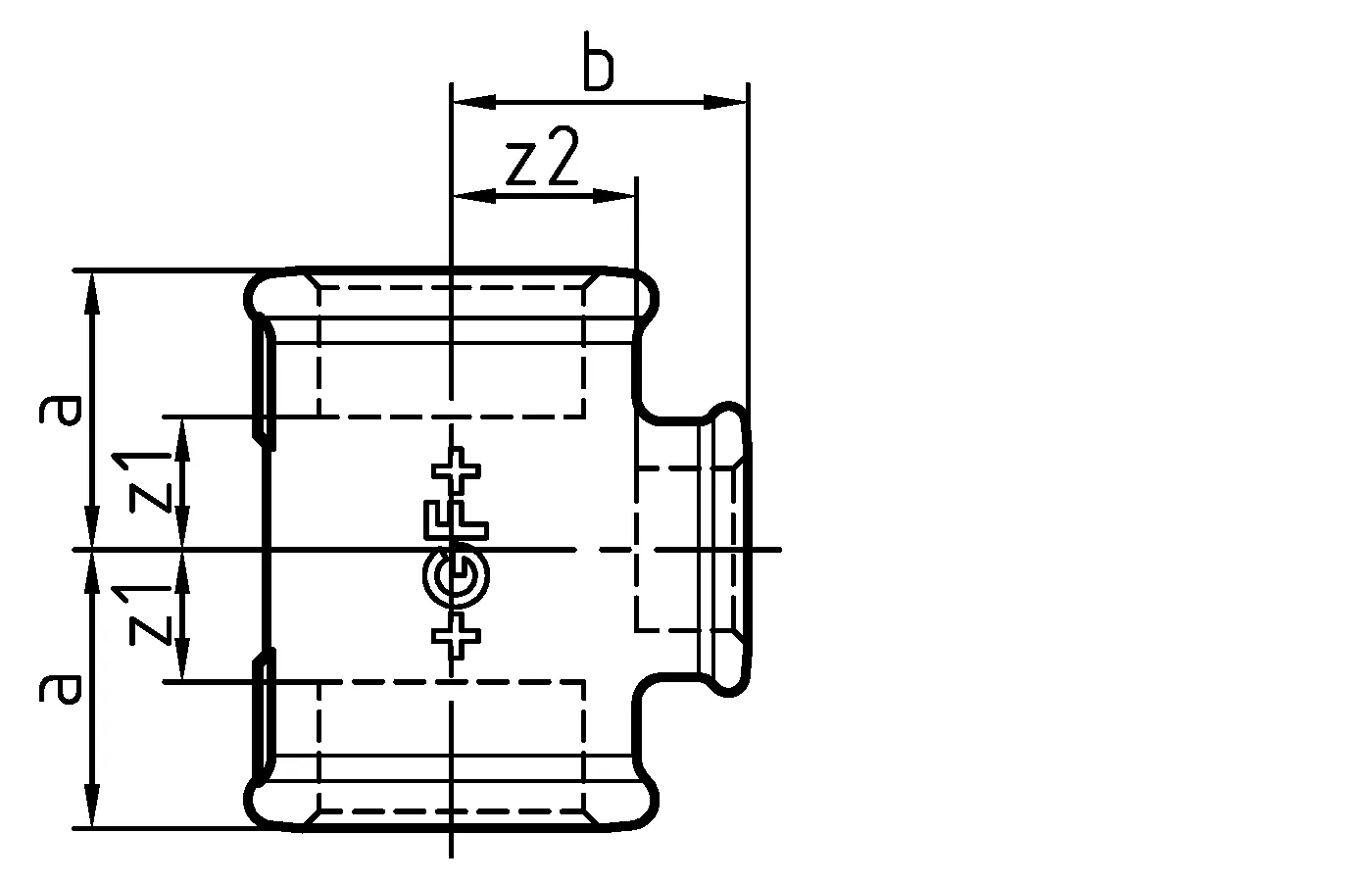

GF Malleable Fittings tee reduced 130 3 - 1 B

1153260 / - / -

GF Malleable Fittings tee reduced 130 3 - 1 G

1153242 / - / -

GF Malleable Fittings tee reduced 130 3 - 1 1/4 B

1153261 / - / -

GF Malleable Fittings tee reduced 130 3 - 1 1/4 G

1153243 / - / -

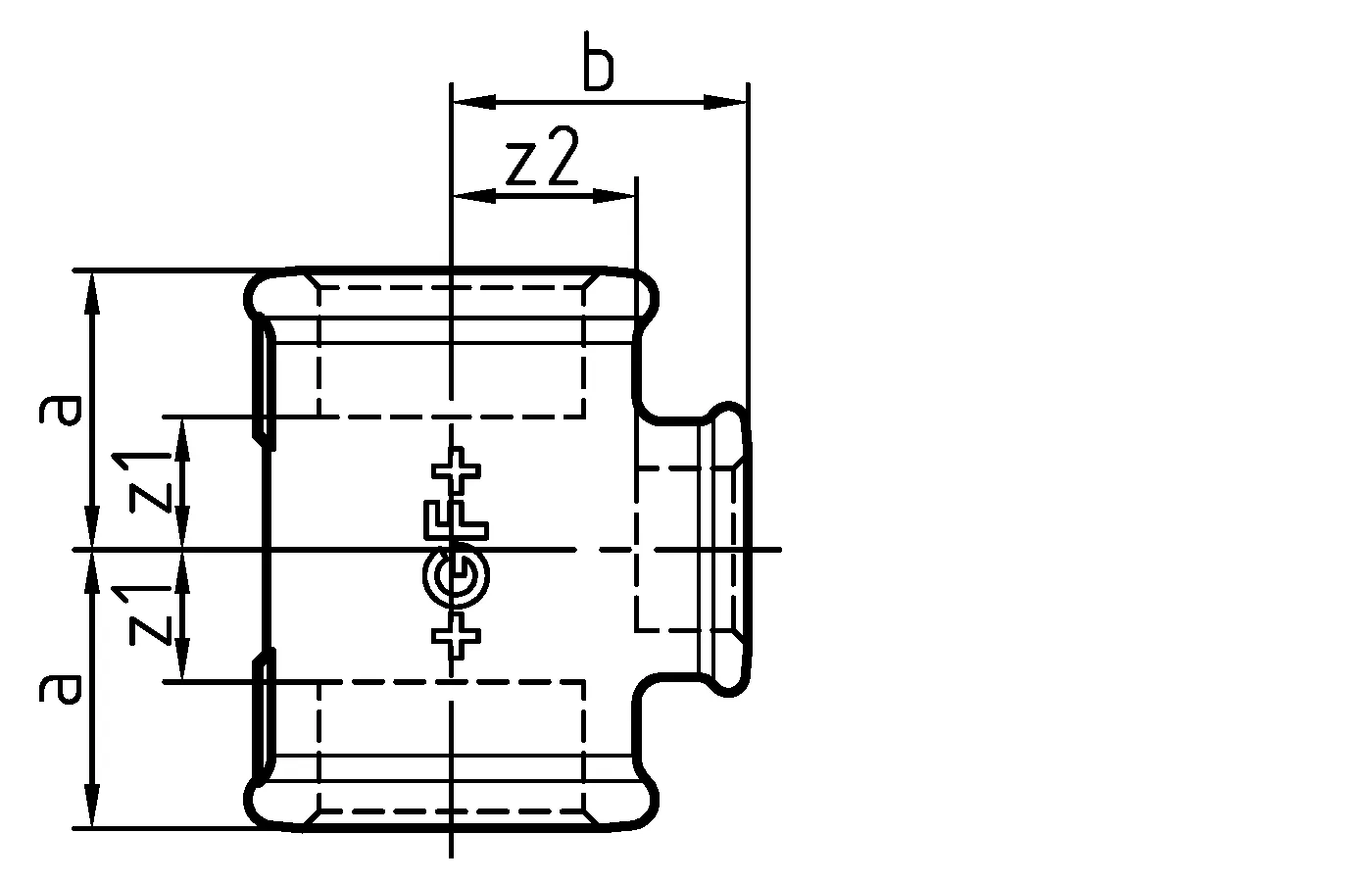

GF Malleable Fittings tee reduced 130 3 - 1 1/2 B

1153262 / - / -

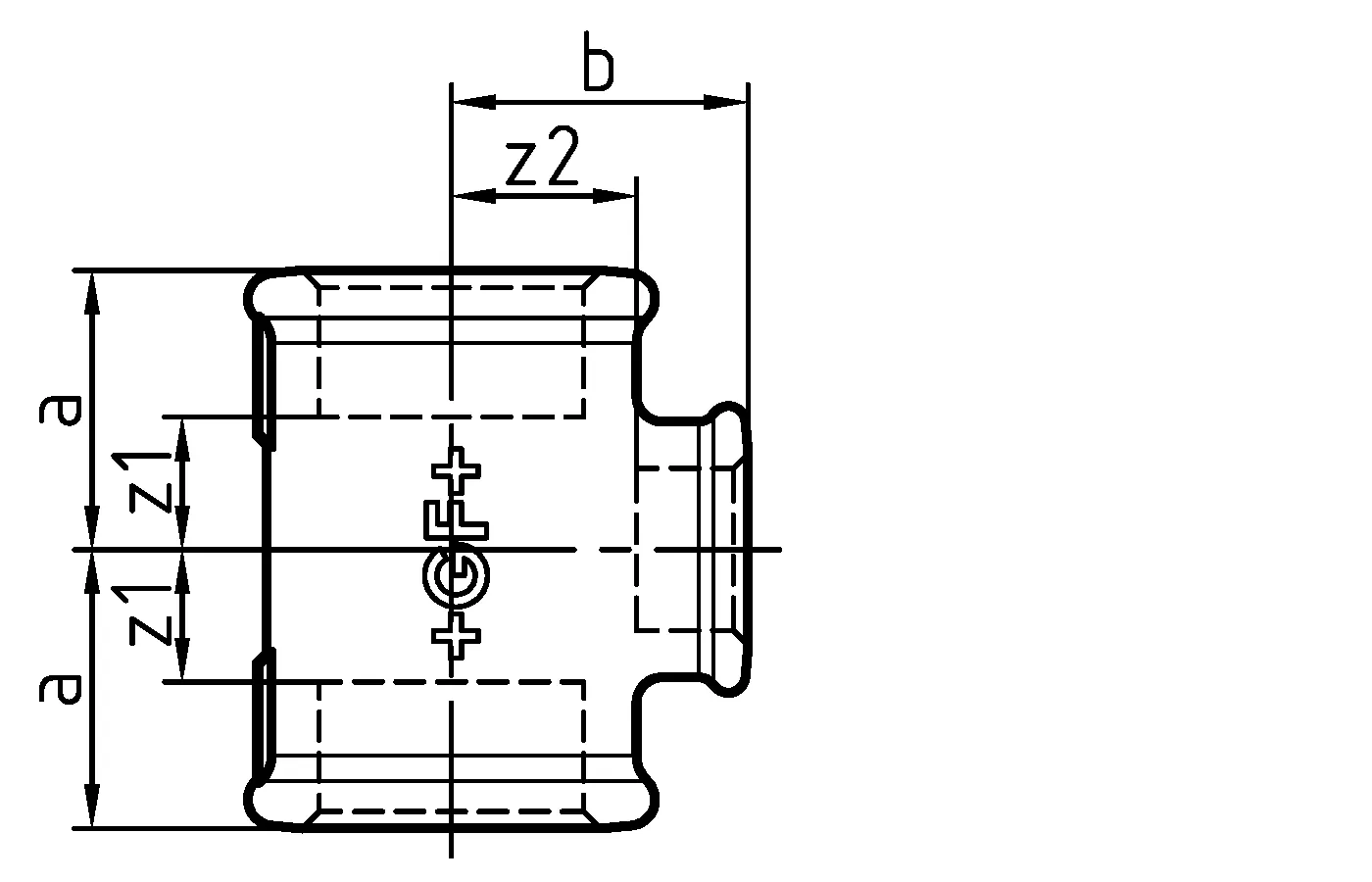

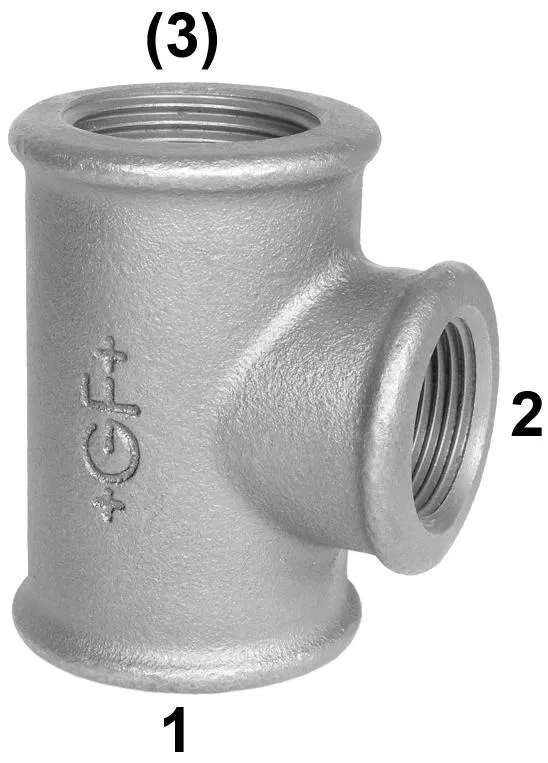

GF Malleable Fittings tee reduced 130 3 - 1 1/2 G

1153244 / - / -

GF Malleable Fittings tee reduced 130 3 - 2 B

1153264 / - / -

GF Malleable Fittings tee reduced 130 3 - 2 G

1153263 / - / -

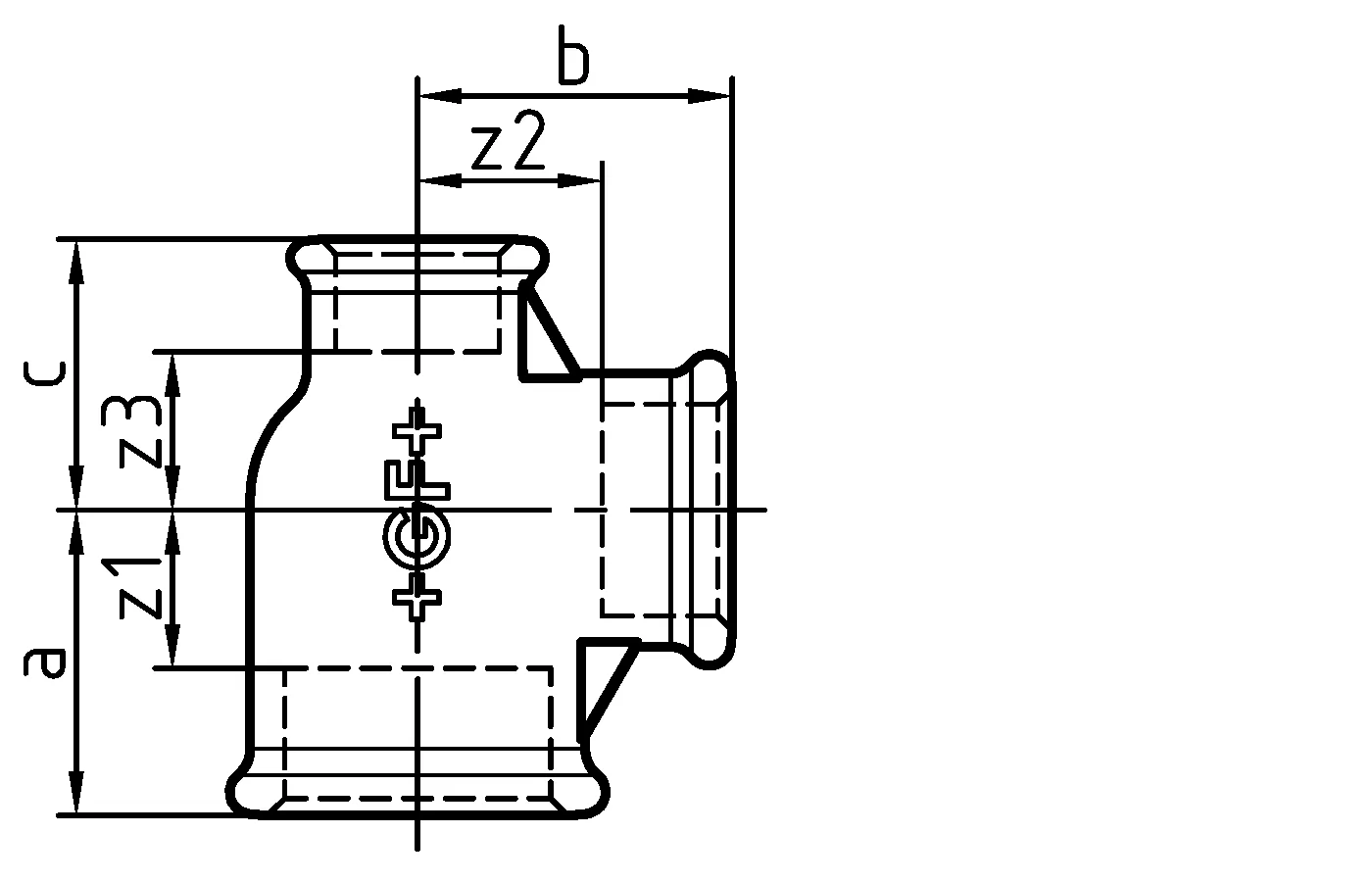

GF Malleable Fittings tee reduced 130 3 - 2 - 2 G

1153245 / - / -

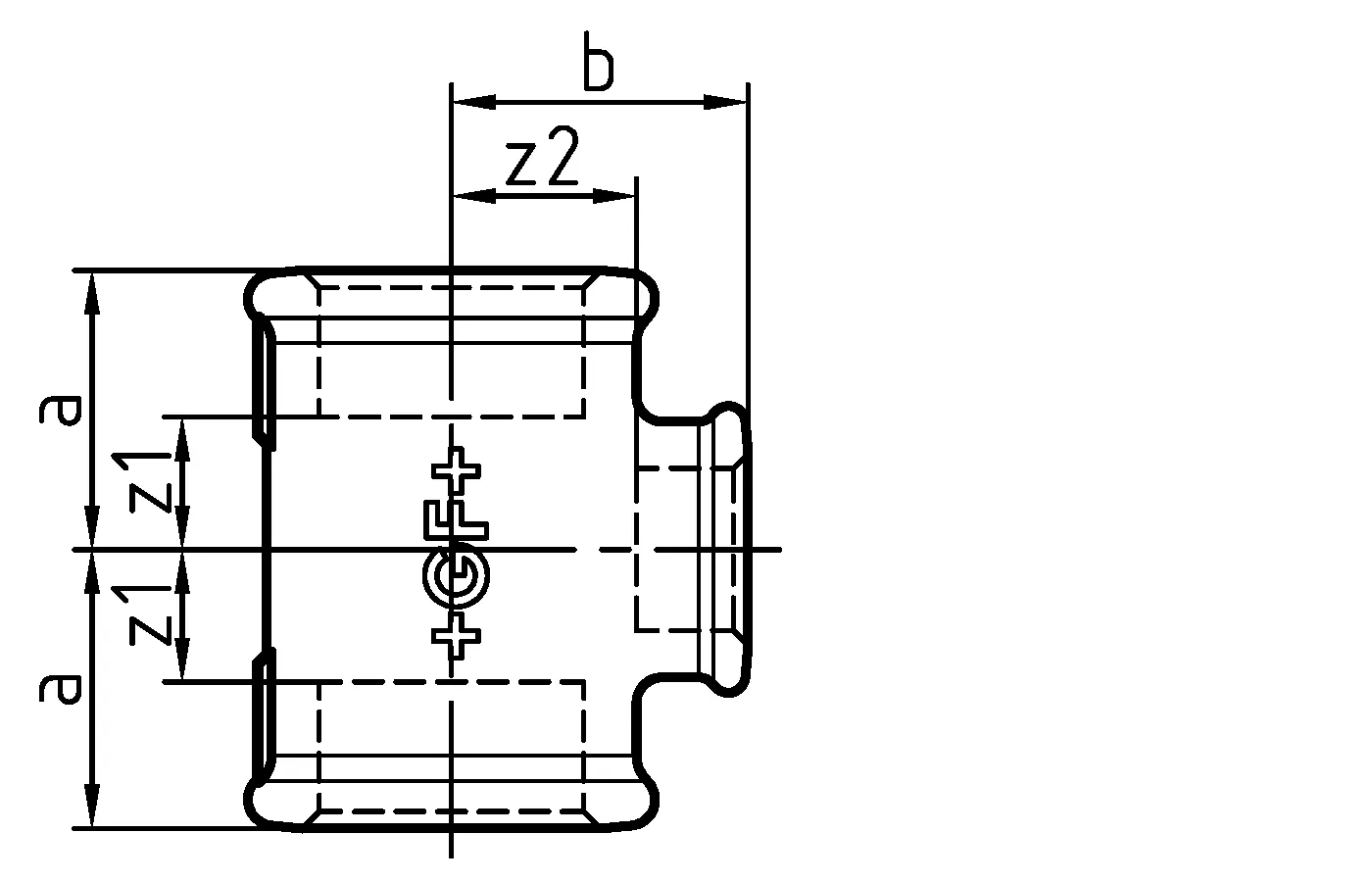

GF Malleable Fittings tee reduced 130 3 - 2 1/2 B

1153265 / - / -

GF Malleable Fittings tee reduced 130 3 - 2 1/2 G

1153266 / - / -

GF Malleable Fittings tee reduced 130 3 - 3 - 2 G

1153246 / - / -

GF Malleable Fittings tee reduced 130 4 - 1 B

1153267 / - / -

GF Malleable Fittings tee reduced 130 4 - 1 G

1153247 / - / -

GF Malleable Fittings tee reduced 130 4 - 1 1/2 B

1153268 / - / -

GF Malleable Fittings tee reduced 130 4 - 1 1/2 G

1153248 / - / -

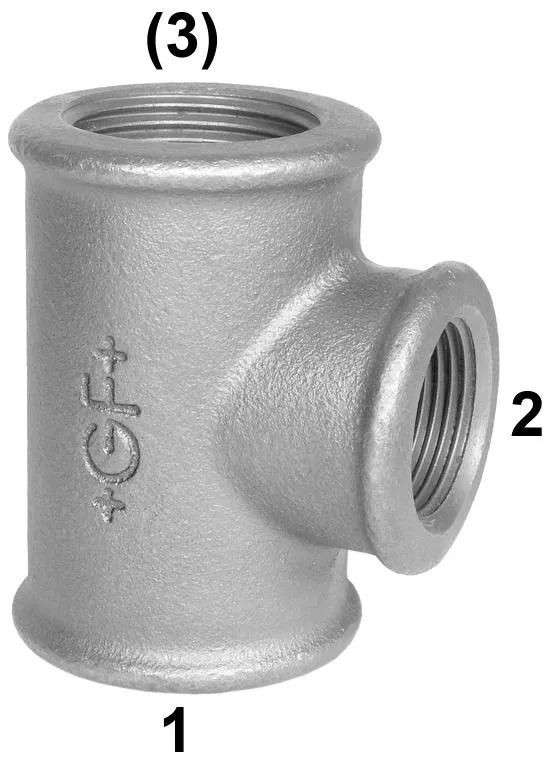

GF Malleable Fittings tee reduced 130 4 - 2 B

1153269 / - / -

GF Malleable Fittings tee reduced 130 4 - 2 G

1153270 / - / -

GF Malleable Fittings tee reduced 130 4 - 2 1/2 G

1153249 / - / -

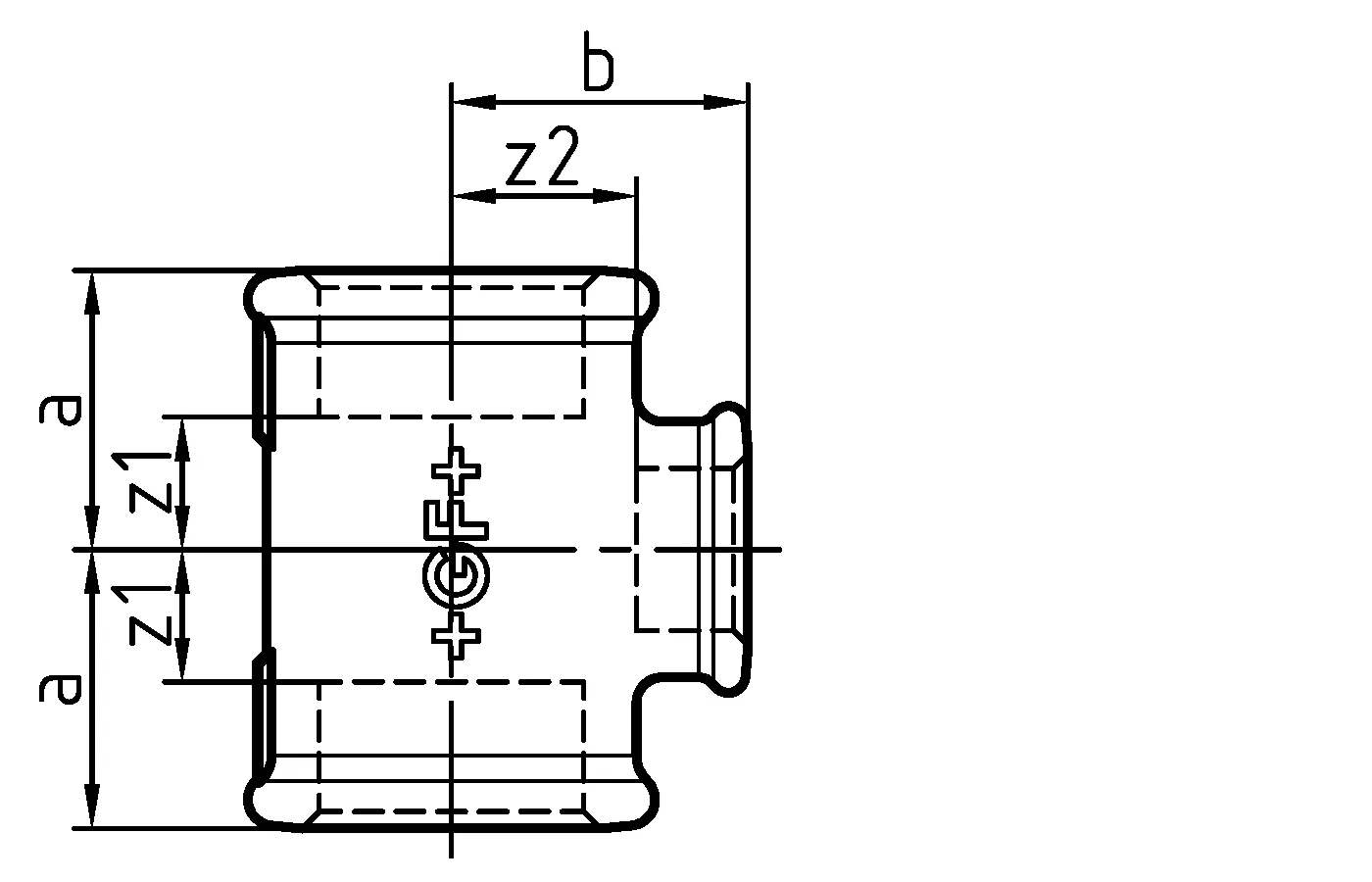

GF Malleable Fittings tee reduced 130 4 - 3 B

1153271 / - / -

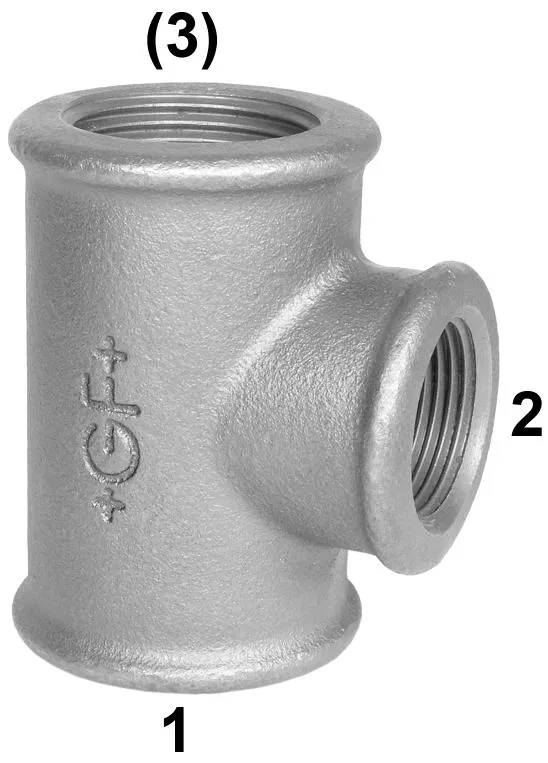

GF Malleable Fittings tee reduced 130 4 - 3 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
