Uponor Q&E adapter for soldering PL
- Brass Fitting- Carton box packaging
Item details
1145649 / - / -
Uponor Q&E adapter for soldering PL 16-15CU
1145675 / - / -
Uponor Q&E adapter for soldering PL 25-22CU
Documents
Technical manuals
Technical information
1 KB1118689
Technical Information PE-Xa piping systems (1118689)
About
Specification
- Q&E fittings and rings for Uponor Pex pipes- Metal fittings are made of high quality brass- Plastic fittings are made of polyphenilsulphone- Q&E rings must be ordered separately if not different mentioned
Application
if not different mentioned:- Male and female threads acc.to EN 10226-1.
Product drawings

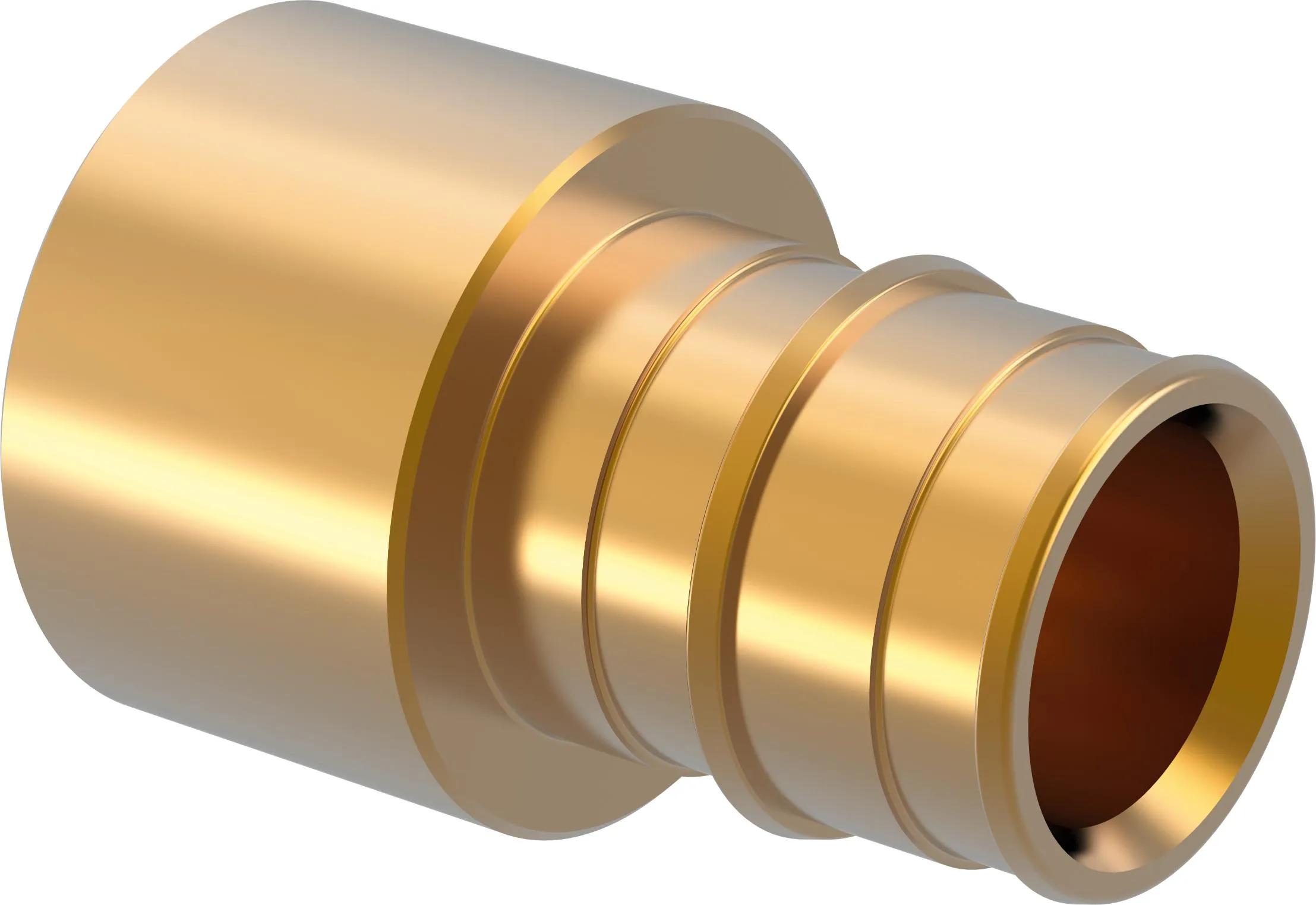

Rendered

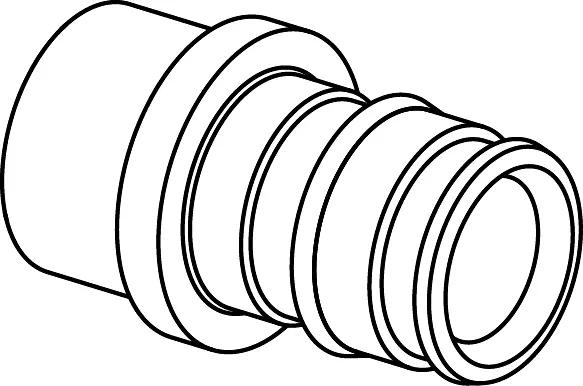

Label drawings

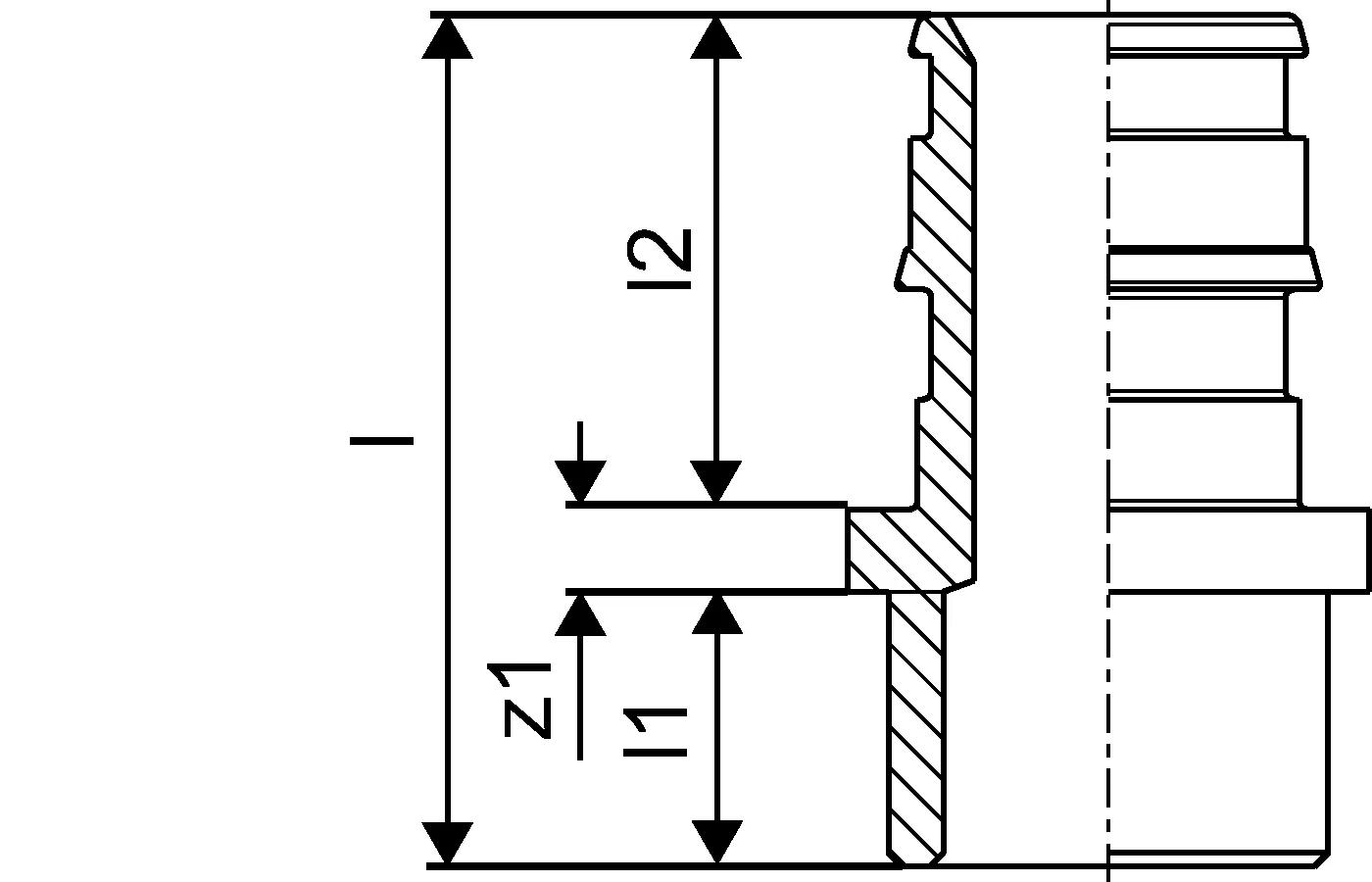

Z-drawing
