GF Malleable Fittings longscrew 536

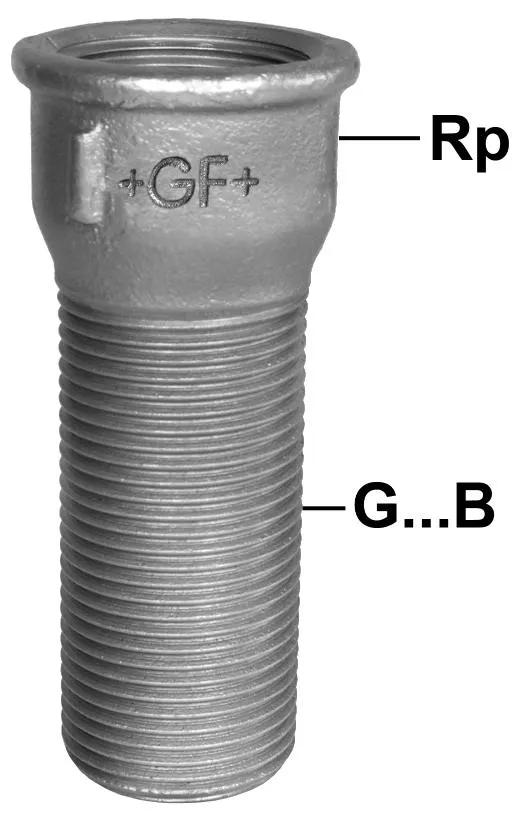

Longscrew socket

- Hot dip galvanised, thread electroplated.

GF Malleable Fittings longscrew 536

Item details

GF Malleable Fittings longscrew 536 1/2 80 G
GF Malleable Fittings longscrew 536 3/4 90 G
GF Malleable Fittings longscrew 536 1 102 G
GF Malleable Fittings longscrew 536 1 1/2 125 G
GF Malleable Fittings longscrew 536 2 143 G

About

Specification

- With their extensive history and tradition, malleable cast iron fittings are the most common pipe fittings. Because of their durability and mechanical strength, these fittings are very popular. The material is able to endure high mechanical stress and when combined with the standardized jointing method can be used in a wide range of applications.

Application

- Sanitary, heating and gas installation, mechanical engineering (oil, cool pipework), construction of petrol stations (gas lines), sprinkler

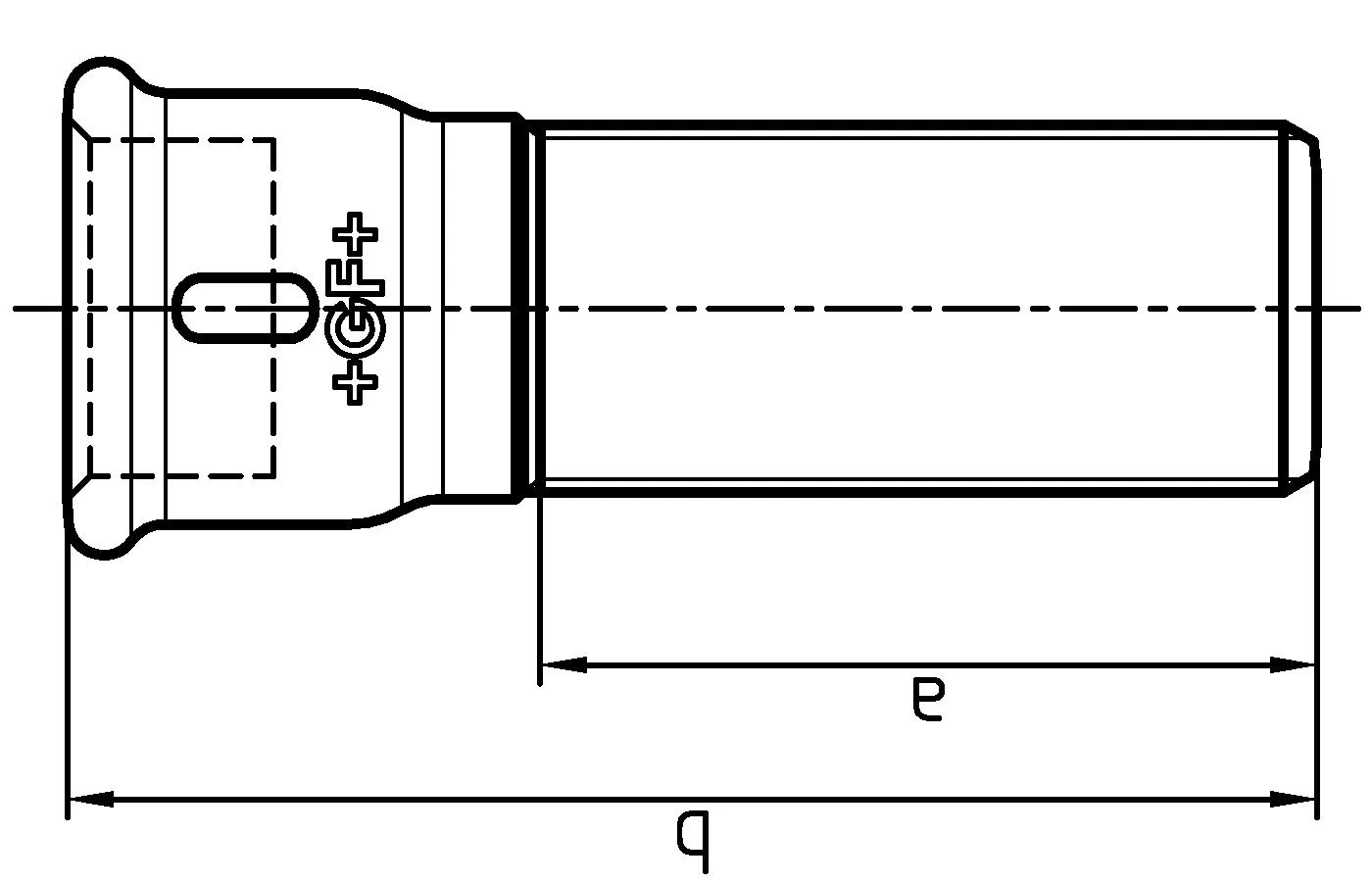

Product drawings

1154775_ZMD
1154775
125 B
1154776_ZMD
1154776
125 B
1154777_ZMD
1154777
125 B
1154779_ZMD
1154779
125 B
1154780_ZMD
1154780
125 B
1154775_PHO
1154775_PHO
43 B
1154776_PHO
1154776_PHO
43 B
1154777_PHO
1154777_PHO
43 B
1154779_PHO
1154779_PHO
43 B
1154780_PHO
1154780_PHO
43 B
