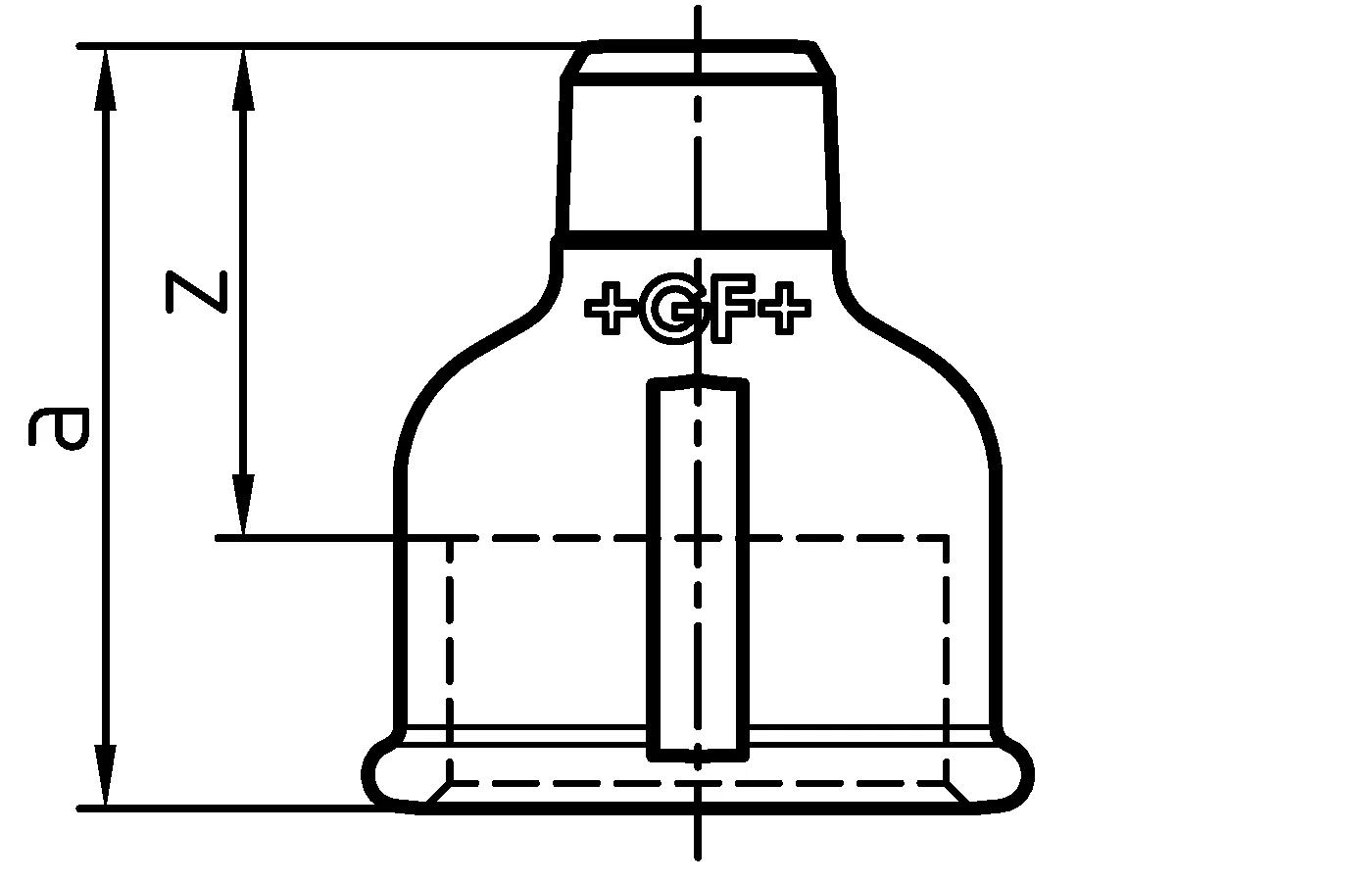

GF Malleable Fittings socket reduced 246

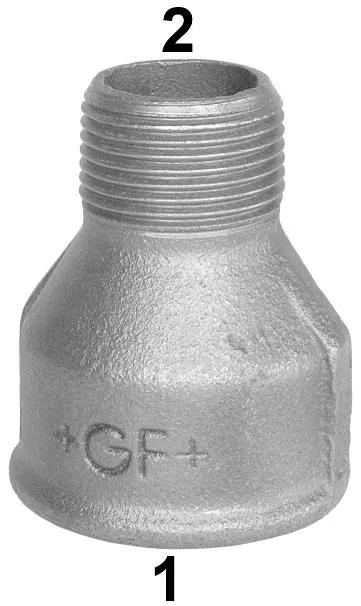

ST ... these types of fittings are made from steel (galvanised finish = electroplated) and not suitable for drinking water installations. Steel parts are hexagonal instead of beaded at the end no. 1.

Item details

1153955 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 3/4 G

1153935 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 B

1153956 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 G

1153936 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 1/4 B

1153957 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 1/4 G

1153937 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 B

1153958 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 G

1153938 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/4 B

1153959 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/4 G

1153939 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/2 B

1153960 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/2 G

1153940 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 1 1/2 B

1153961 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 1 1/2 G

1153941 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 2 B

1153962 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 2 G

1153942 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 B

1153963 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 G

1153943 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 1/2 B

1153964 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 1/2 G

About

Specification

- With their extensive history and tradition, malleable cast iron fittings are the most common pipe fittings. Because of their durability and mechanical strength, these fittings are very popular. The material is able to endure high mechanical stress and when combined with the standardized jointing method can be used in a wide range of applications.
