GF JRGARANT pressure relief valve 6bar
Temperature: 90°CNominal pressure: PN10Material: gunmetalFactory setting: 600 kPa (6 bar)Connection: inlet male thread, outlet female thread
.jpg?sitename=Global&width=1052&height=962&ext=.jpg){kind=logo}
Item details
Documents
Technical manuals
Approval Certificate
Installation and Operation Manual
759 B1161536
JRG IOM JRGarant upper part safety valve, replacement (1161536)
Installation and Operation Manual
1 KB1161558
JRG IOM JRGarant safety valve 1/2", 1" (1161558)
Approval Certificate
565 B0000116677
GF JRG CER JRGarant FIT MECH BV-28000/C0 Master EN (0000116677)
Approval Certificate
159 B0000115956
GF JRG CER JRGarant FIT MECH DNV TAP0000287 Master EN (0000115956)
About
Specification
- Dimension range DN15 – DN25- Standard with factory setting 6 bar, other response pressures from 1 to 10 bar are available on request.
Application
Potable water installation in supply line to hot water heater

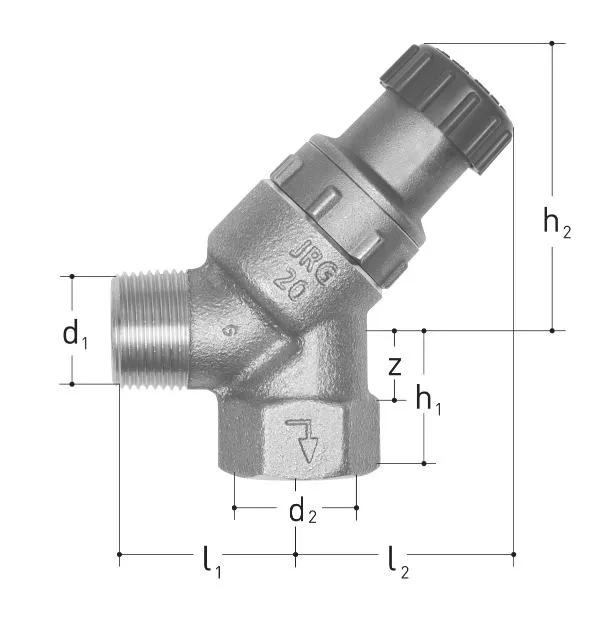

Product drawings
