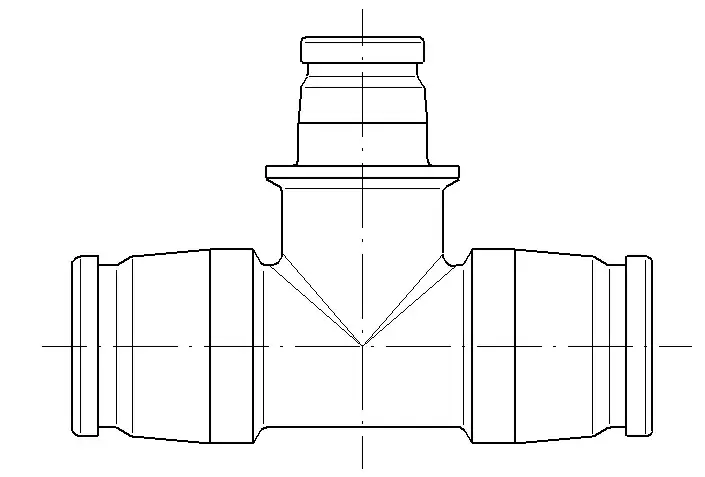

GF iFIT tee reduced 90° 16/20-16/20 25/32
Item details
Dimensions
| Item Unit Width | 61 |
|---|---|
| Item Unit Length | 84 |
| Item Unit Weight | 0,036 |
| Item_UOM | pce |
| Item Unit Height | 28 |
Measurements
| Z Measurement h1 | 45 |
|---|---|
| Z Measurement d3 | 16 - 20 |
| Z Measurement d1 | 25 - 32 |
| Z Measurement h3 | 39 |
| Z Measurement d2 | 16 - 20 |
| Z Measurement h2 | 48 |
| Z Measurement d3 | 16 - 20 |
Packaging
| GTIN | 07611205905132 | 07611205905125 | 06414900118699 |
|---|---|---|---|
| Height | 33 | 225 | 1150 |
| Length | 141 | 410 | 1200 |
| Quantity | 2 | 70 | 3150 |
| Type | Plastic_Bag | Medium_Box | Pallet |
| Volume | 0,000390852 | 0,02444625 | 1,104 |
| Weight | 0,077 | 2,705 | 132 |
| Width | 84 | 265 | 800 |
Product code
| Item no EAN | 7611205892005 |
|---|---|
| Item no RSK | 1878673 |
| Item no GTIN | 07611205892005 |
| Item no LVI | 1749409 |
| Item no GF | 762101187 |
