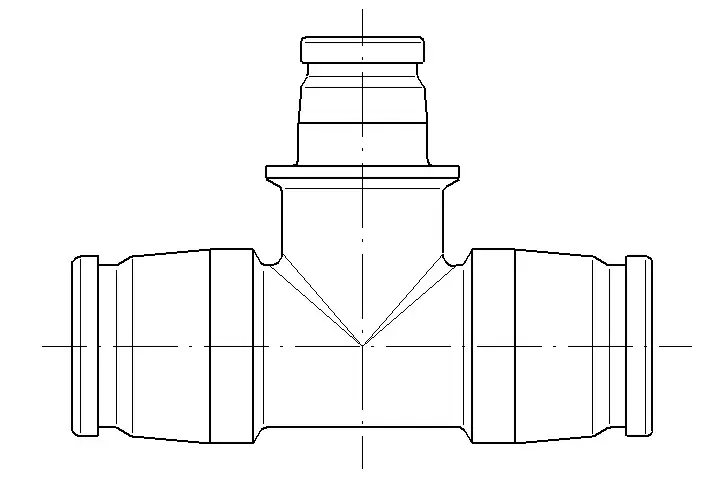

GF iFIT tee reducer 90° 25/32-16/20 25/32
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Length | 90 |
| Item Unit Height | 30 |
| Item Unit Width | 65 |
| Item Unit Weight | 0,044 |
Measurements
| Inner_diameter_di | 25 - 32 |
|---|---|
| Z Measurement h3 | 45 |
| Z Measurement h2 | 48 |
| Z Measurement h1 | 45 |
| Z Measurement d2 | 16 - 20 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 07611205905118 | 07611205905101 | 06414900118682 |
| Height | 50 | 225 | 800 |
| Length | 90 | 410 | 1200 |
| Quantity | 2 | 70 | 3150 |
| Type | Plastic_Bag | Medium_Box | Pallet |
| Volume | 0,000405 | 0,02444625 | 0,768 |
| Weight | 0,091 | 3,28 | 167,6 |
| Width | 90 | 265 | 800 |
Product code
| Item no LVI | 1749408 |
|---|---|
| Item no EAN | 7611205892012 |
| Item no GF | 762101185 |
| Item no GTIN | 07611205892012 |
| Item no RSK | 1878672 |
Documents
Technical manuals
Approval Certificate
Approval Certificate
105 B0000122202
GF JRG CER iFit SYS MECH ABS 25-0231193-PDA Master EN (0000122202)
Approval Certificate
566 B0000115588
GF JRG CER iFit SYS MECH BV 46408_D0 BV Master EN (0000115588)
Approval Certificate
1 KB0000115590
