Approval Certificate
105 B0000122203

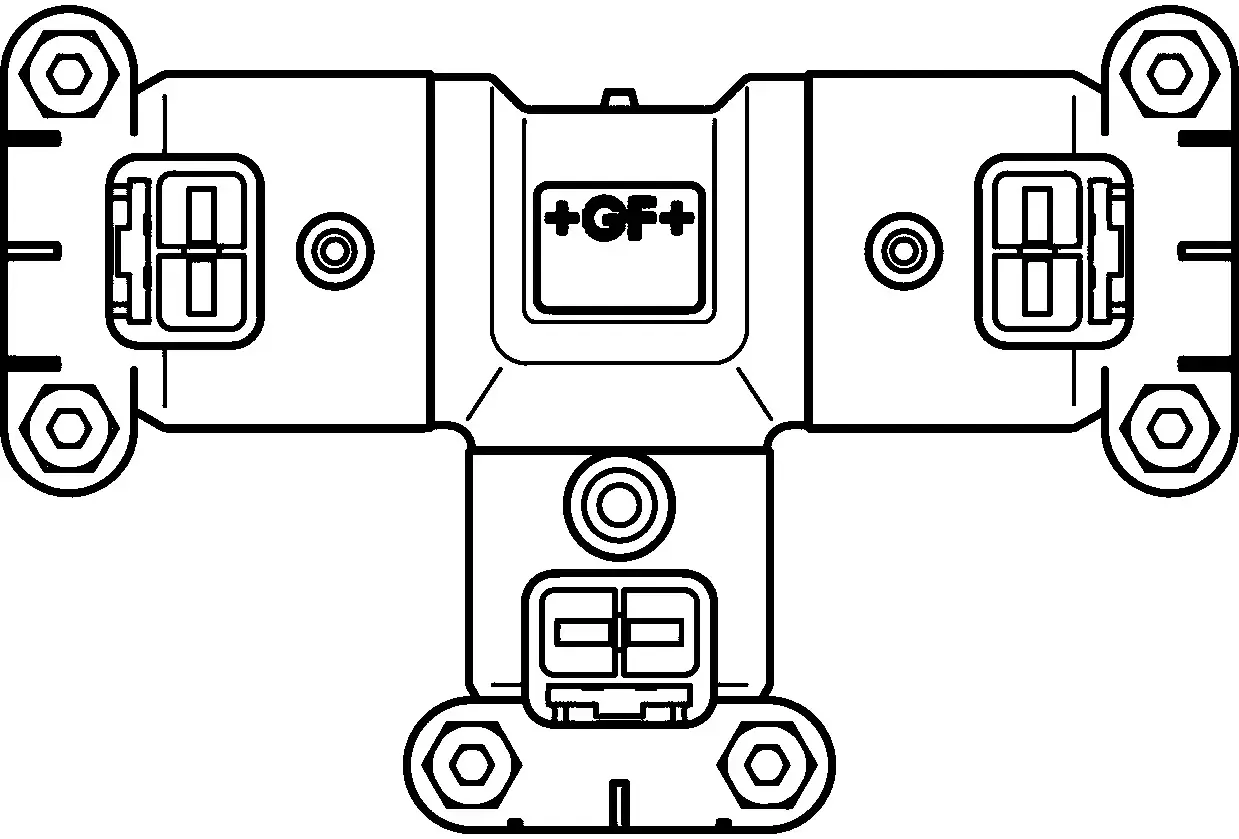

GF Instaflex tee reduced 90° Electro Fusion 20-16 20
Item details
Dimensions
| Item Unit Width | 100 |
|---|---|
| Item_UOM | pce |
| Item Unit Weight | 0,041 |
| Item Unit Length | 120 |
| Item Unit Height | 50 |
Measurements
| Length (l2) | 49 |
|---|---|
| z1 | 14 |
| Z Measurement d3 | 20 |
| Inner_diameter_di | 20 |
| Z Measurement d2 | 16 |
| Z Measurement d1 | 20 |
| Z3 | 14 |
| Z Measurement L1 | 54 |
| Length (l3) | 54 |
| Z2 | 11 |
| Z Measurement d3 | 20 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900188968 | 06414900188975 | 06414900188982 |
| Height | 50 | 280 | 1050 |
| Length | 120 | 400 | 1200 |
| Quantity | 1 | 50 | 1350 |
| Type | Plastic_Bag | Medium_Box | Pallet |
| Volume | 0,0006 | 0,03024 | 1,008 |
| Weight | 0,046 | 2,25 | 68,7 |
| Width | 100 | 270 | 800 |
Product code
| Item no RSK | 1874681 |
|---|---|
| Item no EAN | 7611205820794 |
| Item no GTIN | 07611205820794 |
| Item no GF | 761069250 |
Documents
Approval Certificate
Approval Certificate
44 B0000115615
GF JRG CER Instaflex SYS MECH RINA MAC245324XG Master EN (0000115615)
Approval Certificate
660 B0000115614
