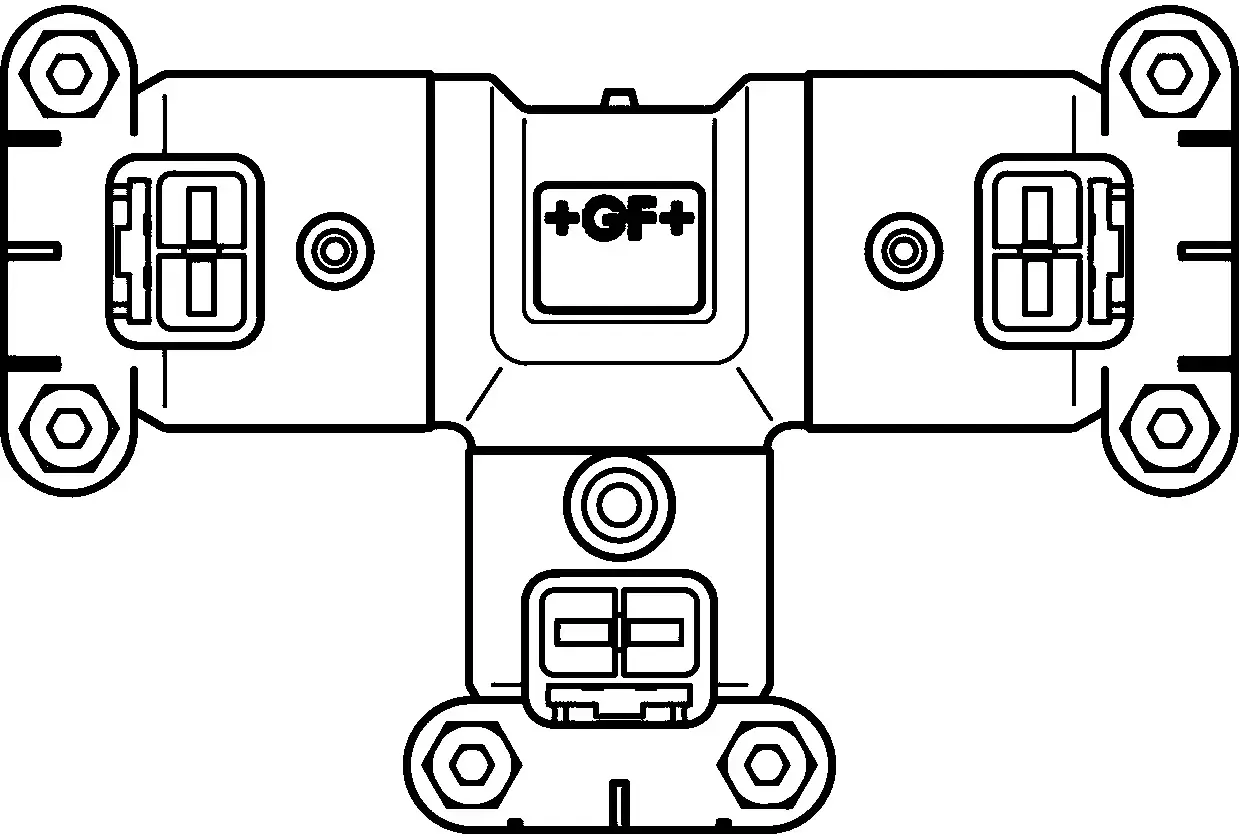

GF Instaflex tee reduced 90° Electro Fusion 25-16 25
Item details
Dimensions
| Item Unit Length | 116 |
|---|---|
| Item_UOM | pce |
| Item Unit Weight | 0,082 |
| Item Unit Width | 77 |
| Item Unit Height | 46 |
Measurements
| Z Measurement d1 | 25 |
|---|---|
| Z3 | 16 |
| Z Measurement L1 | 58 |
| Inner_diameter_di | 25 |
| Z Measurement d2 | 16 |
| Length (l2) | 54 |
| z1 | 16 |
| Z Measurement d3 | 25 |
| Length (l3) | 58 |
| Z2 | 16 |
| Z Measurement d3 | 25 |
Packaging
| Field | PL1 | PL2 | PL4 |
|---|---|---|---|
| GTIN | 06414900188920 | 06414900188937 | 06414900188944 |
| Height | 50 | 280 | 1050 |
| Length | 120 | 400 | 1200 |
| Quantity | 1 | 50 | 1350 |
| Type | Plastic_Bag | Medium_Box | Pallet |
| Volume | 0,00048 | 0,03024 | 1,008 |
| Weight | 0,092 | 4,7 | 151,9 |
| Width | 80 | 270 | 800 |
Product code
| Item no EAN | 7611205820800 |
|---|---|
| Item no RSK | 1874682 |
| Item no GTIN | 07611205820800 |
| Item no GF | 761069251 |
