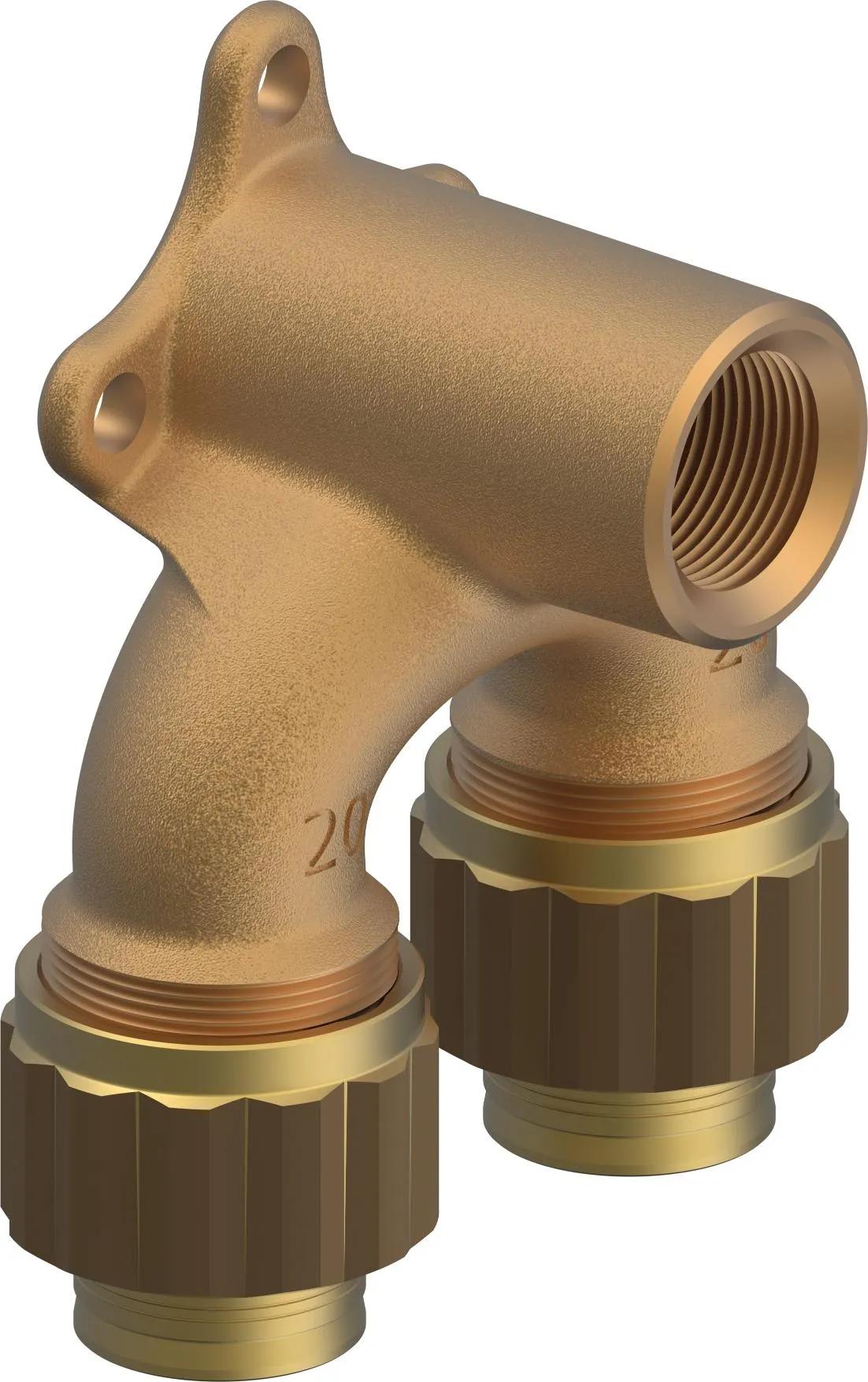

GF JRG Sanipex fitting connector double FT 20x1/2"/50mm
Item details
Dimensions
| Item Unit Height | 50 |
|---|---|
| Item Unit Weight | 0,21 |
| Item_UOM | pce |
| Item Unit Width | 80 |
| Item Unit Length | 90 |
Technical data
| Recycling Text Block PL2 | corrugated cardboard / cartone |
|---|---|
| Recycling Text Block PL1 | plastic film / film plastico |
Measurements
| Female thread Rp | 1/2" |
|---|---|
| Length (l3) | 17,5 |
| Z2 | 42,5 |
| Length (l1) | 55 |
| Z Measurement k | 40 |
| Length (l2) | 55 |
| z1 | 42,5 |
| Inner_diameter_di | 20 |
| Z Measurement b | 50 |
| Z4 | 12,5 |
Packaging
| Field | PL1 | PL2 |
|---|---|---|
| GTIN | 06414900544801 | 06414900544818 |
| Height | 55 | 128 |
| Length | 85 | 242 |
| Material | plastic film / film plastico | corrugated cardboard / cartone |
| Material (number) | 04 | 20 |
| Material (short) | PELD | PAP_C |
| Quantity | 1 | 10 |
| Type | POUCH | MEDIUM_BOX |
| Volume | 0,000257125 | 0,0054208 |
| Weight | 0,211 | 2,215 |
| Width | 55 | 175 |
Product code
| Item no GF | 351485820 |
|---|---|
| Item no EAN | 7613263118479 |
| Item no GTIN | 07613263118479 |
