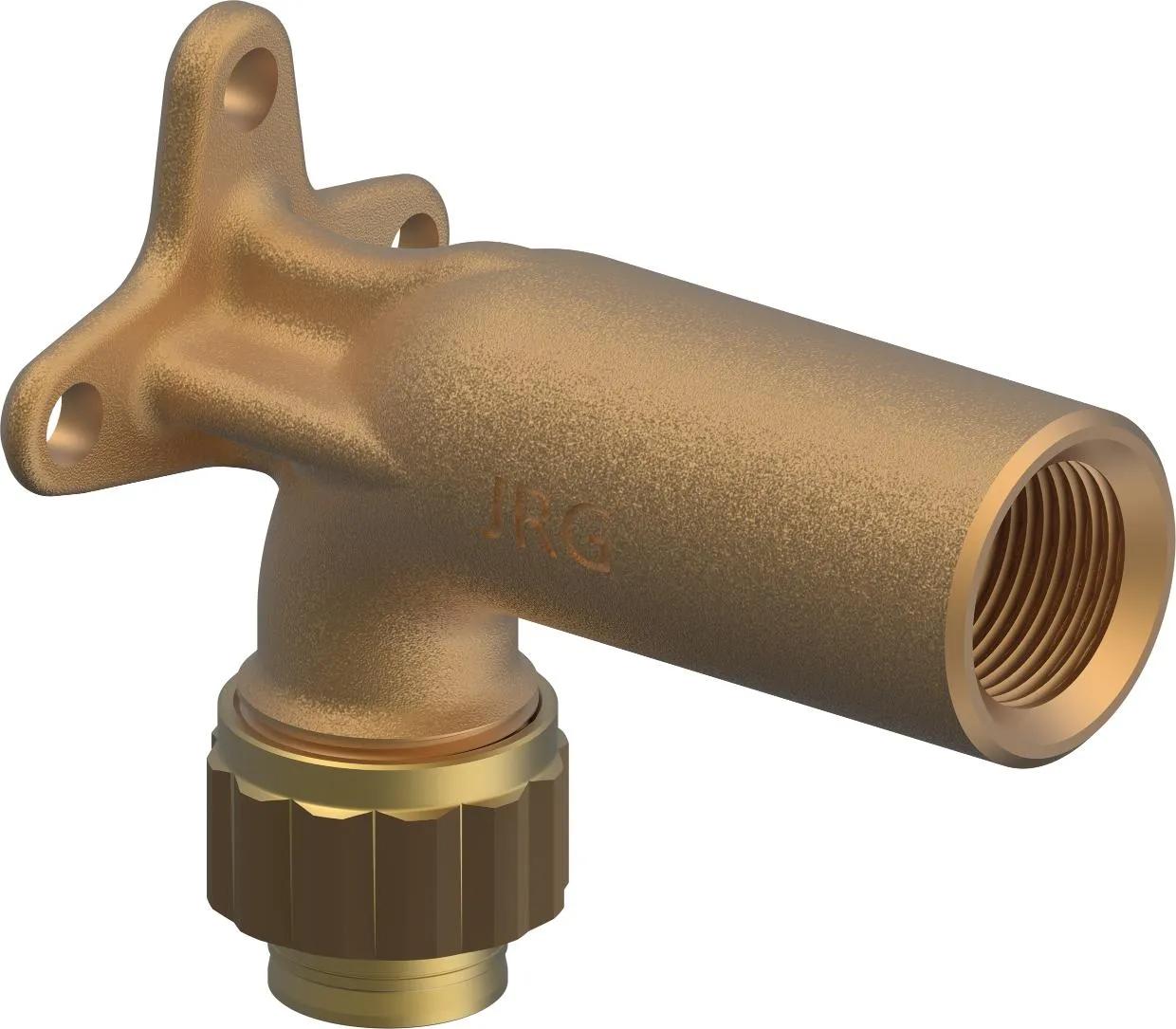

GF JRG Sanipex fitting connector single FT 16x1/2"/80mm
Item details
Dimensions
| Item Unit Length | 90 |
|---|---|
| Item_UOM | pce |
| Item Unit Height | 80 |
| Item Unit Weight | 0,268 |
| Item Unit Width | 52 |
Technical data
| Recycling Text Block PL1 | plastic film / film plastico |
|---|---|
| Recycling Text Block PL2 | corrugated cardboard / cartone |
Measurements
| Length (l2) | 17 |
|---|---|
| Z3 | 18 |
| Length (l1) | 45,5 |
| z1 | 29,5 |
| Female thread Rp | 1/2" |
| Length (l3) | 63 |
| Inner_diameter_di | 16 |
| Z Measurement k | 40 |
Packaging
| Field | PL1 | PL2 |
|---|---|---|
| GTIN | 06414900544825 | 06414900544832 |
| Height | 80 | 154 |
| Length | 90 | 180 |
| Material | plastic film / film plastico | corrugated cardboard / cartone |
| Material (number) | 04 | 20 |
| Material (short) | PELD | PAP_C |
| Quantity | 1 | 10 |
| Type | POUCH | MEDIUM_BOX |
| Volume | 0,000396 | 0,0036036 |
| Weight | 0,269 | 2,760 |
| Width | 55 | 130 |
Product code
| Item no GF | 351541603 |
|---|---|
| Item no GTIN | 07613263118738 |
| Item no EAN | 7613263118738 |
