GF JRG Sanipex MT ball valve d32
Item details
Dimensions
| Item Unit Length | 220 |
|---|---|
| Item Unit Width | 53 |
| Item_UOM | pce |
| Item Unit Weight | 0,933 |
| Item Unit Height | 100 |
Technical data
| Recycling Text Block PL1 | plastic film / film plastico |
|---|

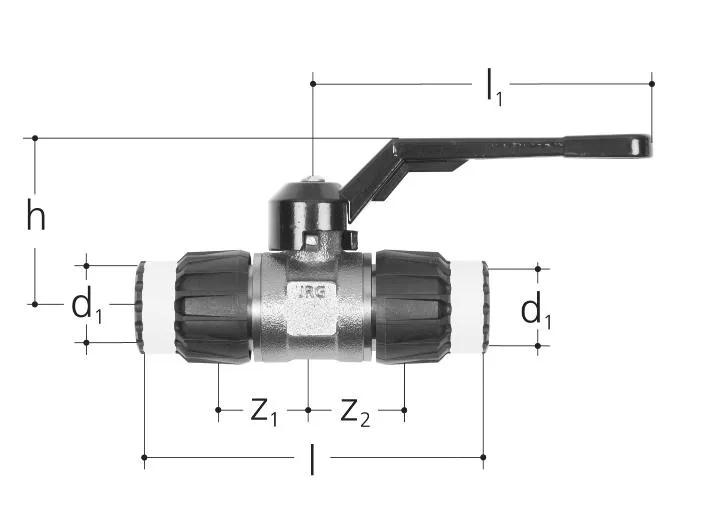

Measurements
| Length (l1) | 125 |
|---|---|
| z1 | 42 |
| Z Measurement d1 | 32 |
| Z Measurement d | 32 |
| Z2 | 42 |
| Z Measurement h | 71 |
Packaging
| GTIN | 06414900065832 |
|---|---|
| Height | 100 |
| Length | 250 |
| Material | plastic film / film plastico |
| Material (number) | 04 |
| Material (short) | PELD |
| Quantity | 1 |
| Type | Pouch |
| Volume | 0,005 |
| Weight | 0,947 |
| Width | 200 |
Product code
| Item no EAN | 7613263101228 |
|---|---|
| Item no RSK | 4510182 |
| Item no LVI | 1749154 |
| Item no GTIN | 07613263101228 |
| Item no GF | 351632310 |
Documents
Technical manuals
Approval Certificate
Approval Certificate
44 B0000115884
GF JRG CER JRG Sanipex MT SYS MECH RINA MAC279224XG Master EN (0000115884)
Approval Certificate
859 B0000115883
GF JRG CER Sanipex MT SYS MECH LR LR22428149TA Master EN (0000115883)
Approval Certificate
200 B0000115871
