GF JRG Sanipex MT tee reduced 10 bar 40-26-40
Item details
Dimensions
| Item Unit Width | 118 |
|---|---|
| Item Unit Length | 210 |
| Item Unit Height | 65 |
| Item_UOM | pce |
| Item Unit Weight | 0,33 |

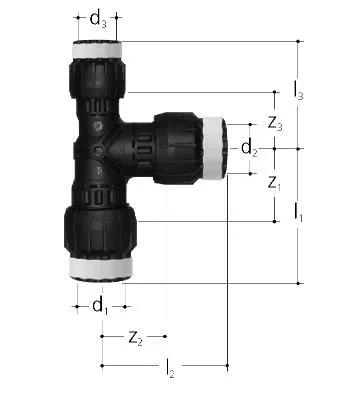

Measurements
| Length (l3) | 99 |
|---|---|
| z1 | 55 |
| Z Measurement d3 | 40 |
| Length (l1) | 99 |
| Z Measurement d1 | 40 |
| Z3 | 55 |
| Inner_diameter_di | 40 |
| Z Measurement d | 40 - 26 - 40 |
| Z2 | 50 |
| Z Measurement d3 | 40 |
| Length (l2) | 79 |
| Z Measurement d2 | 26 |
Packaging
| Field | PL2 |
|---|---|
| GTIN | 06414900134354 |
| Height | 70 |
| Length | 210 |
| Quantity | 1 |
| Type | Medium_Box |
| Volume | 0,001764 |
| Weight | 0,43 |
| Width | 120 |
Product code
| Item no RSK | 1874036 |
|---|---|
| Item no EAN | 7613263028181 |
| Item no GTIN | 07613263028181 |
| Item no GF | 351640928 |
| Item no LVI | 1749043 |
Documents
Technical manuals
Approval Certificate
Approval Certificate
263 B1162915
GF JRG CERT Sanipex MT SYS MECH WRAS 241006002 UK EN (1162915)
Approval Certificate
44 B0000115884
GF JRG CER Sanipex MT SYS MECH RINA MAC279224XG Master EN (0000115884)
Approval Certificate
859 B0000115883
