GF JRG Sanipex MT tee reduced 10 bar 40-32-40
Item details
Dimensions
| Item Unit Length | 210 |
|---|---|
| Item_UOM | pce |
| Item Unit Weight | 0,36 |
| Item Unit Width | 110 |
| Item Unit Height | 50 |

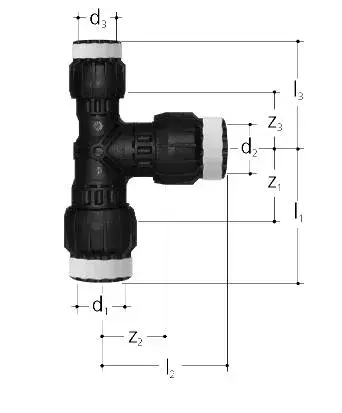

Measurements
| Length (l1) | 99 |
|---|---|
| Z Measurement d1 | 40 |
| Z3 | 55 |
| Length (l2) | 89 |
| Z Measurement d2 | 32 |
| Length (l3) | 99 |
| z1 | 55 |
| Z Measurement d3 | 40 |
| Inner_diameter_di | 40 |
| Z Measurement d | 40 - 32 - 40 |
| Z2 | 52 |
| Z Measurement d3 | 40 |
Packaging
| Field | PL2 |
|---|---|
| GTIN | 06414900134361 |
| Height | 50 |
| Length | 210 |
| Quantity | 1 |
| Type | Medium_Box |
| Volume | 0,001155 |
| Weight | 0,4584299369 |
| Width | 110 |
Product code
| Item no EAN | 7613263028174 |
|---|---|
| Item no LVI | 1749045 |
| Item no RSK | 1874298 |
| Item no GTIN | 07613263028174 |
| Item no GF | 351640930 |
Documents
Technical manuals
Approval Certificate
Approval Certificate
263 B1162915
GF JRG CERT Sanipex MT SYS MECH WRAS 241006002 UK EN (1162915)
Approval Certificate
44 B0000115884
GF JRG CER Sanipex MT SYS MECH RINA MAC279224XG Master EN (0000115884)
Approval Certificate
859 B0000115883
