GF JRGUMAT thermostatic mixing valve 3400, 40°C DN25
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Height | 94 |
| Item Unit Length | 110 |
| Item Unit Width | 48 |
| Item Unit Weight | 0,87 |

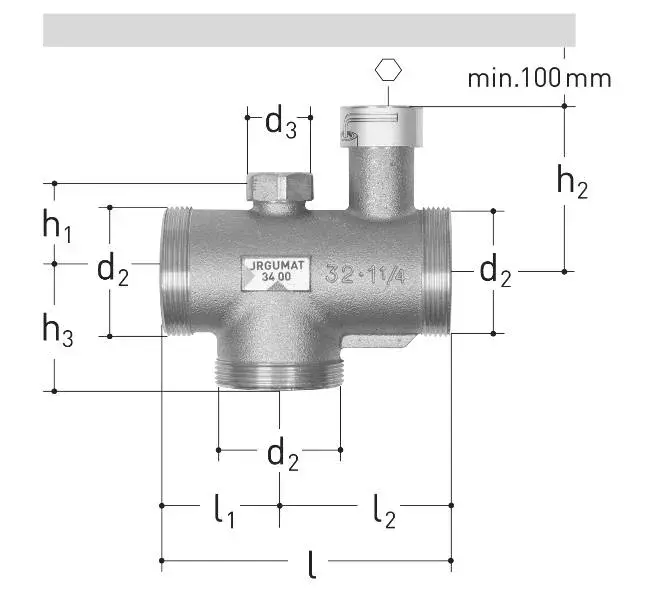

Measurements
| Length (l2) | 67 |
|---|---|
| Z Measurement h2 | 51 |
| Cylindric thread G2 | 1 1/2 |
| LENGTH_L | 110 |
| Z Measurement h3 | 43 |
| Length (l1) | 43 |
| Z Measurement h1 | 36 |
| Cylindric thread G3 | 3/4 |
| Z Measurement d | 25 |
Packaging
| GTIN | 06414900169400 |
|---|---|
| Height | 91 |
| Length | 190 |
| Quantity | 1 |
| Type | Base_Box |
| Volume | 0,00252434 |
| Weight | 1 |
| Width | 146 |
Product code
| Item no RSK | 4927913 |
|---|---|
| Item no GF | 350760312 |
| Item no VVS | 723481008 |
| Item no EAN | 7613263098955 |
| Item no GTIN | 07613263098955 |
