577 B1139871

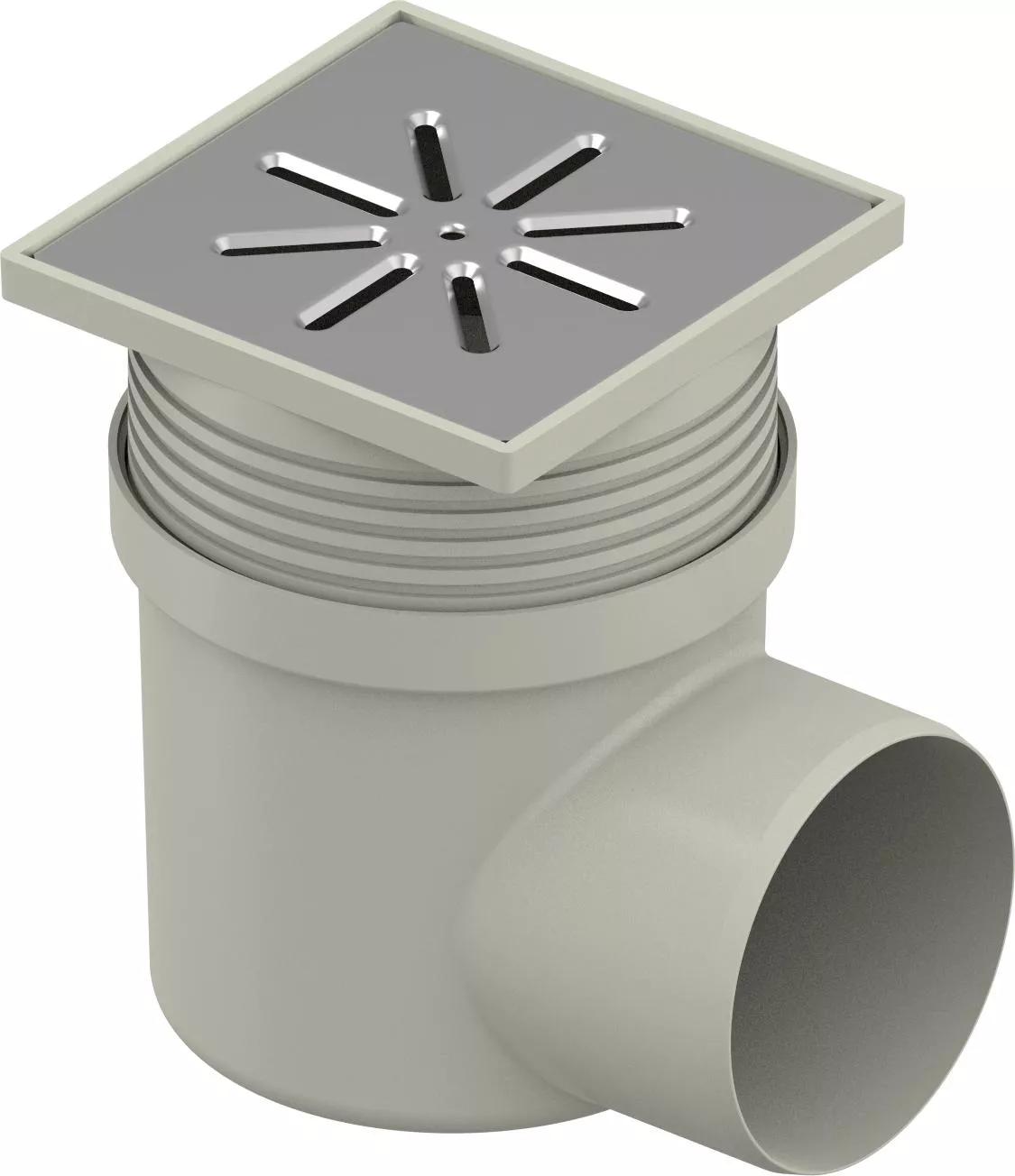

Uponor Aqua Ambient point drain inlet elb. standard 150mmx150mm FI 110
Item details
Dimensions
| Item Unit Weight | 0,52 |
|---|---|
| Item Unit Height | 214 |
| Item_UOM | pce |
| Item Unit Width | 210 |
| Item Unit Length | 149.5 |
Measurements
| Outer Diameter_do | 158 |
|---|---|
| Z Measurement h1 | 138 |
| Z | 122 |
| Outer Diameter_do1 | 110 |
| Z Measurement h2 | 11,2 |
| Length (l1) | 149,5 |
| Z Measurement h | 149,2 |
Packaging
| Field | PL1 | PL4 |
|---|---|---|
| GTIN | 06414900369442 | 06414900370080 |
| Height | 175 | 1840 |
| Length | 250 | 1200 |
| Quantity | 1 | 190 |
| Type | Base_Box | Pallet |
| Volume | 0,0074375 | 1,7664 |
| Weight | 0,82 | 180,8 |
| Width | 170 | 800 |
Product code
| Item no EAN | 6414900483544 |
|---|---|
| Item no GF | 35001136457 |
| Item no GTIN | 06414900483544 |
