Installation and Operation Manual
7 KB1096066

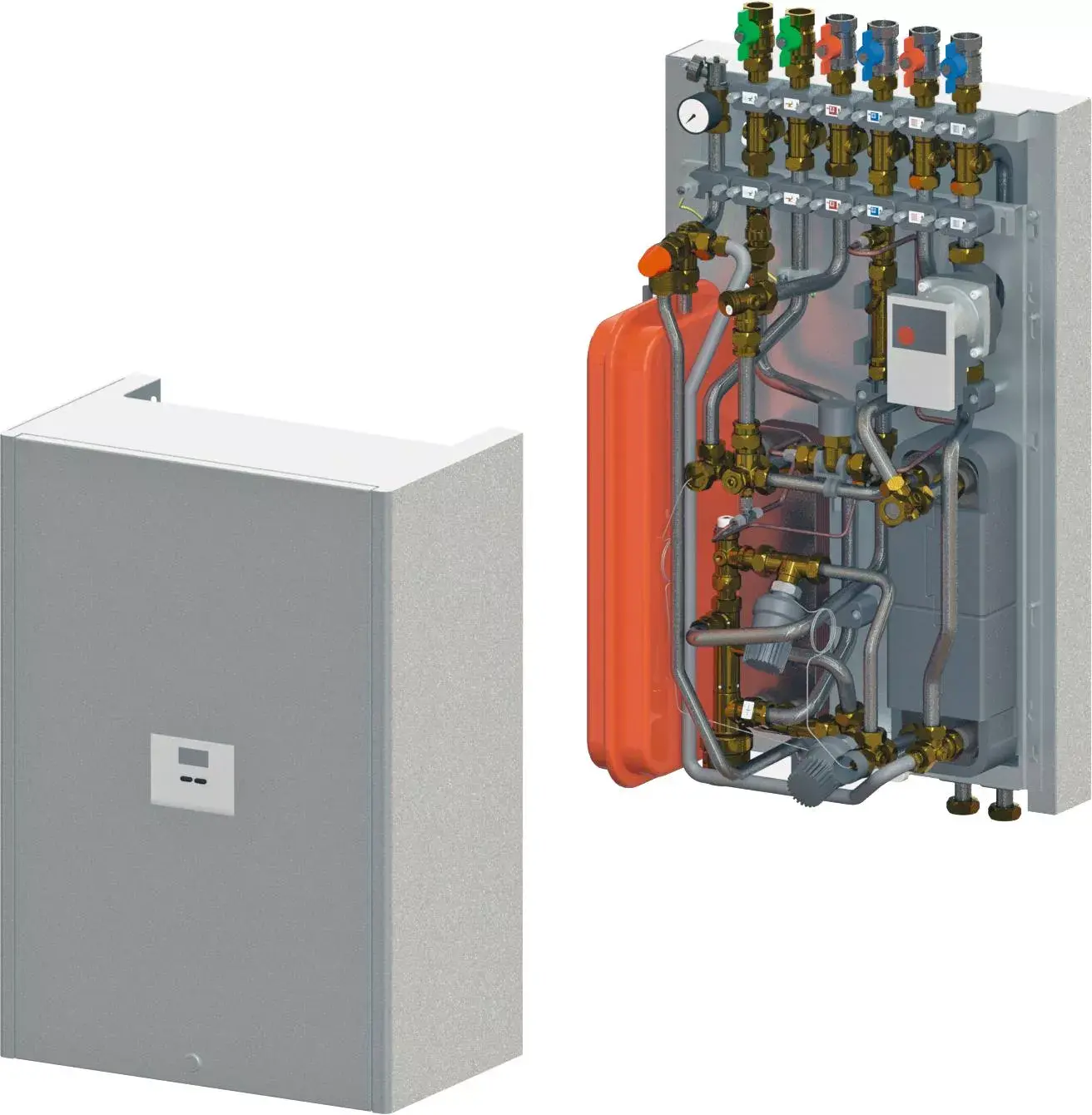

Uponor Combi Port M-ProX HeatInterface IH 15 CB BP DI TL ZH CR NI NC
Item details
Dimensions
| Item Unit Weight | 35 |
|---|---|
| Item Unit Width | 470 |
| Item_UOM | pce |
| Item Unit Height | 282 |
| Item Unit Length | 600 |
Measurements
| LENGTH_L | 436 |
|---|---|
| Z Measurement w | 747 |
| Length (l1) | 68 |
| Z Measurement b | 50 |
| Z Measurement w1 | 648 |
| Length (l2) | 168 |
| Z Measurement h | 251 |
| Length (l3) | 30 |
| Z Measurement h1 | 39 |
Packaging
| Packaging GTIN PL1 | 06414905486786 |
|---|---|
| Packaging Length PL1 | 640 |
| Packaging Volume PL1 | 0,1051008 |
| Packaging Width PL1 | 510 |
| Packaging GTIN PL4 | 06414905486793 |
| Packaging Length PL4 | 1200 |
| Packaging Volume PL4 | 1,152 |
| Packaging Width PL4 | 800 |
| Packaging Quantity PL1 | 1 |
| Packaging Height PL1 | 322 |
| Packaging Type PL1 | Base_Box |
| Packaging Weight PL1 | 35,4000 |
| Packaging Quantity PL4 | 3 |
| Packaging Height PL4 | 1200 |
| Packaging Type PL4 | Pallet |
| Packaging Weight PL4 | 126,2000 |
Product code
| Item no GTIN | 06414905478330 |
|---|---|
| Item no EAN | 6414905478330 |
Product Name
| Product Type Windchill | BLDE Finished Good |
|---|
Documents
Technical manuals
Approval Certificate
Technical information
12 KB1094902
Technical Information Combi Port and Aqua Port (1094902)
Approval Certificate
157 B1120388
