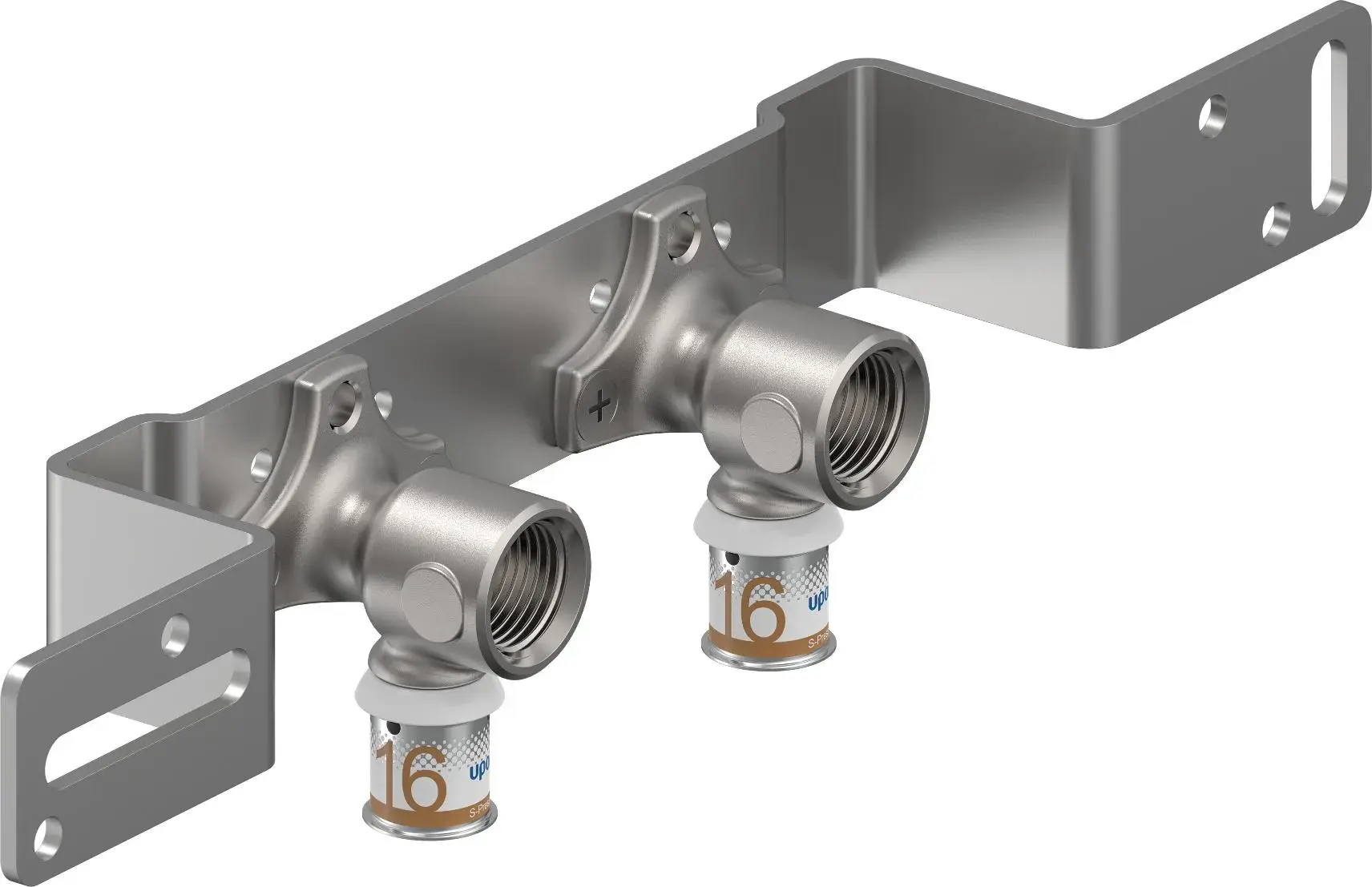

Uponor S-Press PLUS tap elbow mount.Unit 16-Rp1/2"FT c/c80mm
Item details
Dimensions
| Item_UOM | pce |
|---|---|
| Item Unit Length | 320 |
| Item Unit Weight | 0,598 |
| Item Unit Height | 48.5 |
| Item Unit Width | 67 |
Measurements
| LENGTH_L | 320 |
|---|---|
| Z Measurement k | 80 |
| Z Measurement b | 196 |
| Female thread Rp | 0,5 |
| Z Measurement h1 | 46 |
| Z Measurement h | 47,5 |
Packaging
| Packaging GTIN PL1 | 06414905628483 |
|---|---|
| Packaging Height PL1 | 50 |
| Packaging Length PL3 | 350 |
| Packaging Type PL4 | Pallet |
| Packaging Weight PL1 | 0,608 |
| Packaging Width PL3 | 200 |
| Packaging Quantity PL1 | 1 |
| Packaging GTIN PL3 | 06414905628490 |
| Packaging Height PL3 | 100 |
| Packaging Length PL4 | 1200 |
| Packaging Volume PL1 | 0,00112 |
| Packaging Weight PL3 | 3,14 |
| Packaging Width PL4 | 800 |
| Packaging Quantity PL4 | 300 |
| Packaging Length PL1 | 320 |
| Packaging Type PL3 | Box |
| Packaging Volume PL4 | 0,59904 |
| Packaging Width PL1 | 70 |
| Packaging Quantity PL3 | 5 |
| Packaging GTIN PL4 | 06414905293384 |
| Packaging Height PL4 | 624 |
| Packaging Type PL1 | Plastic_Bag |
| Packaging Volume PL3 | 0,007 |
| Packaging Weight PL4 | 213,4 |
Product code
| Item no EAN | 6414905219773 |
|---|---|
| Item no GF | 35001070661 |
| Item no GTIN | 06414905219773 |
Status
| MTO (longer delivery times) | Item available on request, minimum lead time 2 weeks |
|---|
