Caso de estudio
Concesionario de Coches, el Escorial, Madrid, Spain
Concesionario de Coches, el Escorial
Datos del proyecto
Madrid, Spain
Edificio de oficinas
Climatización Invisible
Finalización: 2009
Involucración Uponor
1310

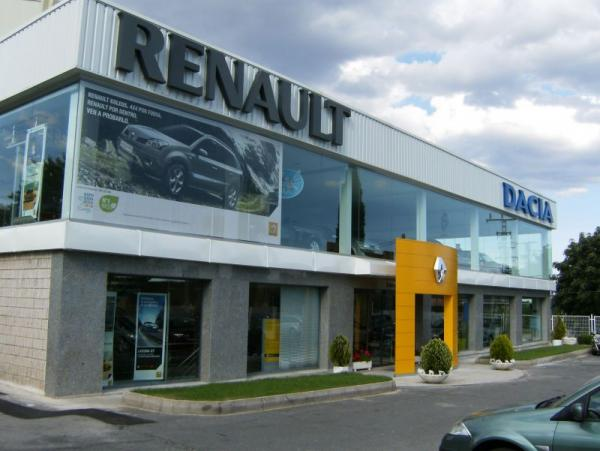

Talleres Escorial es un concesionario de Renault en El Escorial (Madrid) que sus dueños han querido renovar y reconstruir en base a sus planes de crecimiento y de imagen de las instalaciones.
El edificio está integrado por tres plantas y una planta sótano para aparcamiento. En la planta baja se encuentra la exposición de vehículos nuevos junto a los despachos de los departamentos comerciales y en la planta primera y cubierta, se sitúan los despachos de administración.
La propiedad quería dotar el edificio con las últimas tecnologías y con la mayor eficiencia energética posible y el mayor grado de satisfacción con sus clientes, dentro de un presupuesto económico que fuera viable. Tras analizar varios sistemas de climatización, se decantaron por las soluciones de Uponor de Climatización Invisible, calor y frío por suelo radiante.
También se ha instalado un sistema de apoyo para climatizar en verano la zona de exposición de vehículos para puntas ocasionales de altas cargas térmicas (mucha afluencia de personas).
Después de un año de funcionamiento, el gerente del concesionario, Javier Benito, está muy satisfecho con la inversión realizada y el ahorro energético del 30%. Esta instalación tambiénsirve para resolver la renovación y el tratamiento del aire.
En total se han instalado 1.310 m2 de Climatización Invisible en las tres plantas, repartidos en 665 m2 en planta baja, 496 m2 en planta primera y 147 m2 en planta cubierta.Al mismo tiempo, se han zonificado los despachos y las salas, además de analizar las cargas térmicas en función de la orientación del edificio, buscando con ello alcanzar la máxima eficiencia energética, así como mejorar en ahorro de energía y en el grado de confort de los usuarios.
Sin duda, el éxito de que una instalación de estas características funcione correctamente se debe también a una buena ejecución e instalación. En este sentido, la instaladora Tosán de Guadarrama, cuyo gerente es Luis Miguel Tomé, contribuye a este buen funcionamiento
El edificio está integrado por tres plantas y una planta sótano para aparcamiento. En la planta baja se encuentra la exposición de vehículos nuevos junto a los despachos de los departamentos comerciales y en la planta primera y cubierta, se sitúan los despachos de administración.
La propiedad quería dotar el edificio con las últimas tecnologías y con la mayor eficiencia energética posible y el mayor grado de satisfacción con sus clientes, dentro de un presupuesto económico que fuera viable. Tras analizar varios sistemas de climatización, se decantaron por las soluciones de Uponor de Climatización Invisible, calor y frío por suelo radiante.
También se ha instalado un sistema de apoyo para climatizar en verano la zona de exposición de vehículos para puntas ocasionales de altas cargas térmicas (mucha afluencia de personas).
Después de un año de funcionamiento, el gerente del concesionario, Javier Benito, está muy satisfecho con la inversión realizada y el ahorro energético del 30%. Esta instalación tambiénsirve para resolver la renovación y el tratamiento del aire.
En total se han instalado 1.310 m2 de Climatización Invisible en las tres plantas, repartidos en 665 m2 en planta baja, 496 m2 en planta primera y 147 m2 en planta cubierta.Al mismo tiempo, se han zonificado los despachos y las salas, además de analizar las cargas térmicas en función de la orientación del edificio, buscando con ello alcanzar la máxima eficiencia energética, así como mejorar en ahorro de energía y en el grado de confort de los usuarios.
Sin duda, el éxito de que una instalación de estas características funcione correctamente se debe también a una buena ejecución e instalación. En este sentido, la instaladora Tosán de Guadarrama, cuyo gerente es Luis Miguel Tomé, contribuye a este buen funcionamiento
Concesionario de Coches, el Escorial
Información del proyecto
Información del proyecto
Dirección
El Escorial
País
Spain
Finalización
2009
Tipo de proyecto
Reforma
Tipo de edificio
Edificio de oficinas
Colaboradores
Colaboradores
installer
Tosan
