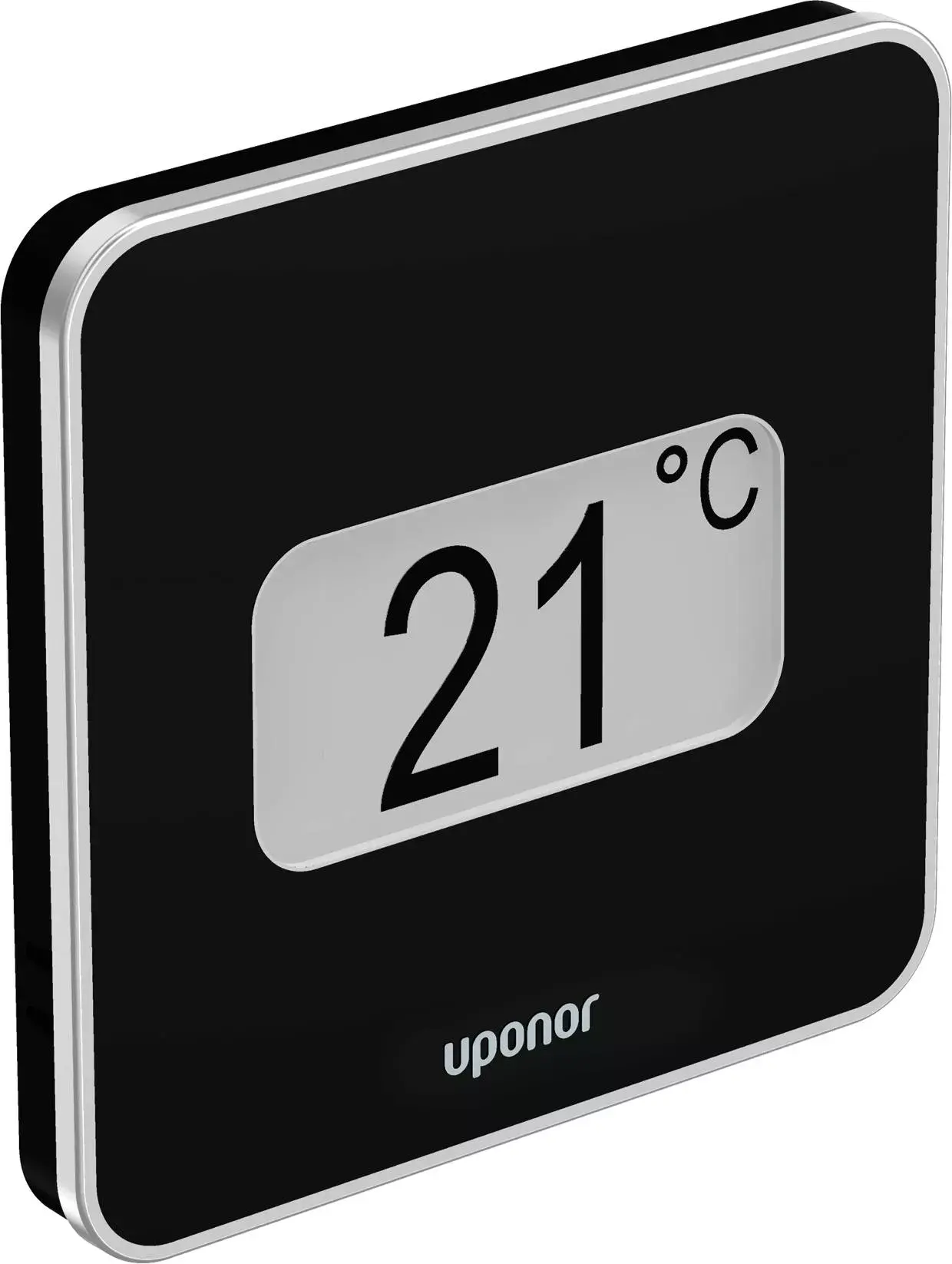

Uponor Smatrix Base thermostat style T-149 Bus black D+ RH
- Measures and displays the perceived room temperature and relative humidity- Protection class: IP30- Colour: black- Functions:- Heating or cooling demand indication- RH measured value- Comfort / ECO indication- ECO setback modification- Manual H/C switchover function- Cooling allowed function (room by room)- Displays celsius or fahrenheit- Operating modes: room temperature (RT), internal with floor max/min (RFT), remote sensor (RS), remote outdoor (RO)- Temperature calibration- Optional: floor sensor can be connected- Consisting of:- Uponor Smatrix Base thermostat D+RH T-149 Bus- Mounting material
Item details
Documents
Technical manuals
Approval Certificate
EU declaration of conformity
Quick Guide
76 KB1068125
Quick Guide Smatrix Base (1068125)
Installation Report
2 KB1095347
Installation Report Smatrix Base Pulse (1095347)
Approval Certificate
98 B1137326
UPONOR CER CONTROLS AND OTHERS PARTS UKCA UK (1137326)
EU declaration of conformity
1 KB1132746
Uponor DoC SMATRIX 1071651 INT (1132746)
About
Specification
- Up to 4 controllers in one system - Operating voltage: 230V - Autobalancing optimises energy user and comfort - Supports up to 6 room thermostats and 8 24V actuators per controller - Pump and boiler relays - Valve and pump exercise - Relative humidity control - Different wiring options (daisy-chain / star) - 4-wire Bus installation - Communication protocol: RS485 serial bus - Max. power input per actuator: 24VAC / 0.2A (0.4A peak)Smatrix Base Pulse: - Local access (Wi-Fi) or remote access (internet connection required) via Uponor Smatrix Pulse App (with R-208) - Temporary wi-fi access point for direct access (if local wi-fi is not available) - (with R-208) - Smart home ecosystem integration (Amazon Alexa, Google Home) - (with R-208) - Multi-home control - (with R-208) - Third-party access for remote support (user allowance required) - (with R-208) - History trend analysis via Uponor Smatrix Pulse app (with R-208) - Timer programming (with R-208) - Comfort settings (with R-208) - Supply diagnostics (with R-208)
Application
- Wired room temperature control for radiant heating and cooling - Set point range: +5°C - +35°C
Certification
- CE / EAC
