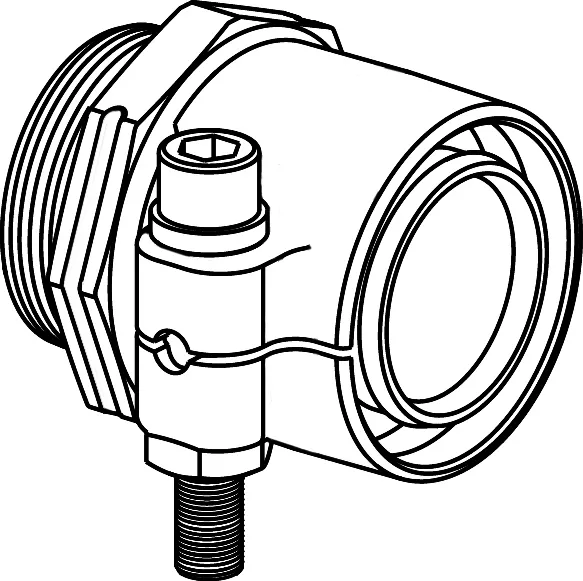

Uponor Wipex coupling PN10

- Connection of PE-Xa or PE pipe
- 10 bar, SDR 7,4
- Parallel thread G" for O-ring sealing
- DZR - dezincification resistant brass

Item details

1018336 / - / -

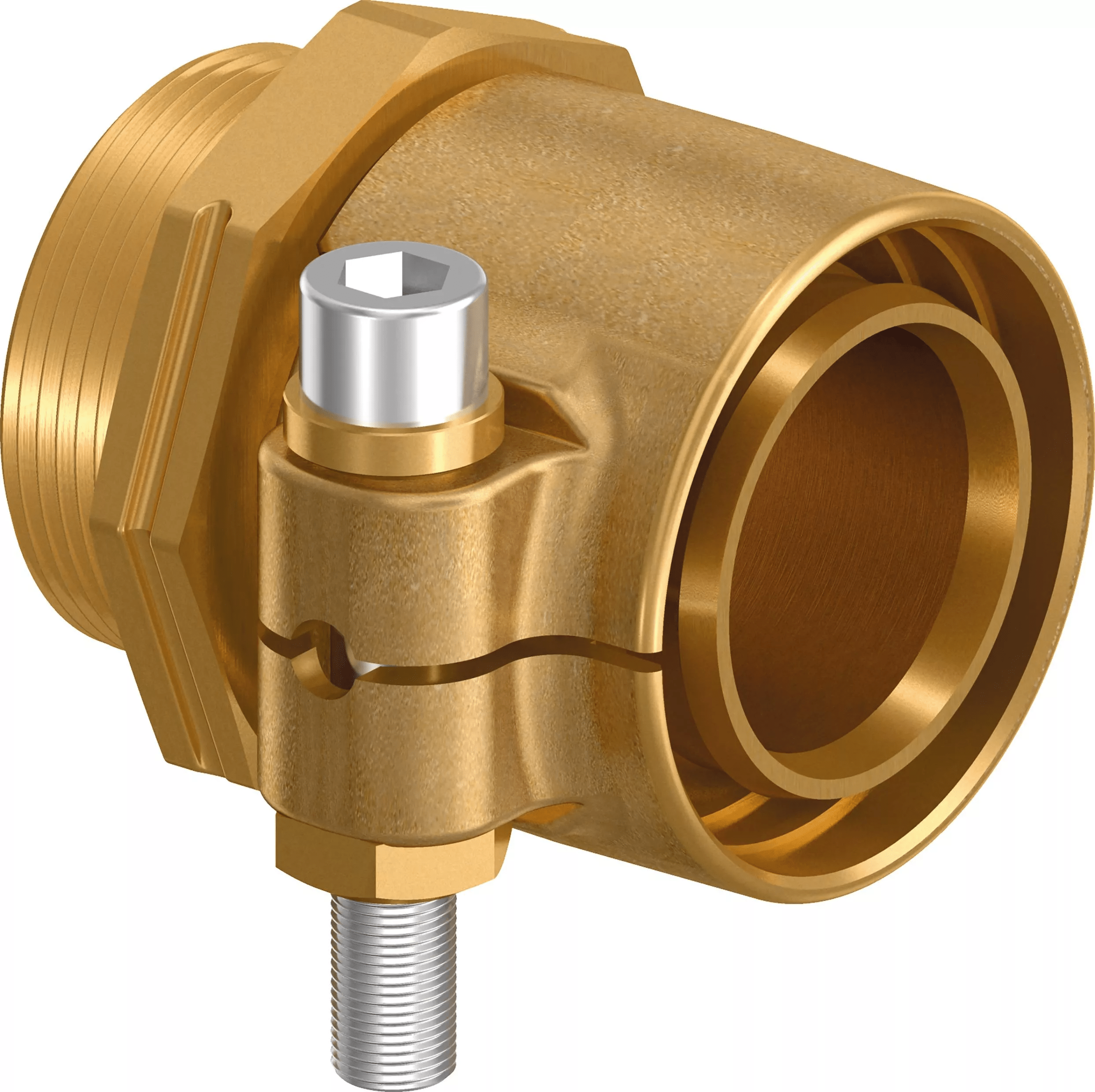

Uponor Wipex coupling PN10 25x3,5-G1

1018338 / - / -

Uponor Wipex coupling PN10 32x4,4-G1

1018339 / - / -

Uponor Wipex coupling PN10 40x5,5-G1 1/4

1018340 / - / -

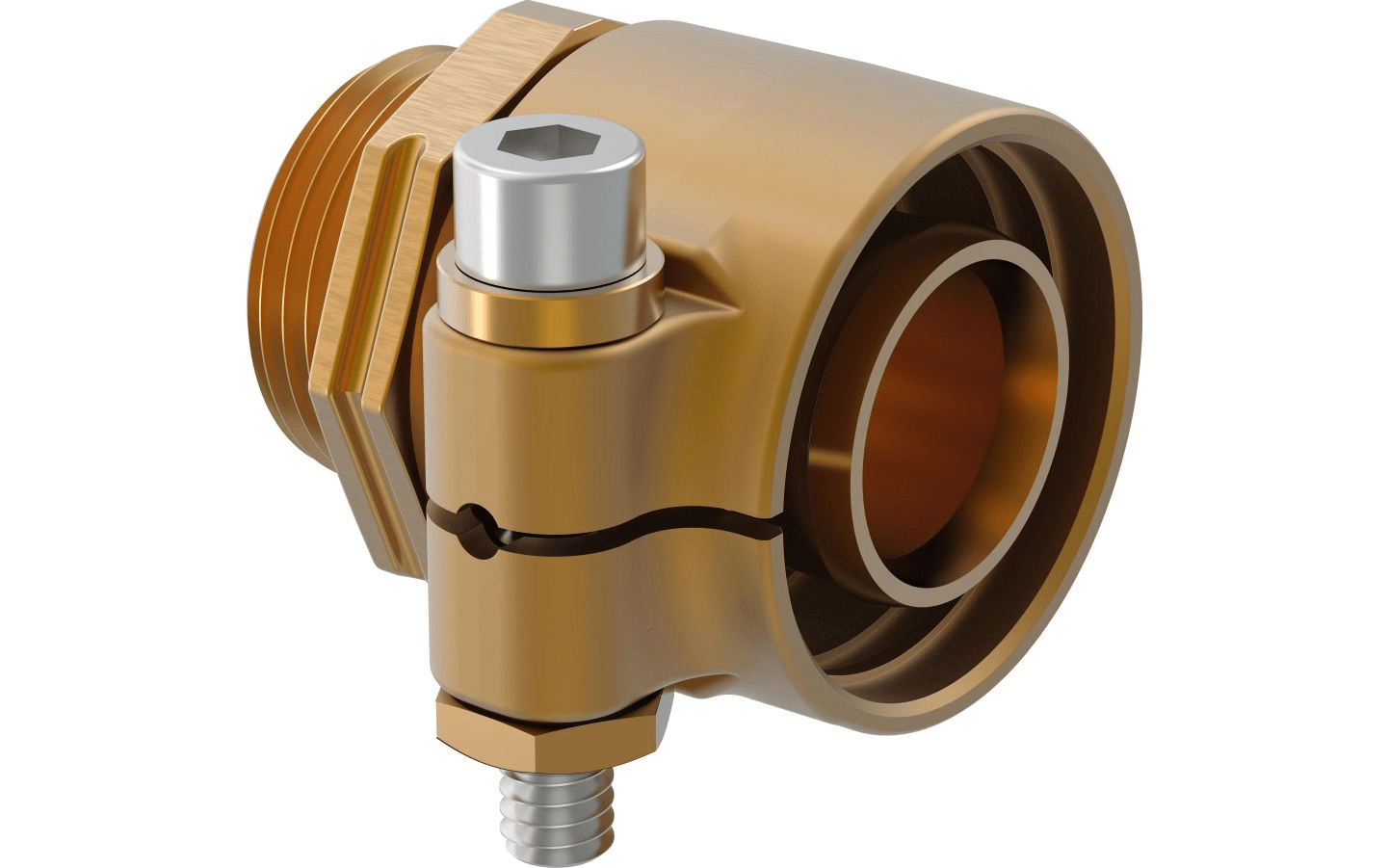

Uponor Wipex coupling PN10 50x6,9-G1 1/4

1018341 / - / -

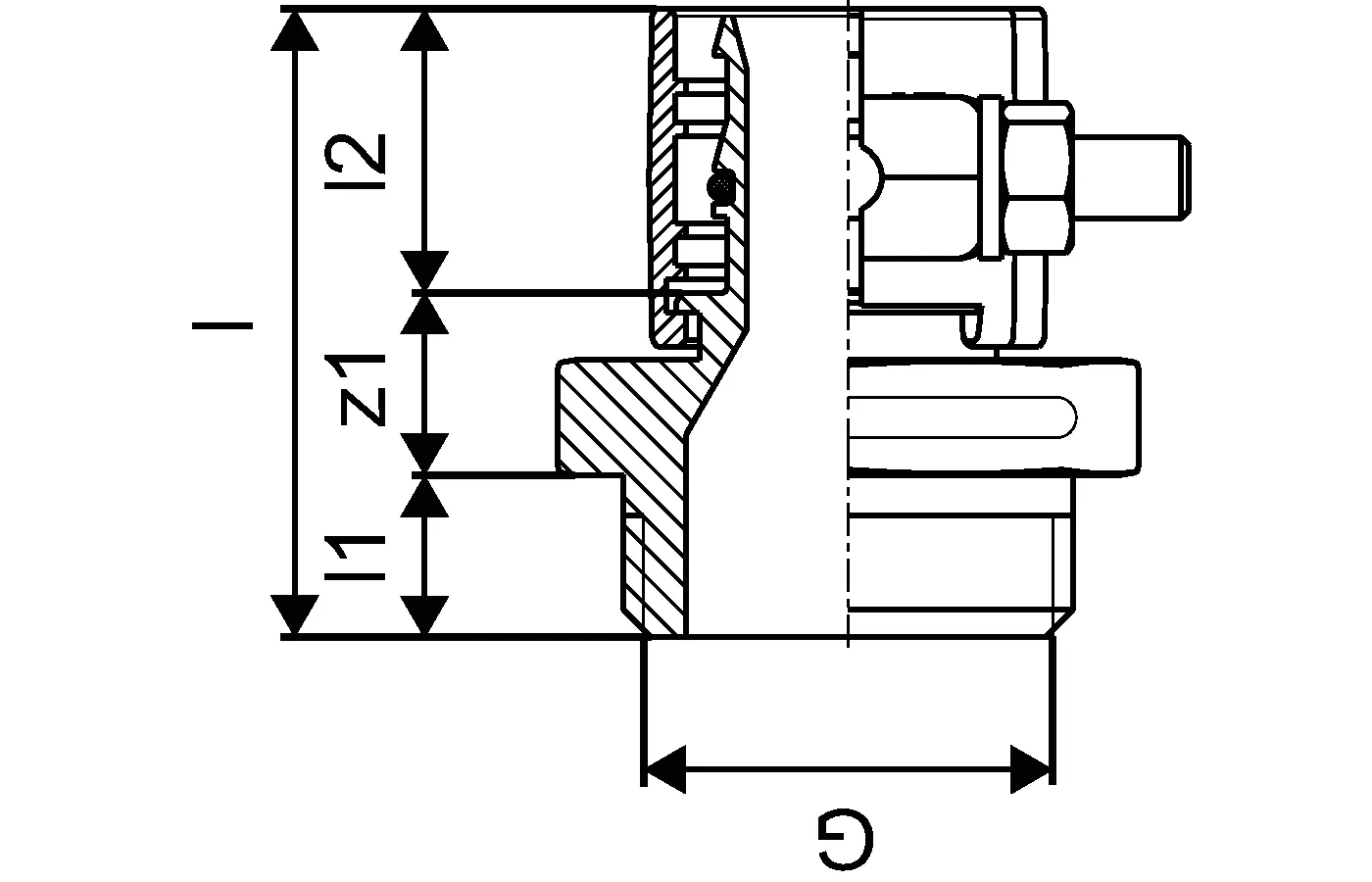

Uponor Wipex coupling PN10 63x8,6-G2

1018342 / - / -

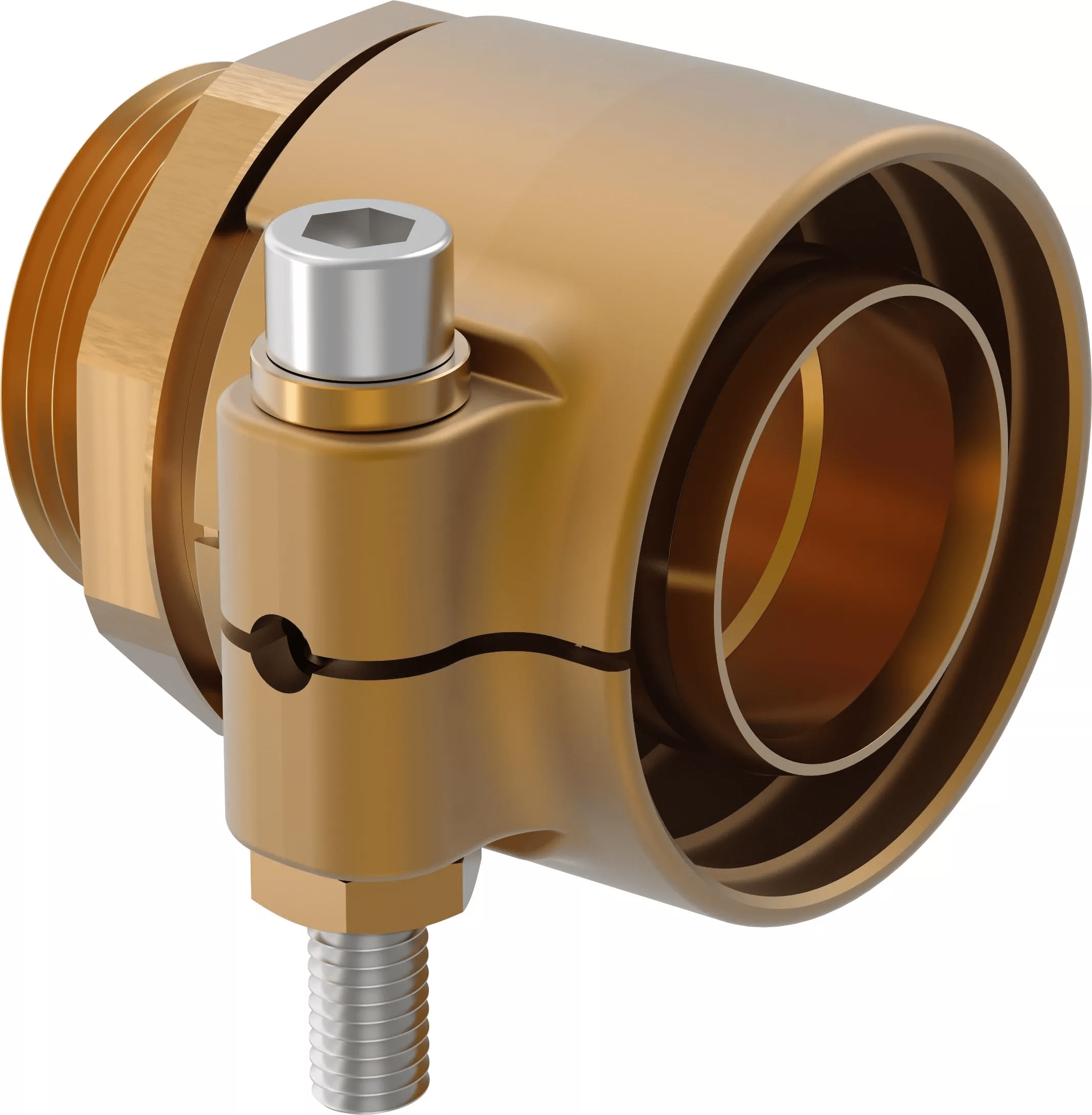

Uponor Wipex coupling PN10 75x10,3-G2

1018343 / - / -

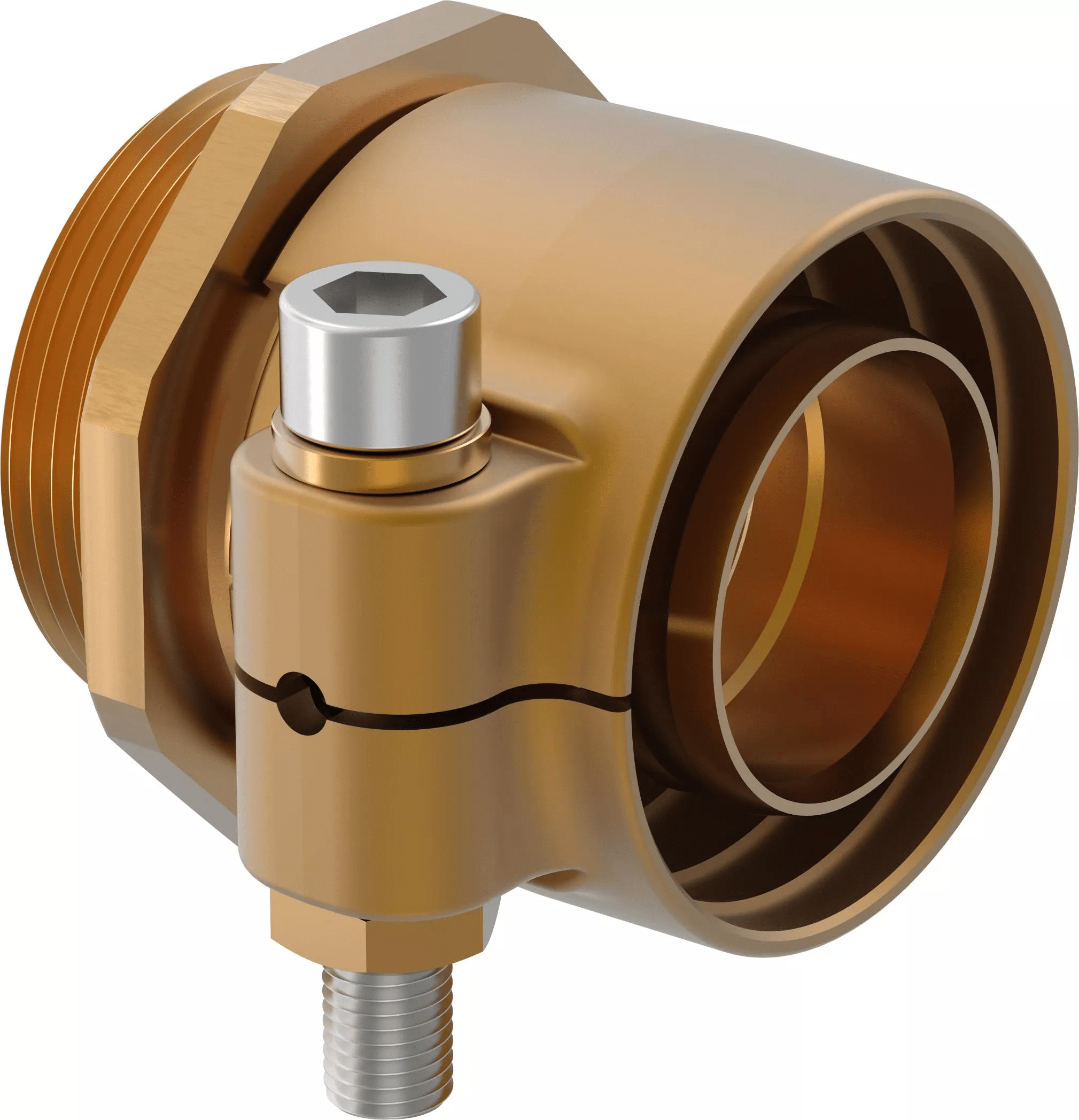

Uponor Wipex coupling PN10 90x12,3-G3

1023170 / - / -

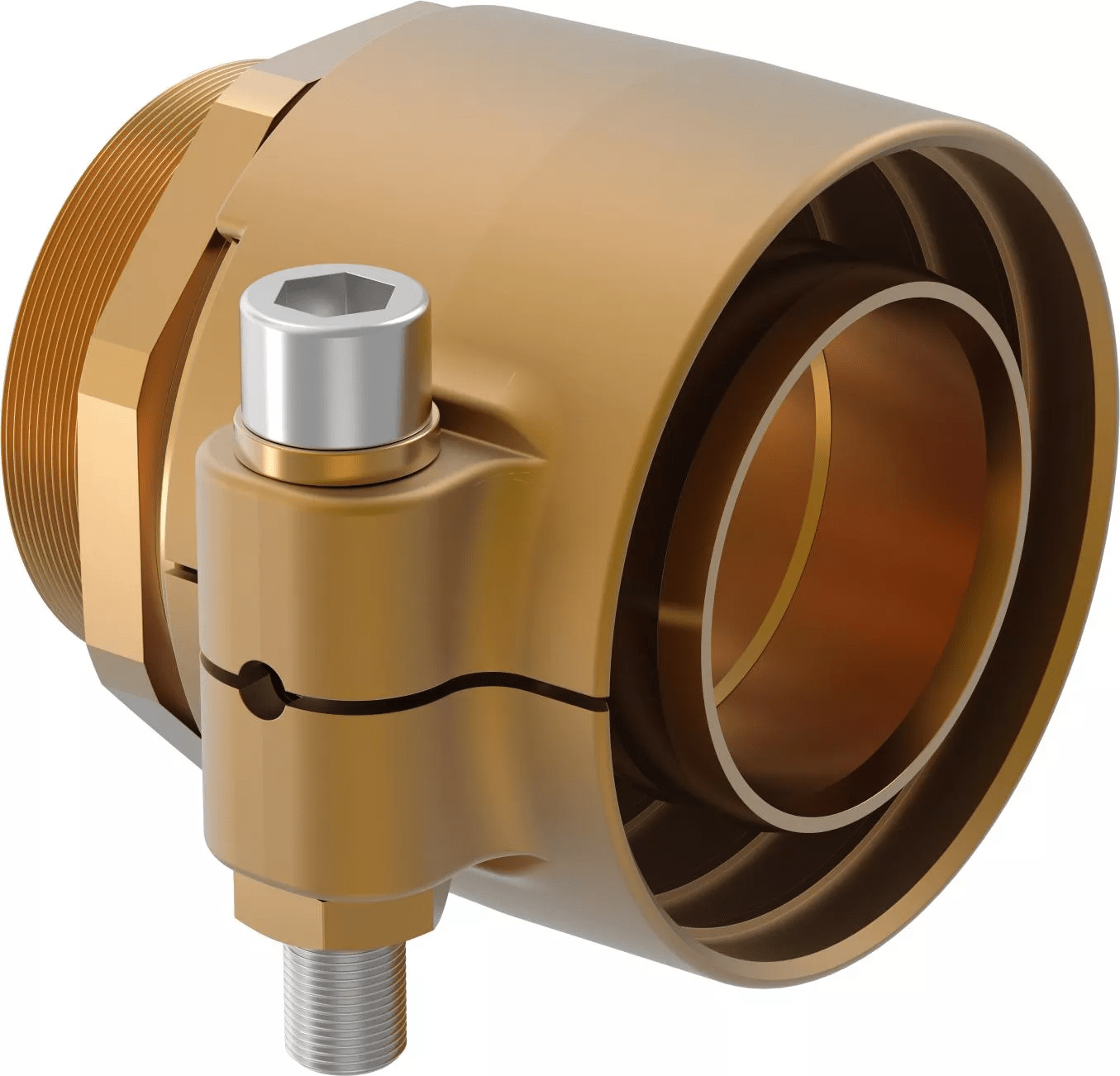

Uponor Wipex coupling PN10 110x15,1-G3

Documents

Technical manuals
Approval Certificate

Installation Report

137 B1120219

Installation Report Ecoflex pressure test water pipes (1120219)

Installation Report

162 B1120218

Installation Report Ecoflex pressure test heating (1120218)

Product Information

968 B1142158

PI Ecoflex pipe systems UK 1142158

Approval Certificate

98 B1135541

UPONOR CER WIPEX FIT MECH WRAS 2112320 UK EN (1135541)

About

Specification

- Wipex fittings in corrosion-resistant brass, dezincification based on EN ISO 6509 with stainless steel screw.
- Sizes 25-110mm, O-ring sealing between Wipex coupling and base fitting
- Sizes 125-160mm, threads must be sealed using a suitable sealing medium
- Bolt set for couplers in stainless steel with brass washer
- Pre-open sleeve design with assembled support part for the dimension 63-110mm.

Application

- Fittings for pipe systems Thermo, Aqua, Quattro, Supra, Supra PLUS and Thermo HP
- Connection of PE and PE-Xa carrier pipes to couplers with cylindrical inch male thread
- Max. operating temperature 95°C
