Product Information
1 KB1185021
Uponor Ecoflex VIP Aqua Pipe Single
- Warm tap water - One medium pipe PE-Xa, SDR 7,4 - Max. load 10 bar / 70°C - VIP + PEX foam, HDPE casing
Item details
1119047 / - / -

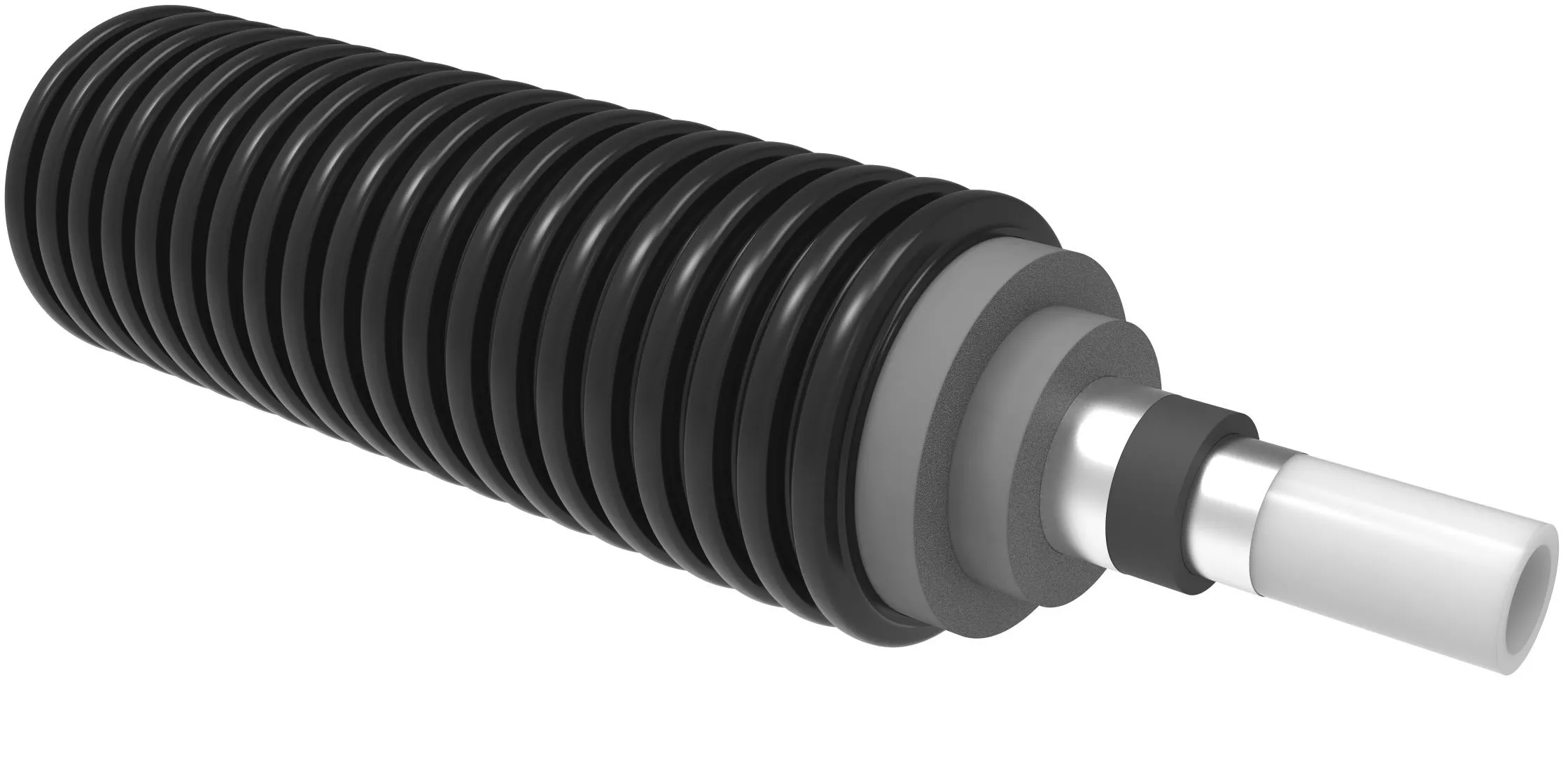

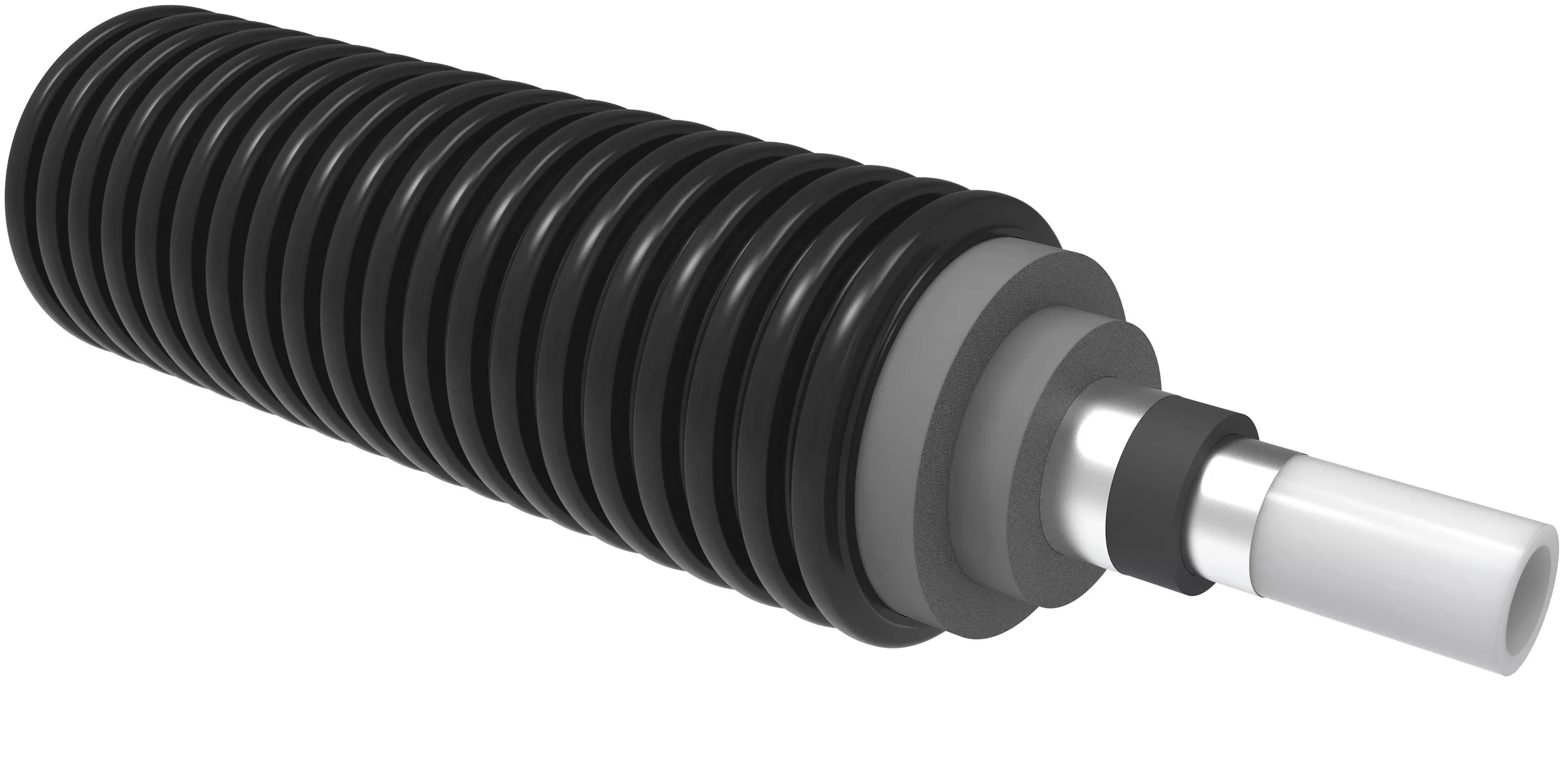

Uponor Ecoflex VIP Aqua Pipe Single 40x5,5/140
1119048 / - / -
Uponor Ecoflex VIP Aqua Pipe Single 50x6,9/140
1119049 / - / -
Uponor Ecoflex VIP Aqua Pipe Single 63x8,6/140
1119050 / - / -
Uponor Ecoflex VIP Aqua Pipe Single 75x10,3/140
1160620 / - / -
Uponor Ecoflex VIP Aqua Pipe Single 90X12,3/175
Documents
Technical manuals
Environmental Product Declaration (EPD)
Brochure
Technical information
10 KB1120217
Technical Information Ecoflex piping systems (1120217)
Environmental Product Declaration (EPD)
838 B0000121835
Ecoflex VIP Aqua (0000121835)
Environmental Product Declaration (EPD)
850 B0000121836
Ecoflex VIP Aqua (0000121836)
About
Specification
- Flexible, pre-insulated, self-compensating plastic pipe system. - Medium pipe: cross-linked polyethylene (PE-Xa) manufactured to BS EN ISO 15875, natural coloured, PN 10 (SDR 7,4) - Insulating material: Revolutionary VIP technology with extremely low lambda value in combination with permanently elastic closed-cell PE-X foam. - Casing pipe: UV stabilised, corrugated polyethylene (HDPE) - Twin pipe: colour coded identification to identify supply and return lines
Application
- Buried installations for the transport of warm tap water - Tap water operating temperature 70°C based on BS EN ISO 15875 - Malfunction temperature 95°C - Static verification for heavy traffic load of 60 tons
Certification
UK Reg4 approval - WRAS or - KIWA To meet the requirements of the Water Supply (Water Fittings) Regulations 1999
