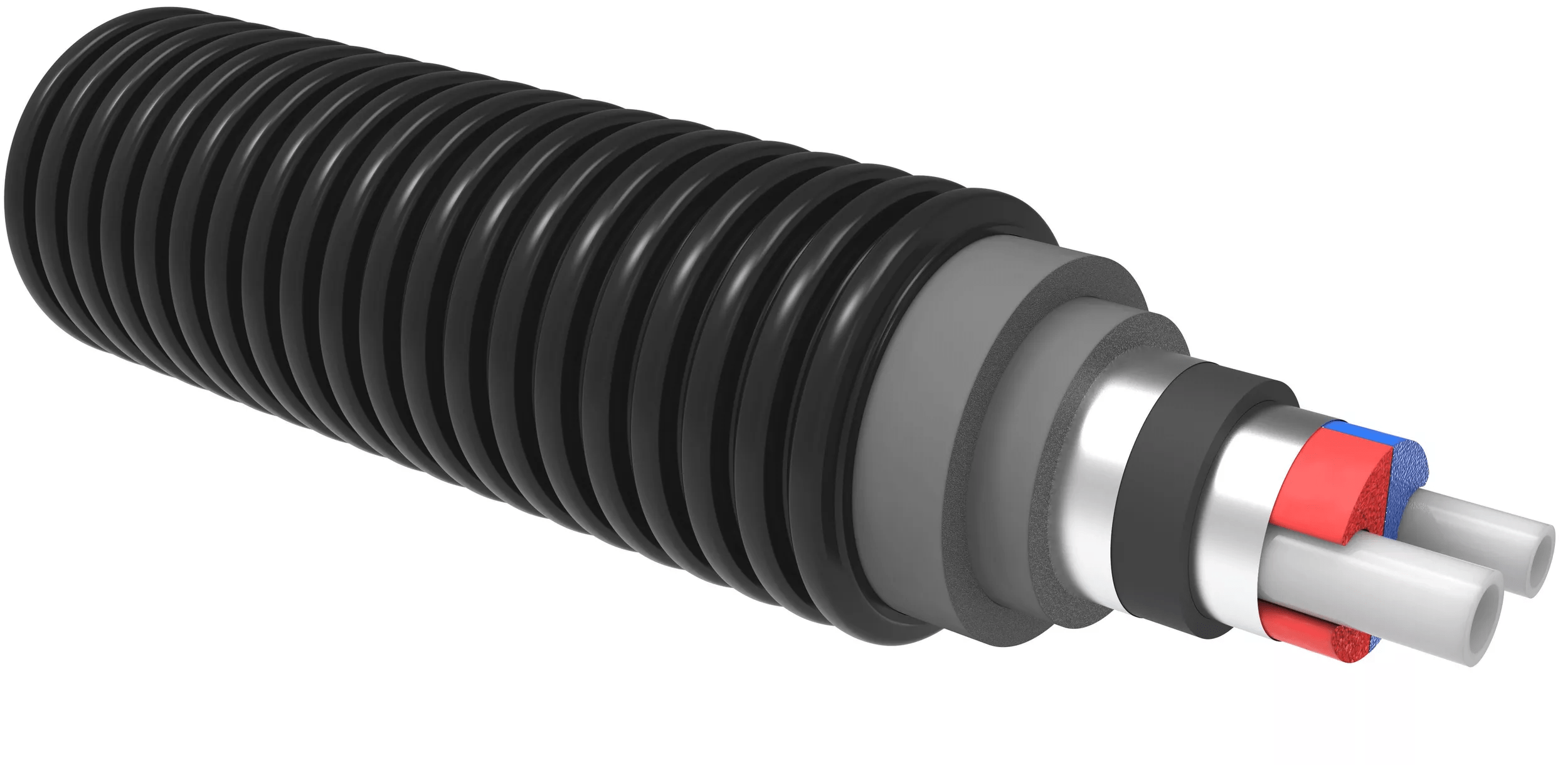

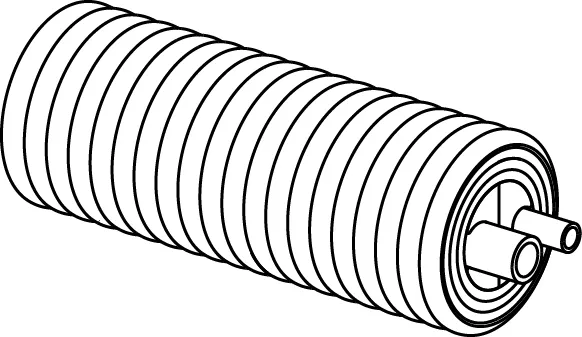

Uponor Ecoflex VIP Aqua Twin

- Warm tap water
- One medium pipe PE-Xa, SDR 7,4
- Max. load 10 bar / 70°C
- Coloured centre profile to identify flow and return lines
- VIP + PEX foam, HDPE casing

Item details

1119053 / - / -

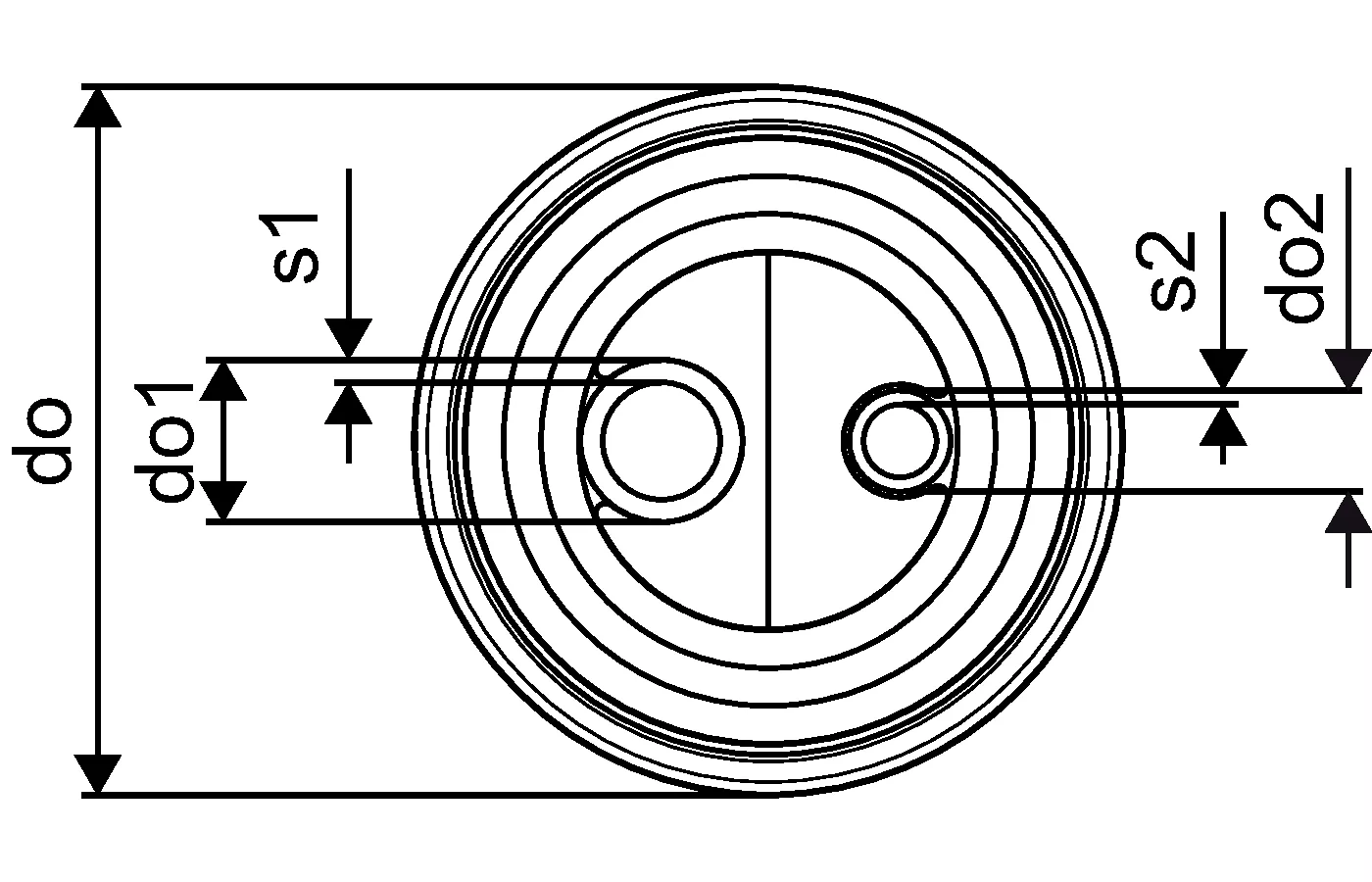

Uponor Ecoflex VIP Aqua Twin 25x3,5-20x2,8/140

1119054 / - / -

Uponor Ecoflex VIP Aqua Twin 32x4,4-20x2,8/140

1119055 / - / -

Uponor Ecoflex VIP Aqua Twin 40x5,5-25x3,5/140

1119056 / - / -

Uponor Ecoflex VIP Aqua Twin 50x6,9-32x4,4/175

1132671 / - / -

Uponor Ecoflex VIP Aqua Twin 63x8,6-40x5,5/200

Documents

Technical manuals
Declaration of Performance
Environmental Product Declaration (EPD)
Brochure

Product Information

1 KB1185021

Product Information Ecoflex VIP Thermo and VIP Aqua (1185021)

Installation Report

137 B1120219

Installation Report Ecoflex pressure test water pipes (1120219)

Product Information

968 B1142158

PI Ecoflex pipe systems UK 1142158

Declaration of Performance

340 B1120772

Uponor DoP Ecoflex VIP Thermo SYS EN (1120772)

Environmental Product Declaration (EPD)

856 B1162869

Uponor EPD Ecoflex VIP Aqua (1162869)

Brochure

272 B1141486

UPONOR DGNB ECOFLEX VIP

Brochure

318 B0000123389

Ecoflex VIP Thermo (0000123389)

About

Specification

- Flexible, pre-insulated, self-compensating plastic pipe system.
- Medium pipe: cross-linked polyethylene (PE-Xa) manufactured to BS EN ISO 15875, natural Coloured, PN 10 (SDR 7,4)
- Insulating material: Revolutionary VIP technology with extremely low lambda value in combination with permanently elastic closed-cell PE-X foam.
- Casing pipe: UV stabilised, corrugated polyethylene (HDPE)
- Twin pipe: colour coded identification to identify supply and return lines

Application

- Buried installations for the transport of warm tap water .
- Tap water operating temperature 70°C based on
BS EN ISO 15875
- Malfunction temperature 95°C
- Static verification for heavy traffic load of 60 tons
