Uponor S-Press elbow adapter
- Made of tin-plated brass- Contoured Aluminium-sleeve with inspection windows- Fast 3-step installation (press without bevel)- Colour coded breakaway press indicator- With copper pipe 15 x 1mm - EN 1057- Connection of the plated copper pipe can be made using a standard BS EN 1254-2 compression type fitting, - or a compatible metal press connection.
Item details
Documents
Technical manuals
Approval Certificate
Installation Report
116 B1120119
Installation Report MLC leak test report TW water (1120119)
Installation Report
127 B1120120
Installation Report MLC flushing protocol TW water (1120120)
Approval Certificate
277 B1119612
UPONOR CER MLC SYS MECH WRAS 2010907 GB EN (1119612)
About
Specification
- Elbows for tap connection and - Q&E rings must be ordered separately unless detailed in the description
Application
- For tap water installations - Male and female threads acc.to BS EN 10226-1 (unless specified differently)
Product drawings

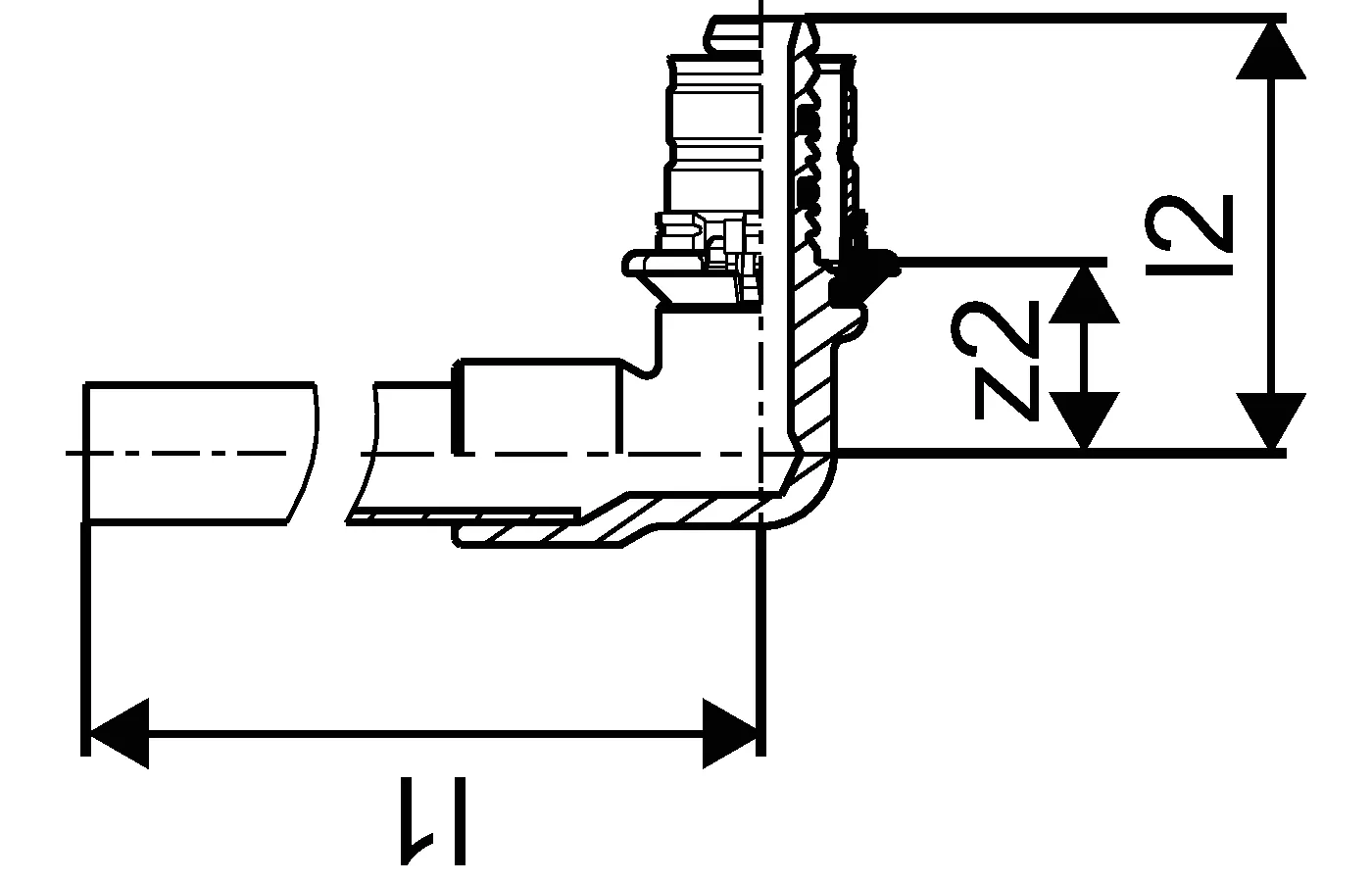

Z-drawing

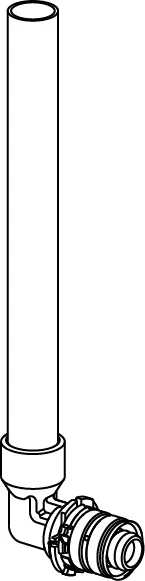

Label drawings

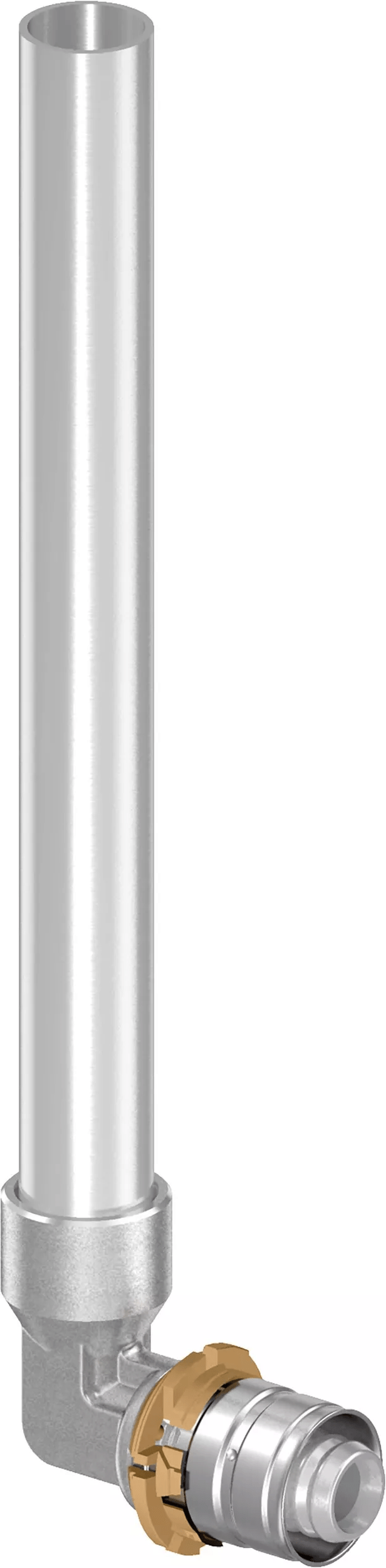

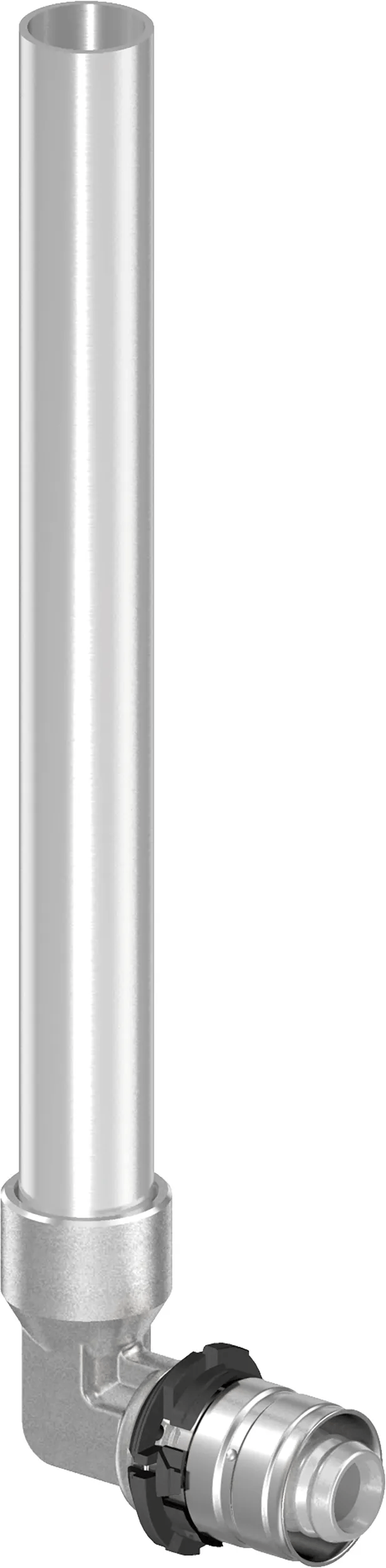

Rendered
147 B
147 B
Download document29 B
119 B
119 B
Download document2 KB
