Uponor Uni-C compression adapter MLC
- Compression adapter, union nut and inner sleeve made of brass- For connection of Uponor Uni Pipe PLUS and MLC pipes to manifolds (e.g. Uponor manifold S, SH)- Female thread 1/2" according to EN ISO 228-1- No bevel.
Item details
Uponor Uni-C compression adapter MLC 14-1/2"FT
Uponor Uni-C compression adapter MLC 16-1/2"FT
Documents
Technical manuals
Approval Certificate
Installation Report MLC leak test report TW water (1120119)
Installation Report MLC flushing protocol TW water (1120120)
UPONOR CER MLC SYS MECH WRAS 2010907 GB EN (1119612)
About
Specification
- Modular brass manifold system with male threaded connections- Components made of tin-plated or plated brass; brackets in galvanised steel- Compatible with ½" Uni-C compression adapters for MLC and Uni Pipe PLUS pipes- Thread standards according to EN ISO 228-1 / DIN- System includes manifolds, valves, end caps, plugs, brackets, couplings, and adapters
Application
- Distribution and connection of tap water- Manifold-based installations with male threaded connections- Adaptation between Uponor pipe systems (Uni Pipe PLUS, MLC) and Uponor ½" threaded components- Use in residential and light commercial installations- Flexible system extension via manifolds, adapters, and accessories
Product drawings

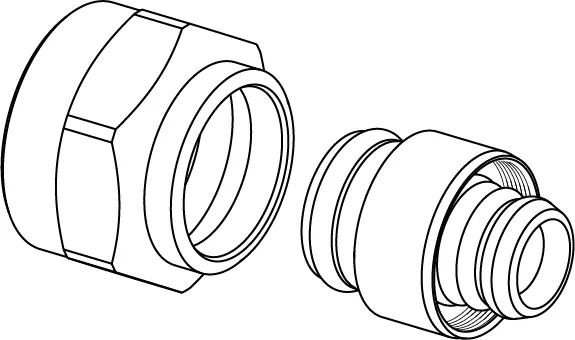

Label drawings

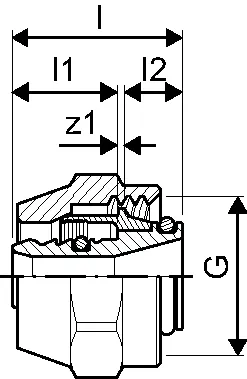

Z-drawing

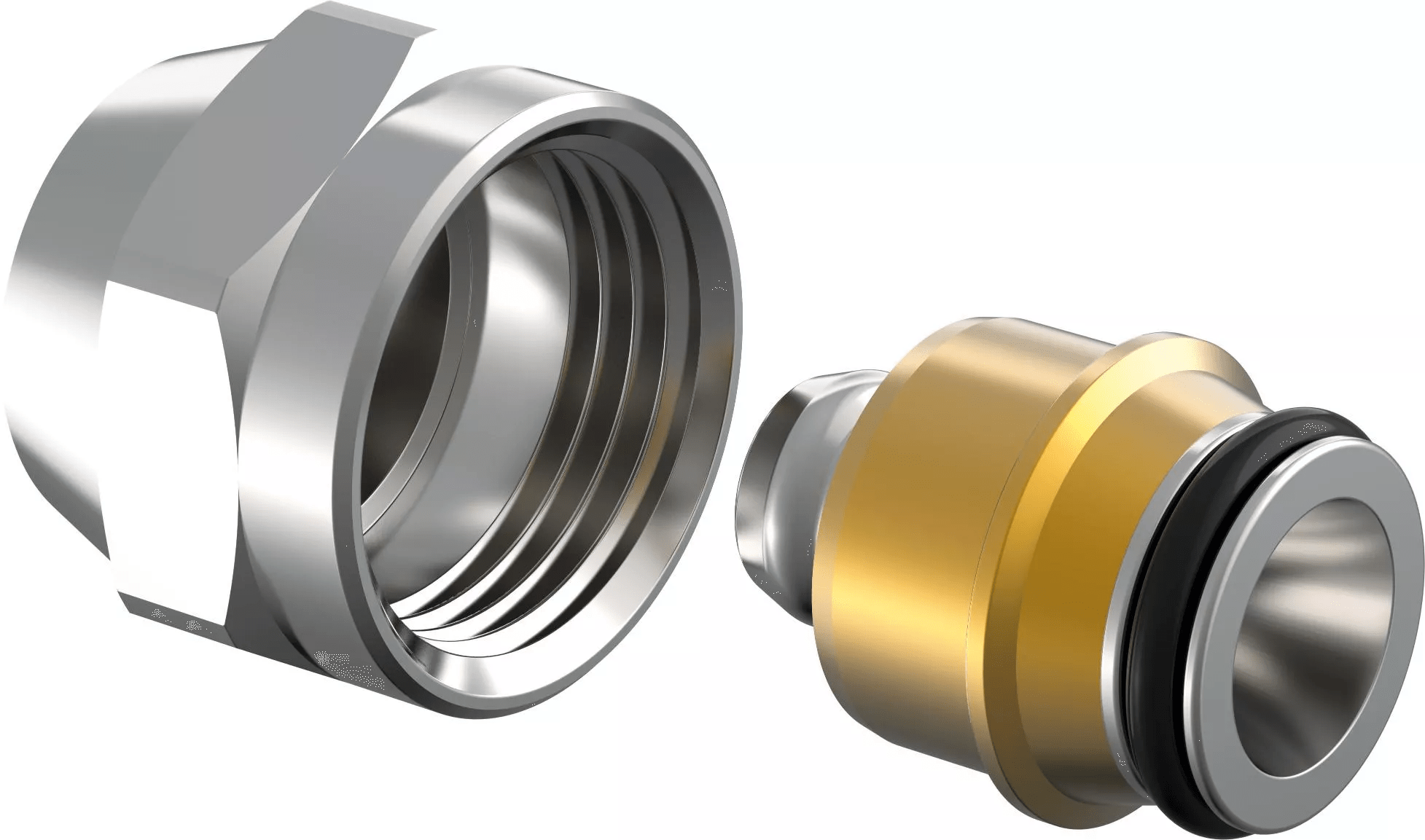

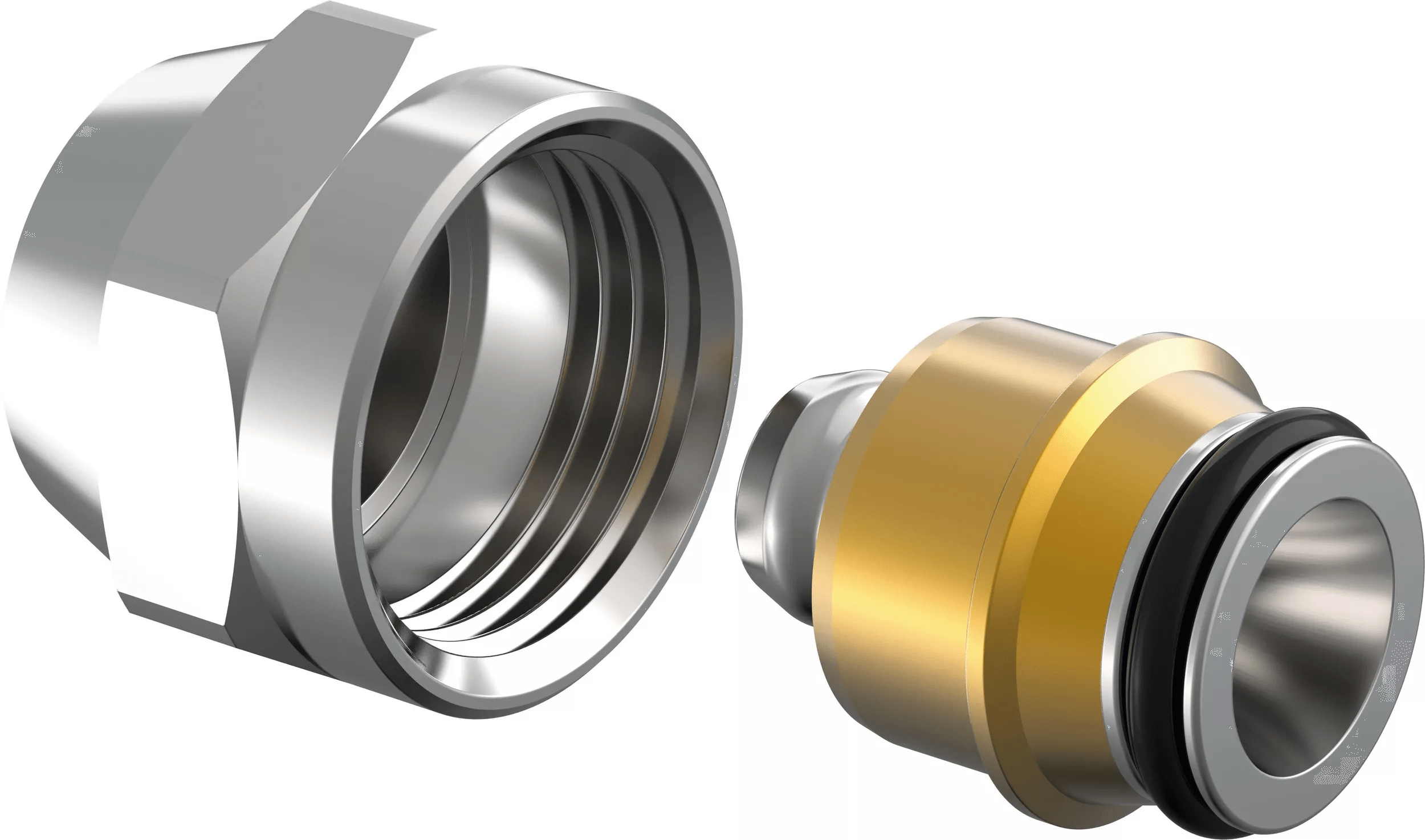

Rendered
