Uponor Uni-X compression adapter MLC UK

- For connection of Uni-Pipe PLUS and MLC to Uni-C manifolds
- Demountable and resealable
- Union nut and insert
- Pipe must be calibrated, no bevel

Uponor Uni-X compression adapter MLC UK

Item details

Uponor Uni-X compression adapter MLC UK 12-15mmFT
Uponor Uni-X compression adapter MLC UK 20-22mmFT
Uponor Uni-X compression adapter MLC UK 25-28mmFT

Documents

Product Information
259 B1142159

PI MLC tap water heating UK 1142159

Installation Manual
1 KB1239731

IM Uni Pipe and S-Press system 14-110 INT 1239731 v1

Installation Report
116 B1120119

Installation Report MLC leak test report TW water (1120119)

About

Specification

- Compression fittings with eurocone and metric connections
- Made of brass or tin-plated brass depending on variant
- Compatible with Uponor Uni Pipe PLUS and MLC pipes
- Female and male thread options according to EN ISO 228-1
- No bevel required for installation

Application

For connection of
- drinking water systems
- heating systems
- radiant heating and cooling systems

Product drawings

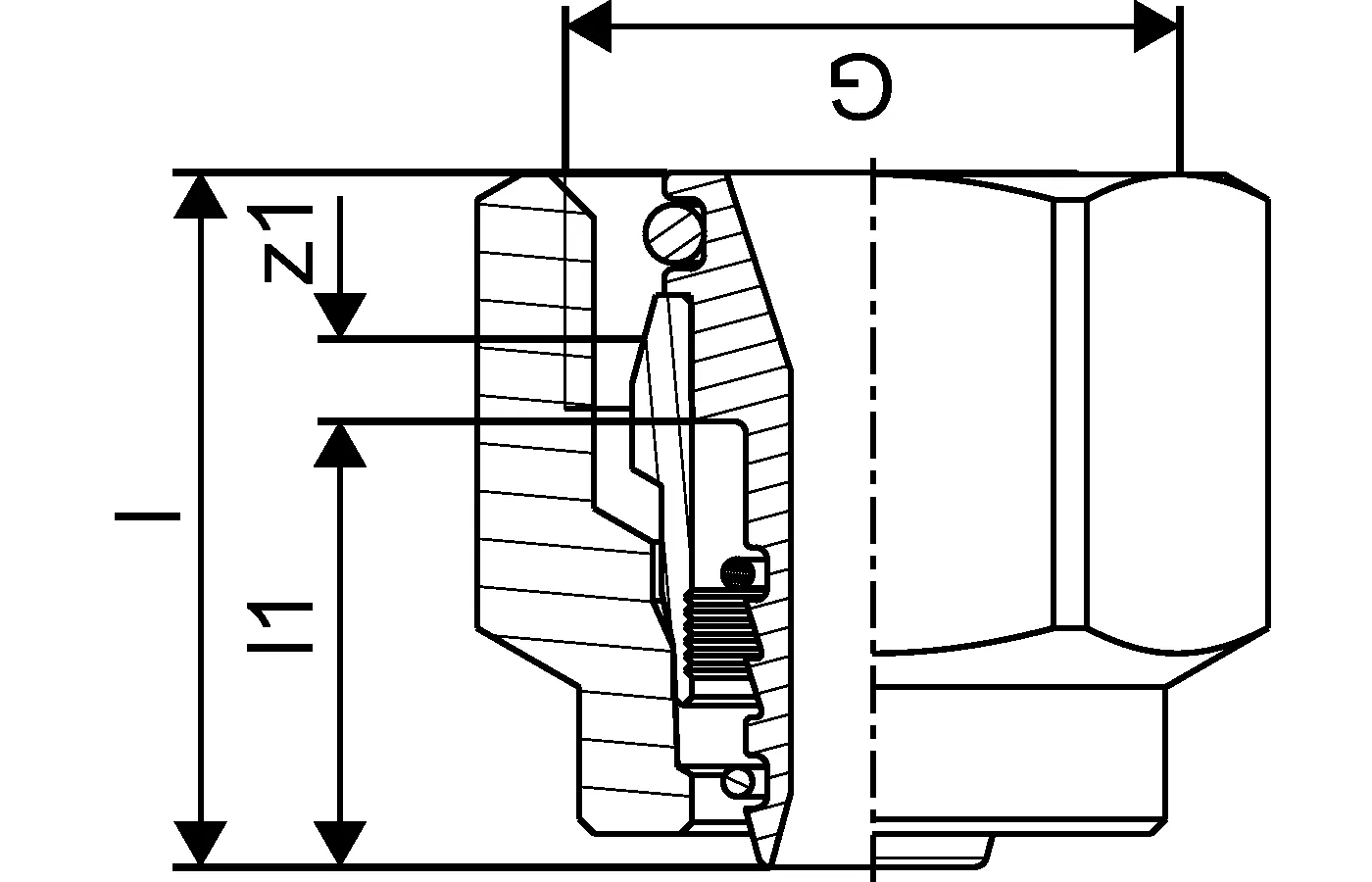

1013807_ZMD
1013807
192 B
1013808_ZMD
1013808
192 B
1013831_ZMD
1013831
192 B
1013807_LAB
1013807
85 B

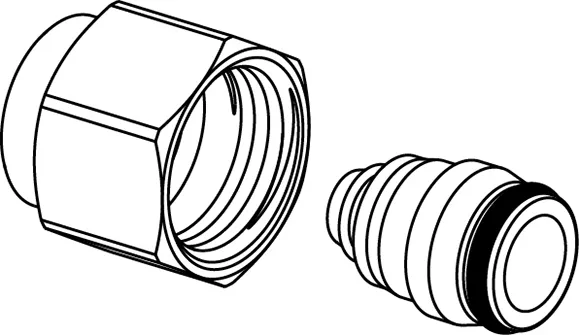

1013808_LAB
1013808
85 B
1013831_LAB
1013831
85 B

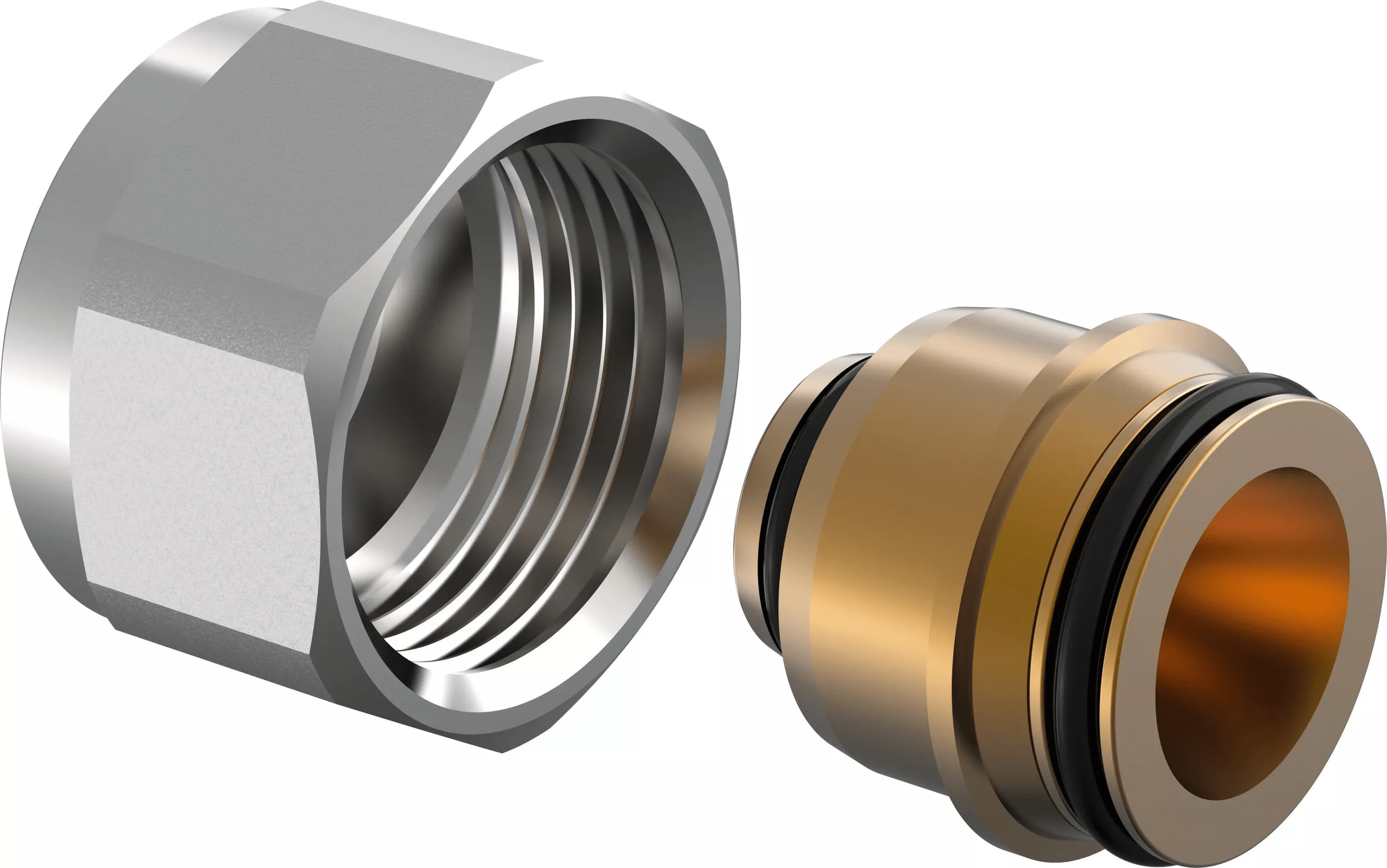

1013807_REN
1013807
211 B

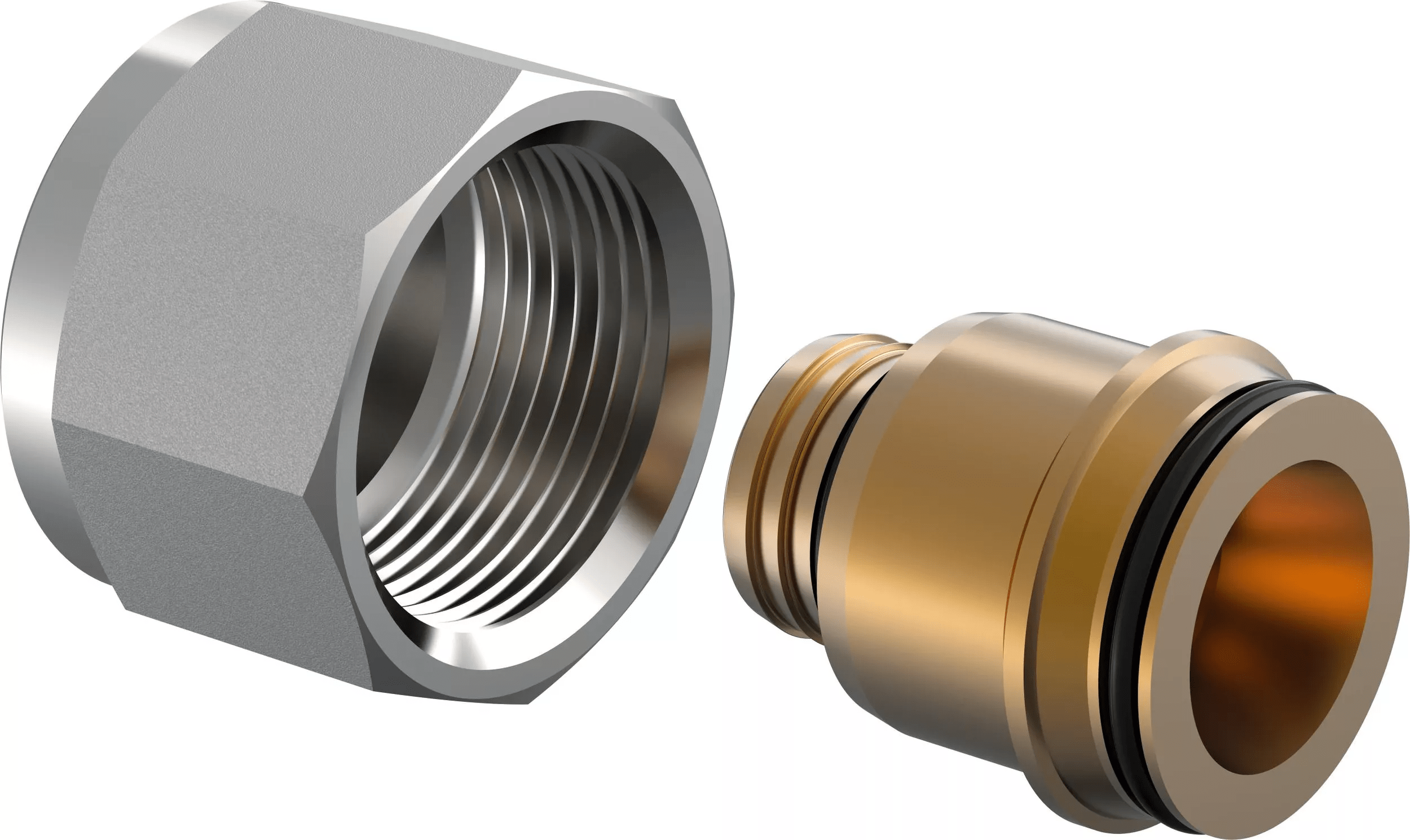

1013808_REN
1013808
238 B

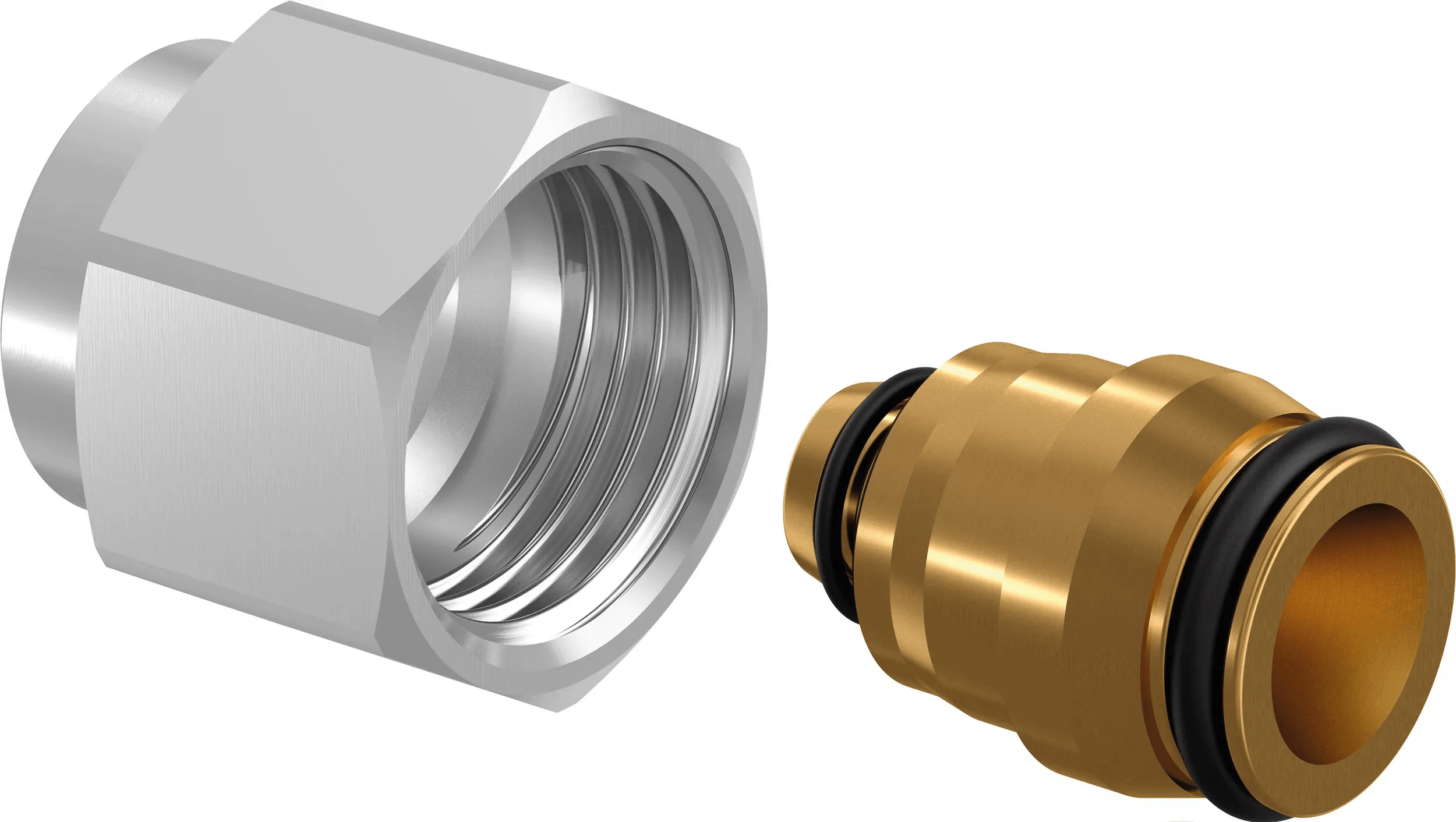

1013831_REN
