Product Information
259 B1142159
Uponor Uni-X compression adapter plated MLC UK
- For connection of Uni-Pipe PLUS and MLC to standard compression fitting bodies to BS EN 1254-2- Demountable and resealable- Union nut and insert- Pipe must be calibrated, no bevel- Note, threads on fitting body must be checked to confirm suitable length to accomodate the necessary number of turns for the nut
Item details
1013813 / - / -
Uponor Uni-X compression adapter plated MLC UK 12-15mmFT
Documents
Technical manuals
Installation Report
116 B1120119
Installation Report MLC leak test report TW water (1120119)
Installation Report
127 B1120120
Installation Report MLC flushing protocol TW water (1120120)
About
Specification
- Compression fittings with eurocone and metric connections- Made of brass or tin-plated brass depending on variant- Compatible with Uponor Uni Pipe PLUS and MLC pipes- Female and male thread options according to EN ISO 228-1- No bevel required for installation
Application
For connection of - drinking water systems - heating systems - radiant heating and cooling systems
Product drawings

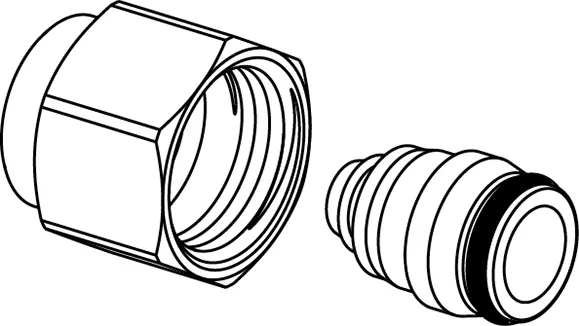

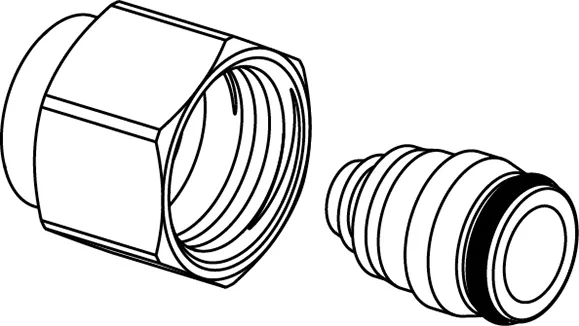

Label drawings

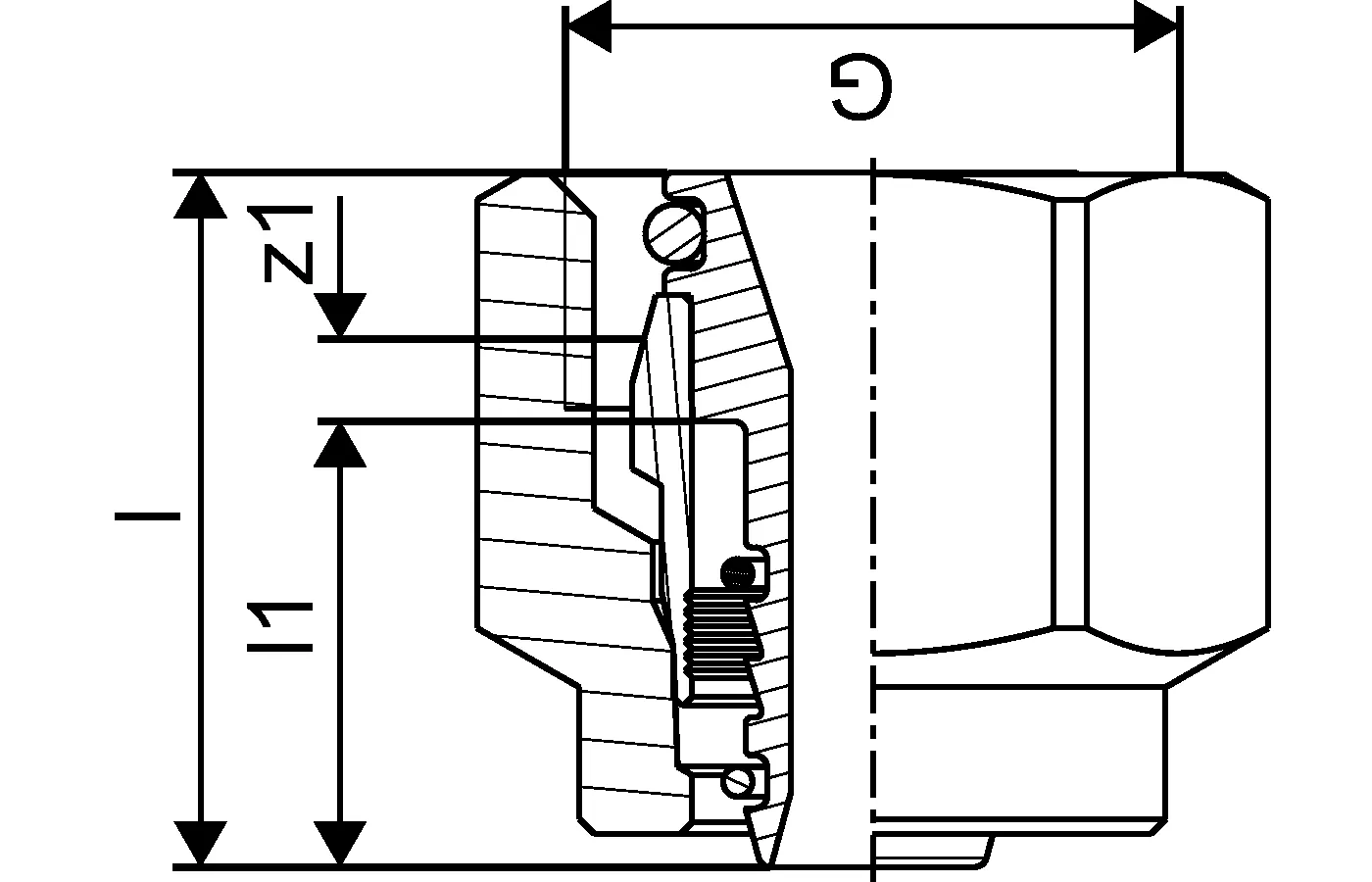

Z-drawing

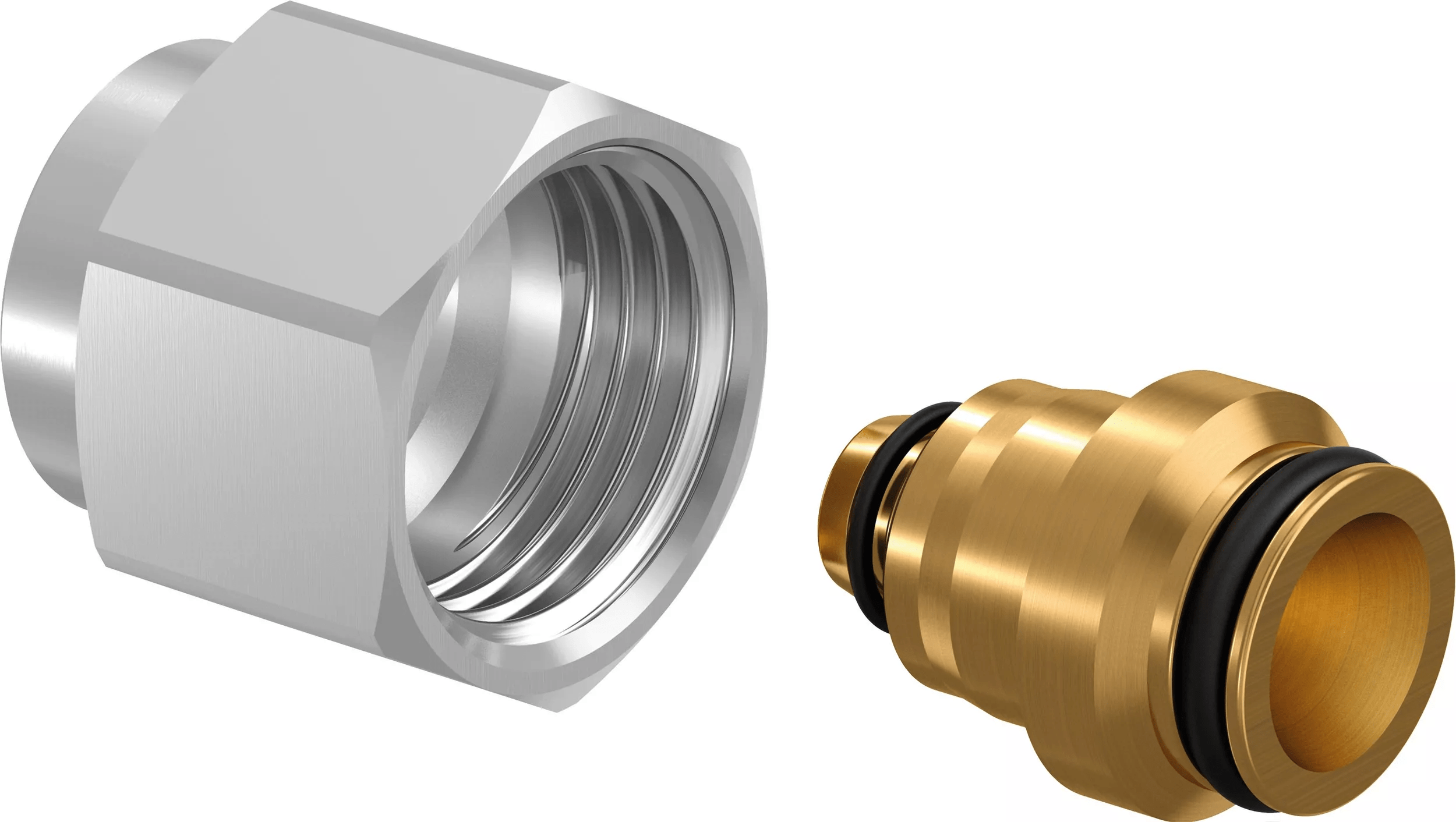

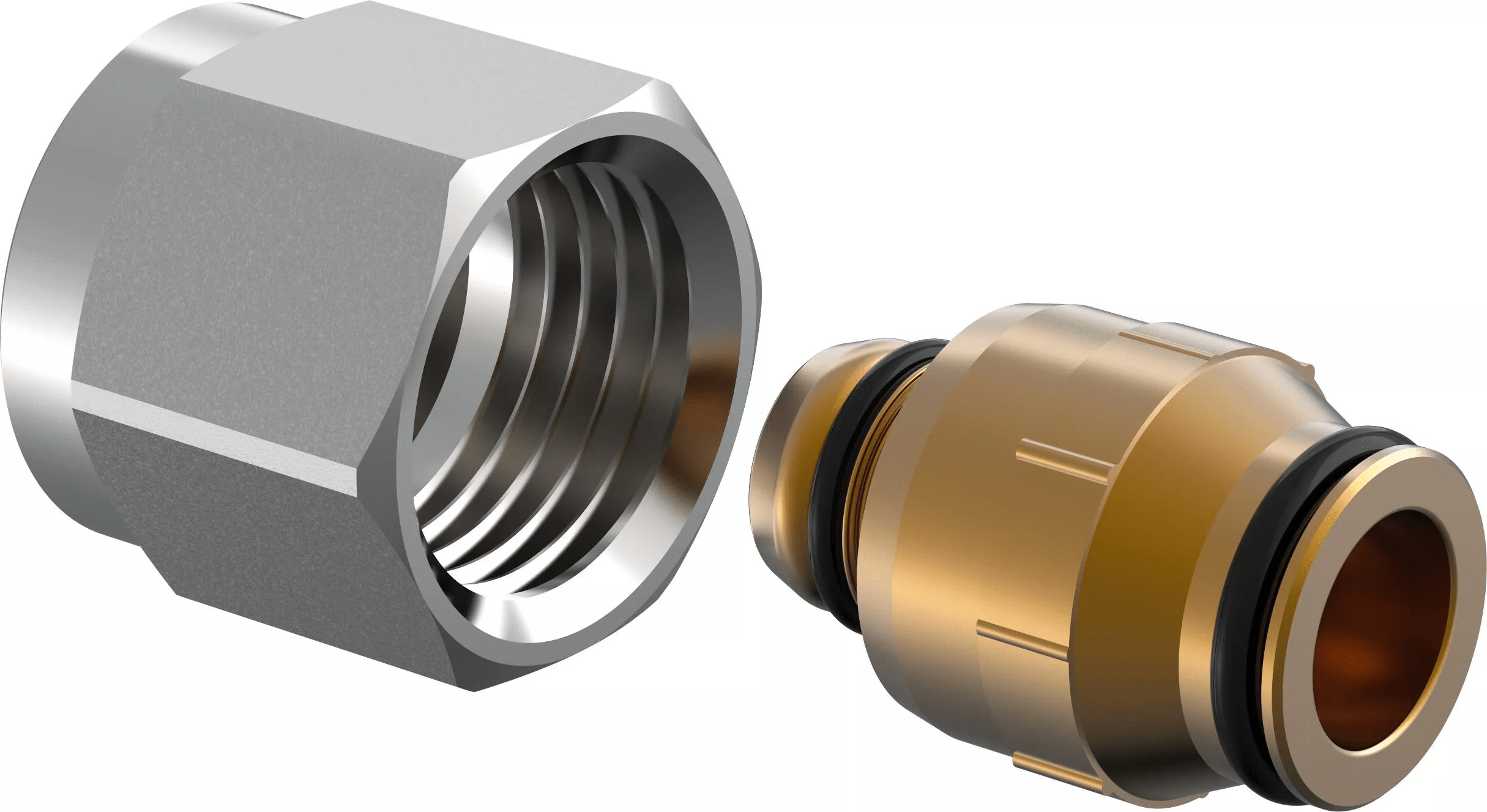

Rendered
