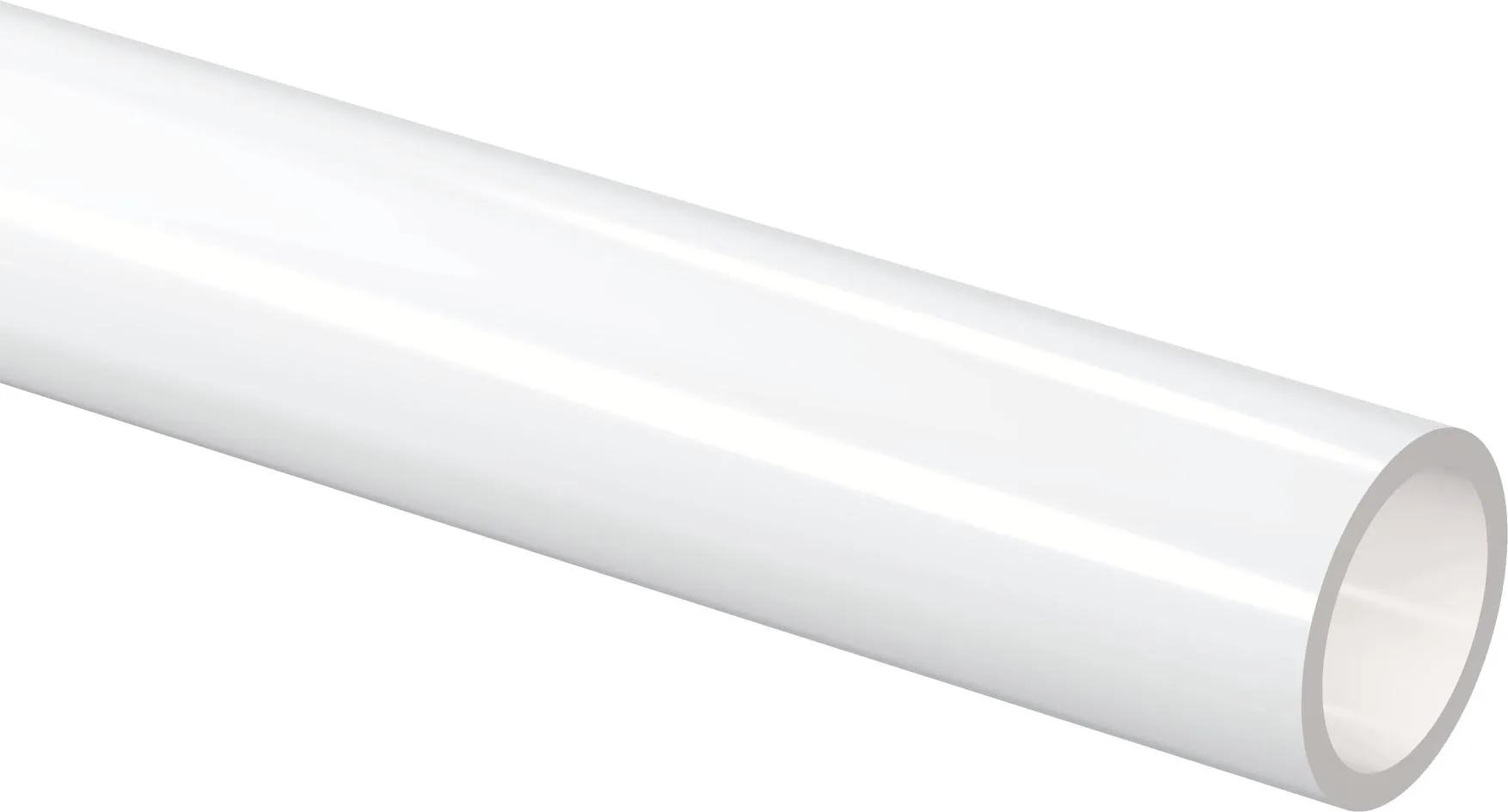

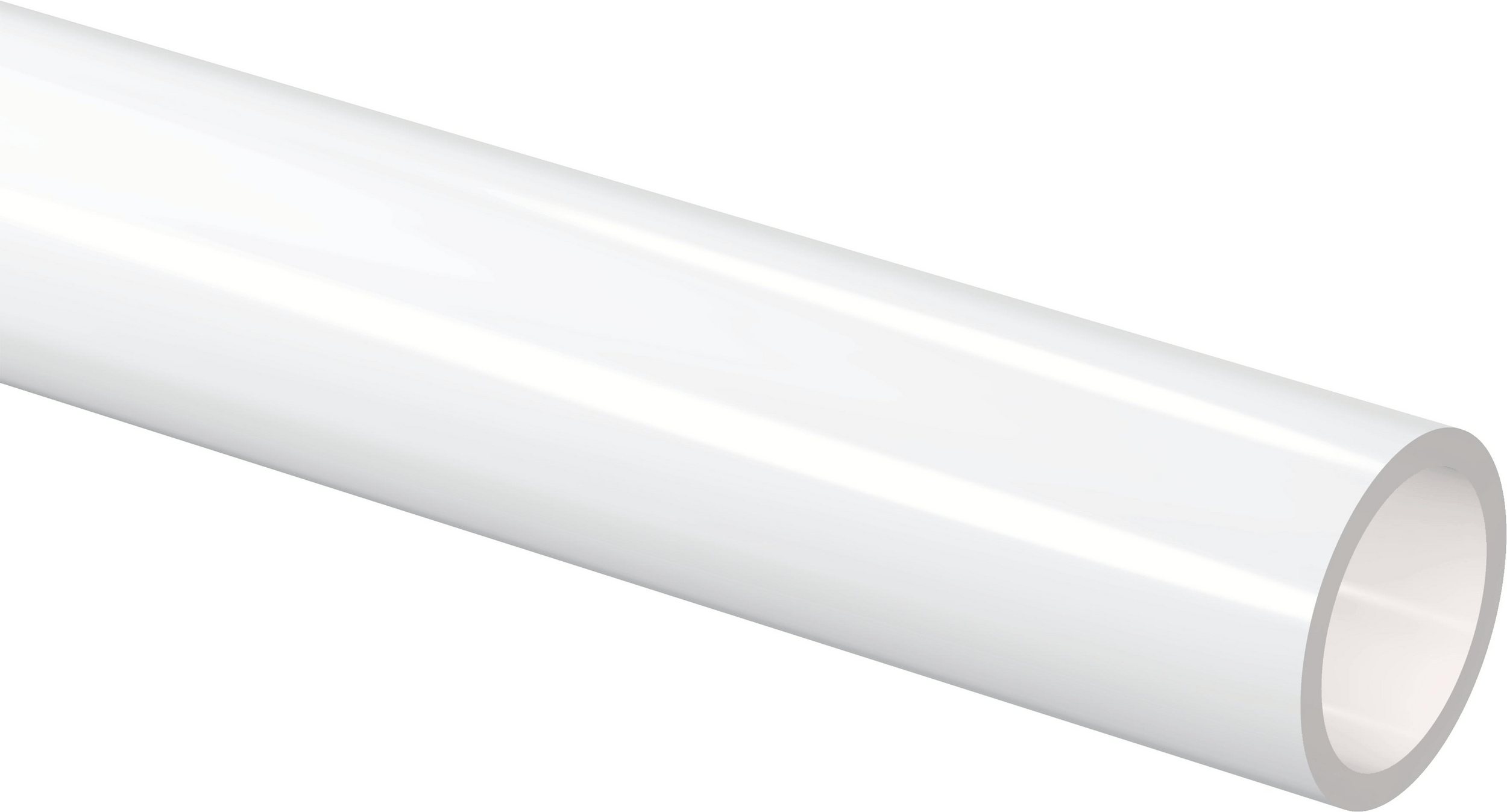

Uponor COMBI PIPE PIPE WHITE PN6

- Operating pressure 6 bar
- Coils
- White

Uponor COMBI PIPE PIPE WHITE PN6

Item details

Uponor COMBI PIPE PIPE WHITE PN6 32x2,9 50M

Documents

Product Information
212 B1142160

PI PEX tap water heating UK 1142160

Installation Manual
1 KB1187006

Installation Manual PE-Xa (1187006)

Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)

Brochure
293 B1141479

UPONOR DGNB COMBI PeX-a Rohre (1141479)

About

Specification

- Pipes manufactured from cross-linked polyethylene - PE-Xa acc. BS EN ISO 15875
- Fire class E according to BS EN 13501-1.
- Conduits manufactured from high density polyethylene

Application

- Tap water: The permanent operating temperature ranges from 0°C to 70°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 95°C for a period of 100 hours in the operating life time.
- Underfloor heating and low temperature radiators
- Heating: The permanent operating temperature ranges up to 90°C at a maximum permanent operating pressure of 6 bar. The short-term malfunction temperature is 100°C for a period of 100 hours in the operating life time.
