Uponor COMBI PIPE PIPE WHITE PN6 S

- Operating pressure 6 bar
- 5m bars
- White

Uponor COMBI PIPE PIPE WHITE PN6 S

Item details

Uponor COMBI PIPE PIPE WHITE PN6 S 32x2,9 5M

Documents

Product Information
212 B1142160

PI PEX tap water heating UK 1142160

Installation Manual
1 KB1187006

Installation Manual PE-Xa (1187006)

Technical information
1 KB1118689

Technical Information PE-Xa piping systems (1118689)

Approval Certificate
108 B1088311

Uponor CER Combi PIpe SYS MECH WRAS1607061 GB EN (1088311)

Environmental Product Declaration (EPD)
1 KB1143849

Uponor EPD_ Combi Pipe (1143849)

Brochure
293 B1141479

UPONOR DGNB COMBI PeX-a Rohre (1141479)

About

Specification

- Pipes manufactured from cross-linked polyethylene - PE-Xa acc. BS EN ISO 15875
- Fire class E according to BS EN 13501-1.
- Conduits manufactured from high density polyethylene

Application

- Tap water: The permanent operating temperature ranges from 0°C to 70°C at a maximum permanent operating pressure of 10 bar. The short-term malfunction temperature is 95°C for a period of 100 hours in the operating life time.
- Underfloor heating and low temperature radiators
- Heating: The permanent operating temperature ranges up to 90°C at a maximum permanent operating pressure of 6 bar. The short-term malfunction temperature is 100°C for a period of 100 hours in the operating life time.

Product drawings

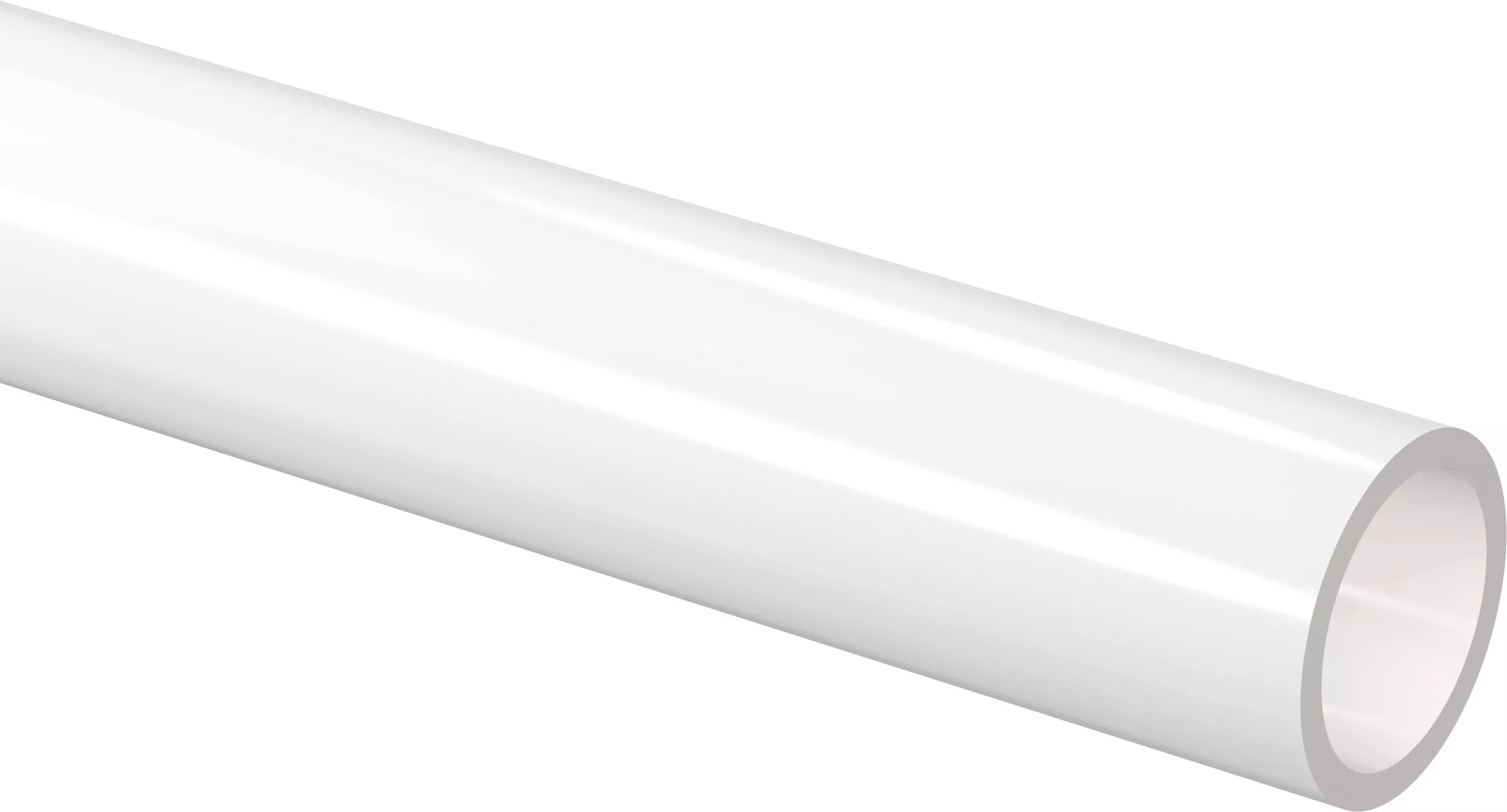

1083815_REN
1083815
94 B

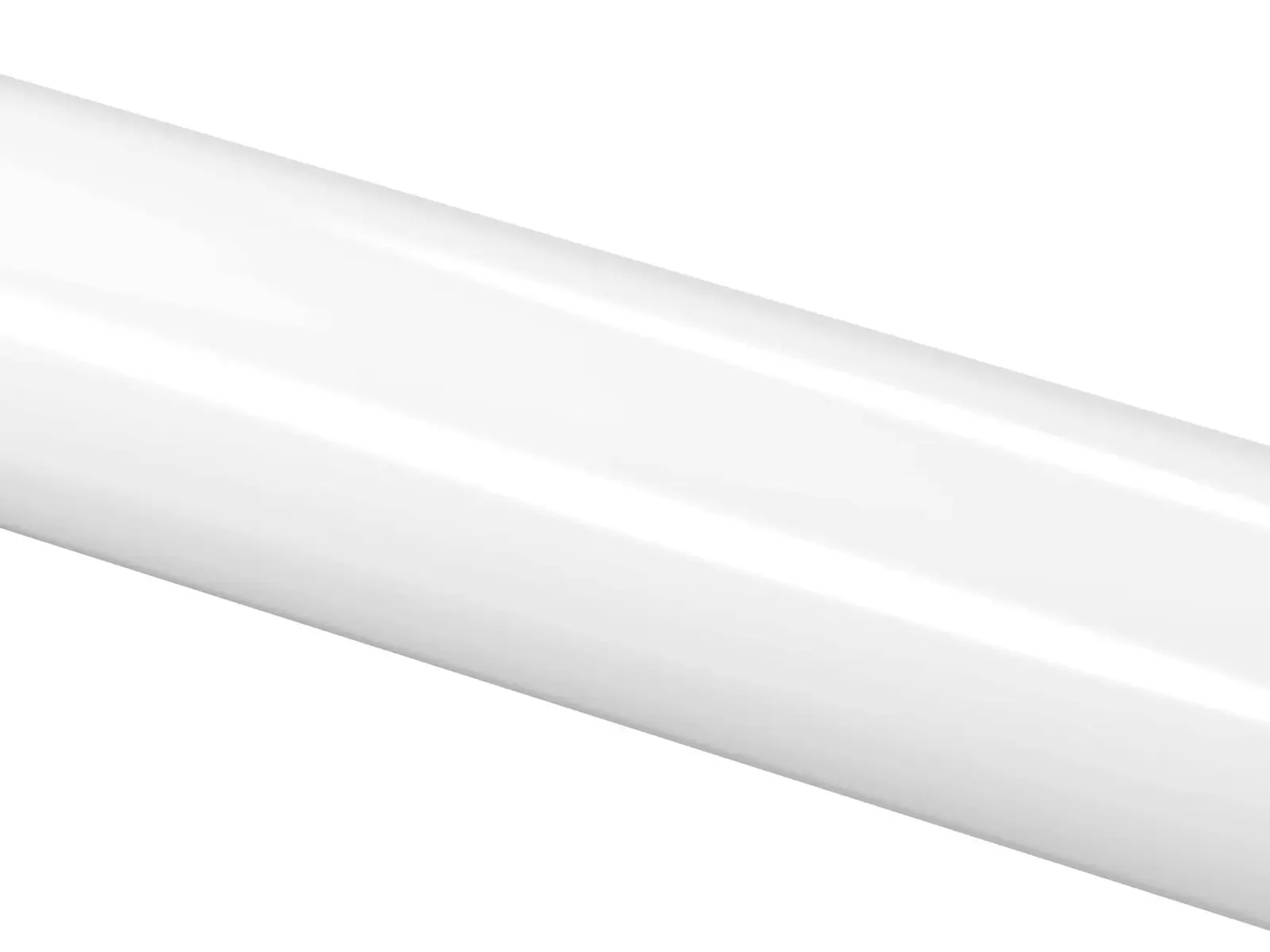

1083815_REN
1083815
41 B

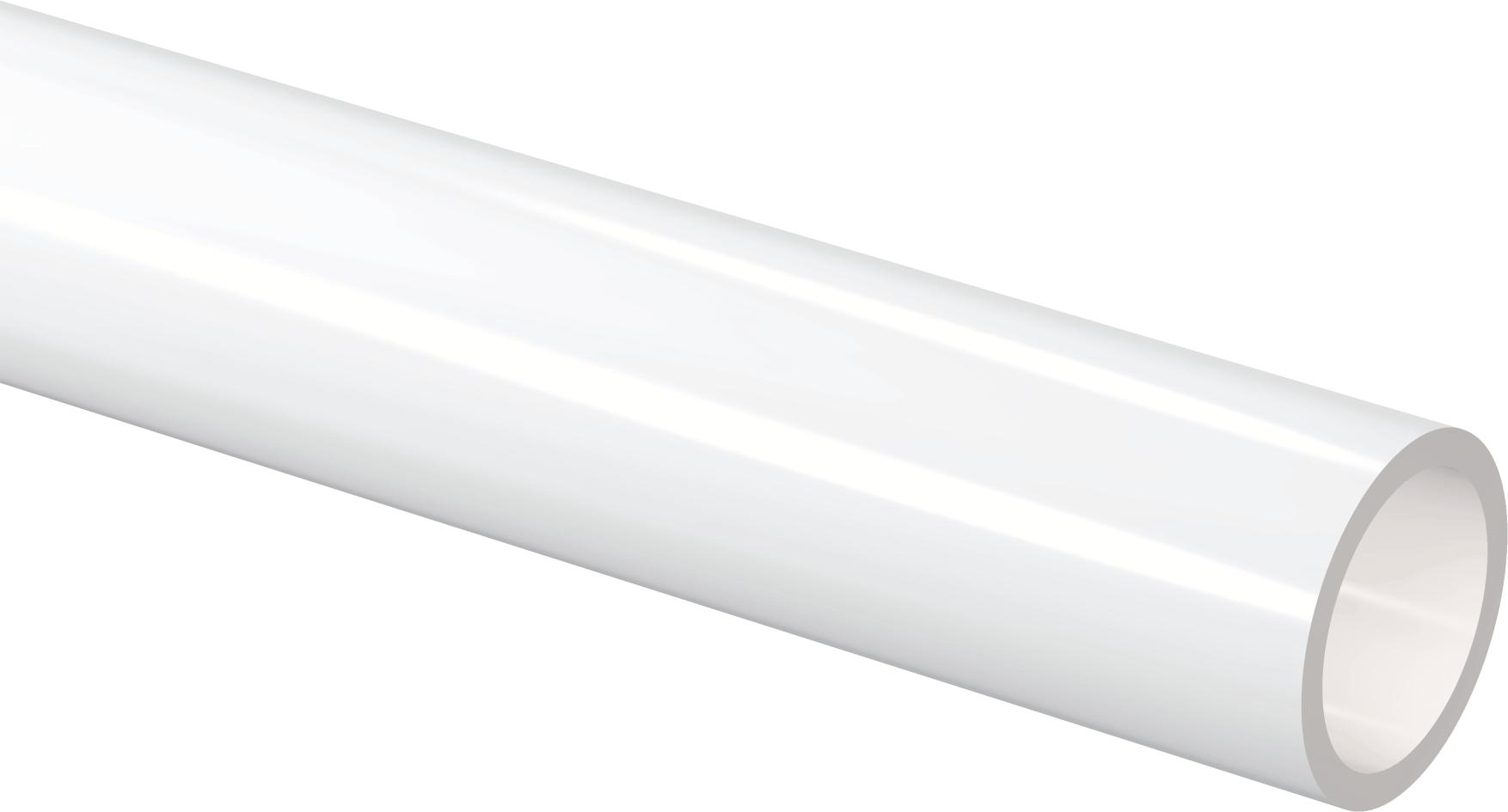

1083815_REN
1083815
41 B

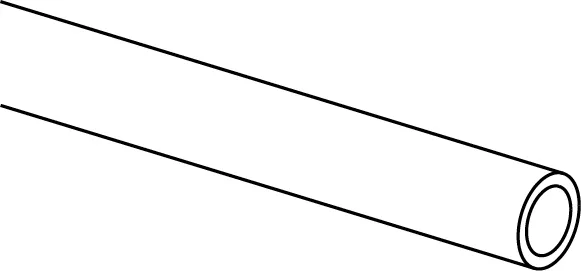

1083815_LAB
