GF Malleable Fittings 240 - socket, reduced, galvanized

- Socket, reducing, ISO/EN M2

Item details

1153715 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1/4 - 1/8 STA

1153716 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3/8 - 1/8 STA

1153717 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3/8 - 1/4 STA

1153718 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1/2 - 1/4

1153719 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1/2 - 3/8

1153720 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3/4 - 1/4

1153721 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3/4 - 3/8

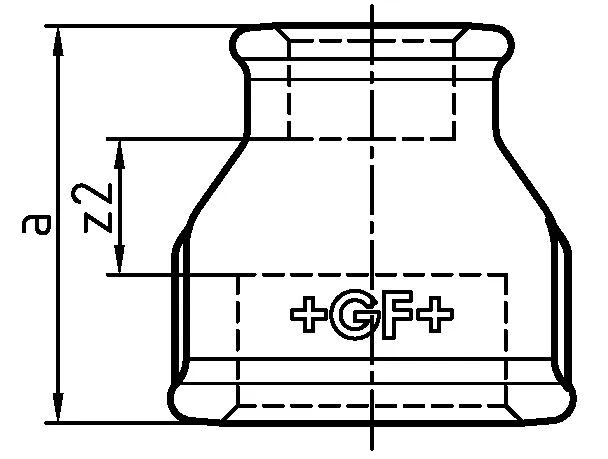

1153722 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3/4 - 1/2

1153723 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 - 3/8

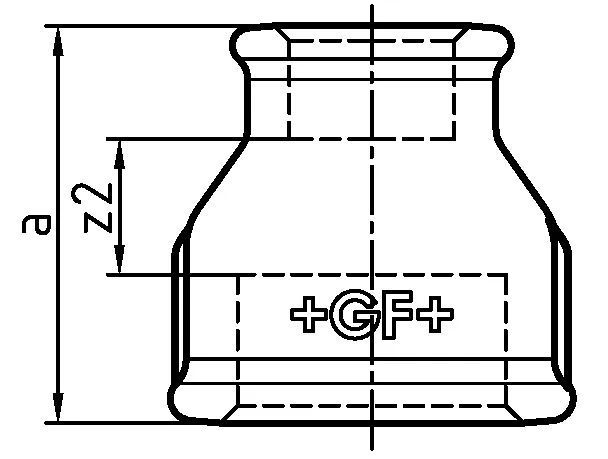

1153724 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 - 1/2

1153725 / - / -

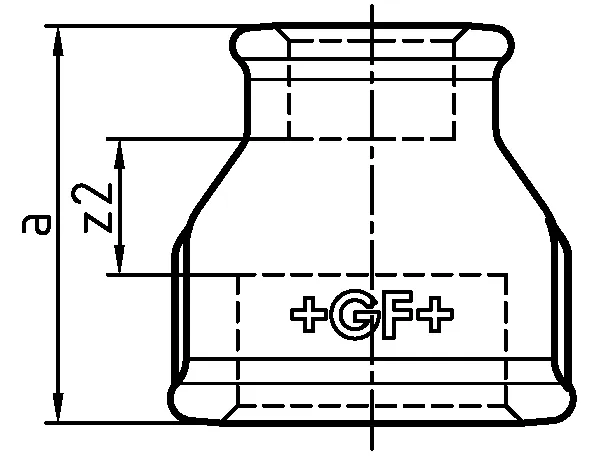

GF Malleable Fittings 240 - socket, reduced, galvanized 1 - 3/4

1153726 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/4 - 3/8

1153727 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/4 - 1/2

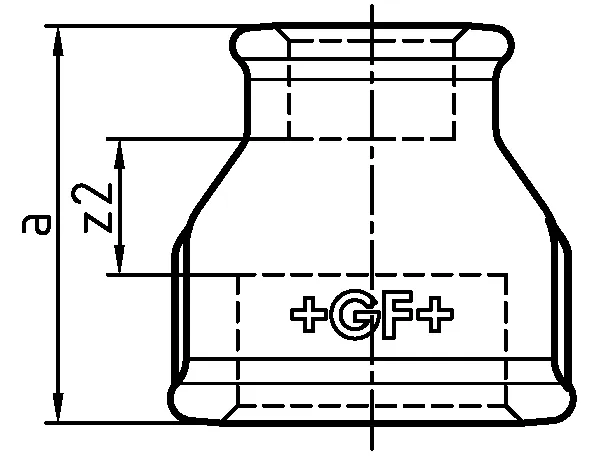

1153728 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/4 - 3/4

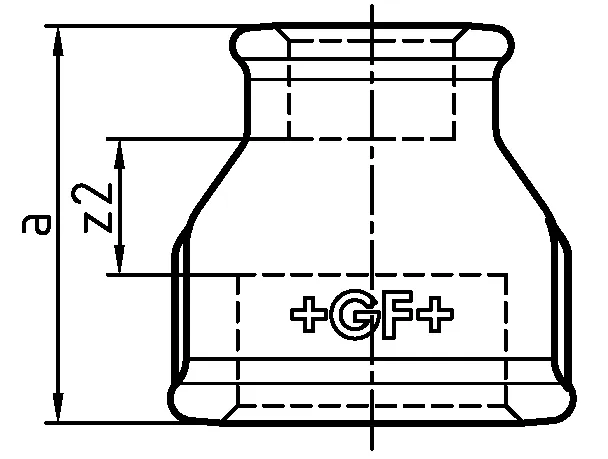

1153729 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/4 - 1

1153730 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/2 - 1/2

1153731 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/2 - 3/4

1153732 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/2 - 1

1153733 / - / -

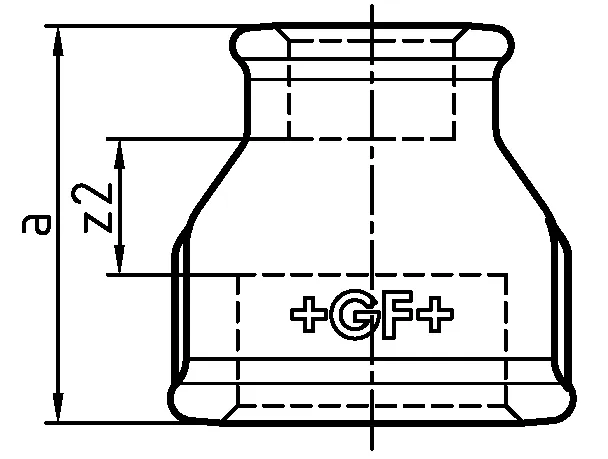

GF Malleable Fittings 240 - socket, reduced, galvanized 1 1/2 - 1 1/4

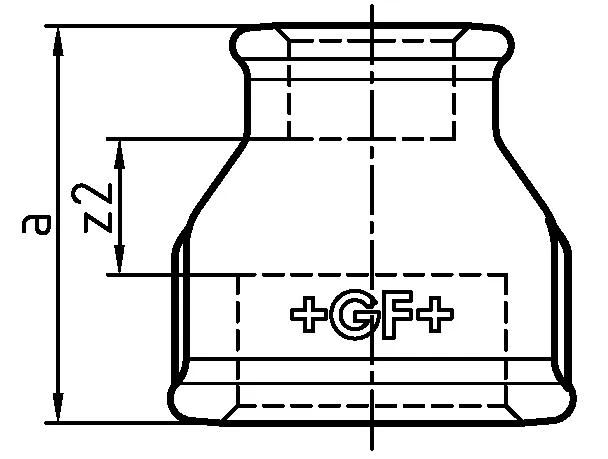

1153735 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 2 - 3/4

1153736 / - / -

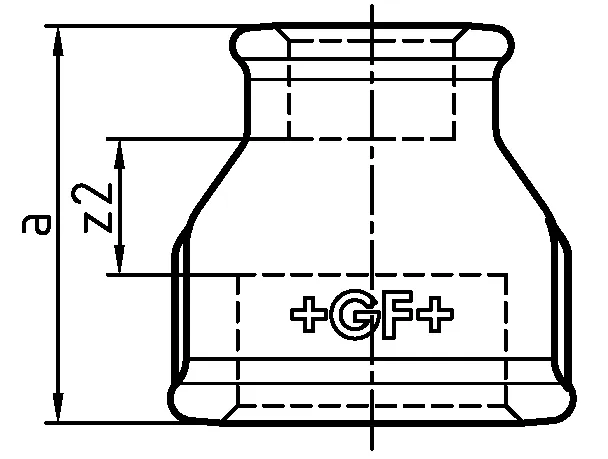

GF Malleable Fittings 240 - socket, reduced, galvanized 2 - 1

1153737 / - / -

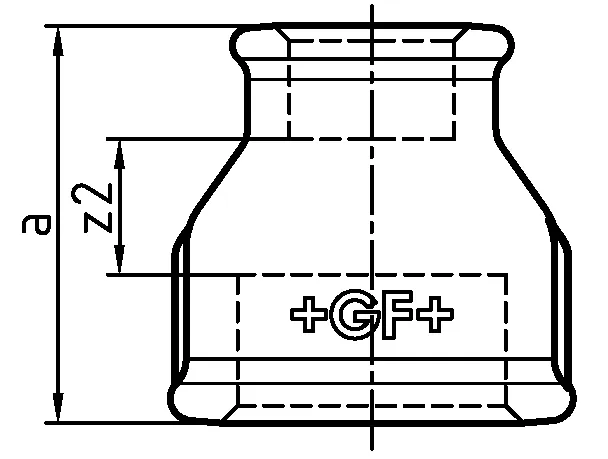

GF Malleable Fittings 240 - socket, reduced, galvanized 2 - 1 1/4

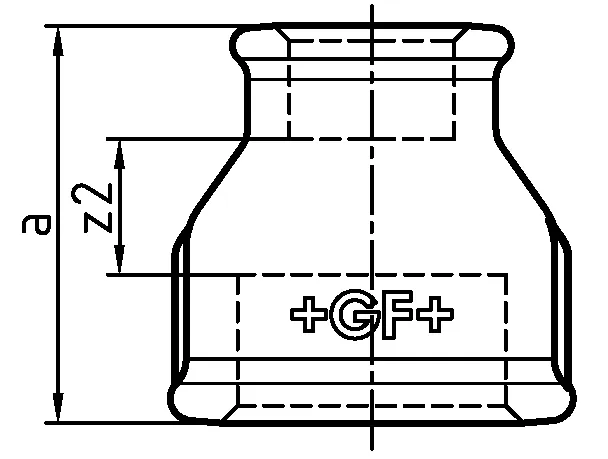

1153738 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 2 - 1 1/2

1153739 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 2 1/2 - 1

1153740 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 2 1/2 - 1 1/2

1153741 / - / -

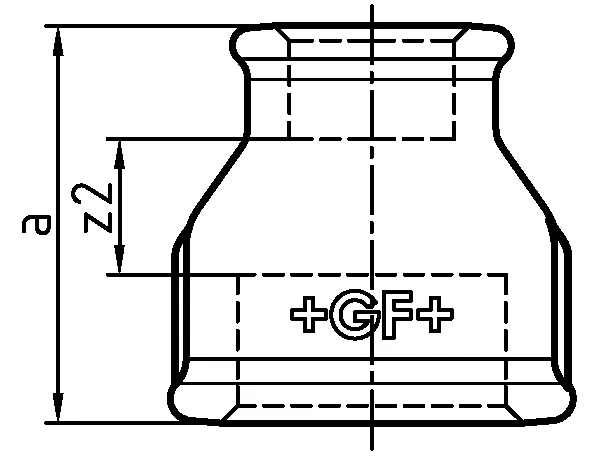

GF Malleable Fittings 240 - socket, reduced, galvanized 2 1/2 - 2

1153742 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3 - 1 1/2

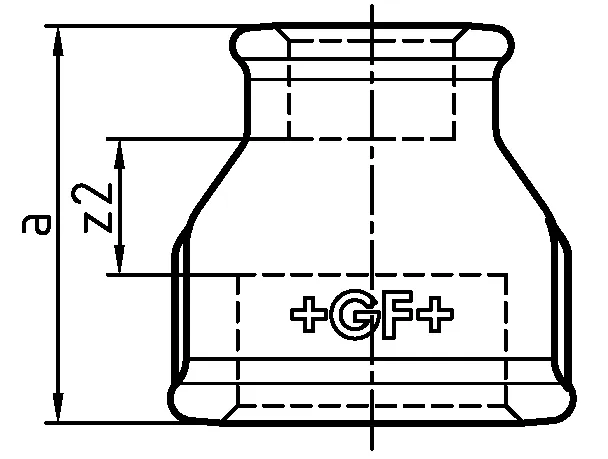

1153743 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3 - 2

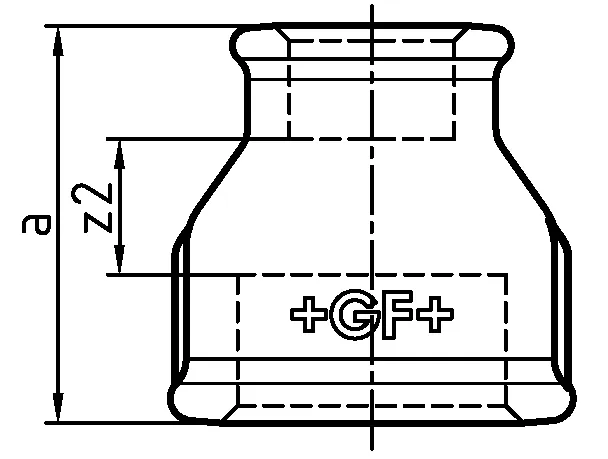

1153744 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 3 - 2 1/2

1153745 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 4 - 2

1153746 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 4 - 2 1/2

1153747 / - / -

GF Malleable Fittings 240 - socket, reduced, galvanized 4 - 3

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
