GF Malleable Fittings elbow red 92 90deg

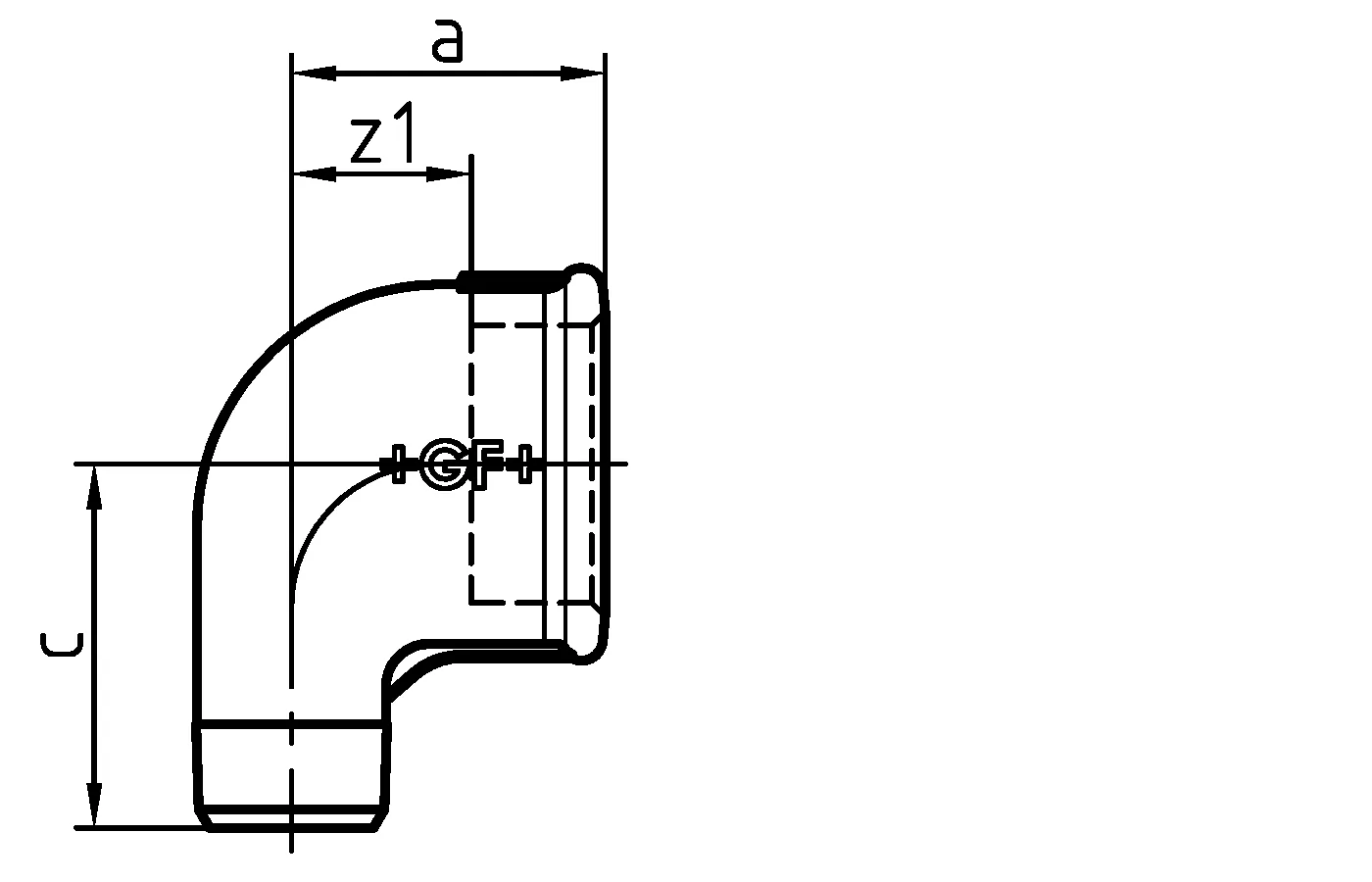

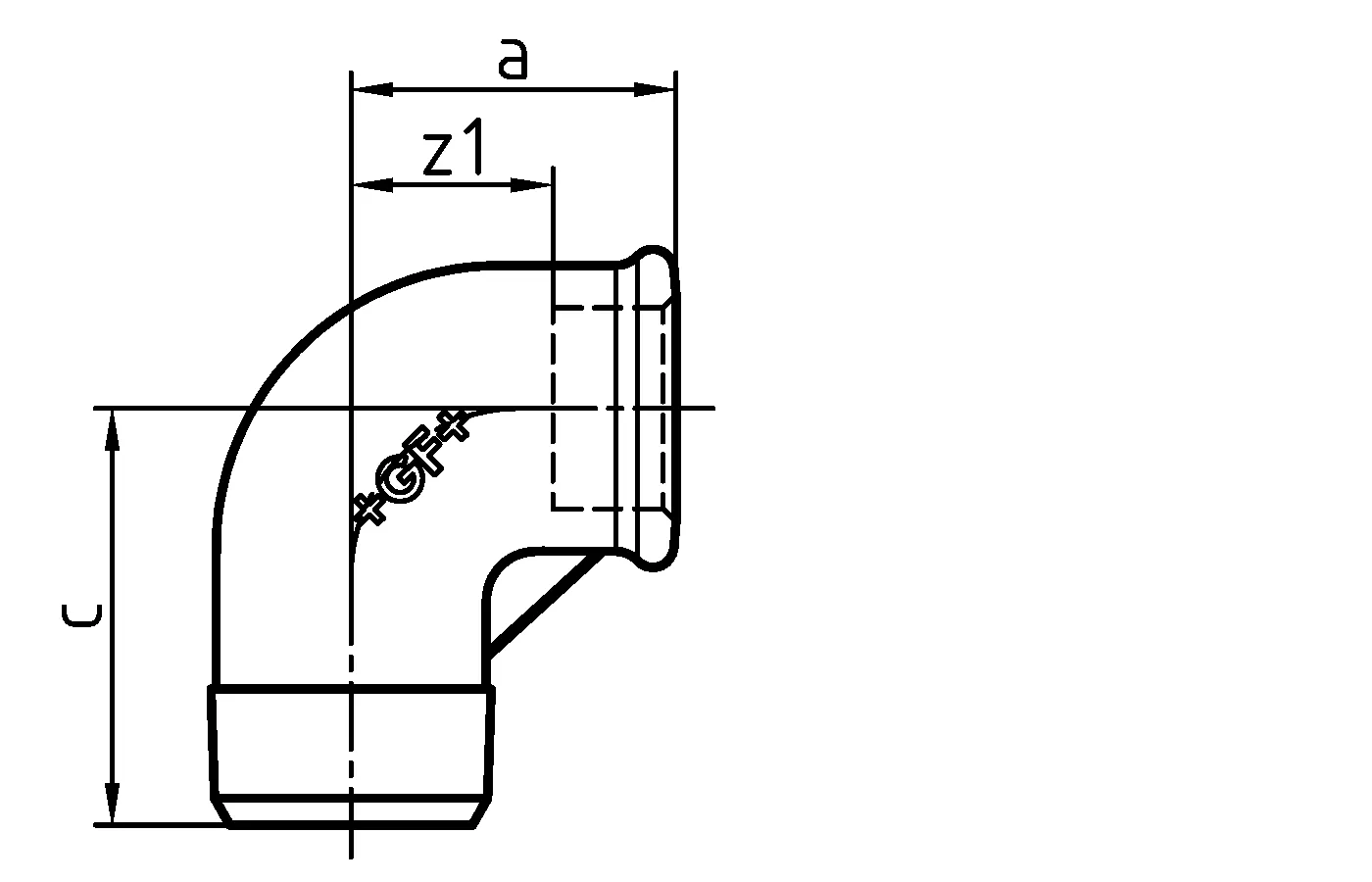

- Elbow 90°, female thread reduced, ISO/EN A4

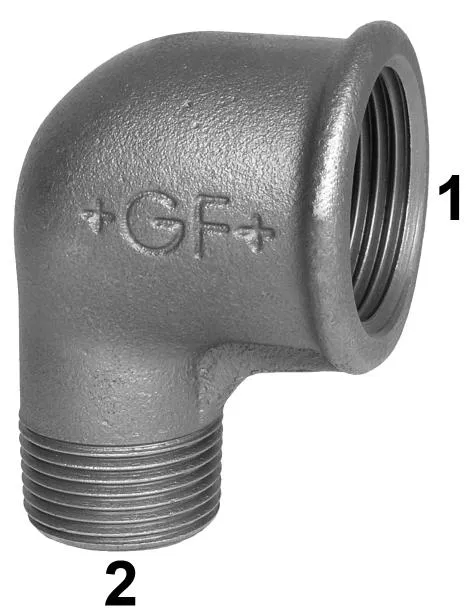

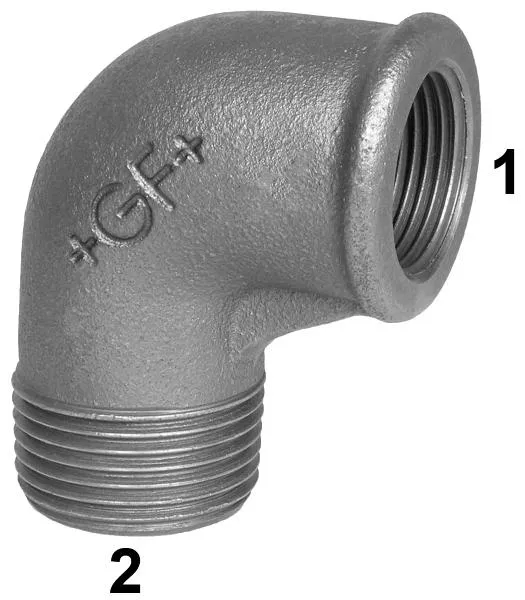

- Male / female

Item details

1153037 / - / -

GF Malleable Fittings elbow red 92 90deg 3/8 - 1/2 B

1153061 / - / -

GF Malleable Fittings elbow red 92 90deg 3/8 - 1/2 G

1153031 / - / -

GF Malleable Fittings elbow red 92 90deg 1/2 - 3/8 B

1153054 / - / -

GF Malleable Fittings elbow red 92 90deg 1/2 - 3/8 G

1153038 / - / -

GF Malleable Fittings elbow red 92 90deg 1/ 2 - 3/4 B

1153062 / - / -

GF Malleable Fittings elbow red 92 90deg 1/2 - 3/4 G

1153032 / - / -

GF Malleable Fittings elbow red 92 90deg 3/4 - 1/2 B

1153055 / - / -

GF Malleable Fittings elbow red 92 90deg 3/4 - 1/2 G

1153039 / - / -

GF Malleable Fittings elbow red 92 90deg 3/4 - 1 B

1153063 / - / -

GF Malleable Fittings elbow red 92 90deg 3/4 - 1 G

1153041 / - / -

GF Malleable Fittings elbow red 92 90deg 1 - 1/2 B

1153065 / - / -

GF Malleable Fittings elbow red 92 90deg 1 - 1/2 G

1153033 / - / -

GF Malleable Fittings elbow red 92 90deg 1 - 3/4 B

1153056 / - / -

GF Malleable Fittings elbow red 92 90deg 1 - 3/4 G

1153040 / - / -

GF Malleable Fittings elbow red 92 90deg 1 - 1 1/4 B

1153064 / - / -

GF Malleable Fittings elbow red 92 90deg 1 - 1 1/4 G

1153057 / - / -

GF Malleable Fittings elbow red 92 90deg 1 1/4 - 3/4 G

1153034 / - / -

GF Malleable Fittings elbow red 92 90deg 1 1/4 - 1 B

1153058 / - / -

GF Malleable Fittings elbow red 92 90deg 1 1/4 - 1 G

1153059 / - / -

GF Malleable Fittings elbow red 92 90deg 1 1/2 - 1 G

1153035 / - / -

GF Malleable Fittings elbow red 92 90deg 1 1/2 - 1 B

1153036 / - / -

GF Malleable Fittings elbow red 92 90deg 1 1/2 - 1 1/4 B

1153060 / - / -

GF Malleable Fittings elbow red 92 90deg 1 1/2 - 1 1/4 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
