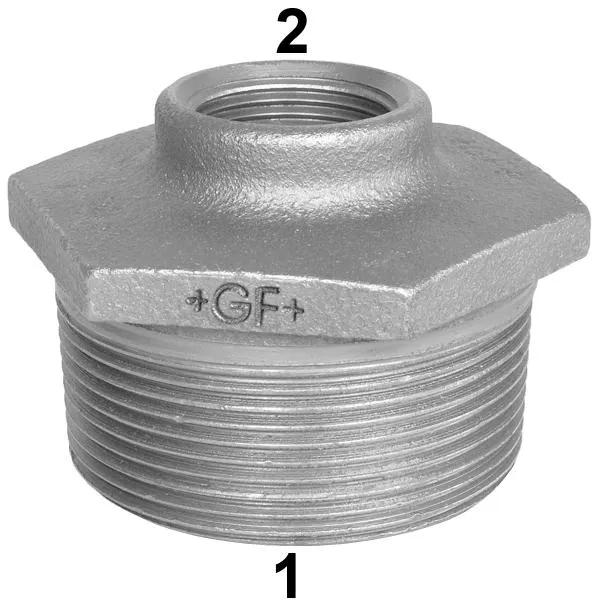

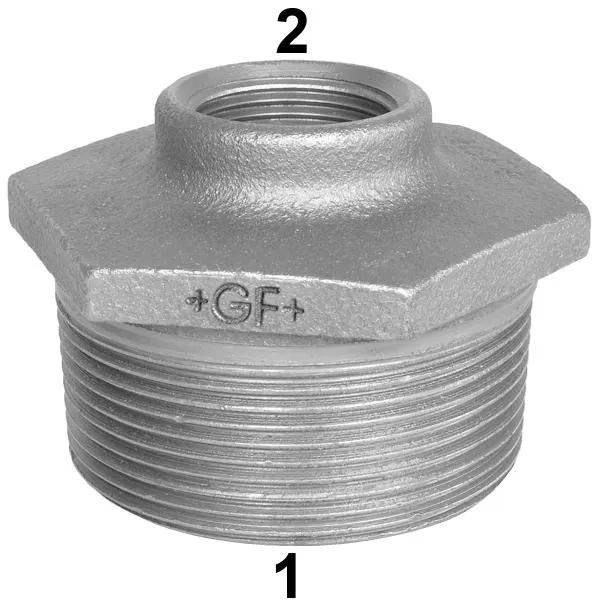

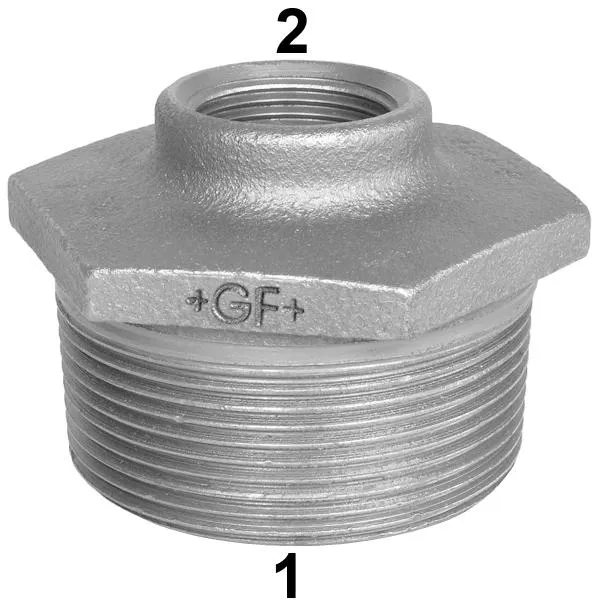

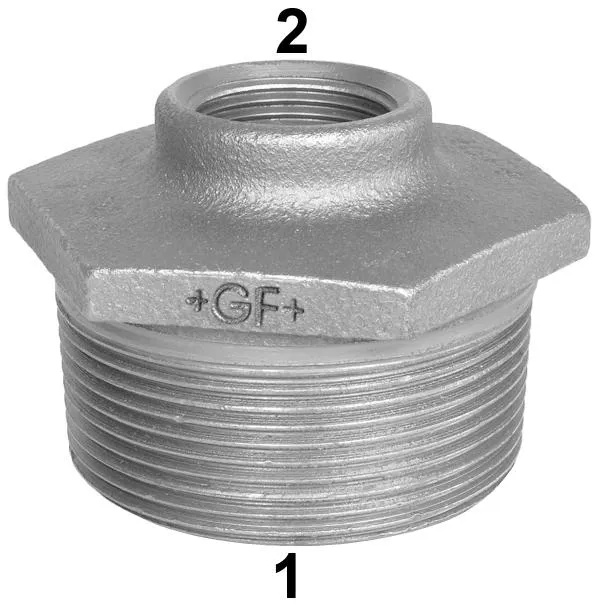

GF Malleable Fittings reducing bush 241 N4

- Reducing bush, ISO/EN N4

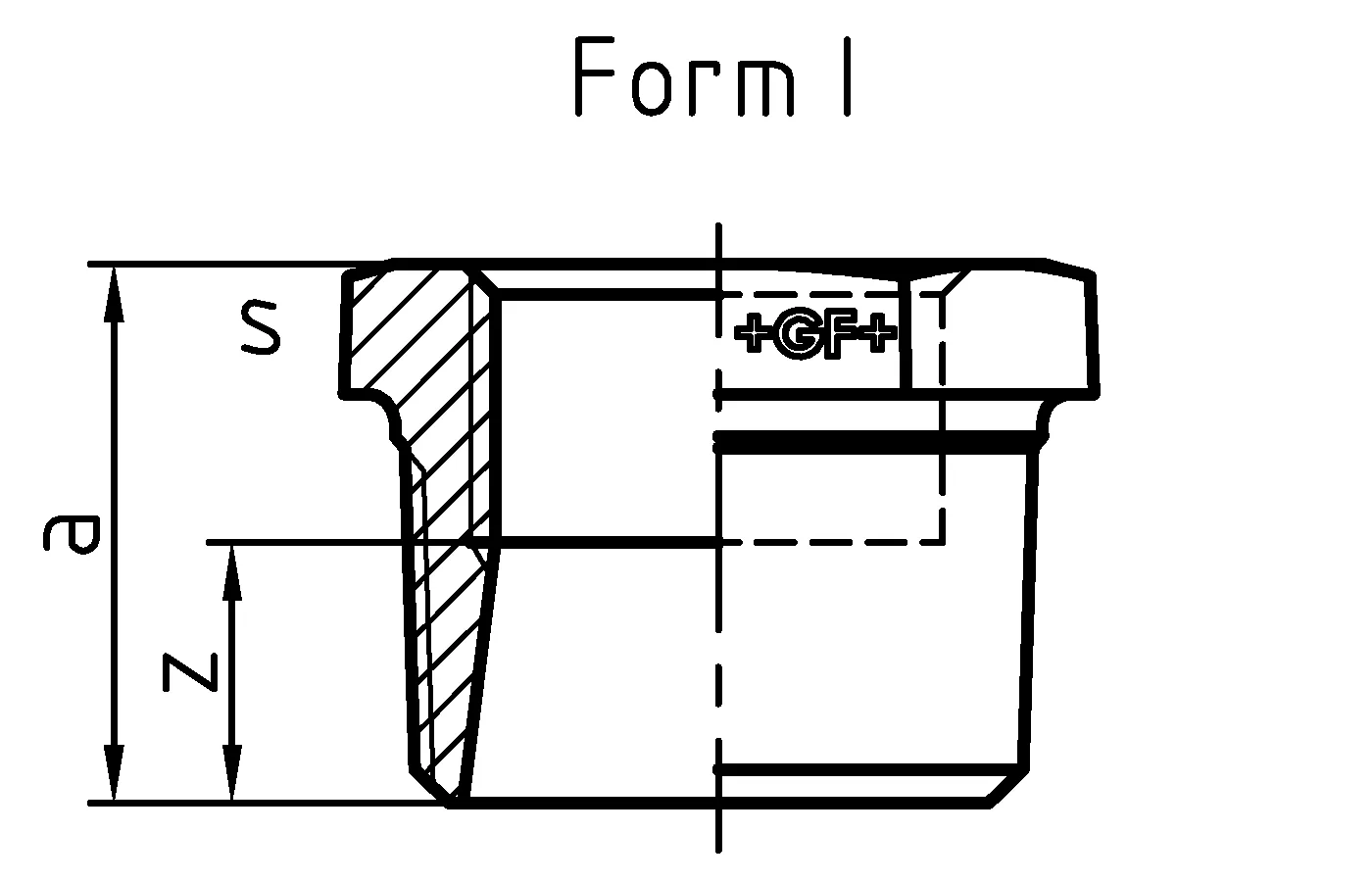

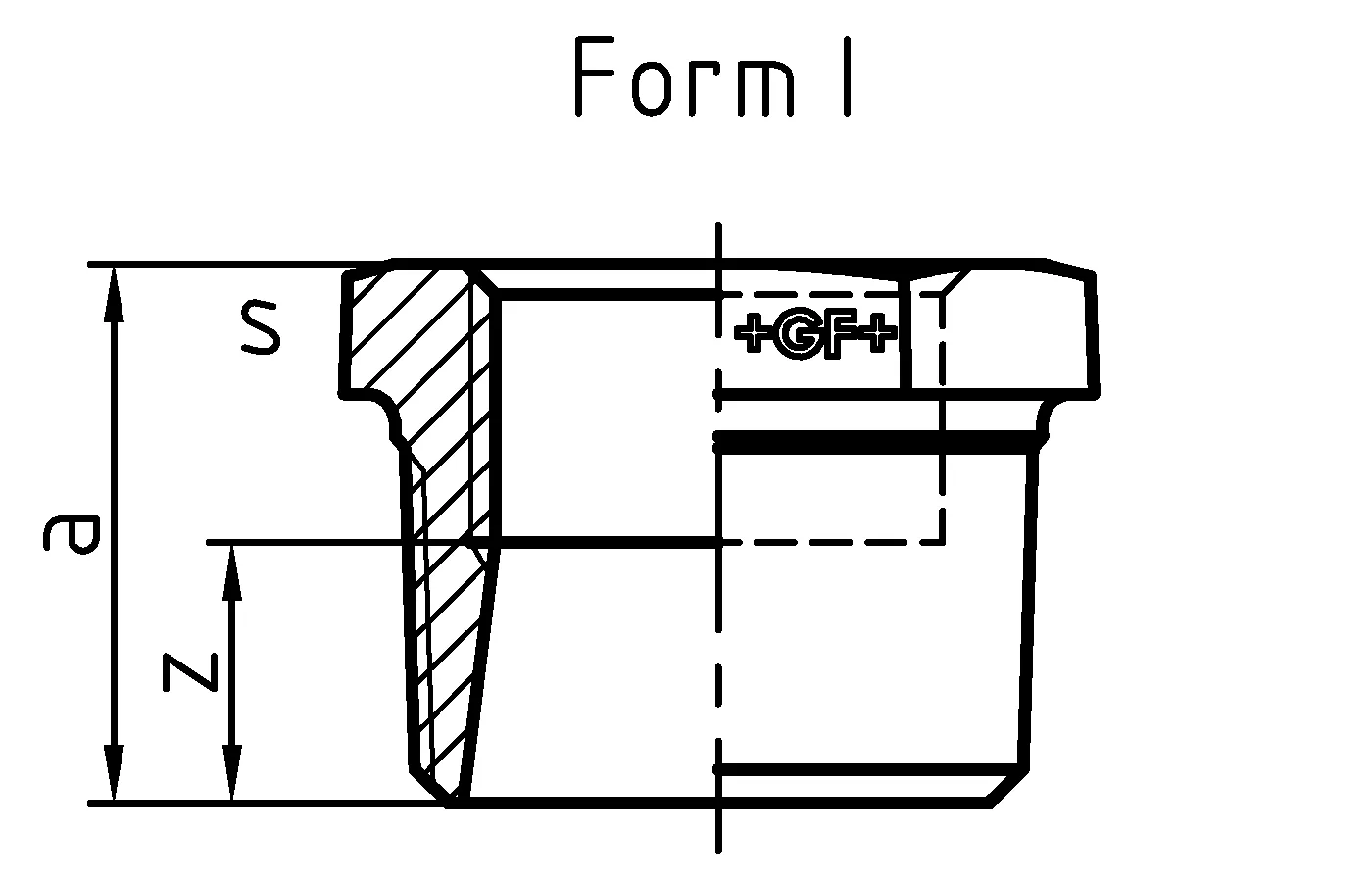

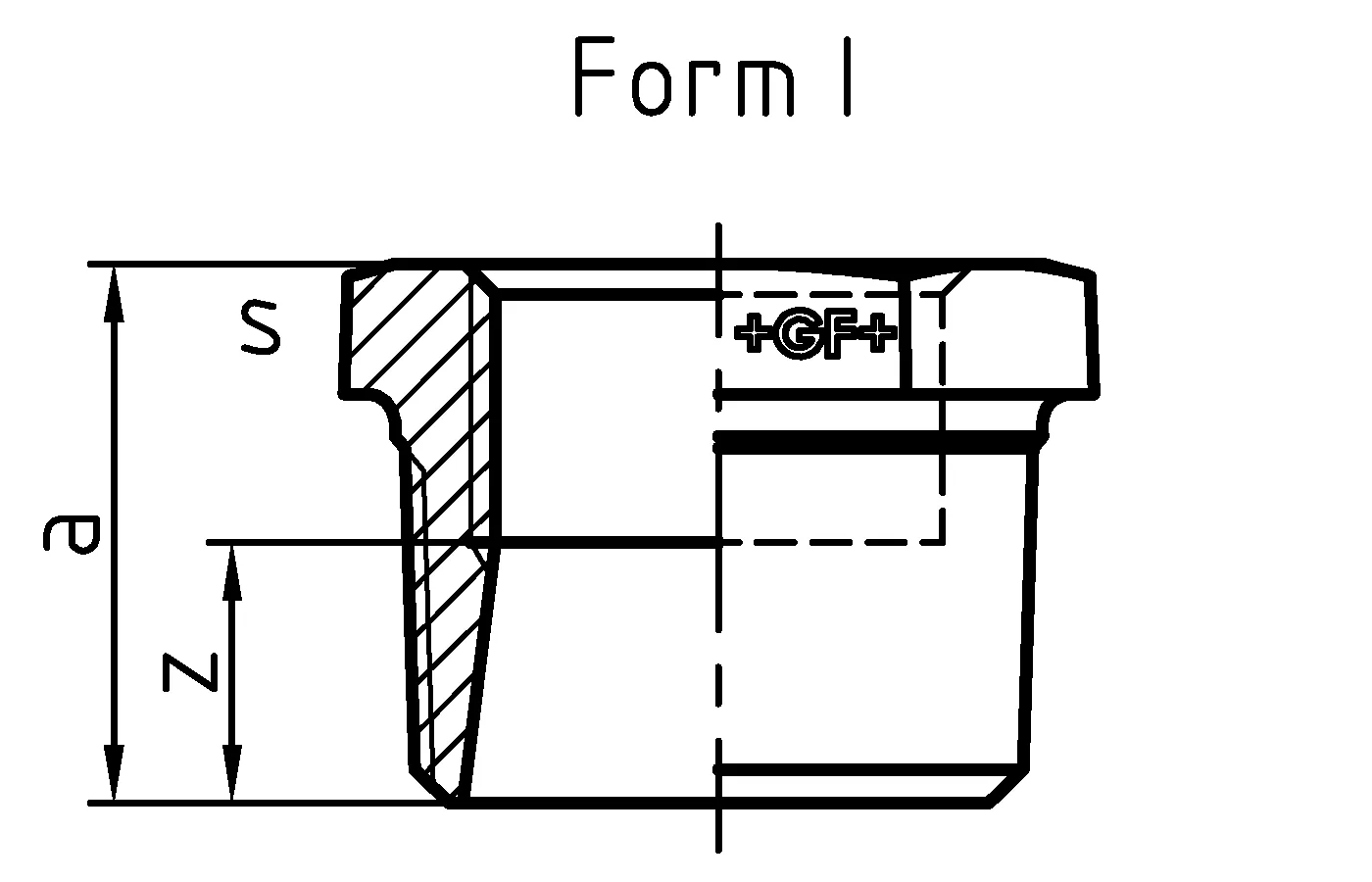

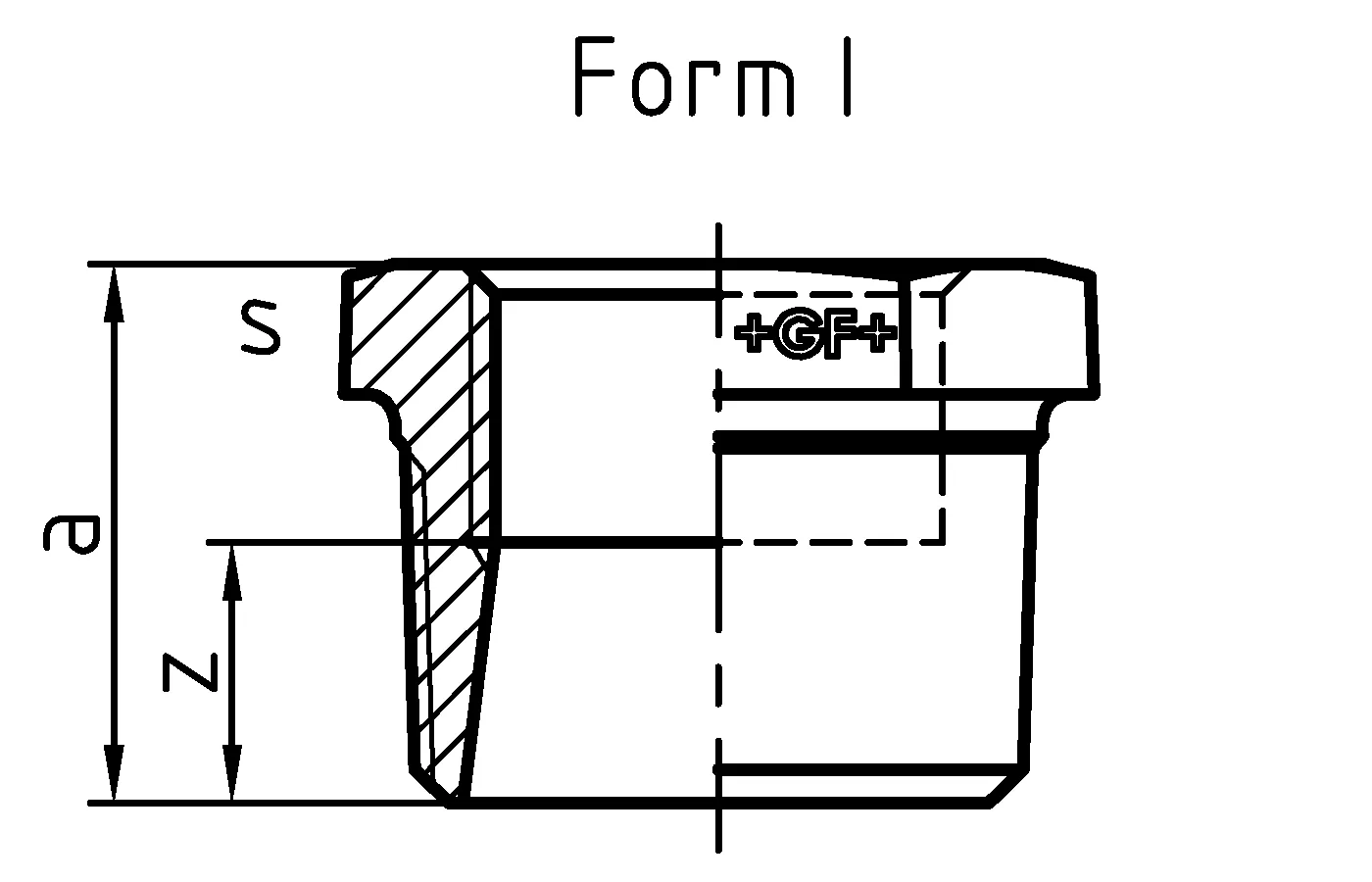

- Forms I, II, III are available only as marked under column "Form"
- Form I can also be supplied with continuous internal thread (=241D).
- 'ST' these types of fittings are made from steel (galvanised finish = electroplated)
- Not suitable for drinking water installations.

Item details

1153760 / - / -

GF Malleable Fittings reducing bush 241 N4 1/4 - 1/8 STA B

1153799 / - / -

GF Malleable Fittings reducing bush 241 N4 1/4 - 1/8 STA G

1153761 / - / -

GF Malleable Fittings reducing bush 241 N4 3/8 - 1/8 STA B

1153800 / - / -

GF Malleable Fittings reducing bush 241 N4 3/8 - 1/8 STA G

1153762 / - / -

GF Malleable Fittings reducing bush 241 N4 3/8 - 1/4 STA B

1153801 / - / -

GF Malleable Fittings reducing bush 241 N4 3/8 - 1/4 STA G

1153763 / - / -

GF Malleable Fittings reducing bush 241 N4 1/2 - 1/8 B

1153802 / - / -

GF Malleable Fittings reducing bush 241 N4 1/2 - 1/8 G

1153764 / - / -

GF Malleable Fittings reducing bush 241 N4 1/2 - 1/4 B

1153803 / - / -

GF Malleable Fittings reducing bush 241 N4 1/2 - 1/4 G

1153765 / - / -

GF Malleable Fittings reducing bush 241 N4 1/2 - 3/8 B

1153804 / - / -

GF Malleable Fittings reducing bush 241 N4 1/2 - 3/8 G

1153766 / - / -

GF Malleable Fittings reducing bush 241 N4 3/4 - 1/4 B

1153805 / - / -

GF Malleable Fittings reducing bush 241 N4 3/4 - 1/4 G

1153767 / - / -

GF Malleable Fittings reducing bush 241 N4 3/4 - 3/8 B

1153806 / - / -

GF Malleable Fittings reducing bush 241 N4 3/4 - 3/8 G

1153768 / - / -

GF Malleable Fittings reducing bush 241 N4 3/4 - 1/2 B

1153807 / - / -

GF Malleable Fittings reducing bush 241 N4 3/4 - 1/2 G

1153769 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 1/4 B

1153808 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 1/4 G

1153770 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 3/8 B

1153809 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 3/8 G

1153771 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 1/2 B

1153810 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 1/2 G

1153772 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 3/4 B

1153811 / - / -

GF Malleable Fittings reducing bush 241 N4 1 - 3/4 G

1153777 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 3/8 B

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
