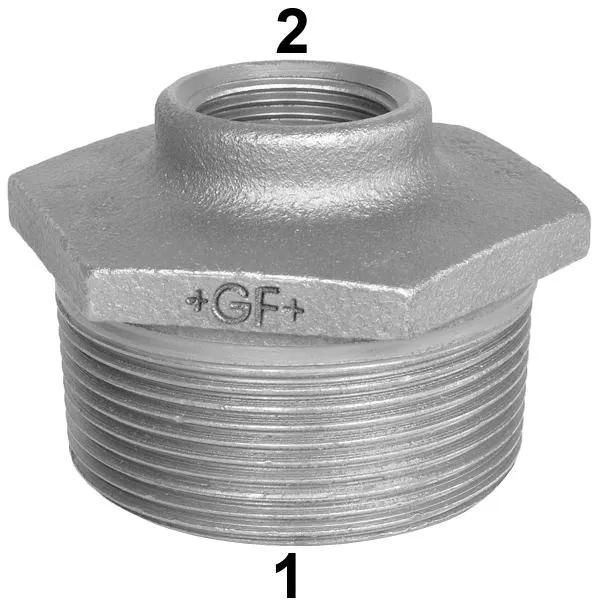

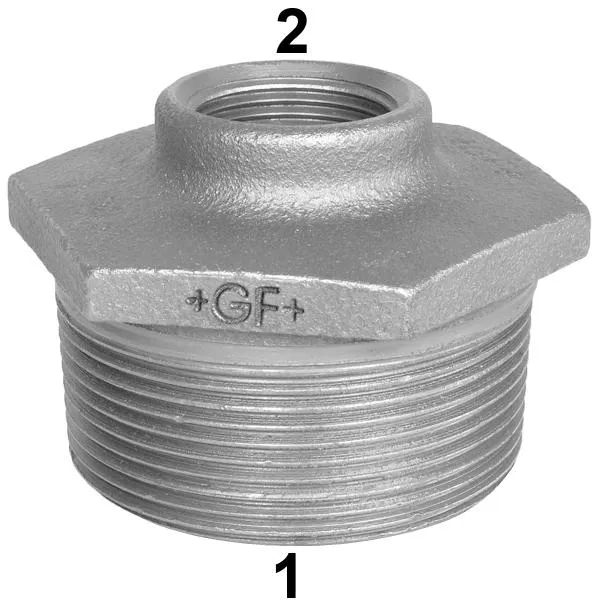

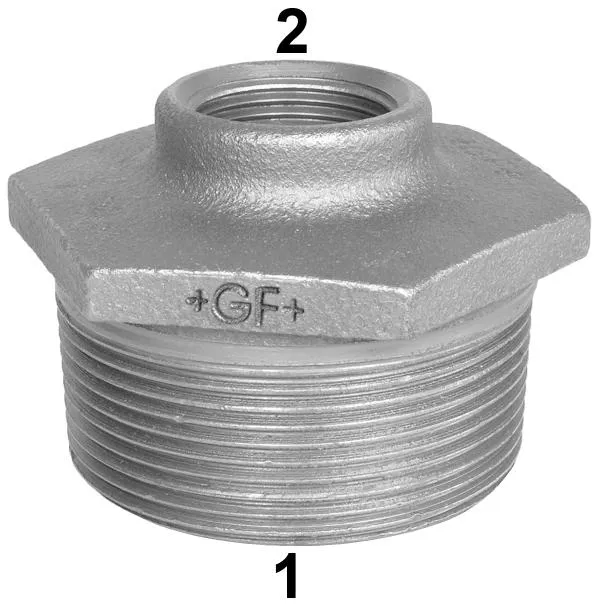

GF Malleable Fittings reducing bush 241 N4

- Malleable cast iron
- Reducing bush
- ISO/EN N4

Item details

1153816 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 3/8 G

1153778 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 1/2 B

1153817 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 1/2 G

1153779 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 3/4 B

1153818 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 3/4 G

1153780 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 1 B

1153819 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 1 G

1153781 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/2 - 1 1/4 B

1153820 / - / -

GF Malleable Fittings reducing bush 241 N4 G 1 1/2 - 1 1/4

1153773 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 3/8 B

1153812 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 3/8 G

1153774 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 1/2 B

1153813 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 1/2 G

1153775 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 3/4 B

1153814 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 3/4 G

1153776 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 1 B

1153815 / - / -

GF Malleable Fittings reducing bush 241 N4 1 1/4 - 1 G

1153782 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 1/2 B

1153821 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 1/2 G

1153783 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 3/4 B

1153784 / - / -

GF Malleable Fittings reducing bush 241 N4 2- 1 B

1153822 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 3/4 G

1153823 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 1 G

1153785 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 1 1/4 B

1153824 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 1 1/4 G

1153786 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 1 1/2 B

1153825 / - / -

GF Malleable Fittings reducing bush 241 N4 2 - 1 1/2 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
