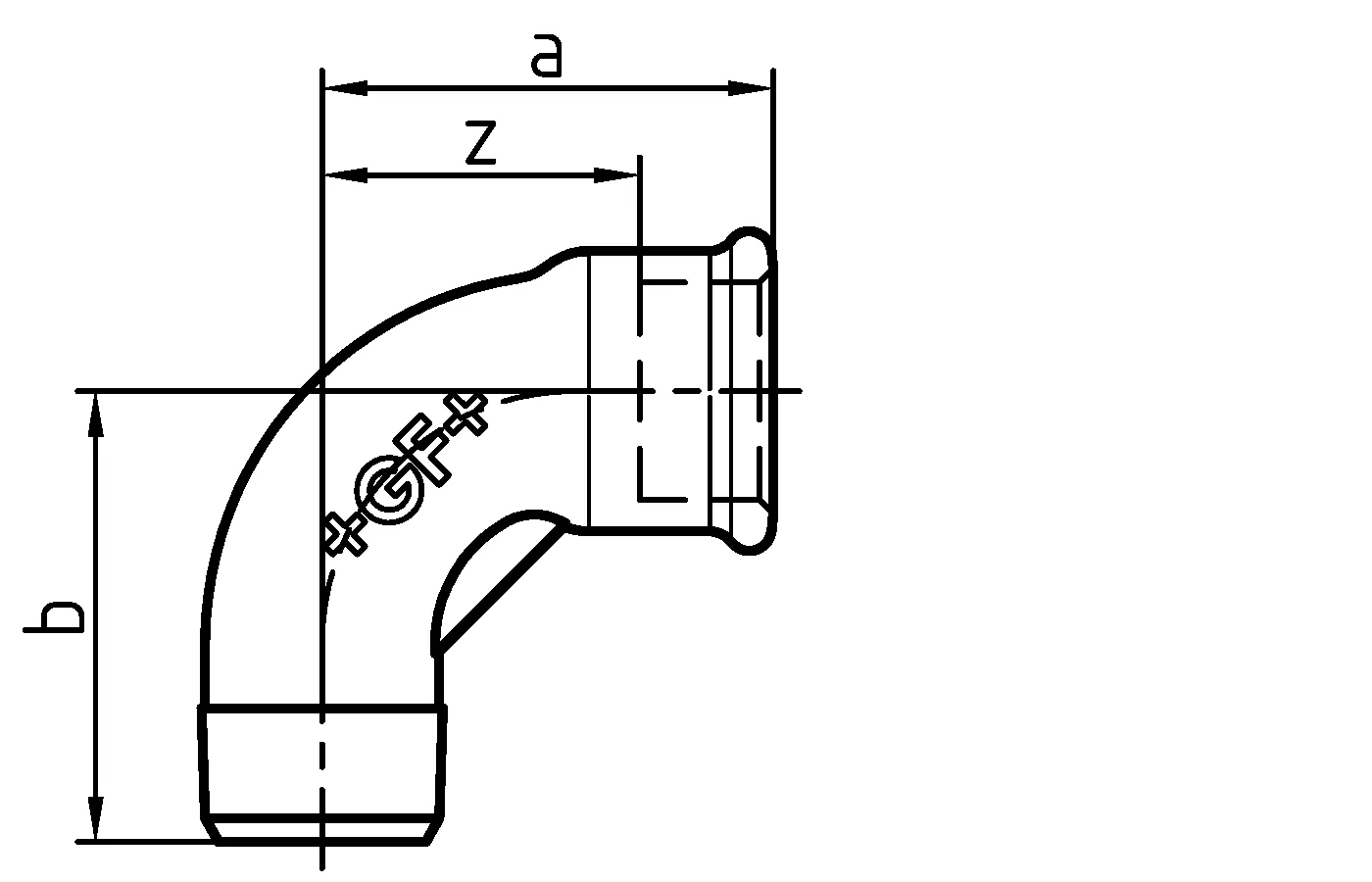

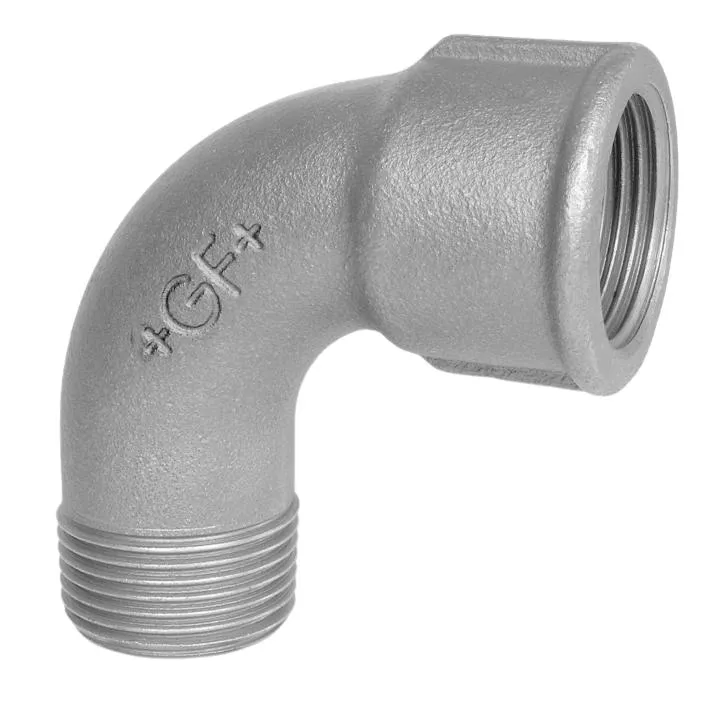

GF Malleable Fittings short bend 1A 90deg

- Short bend 90°, ISO/EN D4
- Male / female

Item details

1152796 / - / -

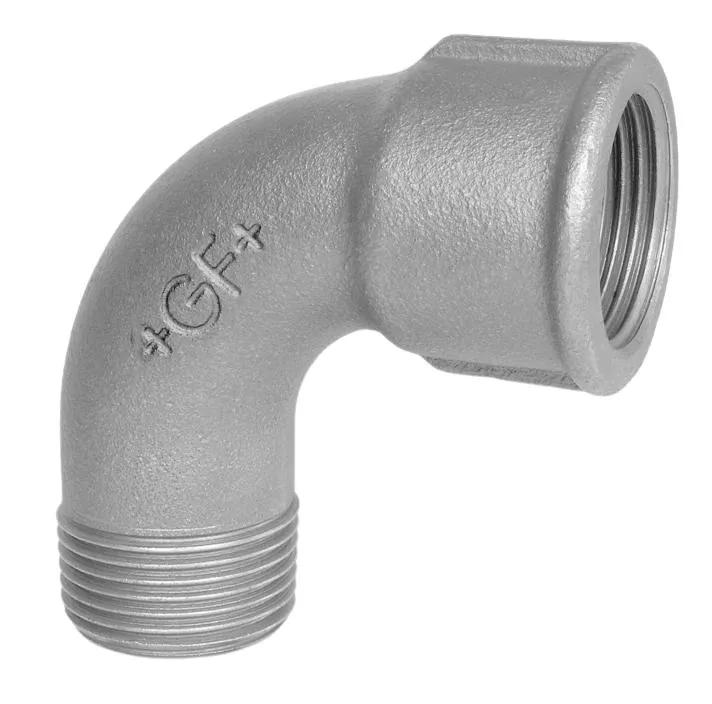

GF Malleable Fittings short bend 1A 90deg 1/4 B

1152797 / - / -

GF Malleable Fittings short bend 1A 90deg 3/8 B

1152808 / - / -

GF Malleable Fittings short bend 1A 90deg 3/8 G

1152798 / - / -

GF Malleable Fittings short bend 1A 90deg 1/2 B

1152807 / - / -

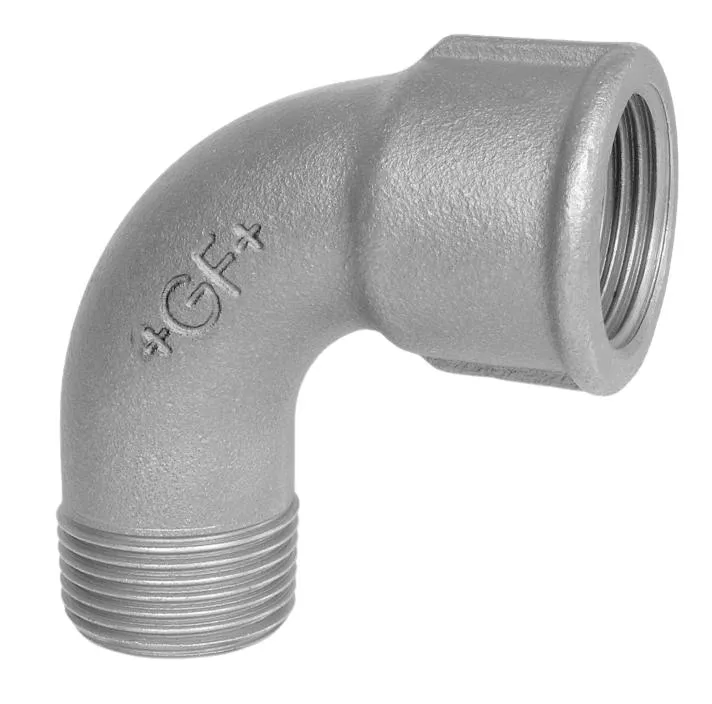

GF Malleable Fittings short bend 1A 90deg 1/4 V

1152809 / - / -

GF Malleable Fittings short bend 1A 90deg 1/2 G

1152799 / - / -

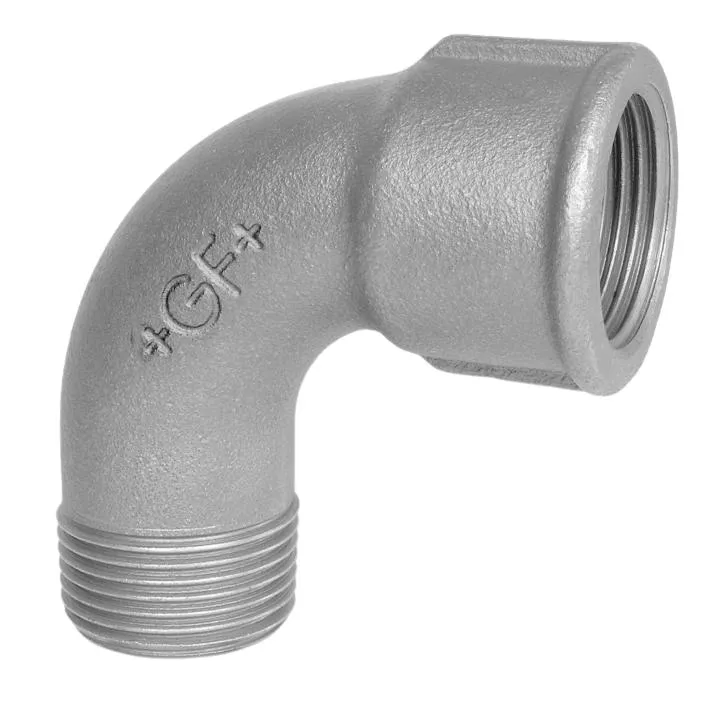

GF Malleable Fittings short bend 1A 90deg 3/4 B

1152810 / - / -

GF Malleable Fittings short bend 1A 90deg 3/4 G

1152800 / - / -

GF Malleable Fittings short bend 1A 90deg 1 B

1152811 / - / -

GF Malleable Fittings short bend 1A 90deg 1 G

1152801 / - / -

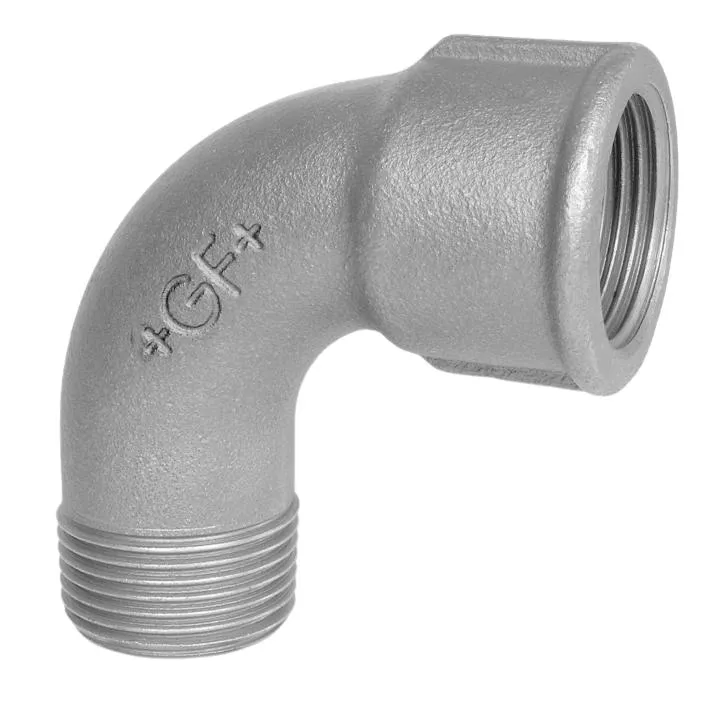

GF Malleable Fittings short bend 1A 90deg 1 1/4 B

1152812 / - / -

GF Malleable Fittings short bend 1A 90deg 1 1/4 G

1152802 / - / -

GF Malleable Fittings short bend 1A 90deg 1 1/2 B

1152813 / - / -

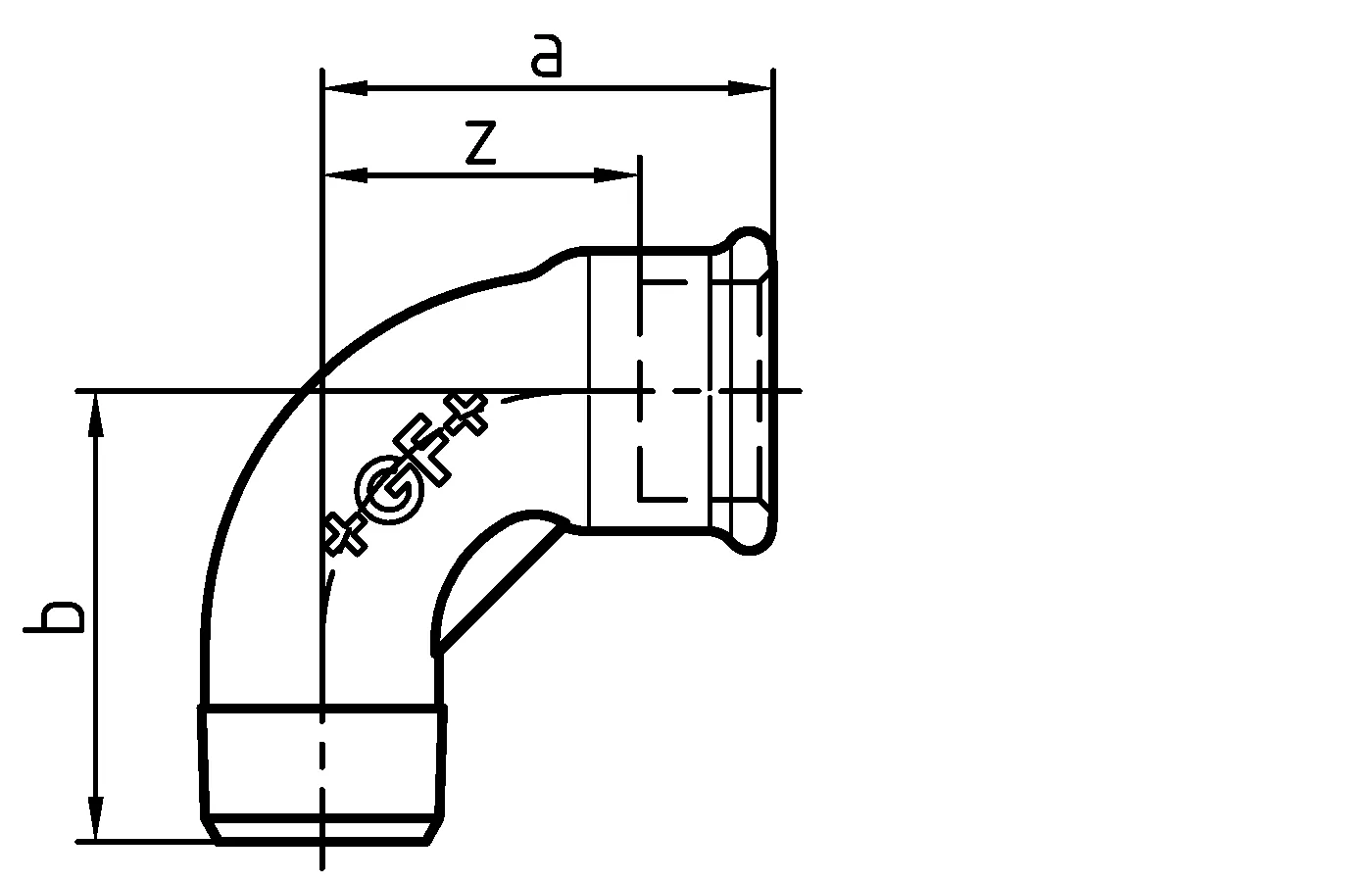

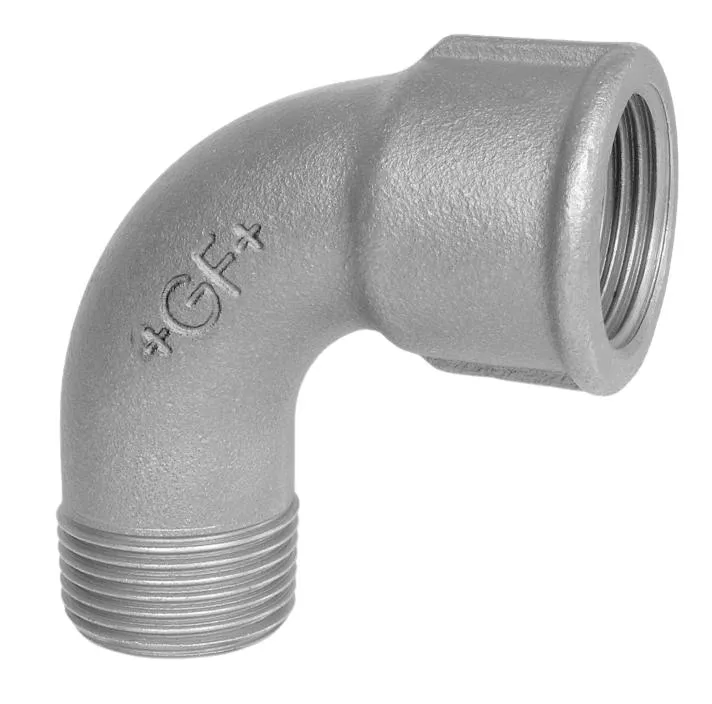

GF Malleable Fittings short bend 1A 90deg 1 1/2 G

1152803 / - / -

GF Malleable Fittings short bend 1A 90deg 2 B

1152814 / - / -

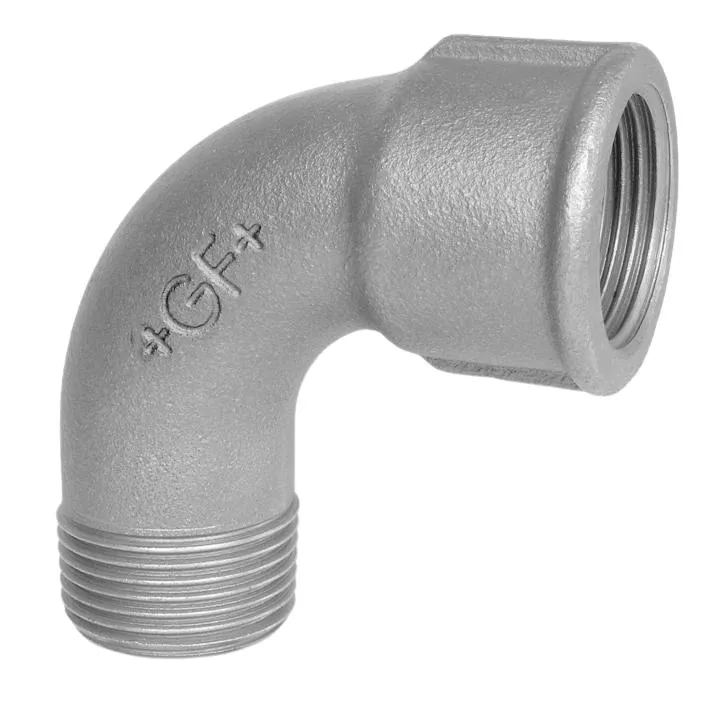

GF Malleable Fittings short bend 1A 90deg 2 G

1152804 / - / -

GF Malleable Fittings short bend 1A 90deg 2 1/2 B

1152815 / - / -

GF Malleable Fittings short bend 1A 90deg 2 1/2 G

1152805 / - / -

GF Malleable Fittings short bend 1A 90deg 3 B

1152816 / - / -

GF Malleable Fittings short bend 1A 90deg 3 G

1152806 / - / -

GF Malleable Fittings short bend 1A 90deg 4 B

1152817 / - / -

GF Malleable Fittings short bend 1A 90deg 4 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
