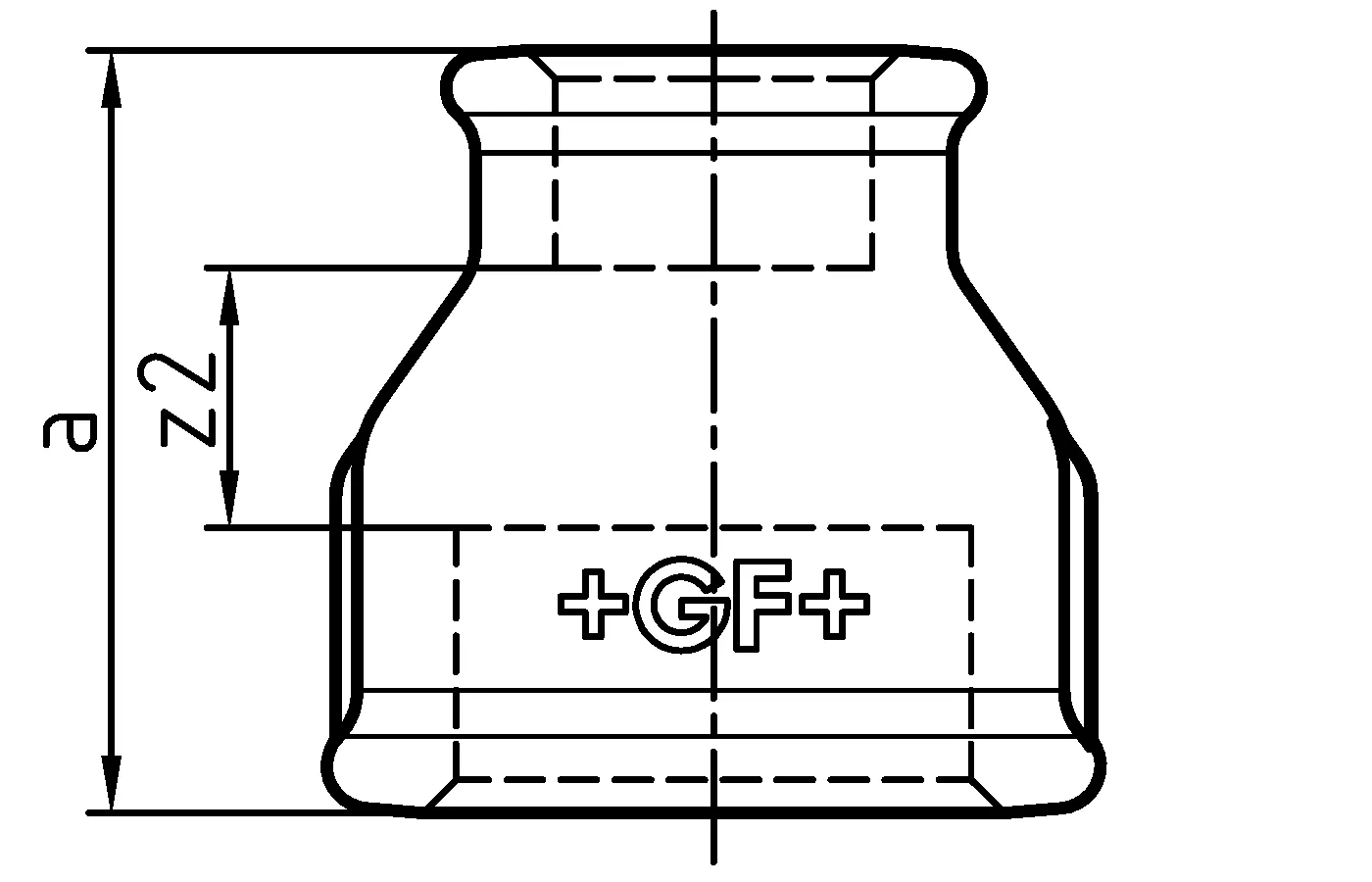

GF Malleable Fittings socket reduced 240

- Socket, reducing, ISO/EN M2
- Female/ feamle

Item details

1153682 / - / -

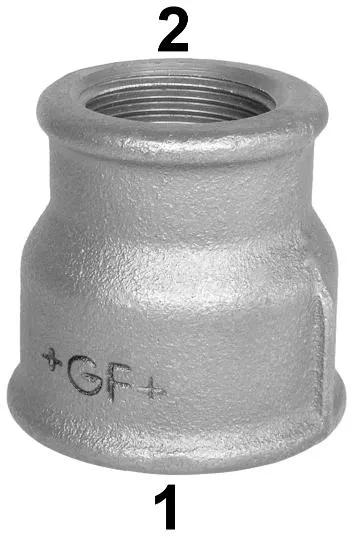

GF Malleable Fittings socket reduced 240 1/4 - 1/8 STA B

1153715 / - / -

GF Malleable Fittings socket reduced 240 1/4 - 1/8 STA G

1153683 / - / -

GF Malleable Fittings socket reduced 240 3/8 - 1/8 STA B

1153716 / - / -

GF Malleable Fittings socket reduced 240 3/8 - 1/8 STA G

1153684 / - / -

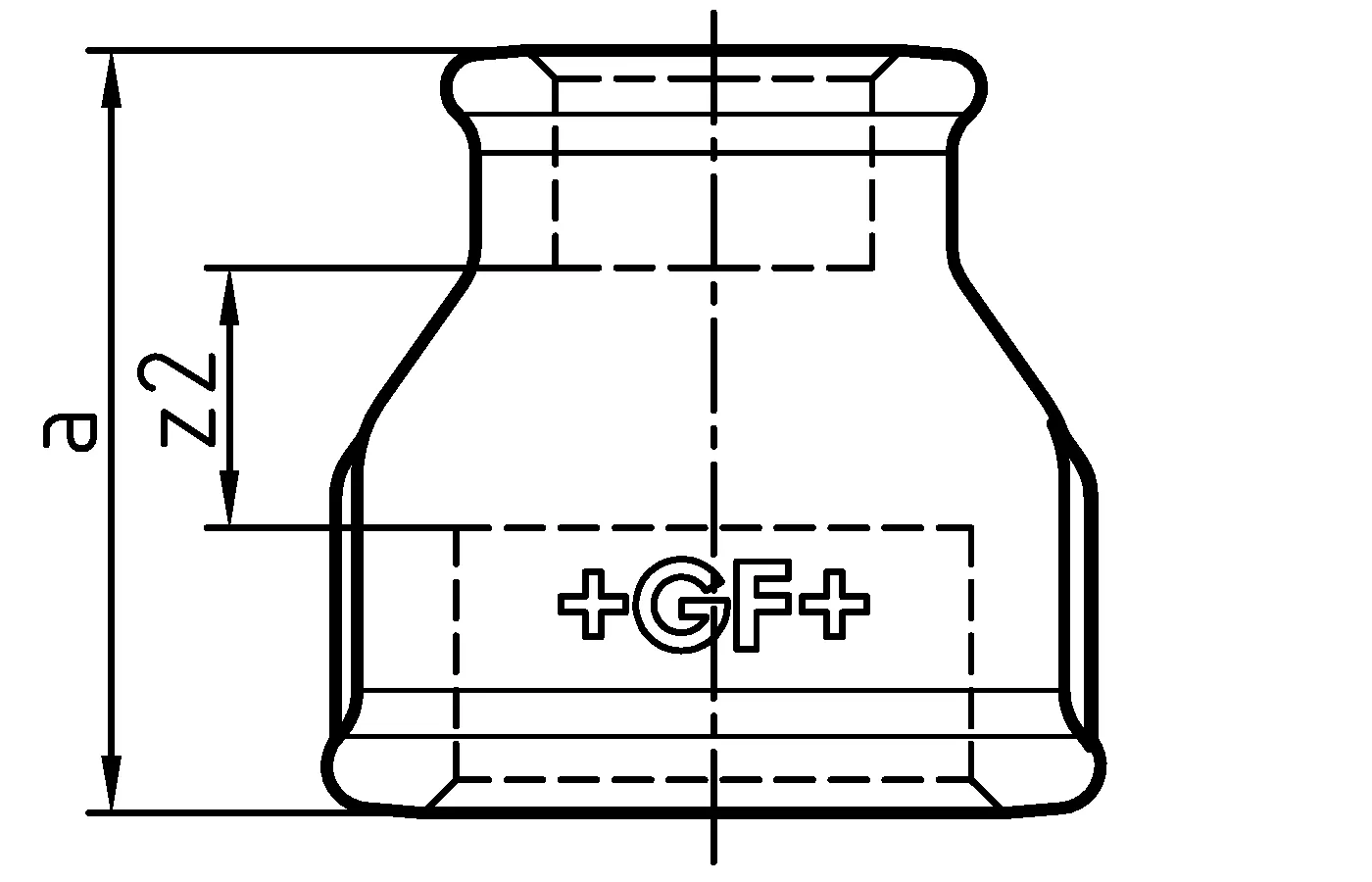

GF Malleable Fittings socket reduced 240 3/8 - 1/4 STA B

1153717 / - / -

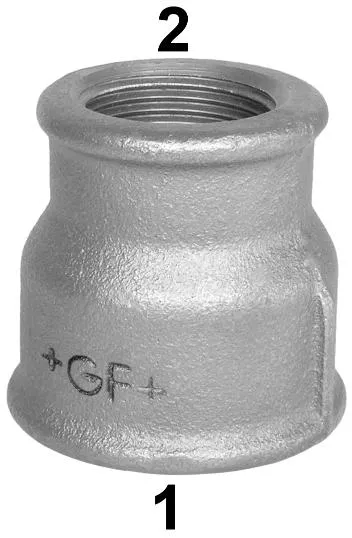

GF Malleable Fittings socket reduced 240 3/8 - 1/4 STA G

1153685 / - / -

GF Malleable Fittings socket reduced 240 1/2 - 1/4 B

1153718 / - / -

GF Malleable Fittings socket reduced 240 1/2 - 1/4 G

1153686 / - / -

GF Malleable Fittings socket reduced 240 1/2 - 3/8 B

1153719 / - / -

GF Malleable Fittings socket reduced 240 1/2 - 3/8 G

1153687 / - / -

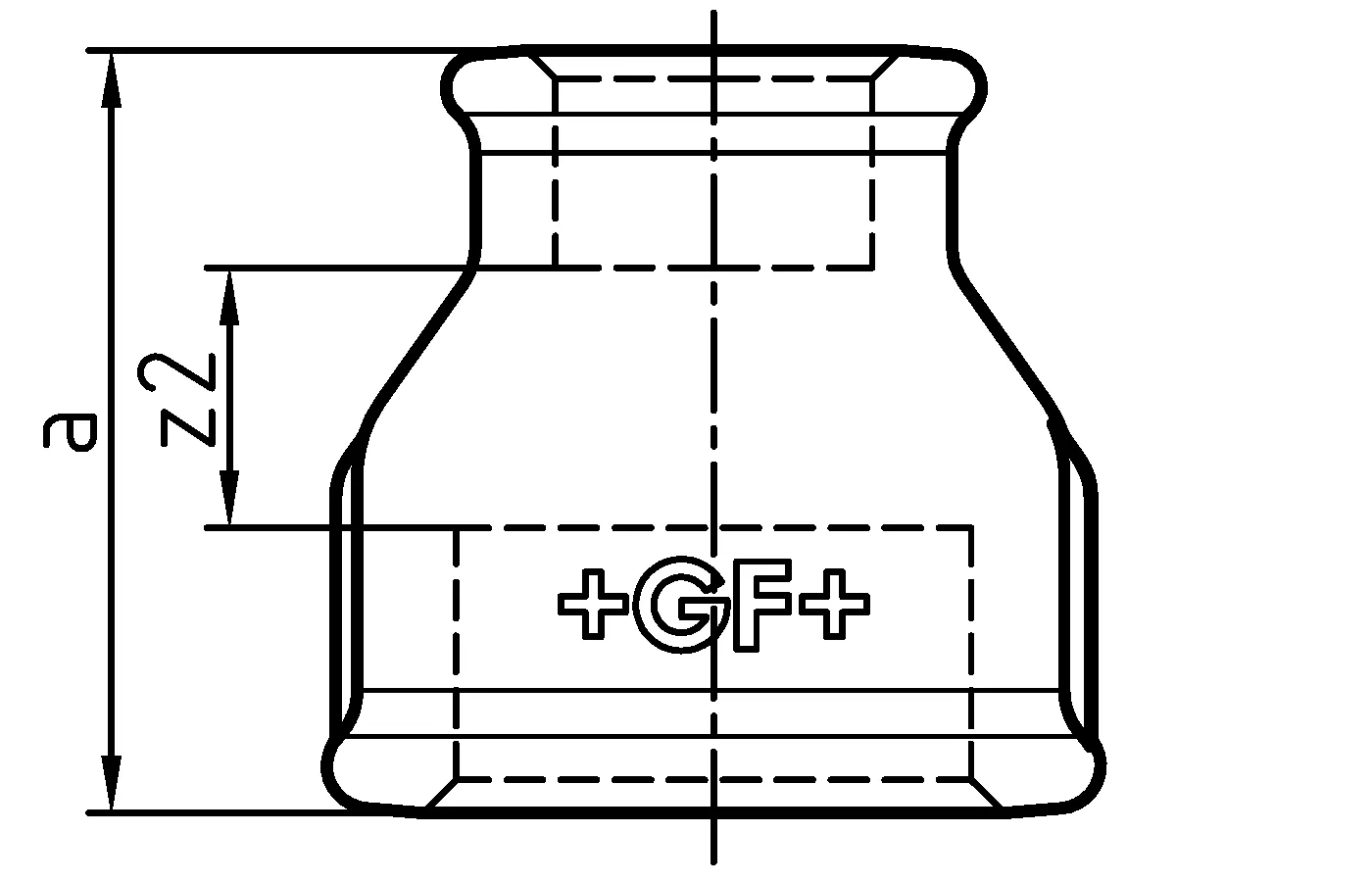

GF Malleable Fittings socket reduced 240 3/4 - 1/4 B

1153720 / - / -

GF Malleable Fittings socket reduced 240 3/4 - 1/4 G

1153688 / - / -

GF Malleable Fittings socket reduced 240 3/4 - 3/8 B

1153721 / - / -

GF Malleable Fittings socket reduced 240 3/4 - 3/8 G

1153689 / - / -

GF Malleable Fittings socket reduced 240 3/4 - 1/2 B

1153722 / - / -

GF Malleable Fittings socket reduced 240 3/4 - 1/2 G

1153690 / - / -

GF Malleable Fittings socket reduced 240 1 - 3/8 B

1153723 / - / -

GF Malleable Fittings socket reduced 240 1 - 3/8 G

1153691 / - / -

GF Malleable Fittings socket reduced 240 1 - 1/2 B

1153724 / - / -

GF Malleable Fittings socket reduced 240 1 - 1/2 G

1153692 / - / -

GF Malleable Fittings socket reduced 240 1 - 3/4 B

1153725 / - / -

GF Malleable Fittings socket reduced 240 1 - 3/4 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
