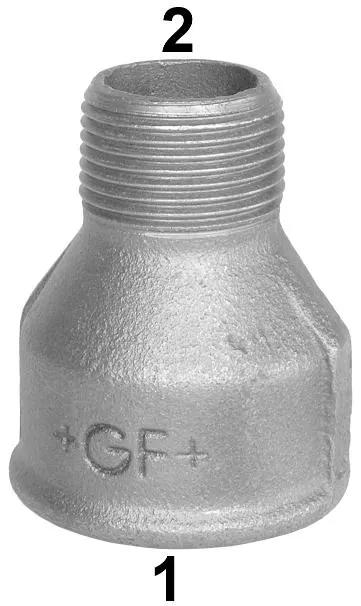

GF Malleable Fittings socket reduced 246

- 'ST' these types of fittings are made from steel (galvanised finish = electroplated)
- Not suitable for drinking water installations.
- Steel parts are hexagonal instead of beaded at the end no. 1.

Item details

1153955 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 3/4 G

1153935 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 B

1153956 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 G

1153936 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 1/4 B

1153957 / - / -

GF Malleable Fittings socket reduced 246 1 1/2 - 1 1/4 G

1153937 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 B

1153958 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 G

1153938 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/4 B

1153959 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/4 G

1153939 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/2 B

1153960 / - / -

GF Malleable Fittings socket reduced 246 2 - 1 1/2 G

1153940 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 1 1/2 B

1153961 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 1 1/2 G

1153941 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 2 B

1153962 / - / -

GF Malleable Fittings socket reduced 246 2 1/2 - 2 G

1153942 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 B

1153963 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 G

1153943 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 1/2 B

1153964 / - / -

GF Malleable Fittings socket reduced 246 3 - 2 1/2 G

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
