GF Malleable Fittings tee reduced

- Tee, reducing or increasing on the branch, reducing on the run, ISO/EN 81

Item details

1153284 / - / -

GF Malleable Fittings tee reduced 3/8 - 1/4

1153285 / - / -

GF Malleable Fittings tee reduced 3/8 - 1/2

1153286 / - / -

GF Malleable Fittings tee reduced 1/2 - 1/4

1153288 / - / -

GF Malleable Fittings tee reduced 1/2 - 3/8

1153290 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1/2 - 3/4

1153299 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1/2 - 1

1153287 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1/2 - 3/8 - 3/8

1153289 / - / -

GF Malleable Fittings tee reduced 1/2 - 1/2 - 3/8

1153291 / - / -

GF Malleable Fittings tee reduced 3/4 - 1/4

1153293 / - / -

GF Malleable Fittings tee reduced 3/4 - 3/8

1153296 / - / -

GF Malleable Fittings 130 - tee, reduced, black 3/4- 1/2

1153301 / - / -

GF Malleable Fittings tee reduced 3/4 - 1

1153292 / - / -

GF Malleable Fittings tee reduced 3/4 - 3/8 - 1/2

1153294 / - / -

GF Malleable Fittings 130 - tee, reduced, black 3/4 - 1/2 - 3/8

1153295 / - / -

GF Malleable Fittings tee reduced 3/4 - 1/2 - 1/2

1153297 / - / -

GF Malleable Fittings tee reduced 3/4 - 3/4 - 3/8

1153298 / - / -

GF Malleable Fittings tee reduced 3/4 - 3/4 - 1/2

1153300 / - / -

GF Malleable Fittings tee reduced 3/4 - 1 - 1/2

1153302 / - / -

GF Malleable Fittings tee reduced 1 - 1/4

1153303 / - / -

GF Malleable Fittings tee reduced 1 - 3/8

1153306 / - / -

GF Malleable Fittings tee reduced 1 - 1/2

1153309 / - / -

GF Malleable Fittings tee reduced 1 - 3/4

1153314 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 - 1 1/4

1153327 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 - 1 1/2

1153304 / - / -

GF Malleable Fittings tee reduced 1 - 1/2- 1/2

1153305 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 - 1/2 - 3/4

1153307 / - / -

GF Malleable Fittings tee reduced 1 - 3/4 - 1/2

1153308 / - / -

GF Malleable Fittings tee reduced 1 - 3/4 - 3/4

1153310 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 - 1 - 3/8

1153311 / - / -

GF Malleable Fittings tee reduced 1 - 1 - 1/2

1153312 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 - 1 - 3/4

1153313 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 - 1 1/4 - 3/4

1153315 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 3/8

1153317 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 1/2

1153320 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/4 - 3/4

1153323 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 1

1153329 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/4 - 1 1/2

1153345 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/4 - 2

1153316 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/4 - 1/2 - 1

1153318 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/4 - 3/4 - 3/4

1153319 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 3/4 - 1

1153321 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 1 - 3/4

1153322 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 1 - 1

1153324 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 1 1/4 - 1/2

1153325 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/4 - 1 1/4 - 3/4

1153326 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 1 1/4 - 1

1153328 / - / -

GF Malleable Fittings tee reduced 1 1/4 - 1 1/2 - 1

1153330 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 3/8

1153332 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 1/2

1153334 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2 - 3/4

1153337 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2 - 1

1153340 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2 - 1 1/4

1153347 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2 - 2

1153331 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2 - 1/2 - 1 1/4

1153333 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2 - 3/4 - 1 1/4

1153335 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 1 - 1

1153336 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2 - 1 - 1 1/4

1153338 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 1 1/4 - 1

1153339 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 1 1/4 - 1 1/4

1153341 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 1 1/2 - 1/2

1153342 / - / -

GF Malleable Fittings 130 - tee, reduced, black 1 1/2- 1 1/2 - 3/4

1153343 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 1 1/2 - 1

1153344 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 1 1/2 - 1 1/4

1153346 / - / -

GF Malleable Fittings tee reduced 1 1/2 - 2 - 1 1/4

1153349 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 1/2

1153351 / - / -

GF Malleable Fittings tee reduced 2 - 3/4

1153353 / - / -

GF Malleable Fittings tee reduced 2 - 1

1153356 / - / -

GF Malleable Fittings tee reduced 2 - 1 1/4

1153358 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 1 1/2

1153364 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 2 1/2

1153348 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 1/2 - 1 1/2

1153350 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 3/4 - 1 1/2

1153352 / - / -

GF Malleable Fittings tee reduced 2 - 1 - 1 1/2

1153354 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 1 1/4 - 1 1/4

1153355 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 1 1/4 - 1 1/2

1153357 / - / -

GF Malleable Fittings tee reduced 2 - 1 1/2 - 1 1/2

1153359 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 2 - 1/2

1153360 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 - 2 - 3/4

1153361 / - / -

GF Malleable Fittings tee reduced 2 - 2 - 1

1153362 / - / -

GF Malleable Fittings tee reduced 2 - 2 - 1 1/4

1153363 / - / -

GF Malleable Fittings tee reduced 2 - 2 - 1 1/2

1153365 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 1/2 - 1/2

1153366 / - / -

GF Malleable Fittings tee reduced 2 1/2 - 3/4

1153232 / - / -

GF Malleable Fittings tee reduced 2 1/2- 1

1153233 / - / -

GF Malleable Fittings tee reduced 2 1/2 - 1 1/4

1153234 / - / -

GF Malleable Fittings tee reduced 2 1/2 - 1 1/2

1153236 / - / -

GF Malleable Fittings tee reduced 2 1/2 - 2

1153235 / - / -

GF Malleable Fittings tee reduced 2 1/2 - 2 - 2

1153237 / - / -

GF Malleable Fittings 130 - tee, reduced, black 2 1/2 - 2 1/2 - 1 1/2

1153239 / - / -

GF Malleable Fittings 130 - tee, reduced, black 3 - 1/2

1153240 / - / -

GF Malleable Fittings 130 - tee, reduced, black 3 - 3/4

1153241 / - / -

GF Malleable Fittings tee reduced 3 - 1

1153242 / - / -

GF Malleable Fittings 130 - tee, reduced, black 3 - 1 1/4

1153243 / - / -

GF Malleable Fittings tee reduced 3 - 1 1/2

1153244 / - / -

GF Malleable Fittings 130 - tee, reduced, black 3 - 2

1153245 / - / -

GF Malleable Fittings tee reduced 3 - 2 1/2

1153246 / - / -

GF Malleable Fittings 130 - tee, reduced, black 4 - 1

1153247 / - / -

GF Malleable Fittings 130 - tee, reduced, black 4 - 1 1/2

1153248 / - / -

GF Malleable Fittings tee reduced 4 - 2

1153249 / - / -

GF Malleable Fittings tee reduced 4 - 3

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers

Product drawings

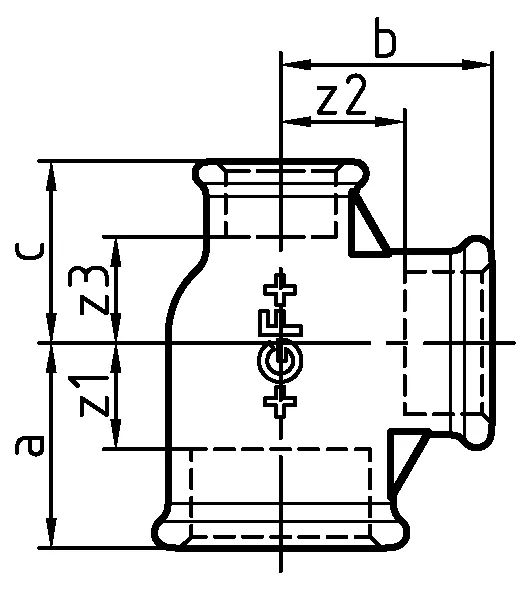

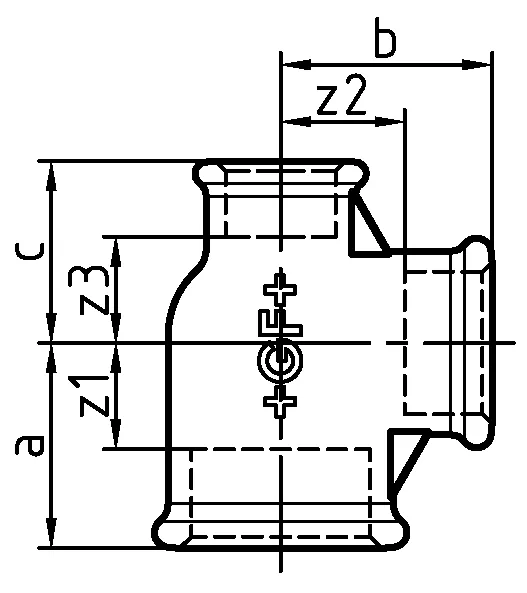

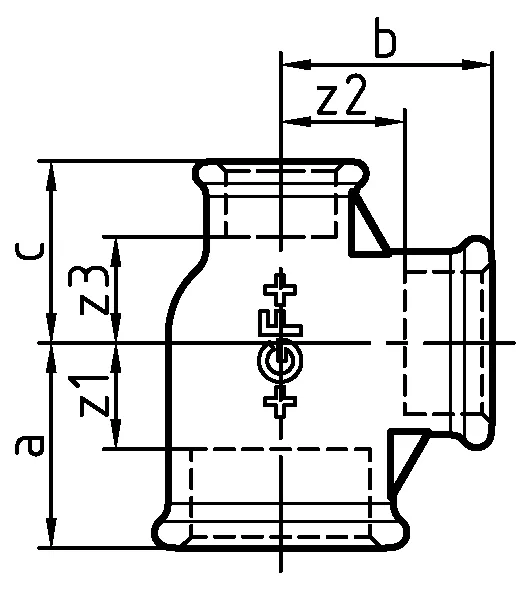

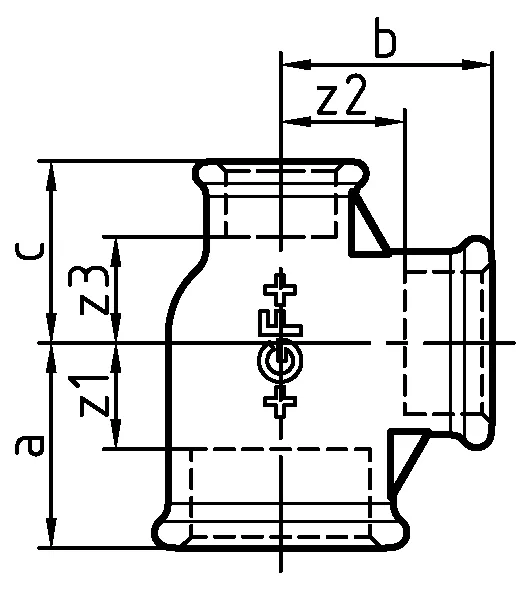

Z-drawing
