GF Malleable Fittings tee reduced 130

- Malleable cast iron
- Tee, reducing or increasing on the branch, reducing on the run
- ISO/EN B1

Item details

1153451 / - / -

GF Malleable Fittings tee reduced 130 2 - 1 1/4 G

1153449 / - / -

GF Malleable Fittings tee reduced 130 2 - 1 1/4 - 1 1/4 G

1153355 / - / -

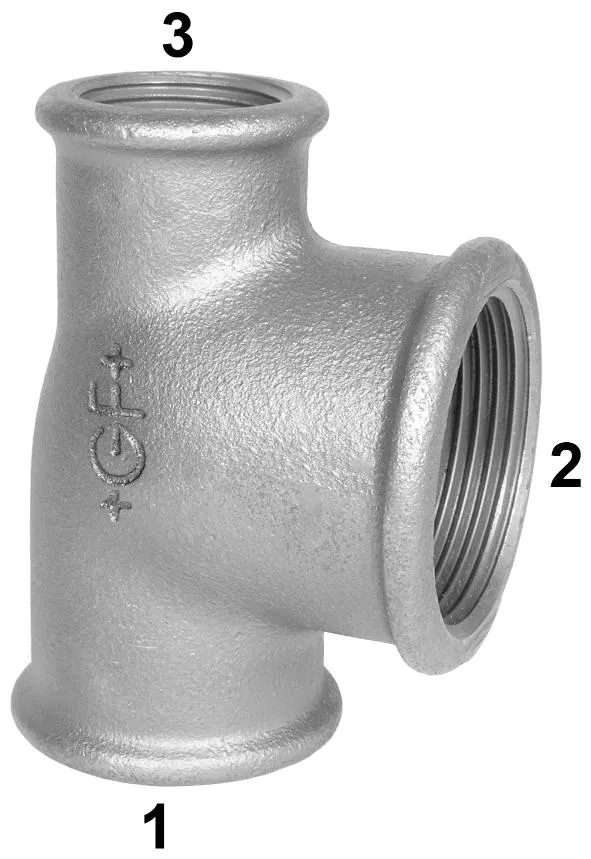

GF Malleable Fittings tee reduced 130 2 - 1 1/4 - 1 1/2 B

1153450 / - / -

GF Malleable Fittings tee reduced 130 2 - 1 1/4 - 1 1/2 G

1153358 / - / -

GF Malleable Fittings tee reduced 130 2 - 1 1/2 B

1153453 / - / -

GF Malleable Fittings tee reduced 130 2 - 1 1/2 G

1153357 / - / -

GF Malleable Fittings tee reduced 130 2 - 1 1/2 - 1 1/2 B

1153359 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 1/2 B

1153360 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 3/4 B

1153455 / - / -

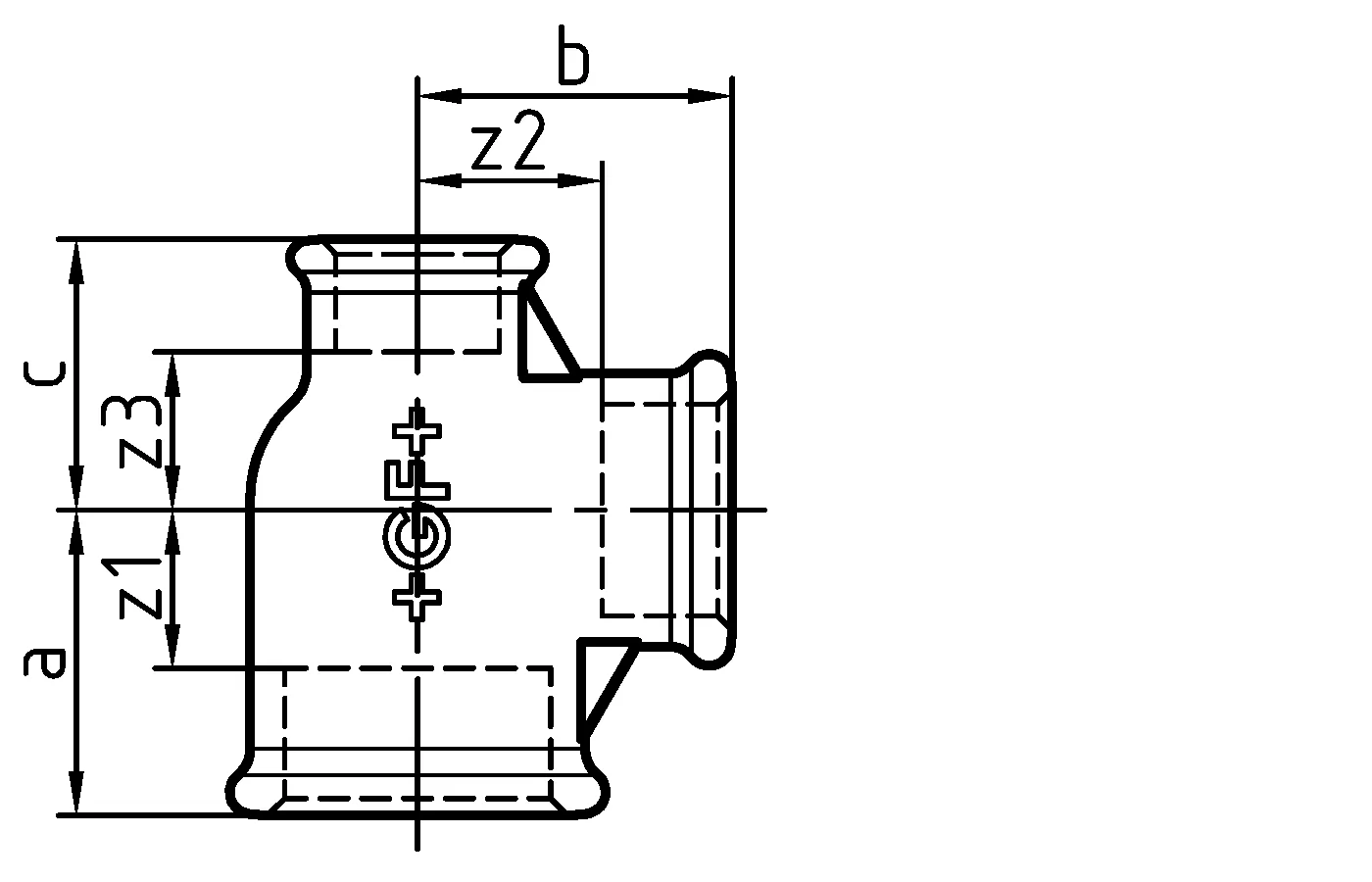

GF Malleable Fittings tee reduced 130 2 - 2 - 3/4 G

1153361 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 1 B

1153456 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 1 G

1153362 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 1 1/4 B

1153457 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 1 1/4 G

1153363 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 1 1/2 B

1153458 / - / -

GF Malleable Fittings tee reduced 130 2 - 2 - 1 1/2 G

1153365 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 1/2 B

1153460 / - / -

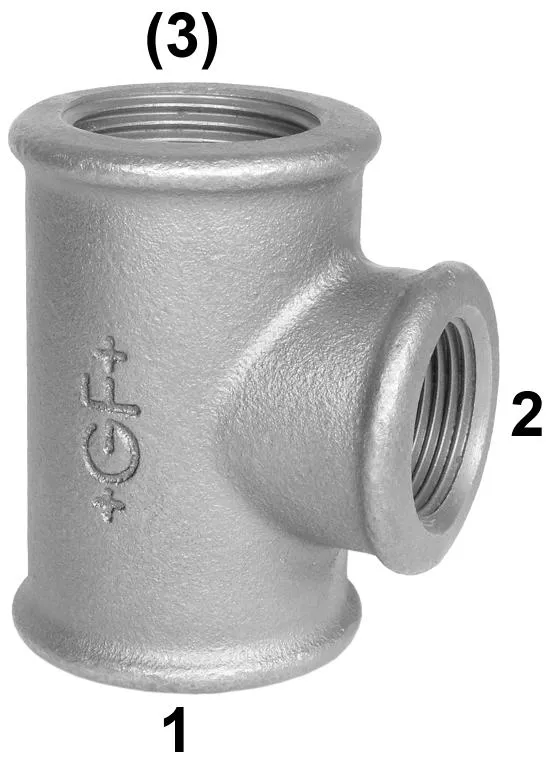

GF Malleable Fittings tee reduced 130 2 1/2 - 1/2 G

1153366 / - / -

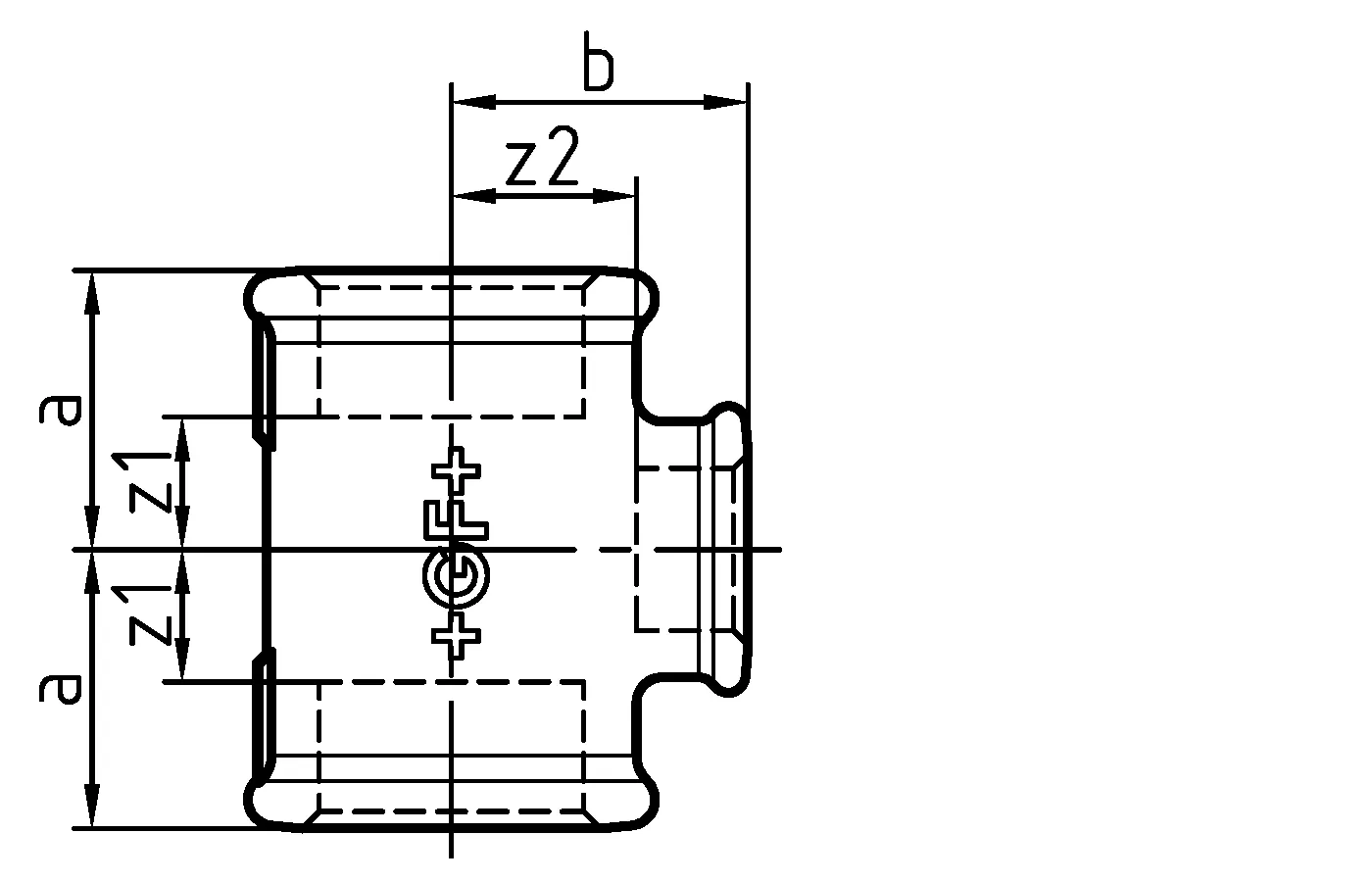

GF Malleable Fittings tee reduced 130 2 1/2 - 3/4 B

1153461 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 3/4 G

1153232 / - / -

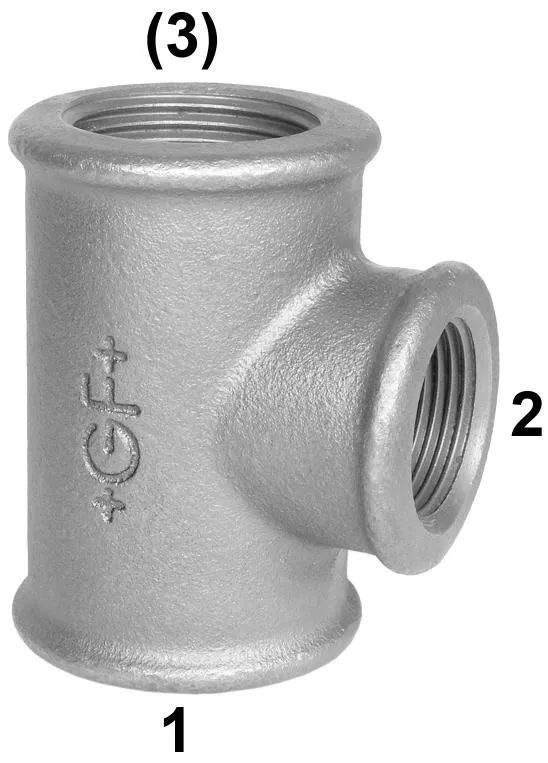

GF Malleable Fittings tee reduced 130 2 1/2- 1 B

1153250 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 1 G

1153233 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 1 1/4 B

1153251 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 1 1/4 G

1153234 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 1 1/2 B

1153252 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 1 1/2 G

1153236 / - / -

GF Malleable Fittings tee reduced 130 2 1/2 - 2 B

About

Specification

- Unique Whiteheart ductile Cast Iron to EN-GJMW-400-5
to BS EN 1562, design symbol A
- Thread type BSP - R or Rp to BS EN 10226-1 / ISO 7-1
- Union or flat-nut thread types to BS EN 228-1
- Manufactured to BS EN 10242 (ISO 49)
- Cast Iron is fire class A1 to BS EN 13501-1 (CWFT)
acc. to Commission Decision 96/603/EC (as amended)
- Natural Black or Galvanized (99.995 zinc)
- Coated with medical-grade oil for corrosion protection
- Suitable for systems covered by the Pressure Equipment
Safety Regulation:2016
- Max. pressure 25 bar up to 120 degrees,
between 120-300 degrees use interpolated values,
Max. 20bar at 300 degrees
- Sizes from ¼" to 4"

Application

- Heating - LTHW, MTHW and HTHW
- Steam
- Chilled water and cooling applications
- Compressed air
- Fuel gases
- Fuel oils
- Fire defence / sprinklers
